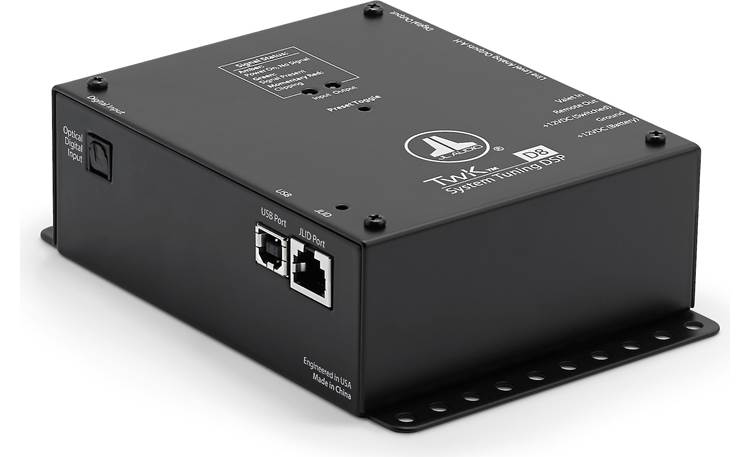

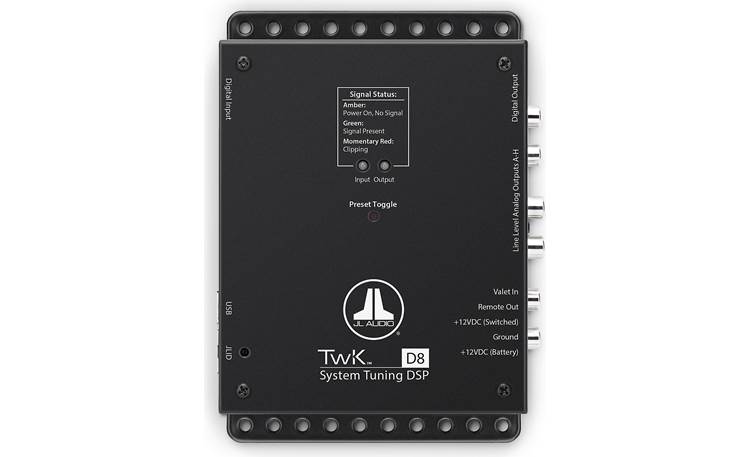

JL Audio TwK™ D8 System Tuning Processor 8-Channel Digital Signal Processor With Optical Digital Input

Product highlights:

• 8-channel digital signal processor with optical digital input

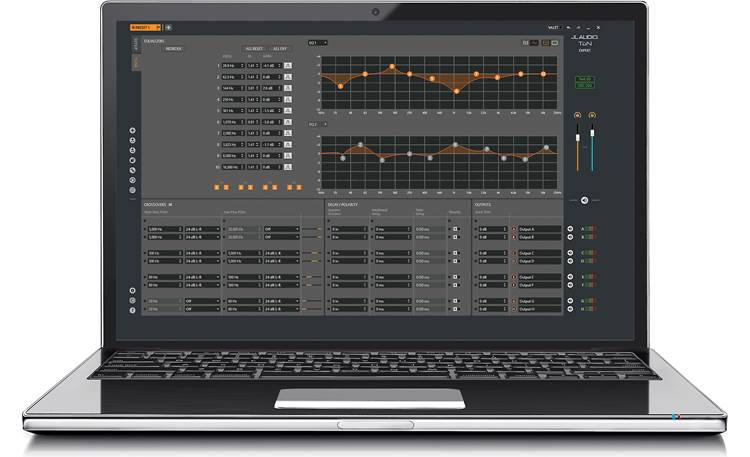

• DSP adjustments and settings made via Windows PC running JL Audio's TwK-TuN app
• Three Project Levels of tuning:
  • Basic: (10-minute set-up time) guided channel setups, basic crossover functions, 10-band graphic EQ, no delay
  • Advanced: (30-60-minute set-up time) adds crossover options, limited parametric EQ, delay functions
  • Expert: full manual controls with input mixer, parametric EQ, signal diagnostics

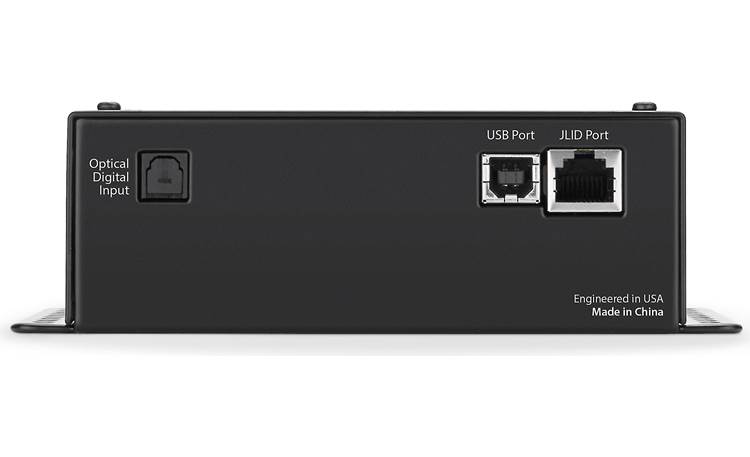

• optical digital input only

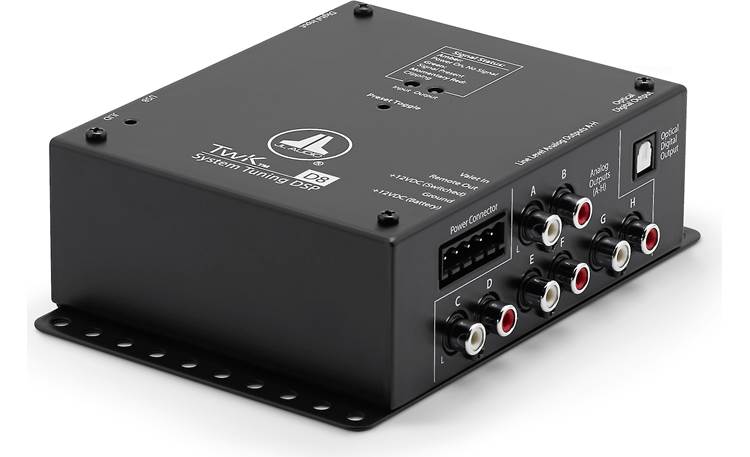

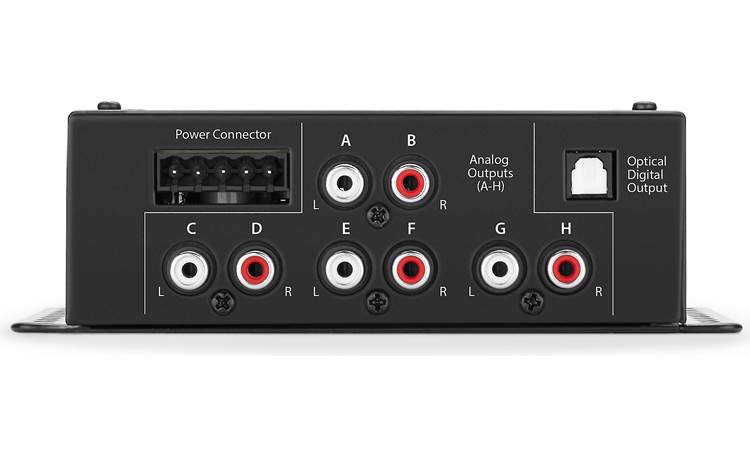

• 8 analog preamp outputs (RCA), 1 digital output (optical)
• all input channels assignable to any output channel
• channel settings can be separate or linked together
• 10-band EQ (graphic in Basic, parametric in Advanced and Expert modes)
• time alignment in 0.02 ms increments

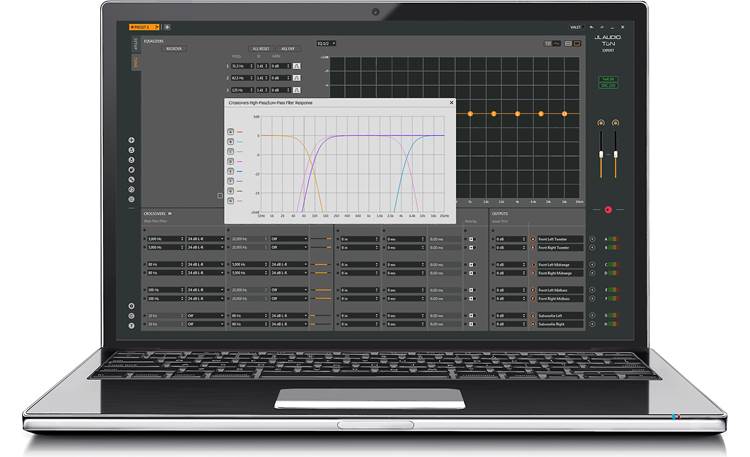

• fully adjustable high- and low-pass filters
  • selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
• DRC-200 wired remote control included
• dimensions: 4-9/16"W x 1-15/16"H x 6-3/16"D
• warranty: 2 years
• MFR # 98102
