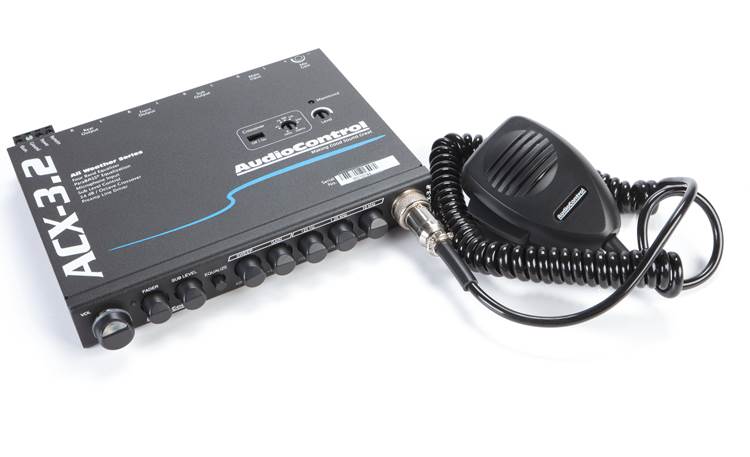

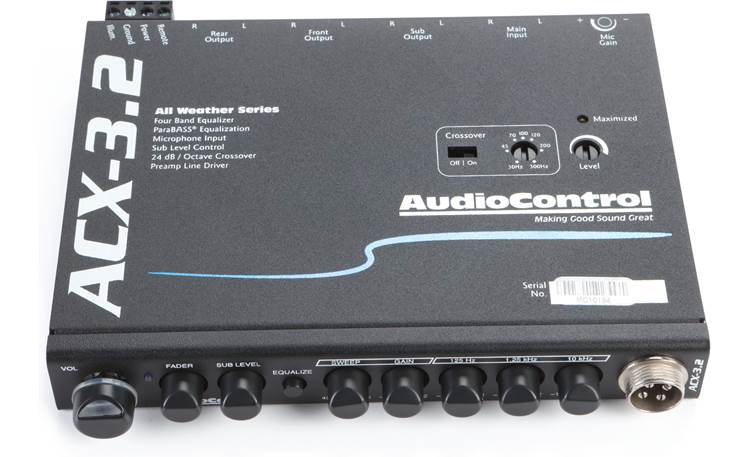

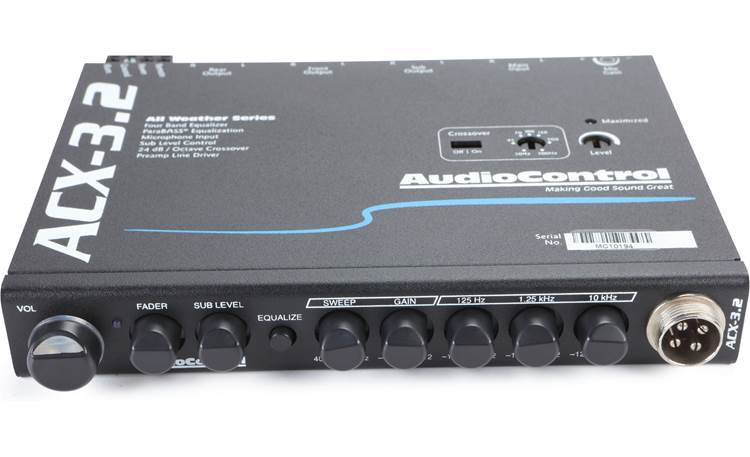

AudioControl ACX-3.2 All-weather stereo EQ and crossover with paging microphone

AudioControl ACX-3.2 All-weather stereo EQ and crossover with paging microphone

(0)
Regular price $479.00
Regular price Sale price $479.00
Sale Sold out

Product highlights:

  • stereo 4-band graphic equalizer and crossover with paging mic
  • 2-channel input (up to 7 Vrms)
  • input gain, master output volume, front-rear fader, and sub-level controls

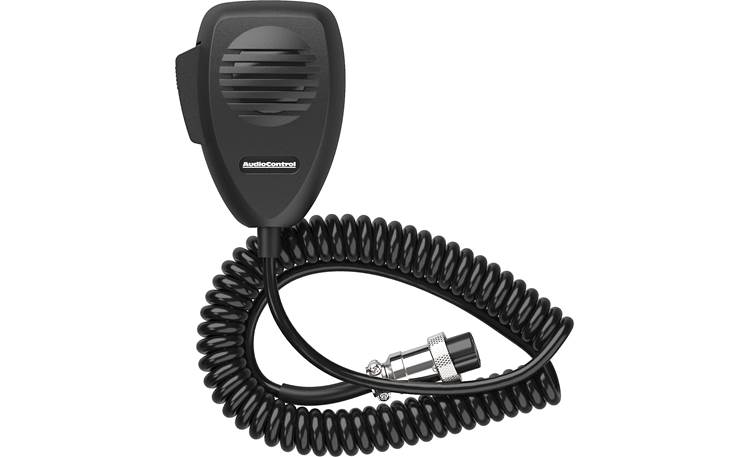

  • paging microphone with push-to-talk button included
    • mic gain controls mic/source balance

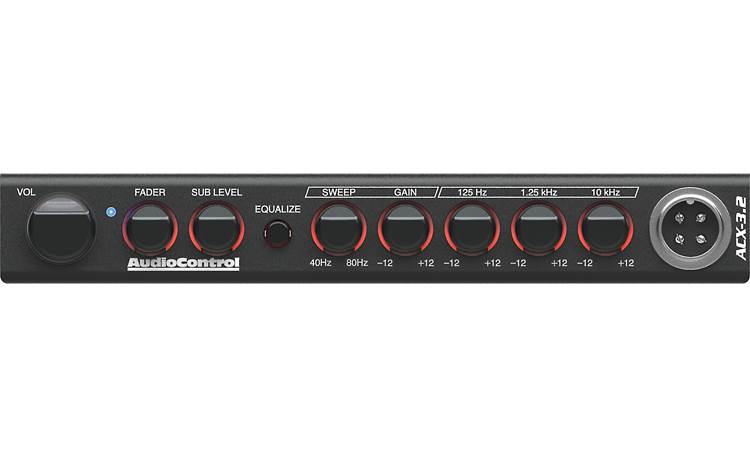

  • 4-band graphic EQ
    • Parabass® low frequency (40-80 Hz, +/-10 dB)
    • low-mid (125 Hz, +/-10 dB)
    • mid (1.25 kHz, +/-10 dB)
    • high (10 kHz, +/-10 dB)
  • variable Linkwitz-Riley crossover (10-100 Hz, 24 dB/octave) for sub integration
More info:
  • stereo front, rear, and subwoofer outputs (up to 9.5V peak)
  • selectable balanced/unbalanced inputs, mic routing, and ground isolation
  • selectable illumination (red or blue)

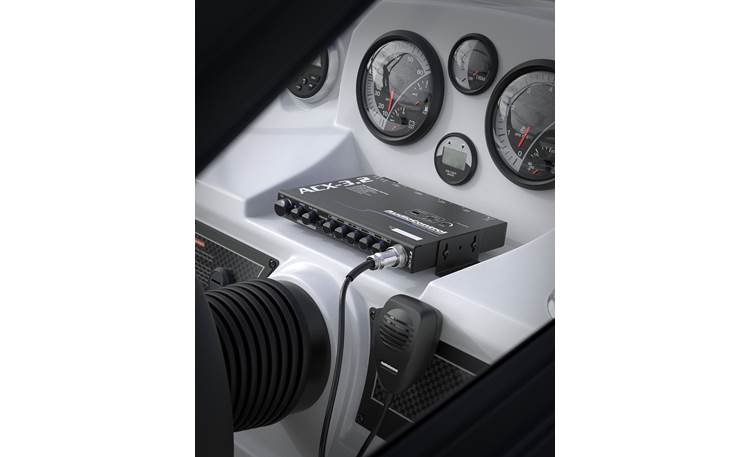

  • dash or console-mountable — brackets included
  • 16- to 18-gauge power and ground wires and a 1A fuse recommended
  • chassis dimensions: 6-5/16"W x 1"H x 6"D
  • warranty: 5 years
  • MFR # ACX-3.2
