AudioControl DM-810 Digital signal processor — 8 inputs, 10 outputs

Product highlights:

• digital signal processor
• 8 input channels, 10 outputs

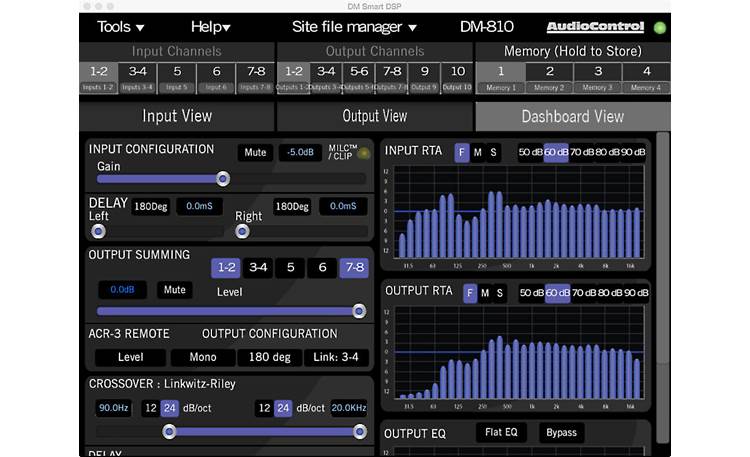

• all controls and adjustments made with AudioControl Smart-User DSP app on your laptop (PC or Mac) via USB connection
  • USB cable included
  • control via Android and iOS devices requires an AudioControl AC-BT24 Bluetooth adapter
• adjustable Linkwitz-Riley crossovers (20-20K Hz, 12 or 24 dB/octave)
• 30-band graphic EQ, parametric filters, phase correction
• AccuBASS circuitry for improved bass response
• time delay/alignment for inputs and outputs
• RTA (real-time analyzers) for inputs and outputs

Other Features:

• optional wired remote (#161ACR3) controls level, selects sources, and recalls up to 4 presets
• MILC™ (Maximum Input Level Control) LED optimization and clip indicators
• GTO™ signal-sensing turn-on
• 8 speaker-level inputs (summable)
• 8 preamp inputs and 10 preamp outputs
• coax and optical digital inputs
• recommended fuse rating: 2 amps
• dimensions: 10-1/2"W x 1-5/8"H x 6-1/4"D
• warranty: 5 years
• MFR # 841-080-8
