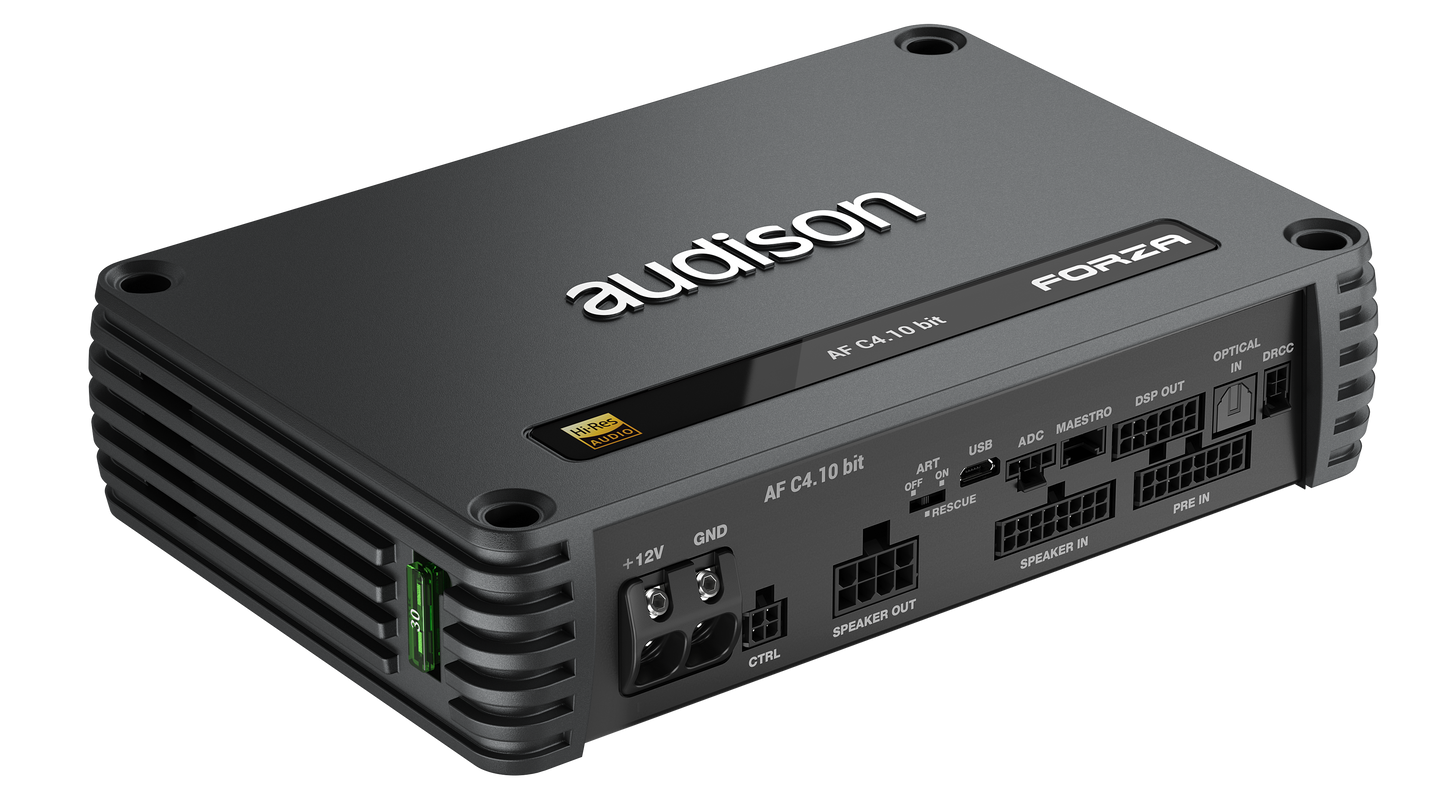

Audison AF C4.10 bit DSP Amplifier | 600 W | 10 CH DSP + 4 x 150 W @ 2 ohm | D-class Fully Bridgeable

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
• Next-generation bit Drive software platform
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Up to 10 output channels (4 amplified, 6 native pre-out outputs, 4 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
• 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
• Extension card slot (additional 4 analog or 1 digital inputs)
• Electrical signal analysis for each input channel ensures proper integration and correction
• Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
• Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

AMPLIFIER TECH DATA
Channels    4
Class    D-Class
Power supply voltage / fuse    11 ÷ 15 VDC / 1 x 30A
Operating power supply voltage    6.5 ÷ 17.5 VDC
Idling current    1 A
Standby Current Draw    1 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    29 A
Remote IN    4 ÷15 VDC (1 mA)
Remote OUT    6.5 ÷15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers    1.5 VDC
AST - Automatic Signal Turn on/off (Selectable)    1.5 VDC
Efficiency Rated Power    81%
