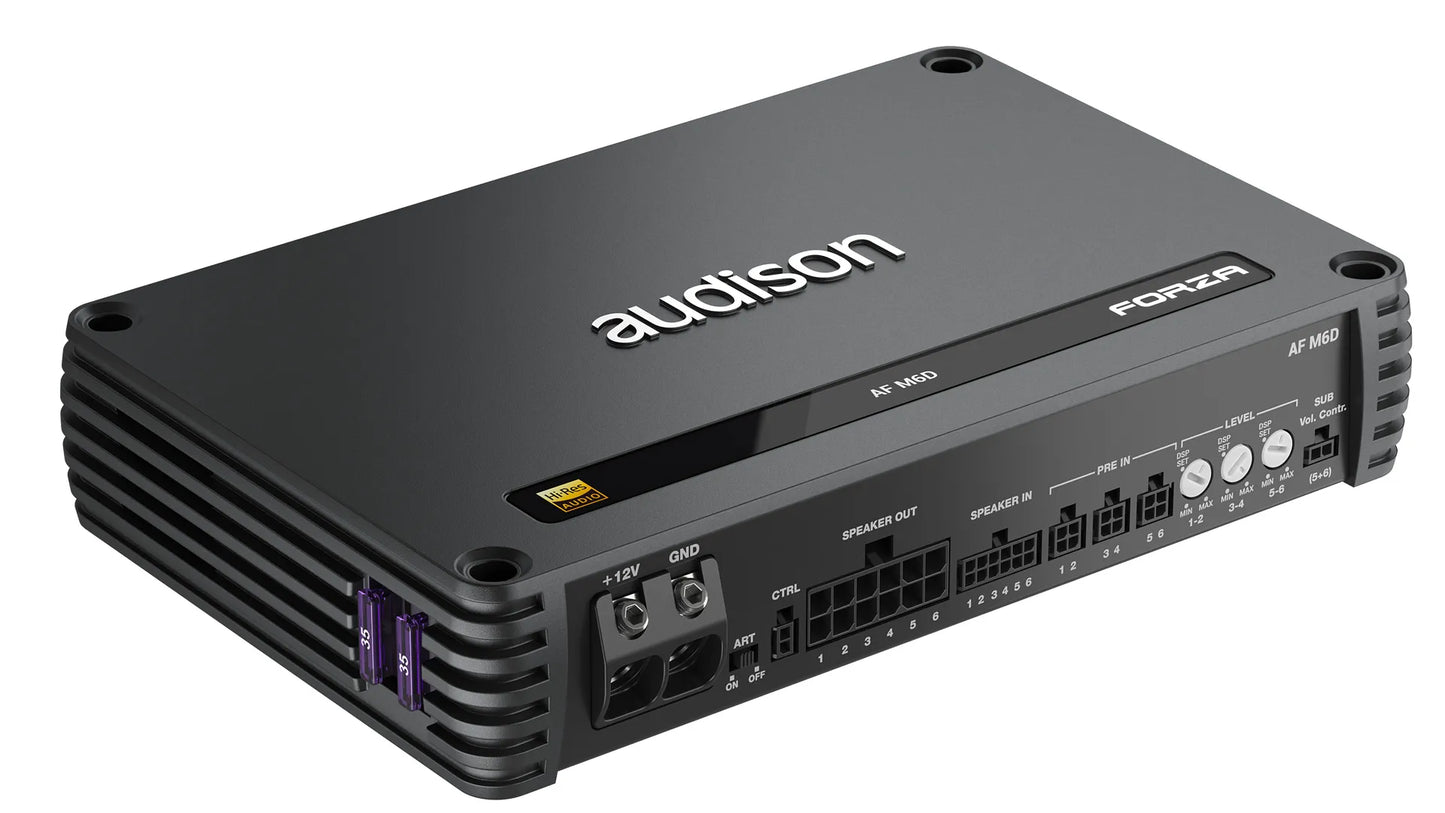

Audison AF M6D Amplifier | 1320 W total power | 6 x 220 W @ 2ohm | D-class Fully Bridgeable

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs

AMPLIFIER TECH DATA
Channels    6
Class    D-Class
Efficiency    81 %
Hi Level Input    Yes
Low Level Input    Yes
Digital Input    No
Power supply voltage / fuse    11 ÷ 15 VDC
Operating power supply voltage    6.5 ÷ 17.5 VDC
Idling current    1 A
Idling current when off    0.009 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    60 A
Remote OUT    6.5 ÷15 VDC (150 mA)
Remote IN    4 ÷15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)    1.5 VDC

AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power    0.04%
Bandwidth A    (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 42 kHz
S/N ratio A    (A weighted @ 1 V): 103 dBA
Damping factor A    (100 Hz, 4Ω, 2 VRMS): 160
Input sensitivity Pre-In    0.6 ÷ 6 VRMS
Input sensitivity Speaker-In    2.2 ÷ 22 VRMS
Total Power RMS    1320 W
Minimum load impedance    6 Ch 2Ω
3 Ch - (Bridge) 4Ω
Output Power (RMS) @14.4 VDC, 1% THD    6 Ch @ 4Ω: 135 W x 6

6 Ch @ 2Ω: 220 W x 6

3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3
Adjustable Crossover    No
