Audison AP 1 Tweeter | 150 W Peak Power | 26 mm | 4 ohm

Audison AP 1 Tweeter | 150 W Peak Power | 26 mm | 4 ohm

Regular price $200.00
Regular price Sale price $200.00
Sale Sold out

FEATURES

  • 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.

  • An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.

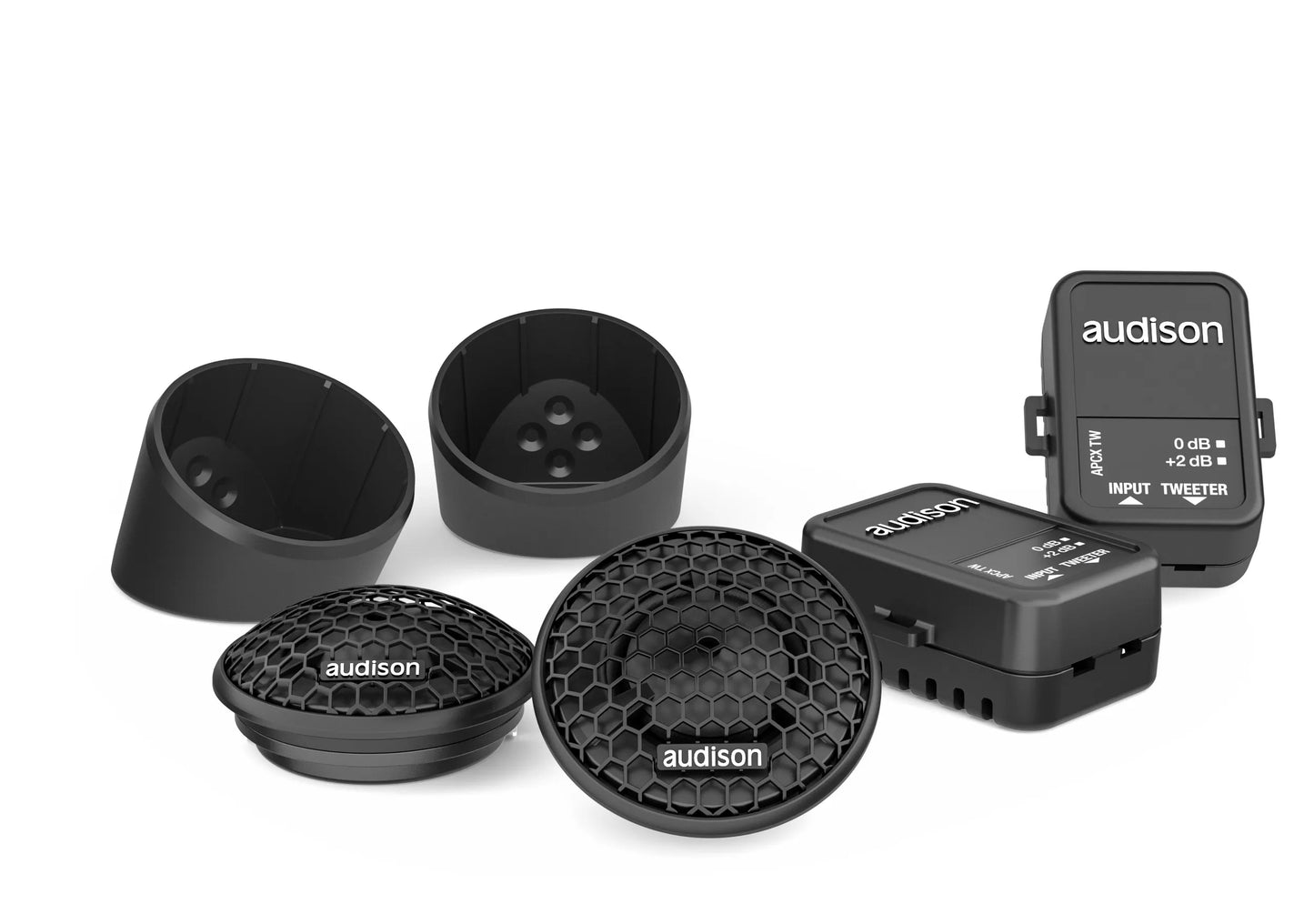

  • Extremely compact dedicated passive crossover APCX TW supplied with the product, optimized
    for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with “OEM Integration compliant”, fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
  • A wide array of mounting accessories is supplied with the product, for high fitment flexibility in OEM Integration.
  • CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound
    on a Kapton former, for better heat dissipation.

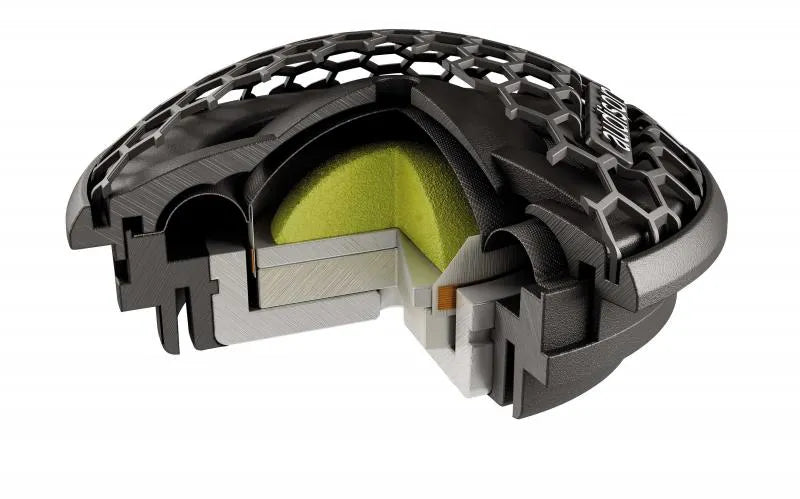

  • The Dome profile and motor are optimized with FEM (Finite Element Method) simulation
    technology.
  • Developed with the KLIPPEL suite.

TECHNICAL SPECS
Size    26 mm
Power Handling - Peak    150 W
Power Handling Crossover    Hi-pass filtered @ 3,5 kHz - 12 dB Oct
Impedance    4 Ohm
Frequency Response    2k ÷ 20k Hz
Magnet Material    NEODYMIUM
Voice Coil Ø    20 mm
Woofer Qes    2,78
Dome Material    TELOTON FIBRE

ELECTRIC-ACOUSTIC SPECS
D    27.5 mm
Re    3.5 Ohm
Fs    1500 Hz
Mms    0.16 g
Cms    0.09 mm/N
BL    1.3 T•m
Qms    1.5
Qts    0.98
Le Standard    0.02 mH
Spl    93 dB
