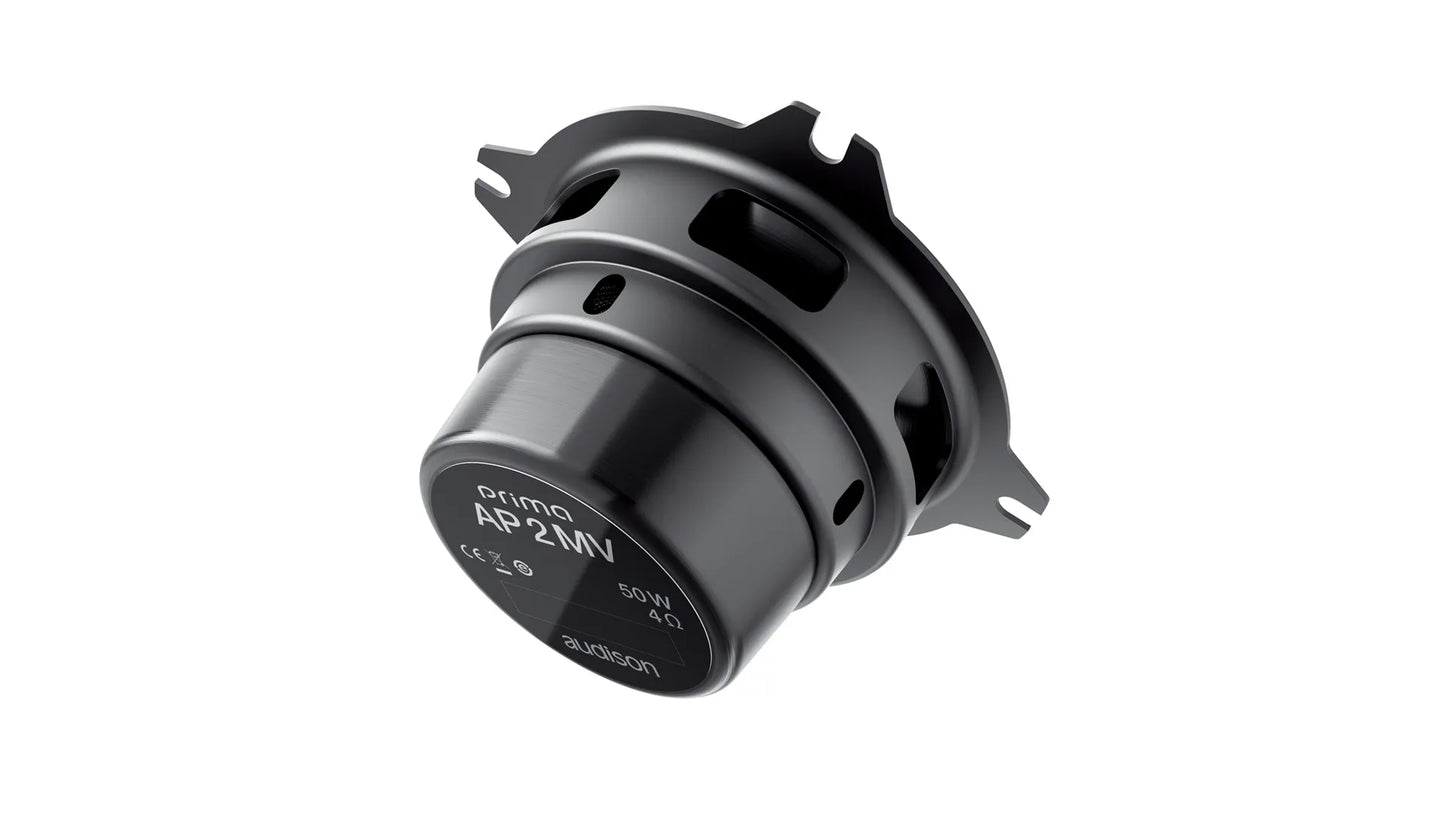

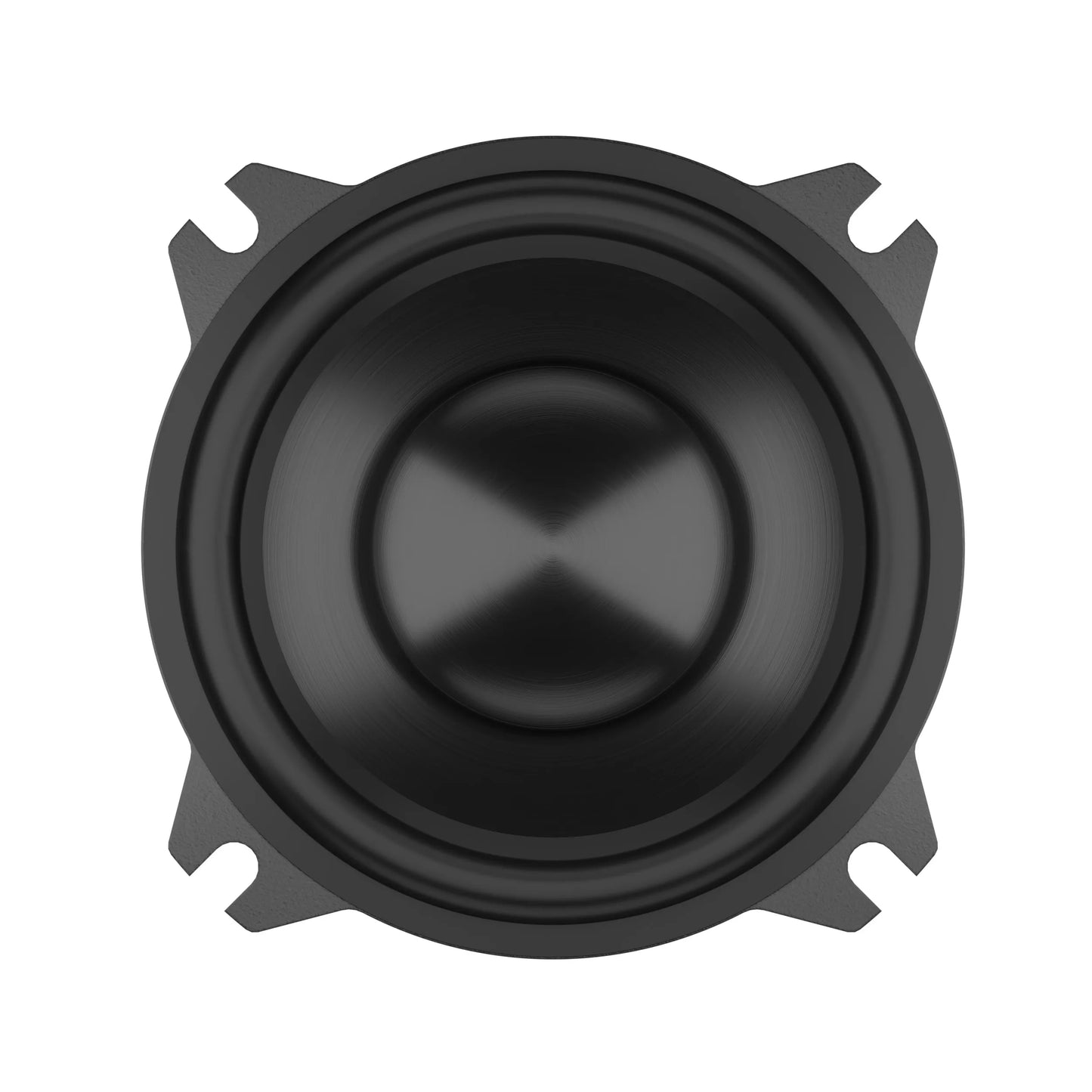

Audison AP 2 MV Mid Range | 50 W Peak Power | 50 mm | 4 ohm

• Ultra-wide frequency response ranging from 150 Hz to 20 kHz allowing
  the entire virtual stage to be concentrated on the top side of the dashboard.
• 25 mm (1 in.) CCAW double layer coil for excellent power handling and low-frequency extension.
• Powerful magnetic assembly made of a symmetrical double Neodymium
  magnet for optimal excursion control.
• Aluminum cone and copper shorting ring for a high-frequency response
  up to 20 kHz.
• Ultra-compact design, thanks to the specifically designed basket and
  neodymium motor, to facilitate dashboard and A-pillar OEM installations.

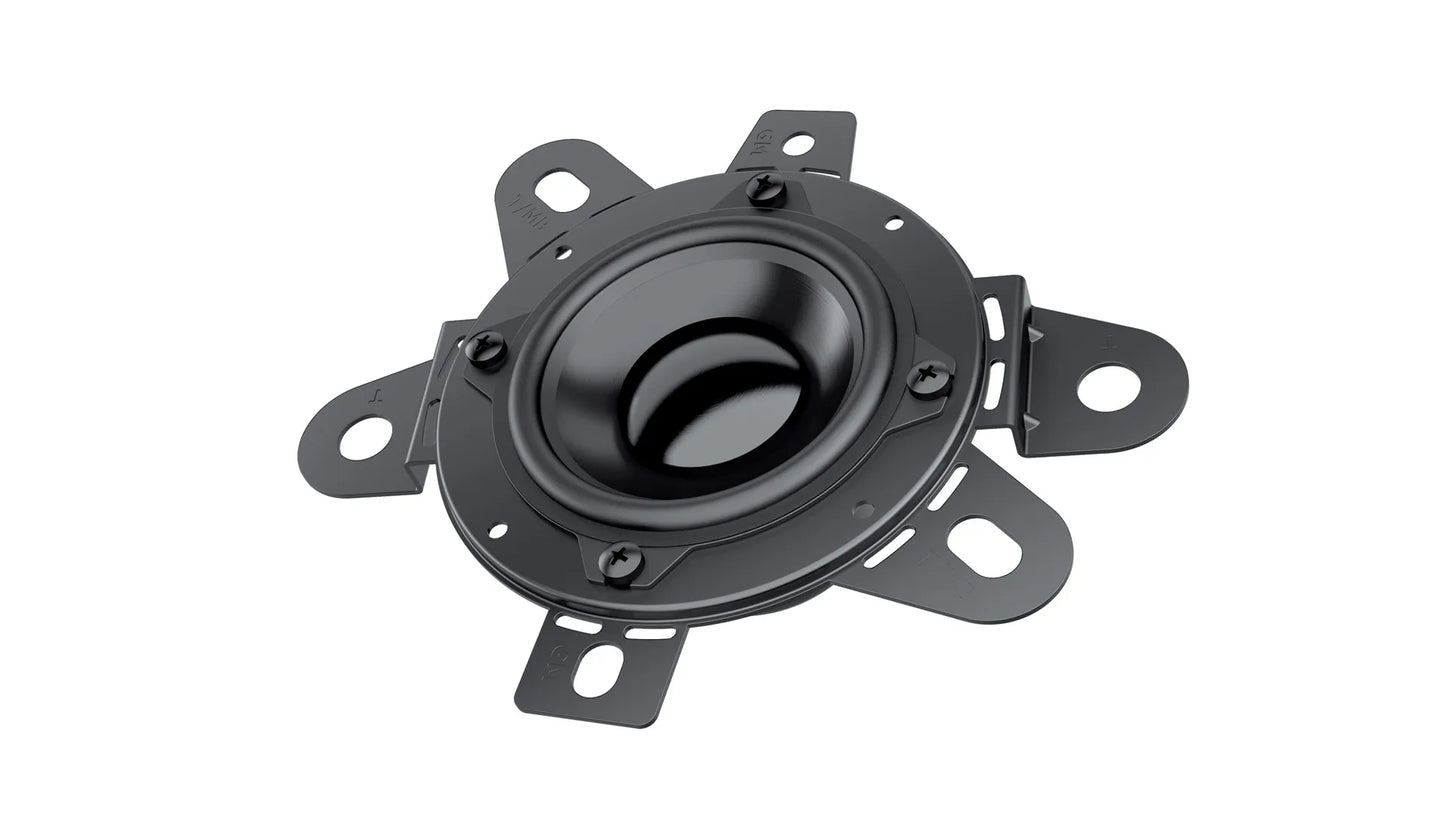

• Provided adapter for direct OEM replacement in many General Motors*,
  Toyota* and Mercedes* vehicles.

TECHNICAL SPECS
Size    50 mm
Power Handling - Peak    50 W
Power Handling - Continuous    25 W
Impedance    4 Ohm
Frequency Response    150 ÷ 20k Hz Hz
Magnet Material    NEODYMIUM
Voice Coil Ø    25 mm
Voice Coil Material    CCAW
Woofer Qes    0,70
Xmax    2.5 mm

ELECTRIC-ACOUSTIC SPECS
D    49.1 mm
Re    3.5 Ohm
Fs    145 Hz
Vas    0.36 l
Mms    1.68 g
Cms    0.7 mm/N
BL    2.8 T•m
Qms    7.7
Qts    0.64
Diaphragm Area    49.1 cm2
Le Standard    0.07 mH
Spl    84 dB
