Audison

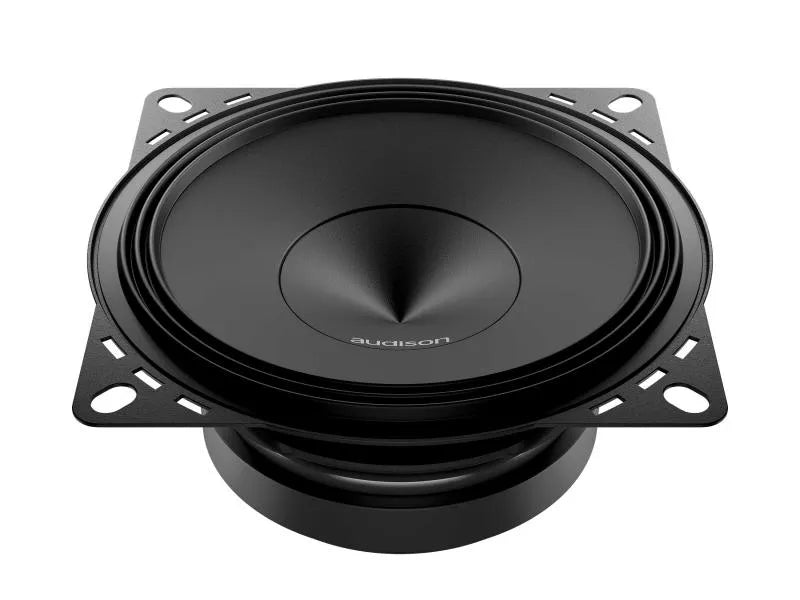

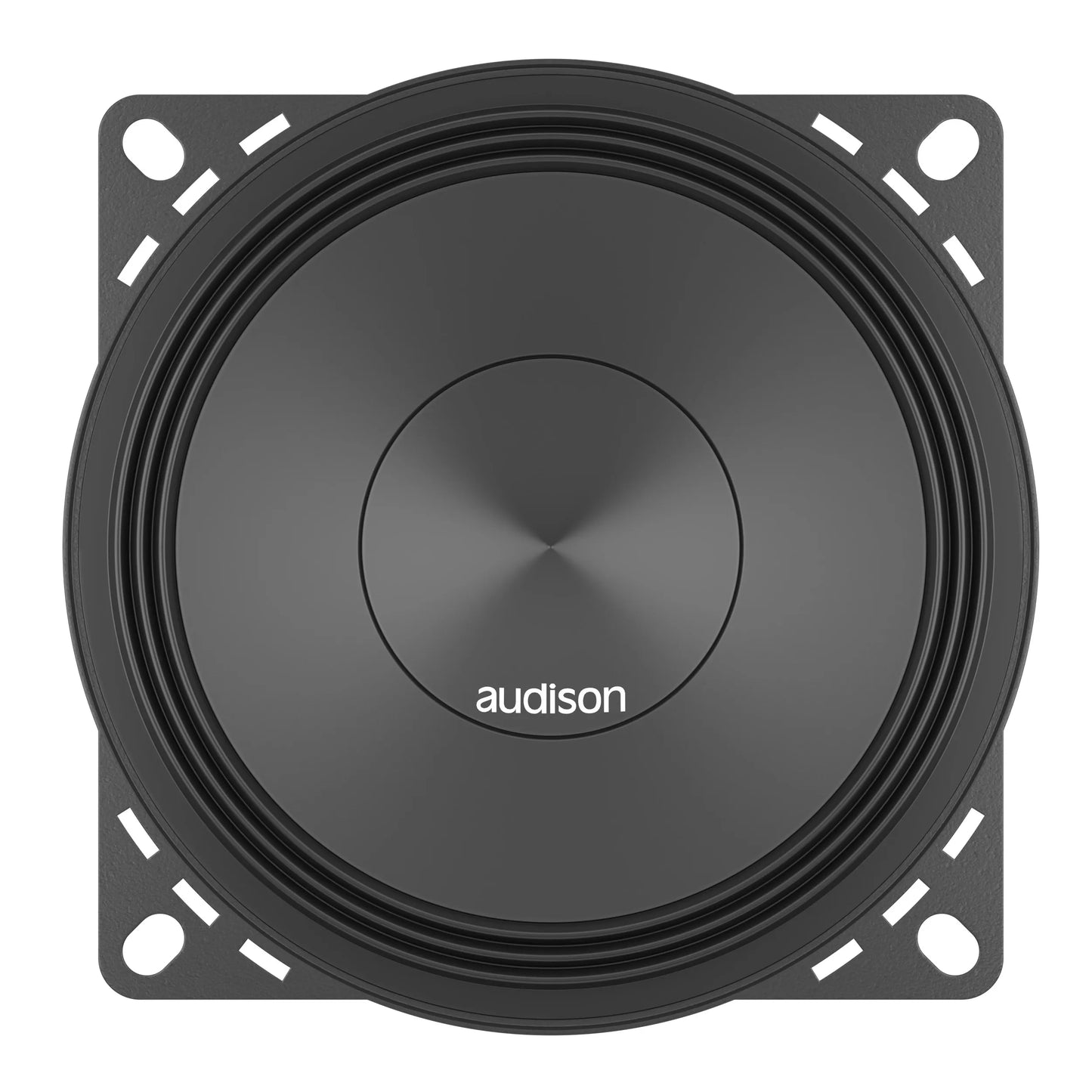

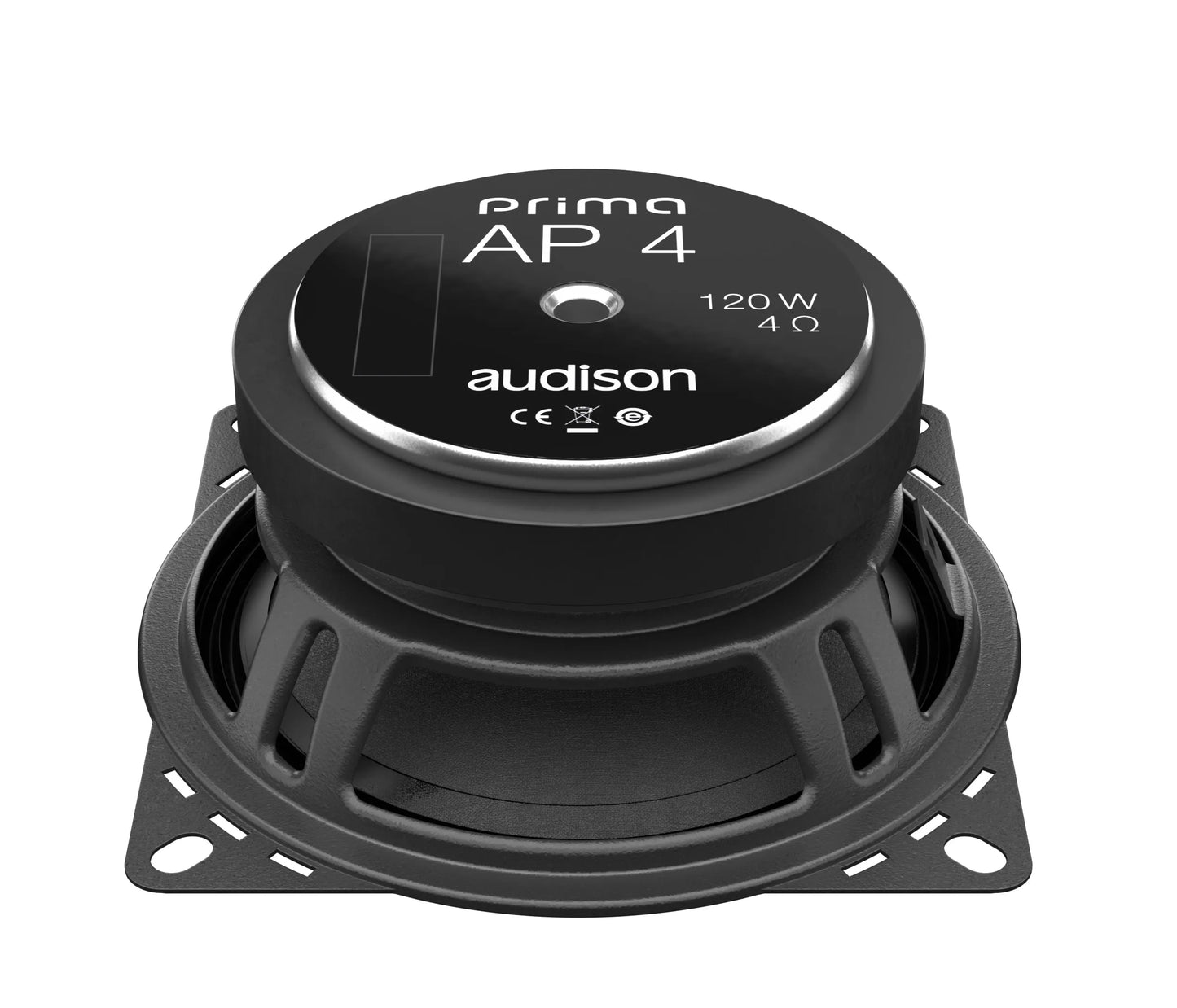

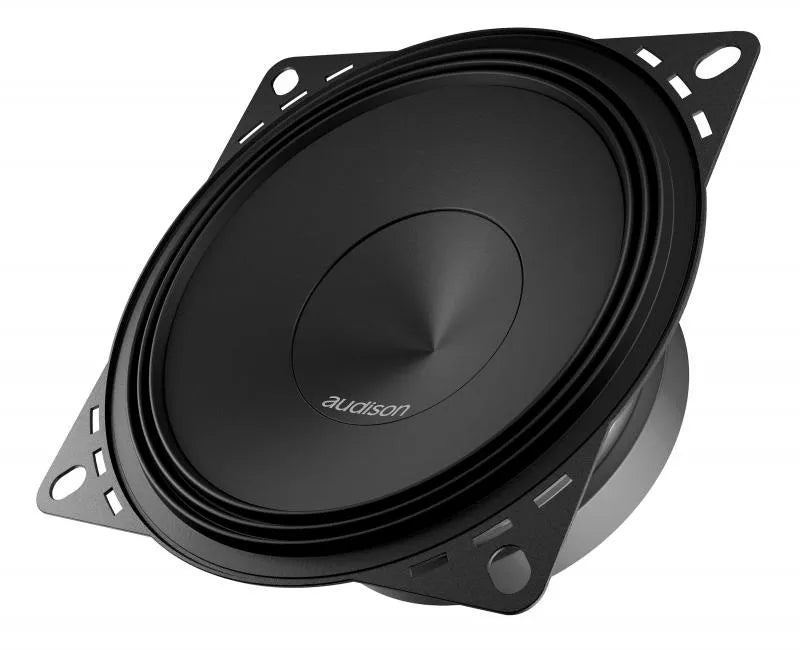

Audison AP 4 Mid Range | 120 W Peak Power | 100 mm | 4 ohm

Audison AP 4 Mid Range | 120 W Peak Power | 100 mm | 4 ohm

Regular price $200.00
Regular price Sale price $200.00
Sale Sold out

FEATURES

  • Very extended frequency response, in both high and low frequencies, combined with high efficiency.
  • No passive crossover required to maximize efficiency: the cone is optimized with the Klippel Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.

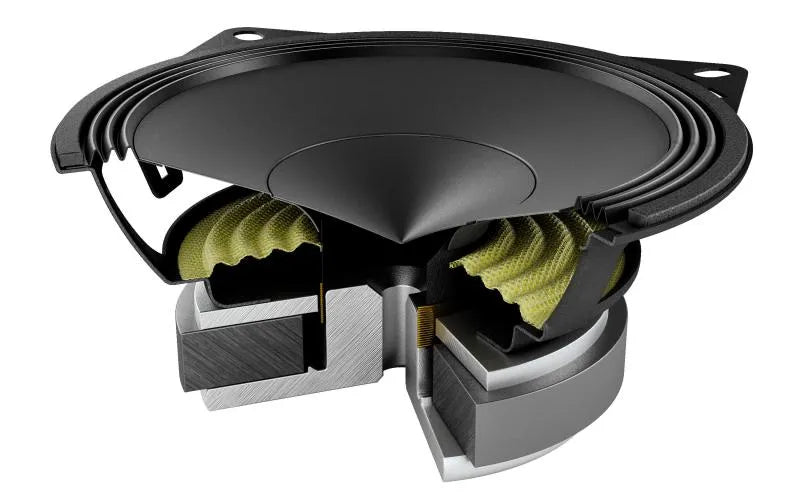

  • Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • Reduced mounting depth, providing ease of installation in OEM placements.
  • TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
  • 25 mm pure copper voice coil; ensuring precise balance in the mid-high frequency range.
  • Compact basket, protected by abrasion-resistant and scratch-proof coating.
  • Developed with the KLIPPEL suite.

TECHNICAL SPECS
Size    100 mm
Power Handling - Peak    120 W
Power Handling - Continuous    40 W
Impedance    4 Ohm
Frequency Response    80 ÷ 7,5k Hz
Voice Coil Ø    25 mm
Woofer Qes    1,2
Xmax    1.8 mm

ELECTRIC-ACOUSTIC SPECS
D    85 mm
Re    3.2 Ohm
Fs    125 Hz
Vas    1.5 l
Mms    5 g
Cms    0.3 mm/N
BL    3.4 T•m
Qms    7.6
Qts    1
Le Standard    0.16 mH
Spl    91 dB
