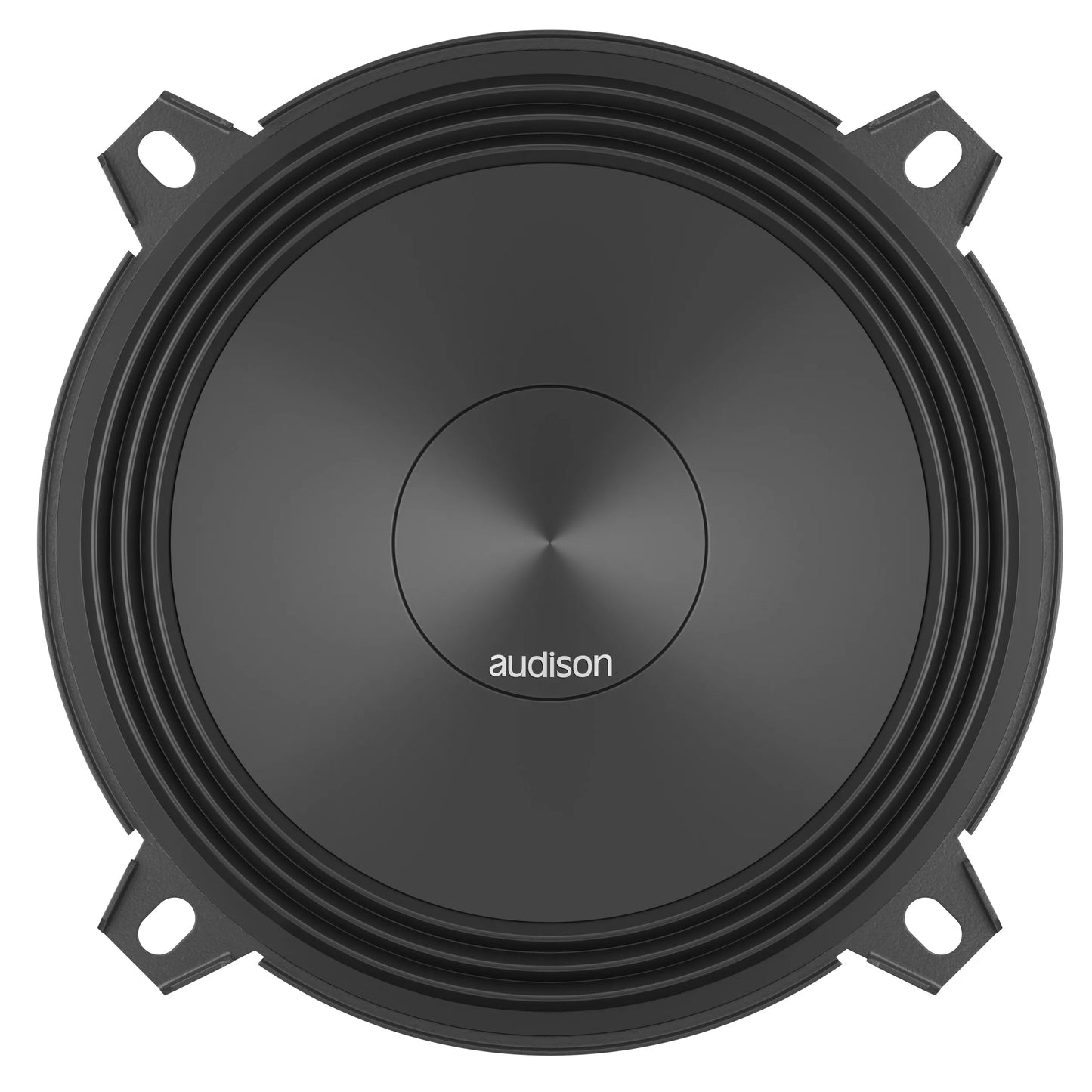

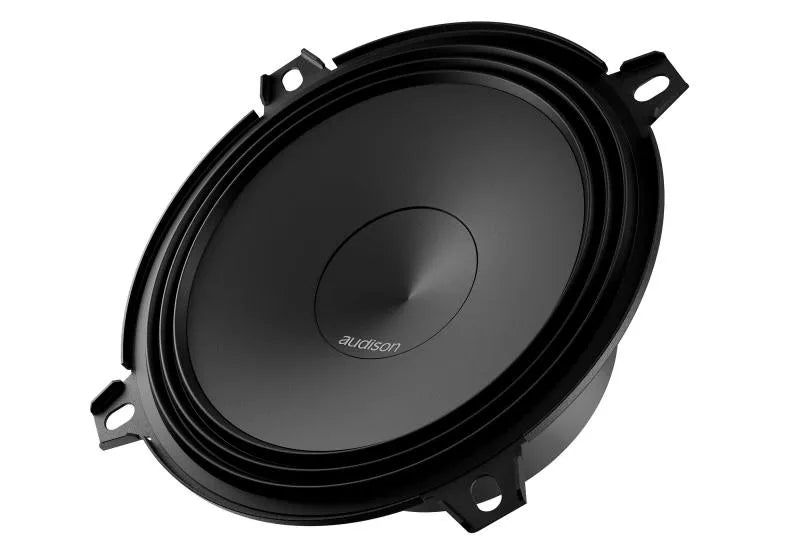

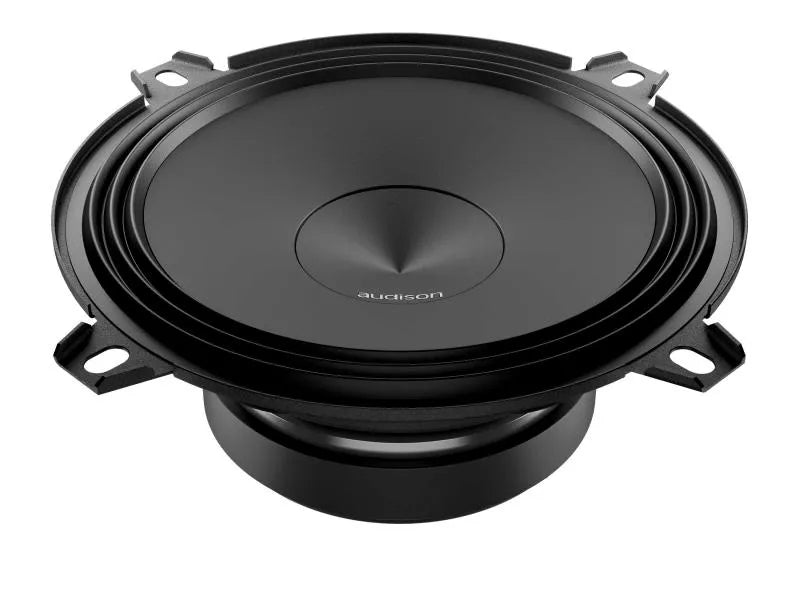

Audison AP 5 Woofer | 150 W Peak Power | 130 mm | 4 ohm

Audison AP 5 Woofer | 150 W Peak Power | 130 mm | 4 ohm

Regular price $220.00
Regular price Sale price $220.00
Sale Sold out


  • 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
  • Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
  • Reduced mounting depth, providing ease of installation in OEM placements.
  • TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.

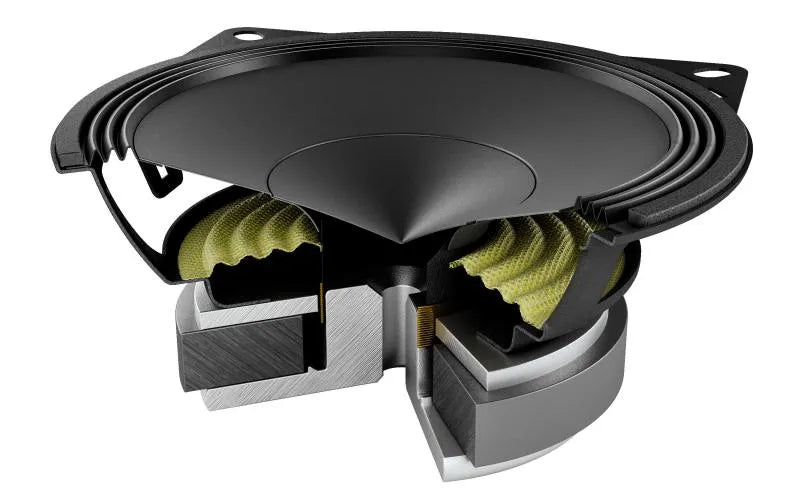

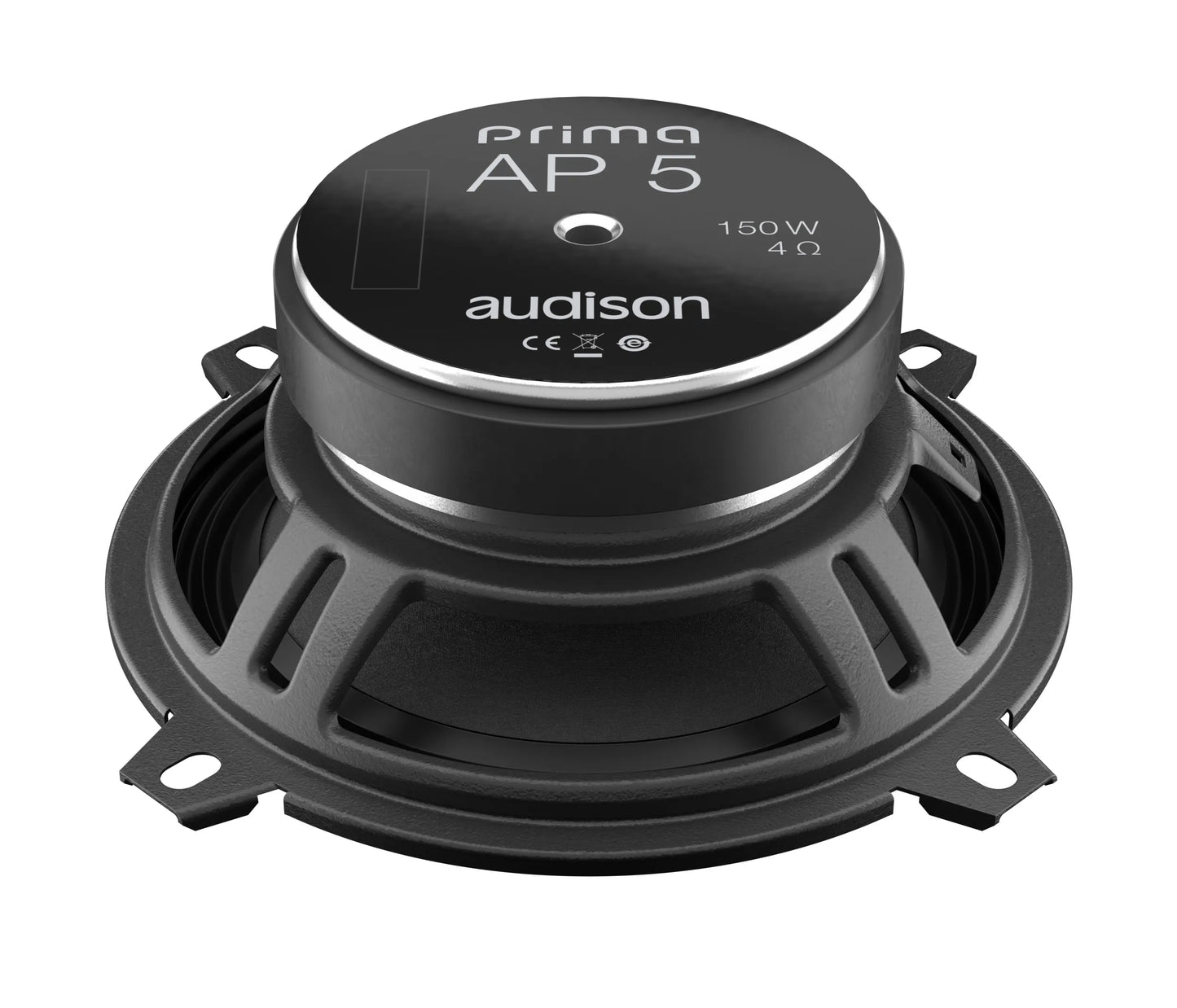

  • Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor is affixed with damping epoxy adhesive.
  • High current fast-on terminal with double contact on positive and negative poles for installation flexibility and quick connection.
    The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

Size    130 mm
Power Handling - Peak    150 W
Power Handling - Continuous    50 W
Impedance    4 Ohm
Frequency Response    70 ÷ 5k Hz
Voice Coil Ø    32 mm
Woofer Qes    0,74
Xmax    2 mm

D    107 mm
Re    3.1 Ohm
Fs    90 Hz
Vas    4 l
Mms    9 g
Cms    0.34 mm/N
BL    4.6 T•m
Qms    8
Qts    0.68
Le Standard    0.25 mH
Spl    93 dB
