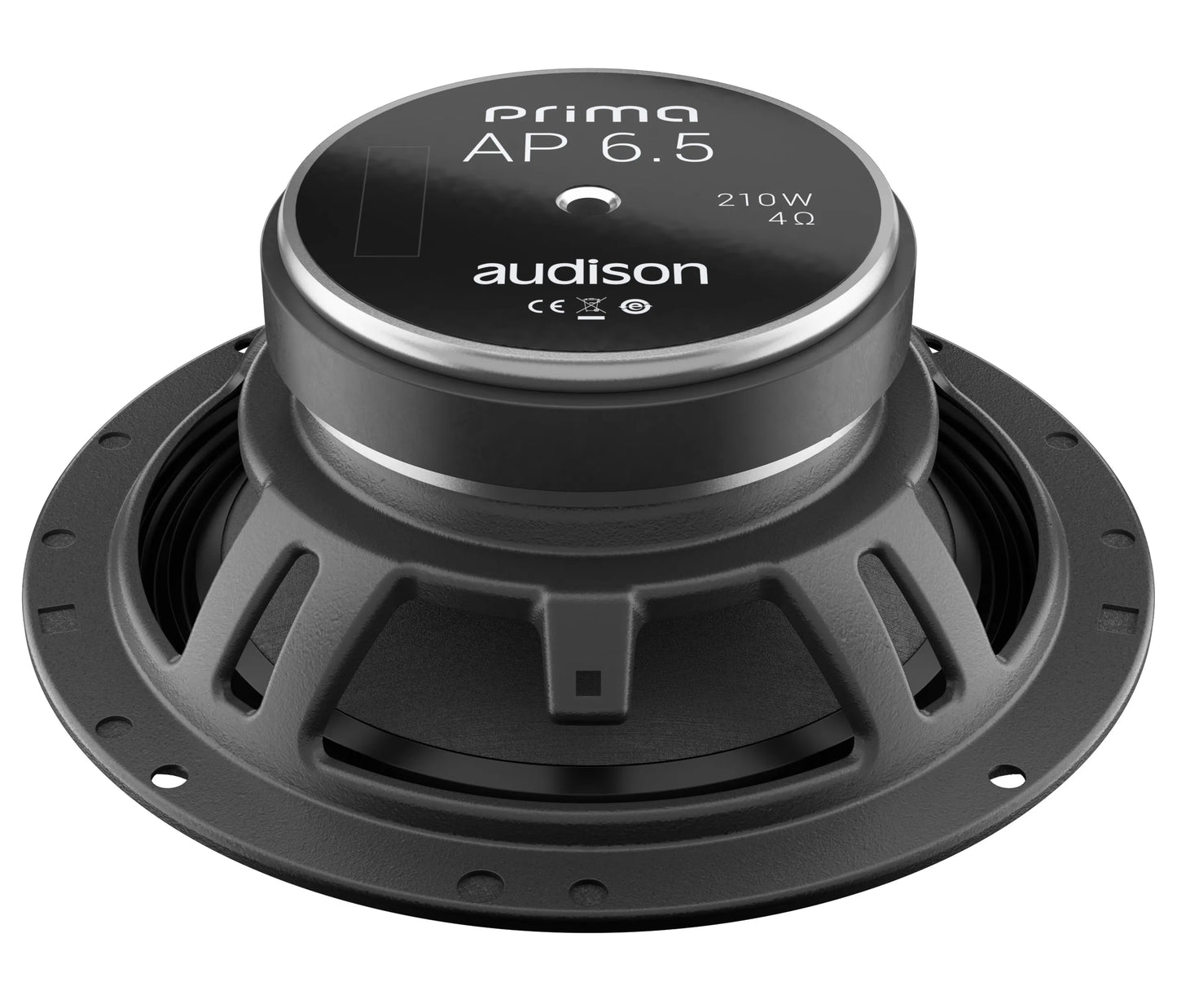

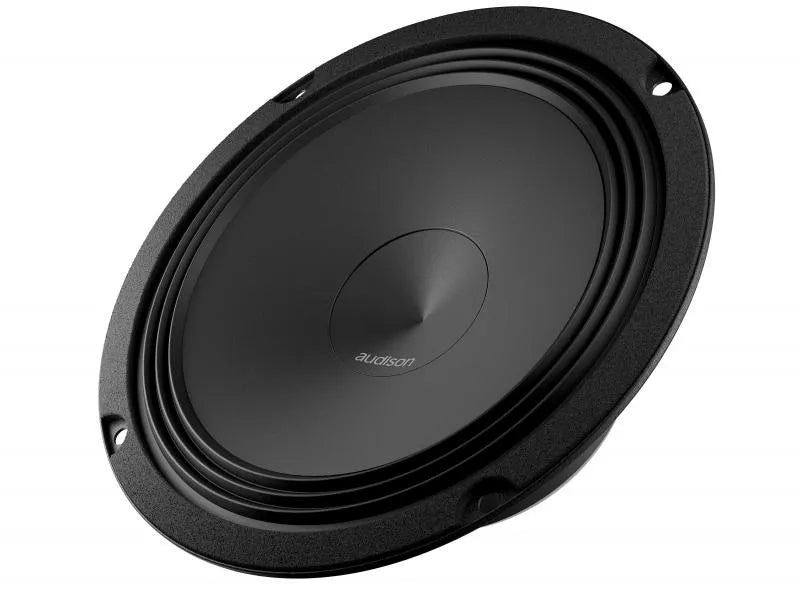

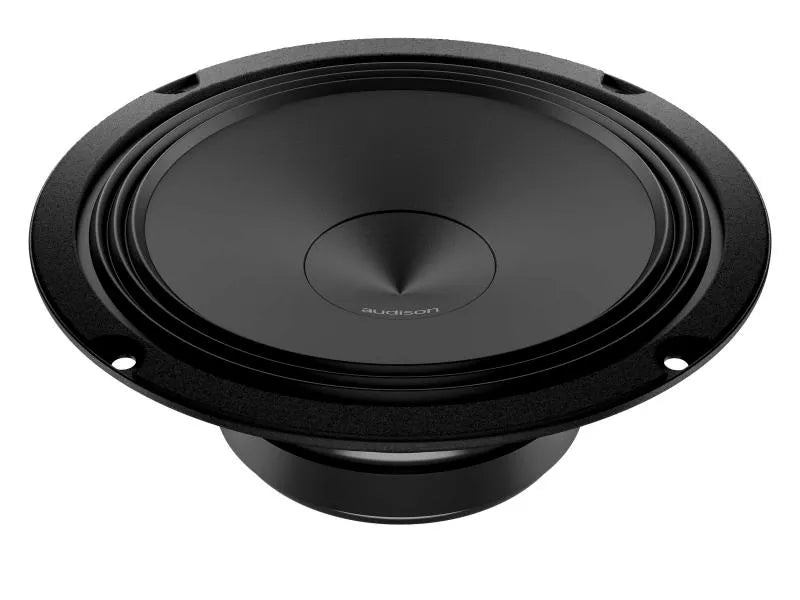

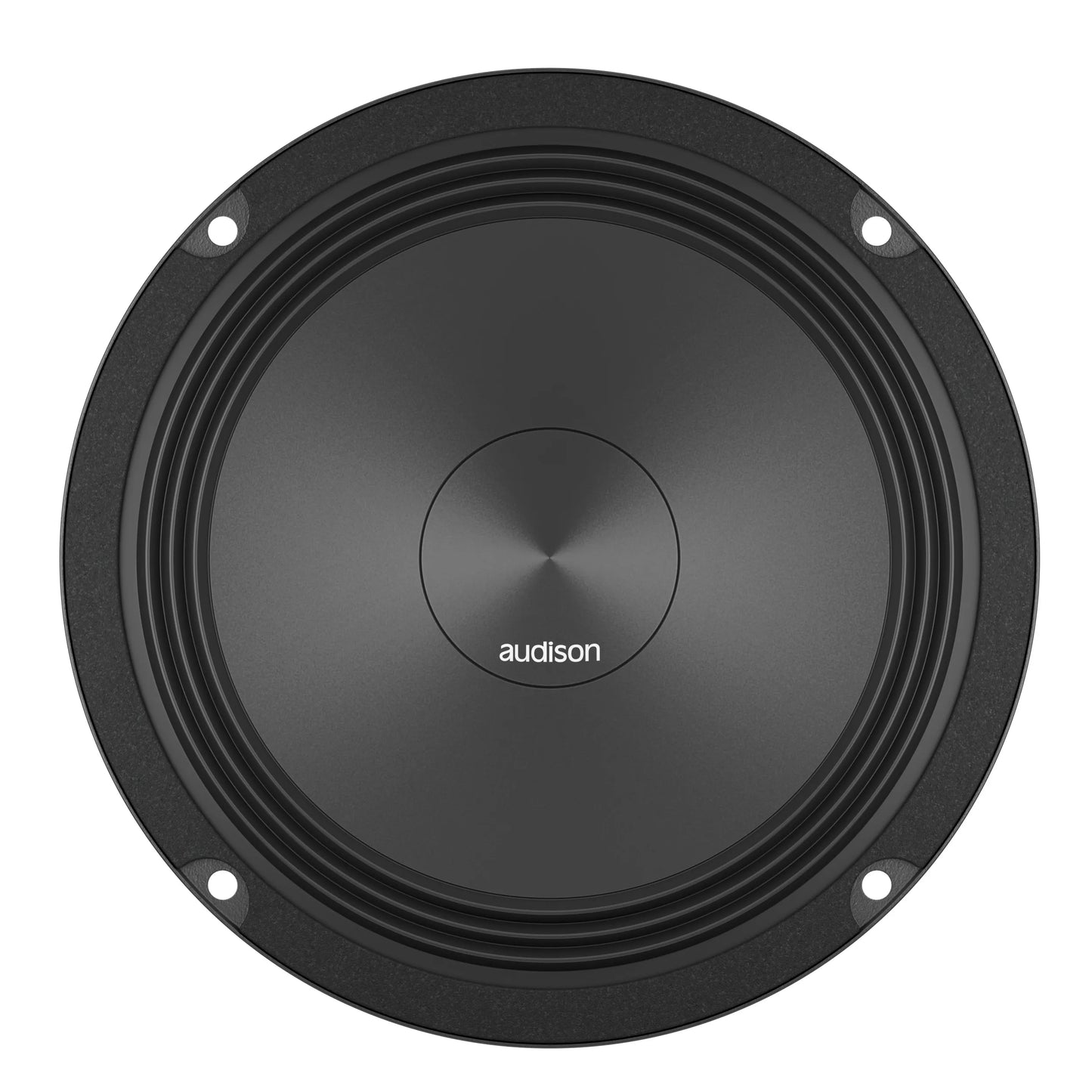

Audison AP 6.5 Woofer | 210 W Peak Power | 165 mm | 4 ohm

• 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
• Reduced mounting depth, providing ease of installation in OEM placements.
  TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

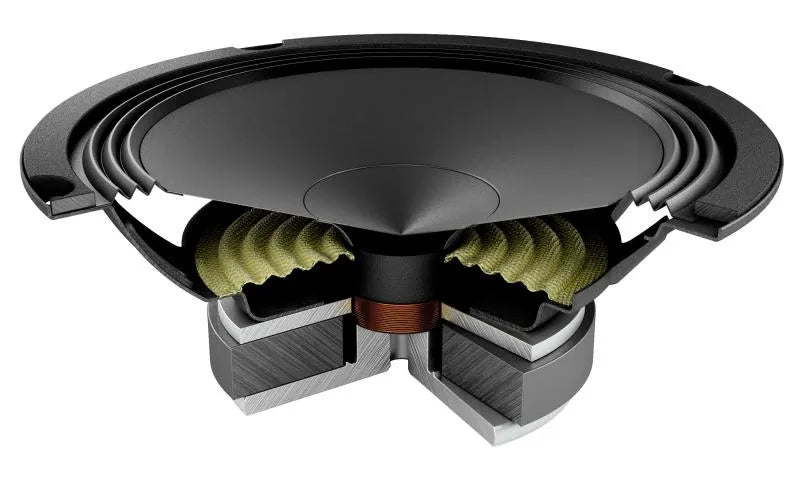

• Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor is affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
• The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite.

TECHNICAL SPECS
Size    165 mm
Power Handling - Peak    210 W
Power Handling - Continuous    70 W
Impedance    4 Ohm
Frequency Response    60 ÷ 5k Hz
Voice Coil Ø    32 mm
Woofer Qes    0,8
Xmax    2.5 mm

ELECTRIC-ACOUSTIC SPECS
D    129 mm
Re    3.1 Ohm
Fs    80 Hz
Vas    7.6 l
Mms    12 g
Cms    0.31 mm/N
BL    4.7 T•m
Qms    4.7
Qts    0.7
Le Standard    0.23 mH
Spl    93.5 dB
