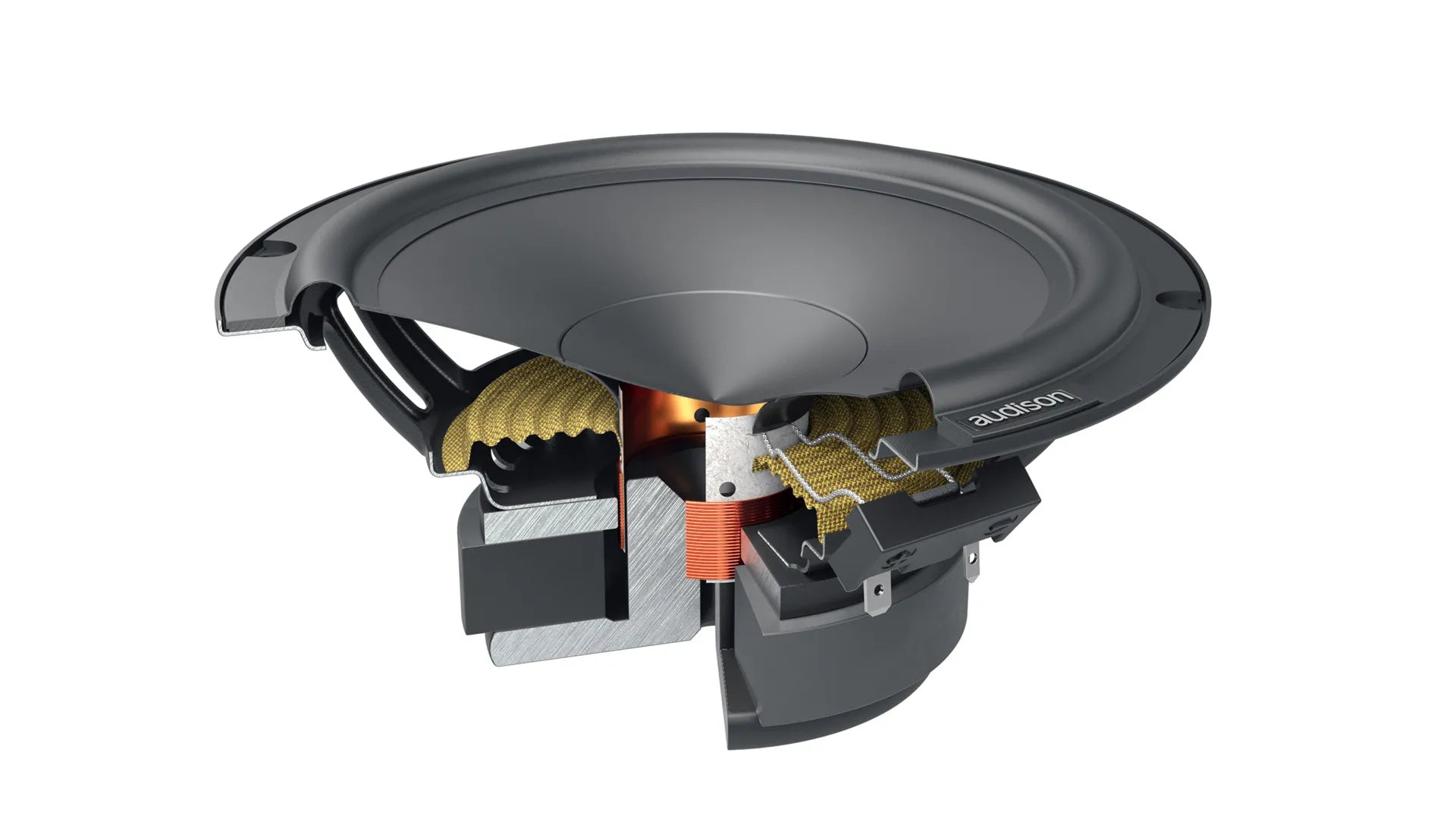

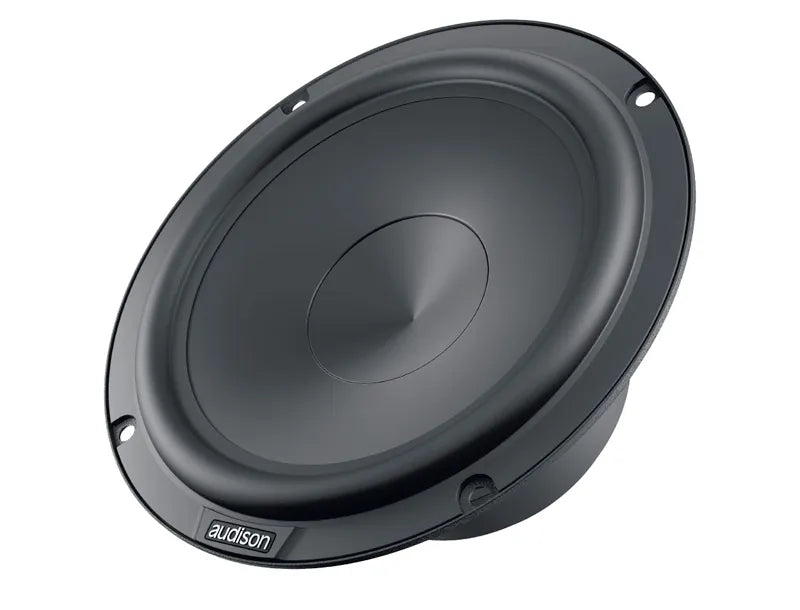

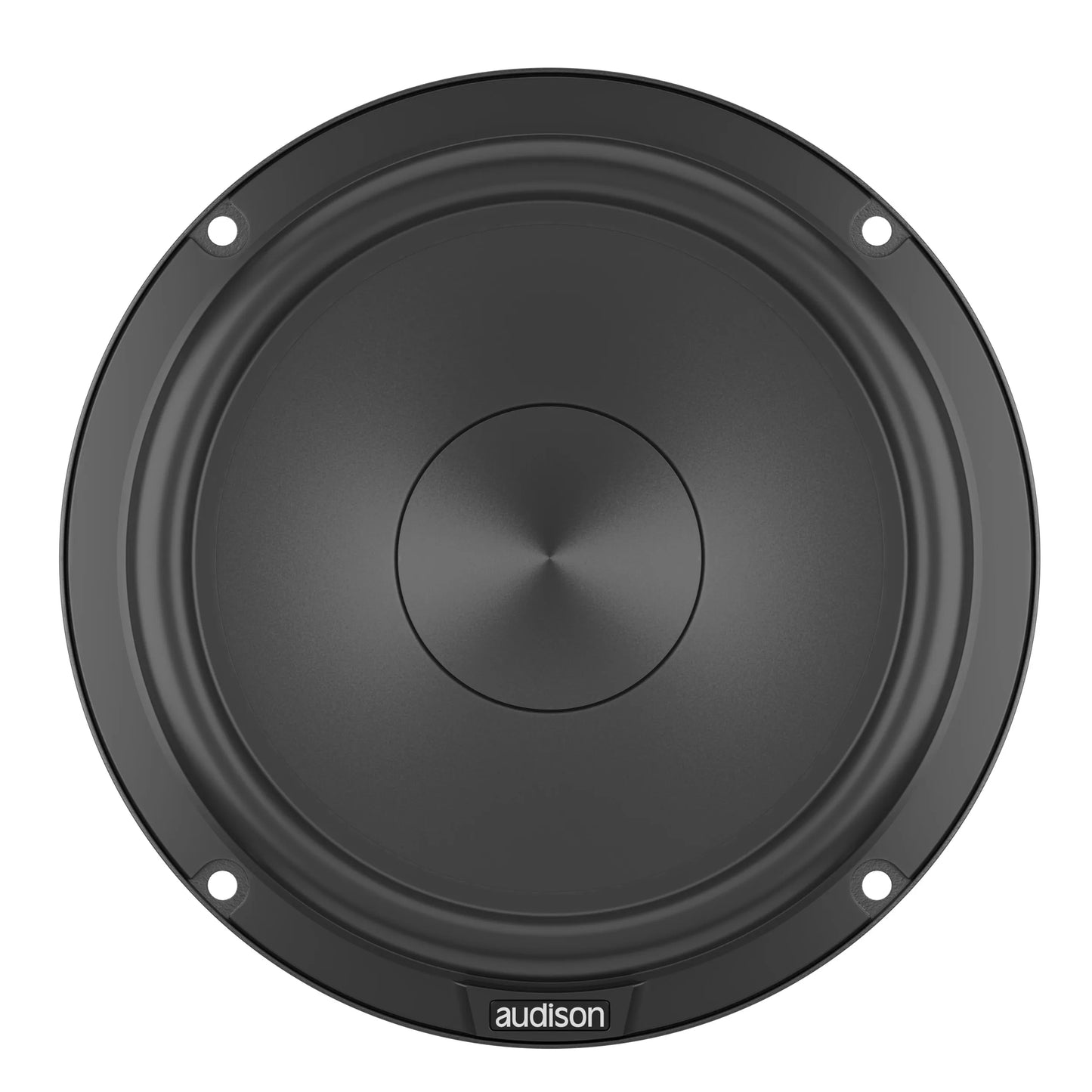

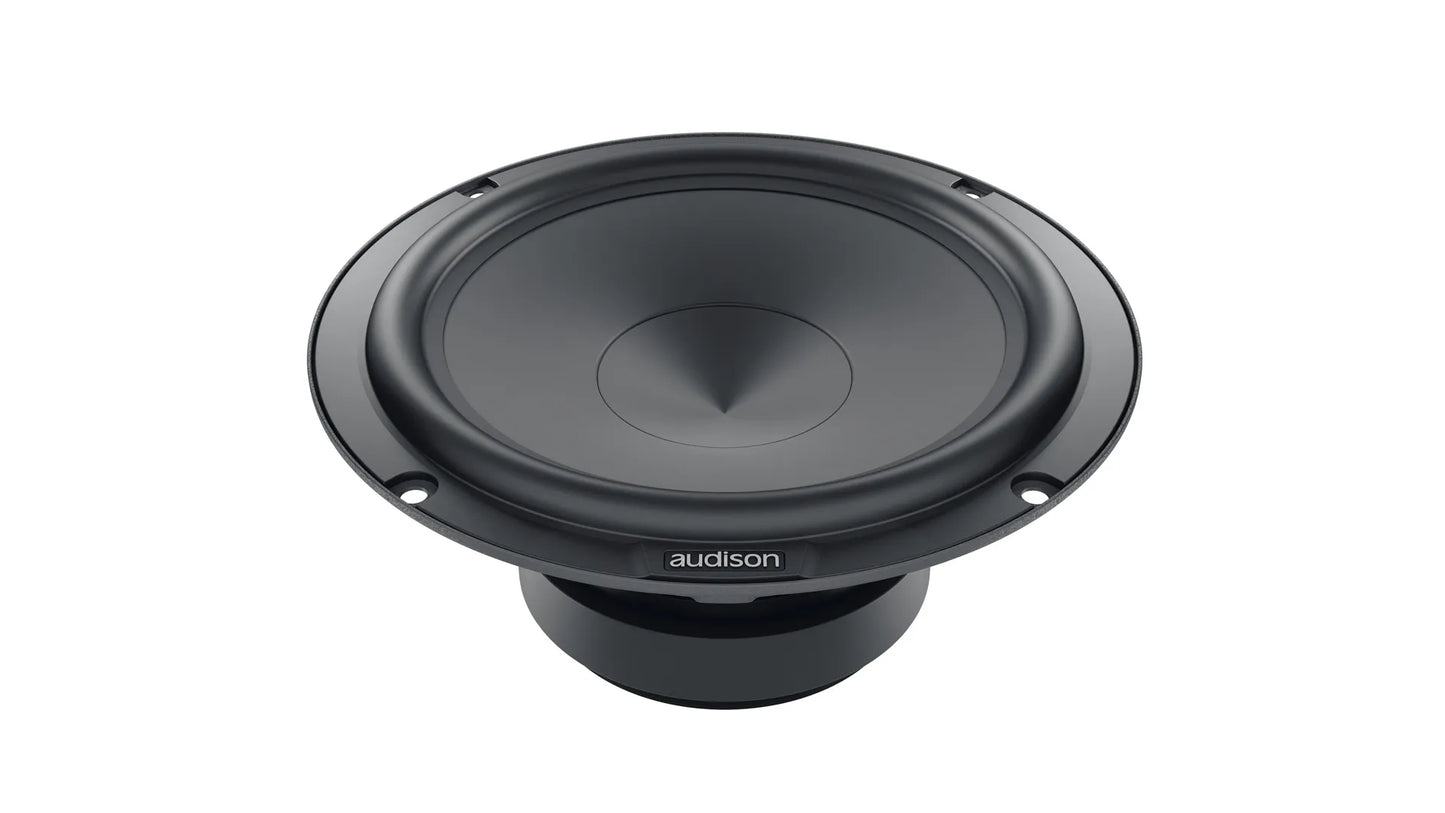

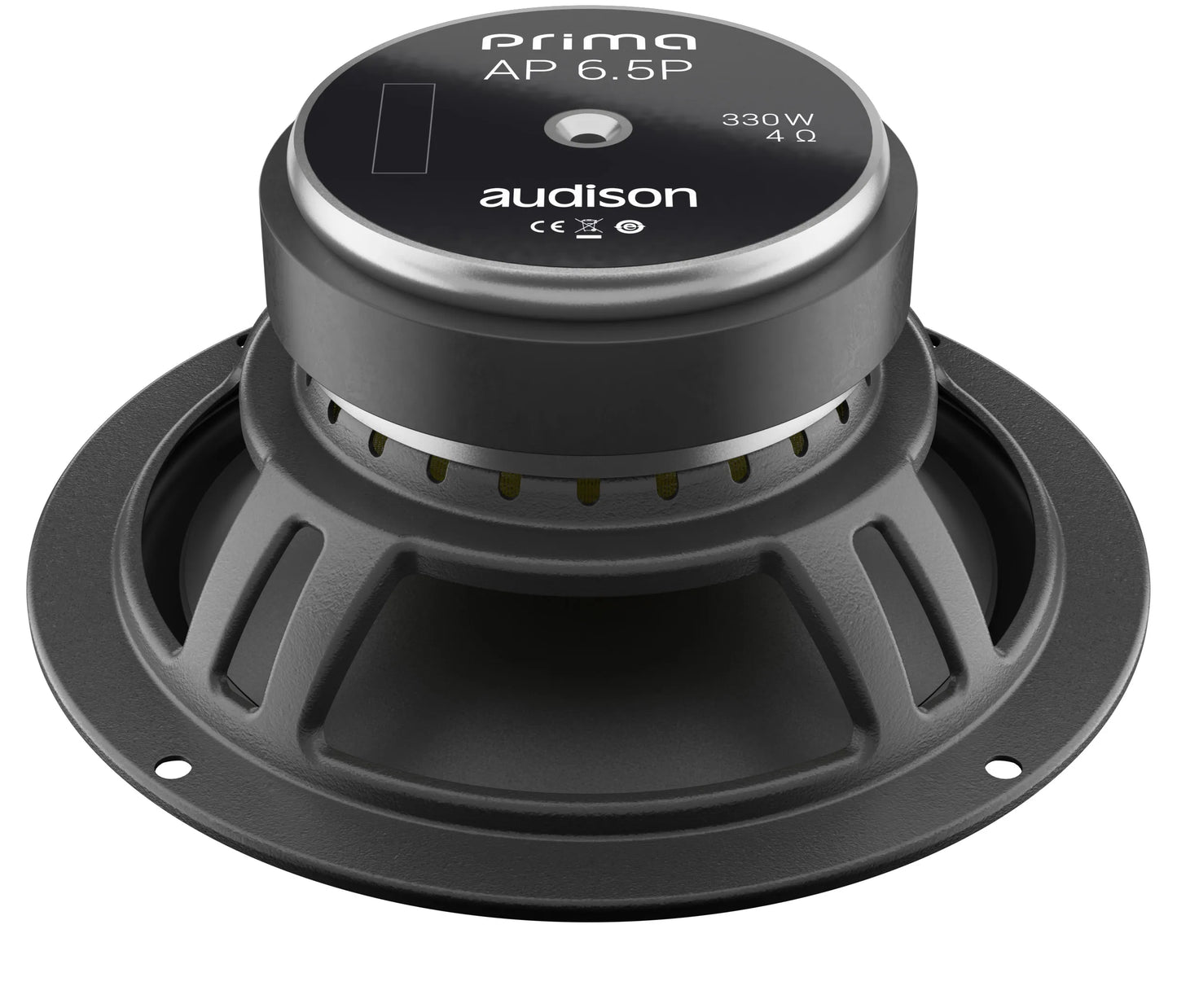

Audison AP 6.5P Woofer | 330 W Peak Power | 165 mm | 4 ohm

• Increased excursion of the mobile group for a superior dynamic
  response
• Optimized electro-acoustic parameters to maximize performance for
  OEM placements
• Magnetic group sized for perfect control even at maximum cone
  excursion
• CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to
  optimally manage the greater applied power
• Compact size basket for easy OEM installations

TECHNICAL SPECS
Size    165 mm
Power Handling - Peak    330 W
Power Handling - Continuous    110 W
Impedance    4 Ohm
Frequency Response    50 - 5k Hz
Voice Coil Ø    32 mm
Voice Coil Material    CCAW
Woofer Qes    0,6
Cone Material    WATER-REPELLENT TREATED PAPER CONE
Xmax    5.6 mm

ELECTRIC-ACOUSTIC SPECS
D    132 mm
Re    3.1 Ohm
Fs    60 Hz
Vas    11.4 l
Mms    14.6 g
Cms    0.47 mm/N
BL    5.35 T•m
Qms    7.6
Qts    0.55
Le Standard    0.29 mH
Spl    92.5 dB
