Audison

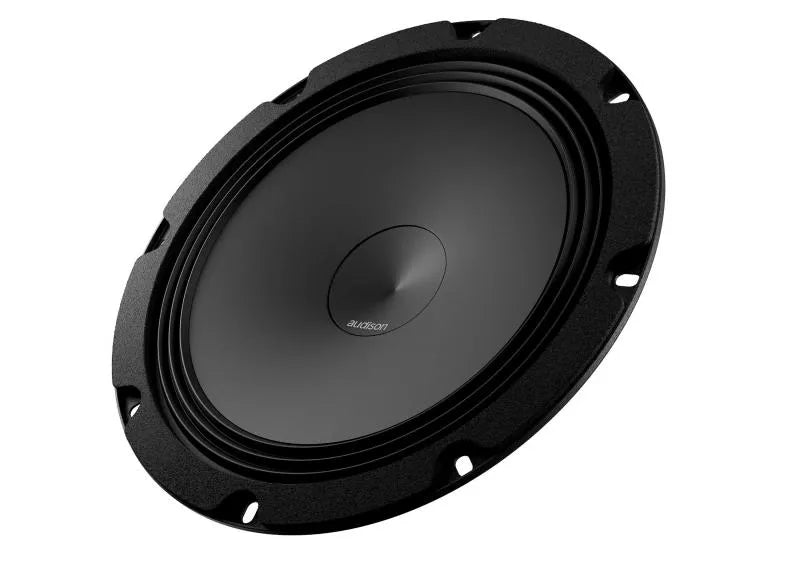

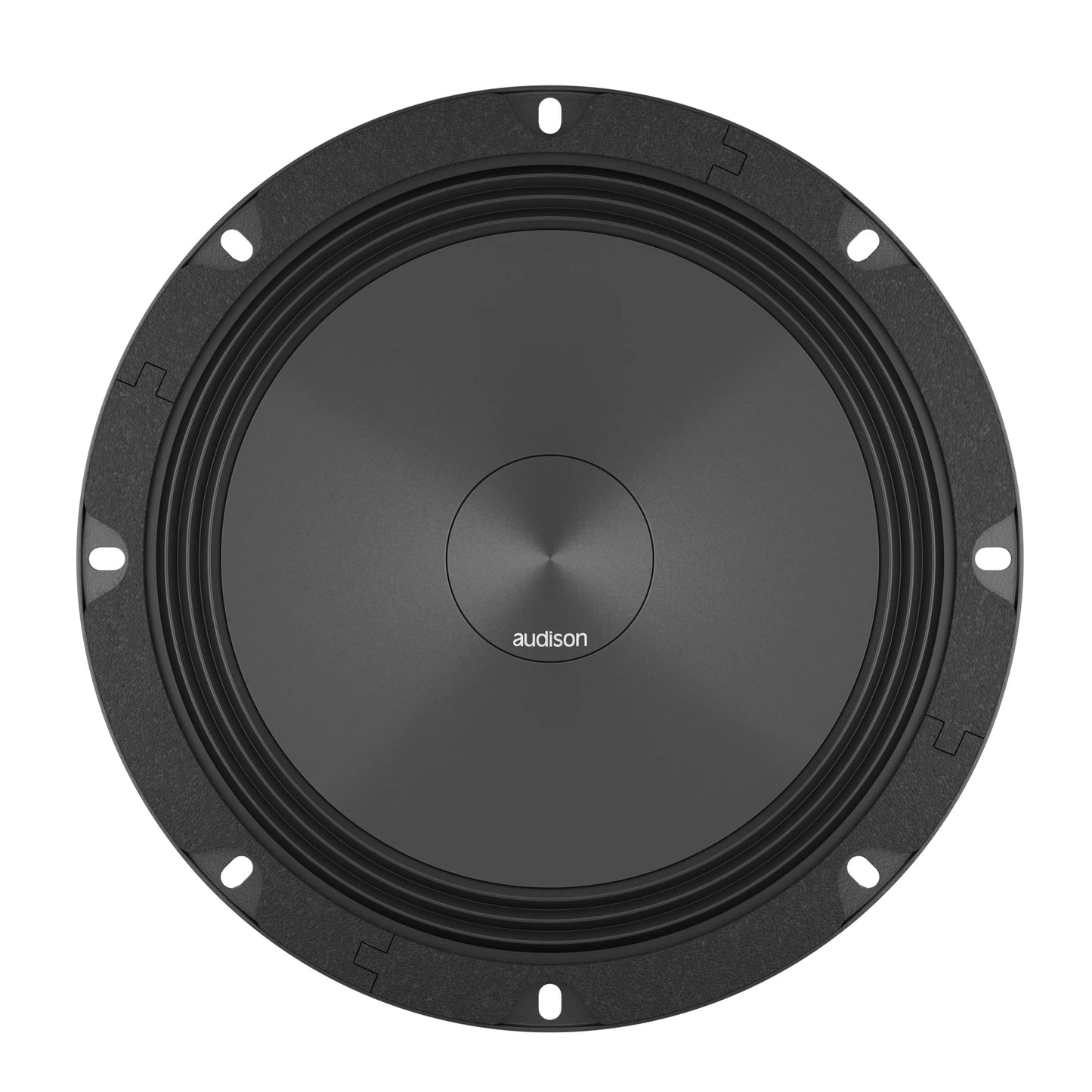

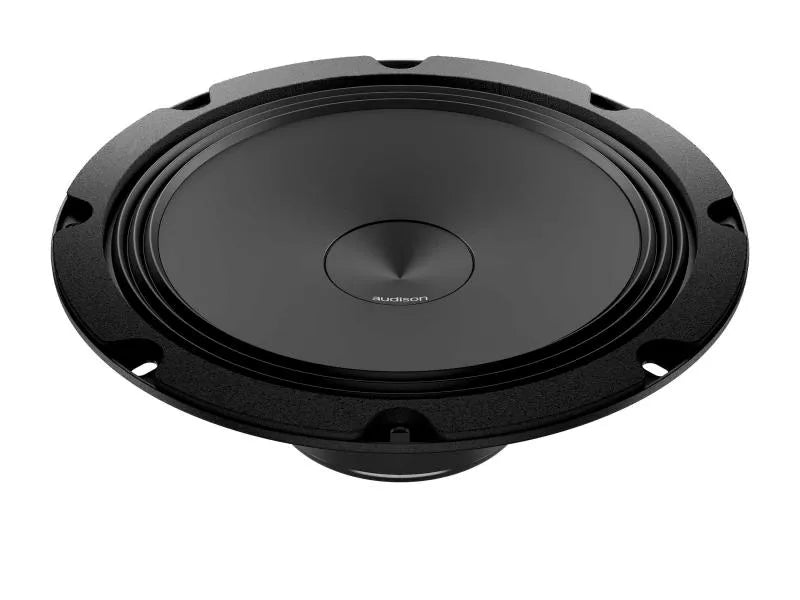

Audison AP 8 Woofer | 300 W Peak Power | 200 mm | 4 ohm

Audison AP 8 Woofer | 300 W Peak Power | 200 mm | 4 ohm

Regular price $350.00
Regular price Sale price $350.00
Sale Sold out

FEATURES

  • Water-repellent treated paper cone, featuring a profile developed
    with FEM (Finite Element Method) simulation technology and
    optimized with the Klippel Scan Vibrometer.
  • No passive crossover required to maximize efficiency: dome
    profile optimized with Klippel R&D Scan Vibrometer to obtain a
    calibrated mechanical low-pass cut-off frequency.
  • Reduced mounting depth, providing ease of installation in OEM
    placements.
  • TPU (Thermoplastic Polyurethane) surround, featuring the exclusive
    shallow “Triple Wave” profile, for maximum excursion linearity.

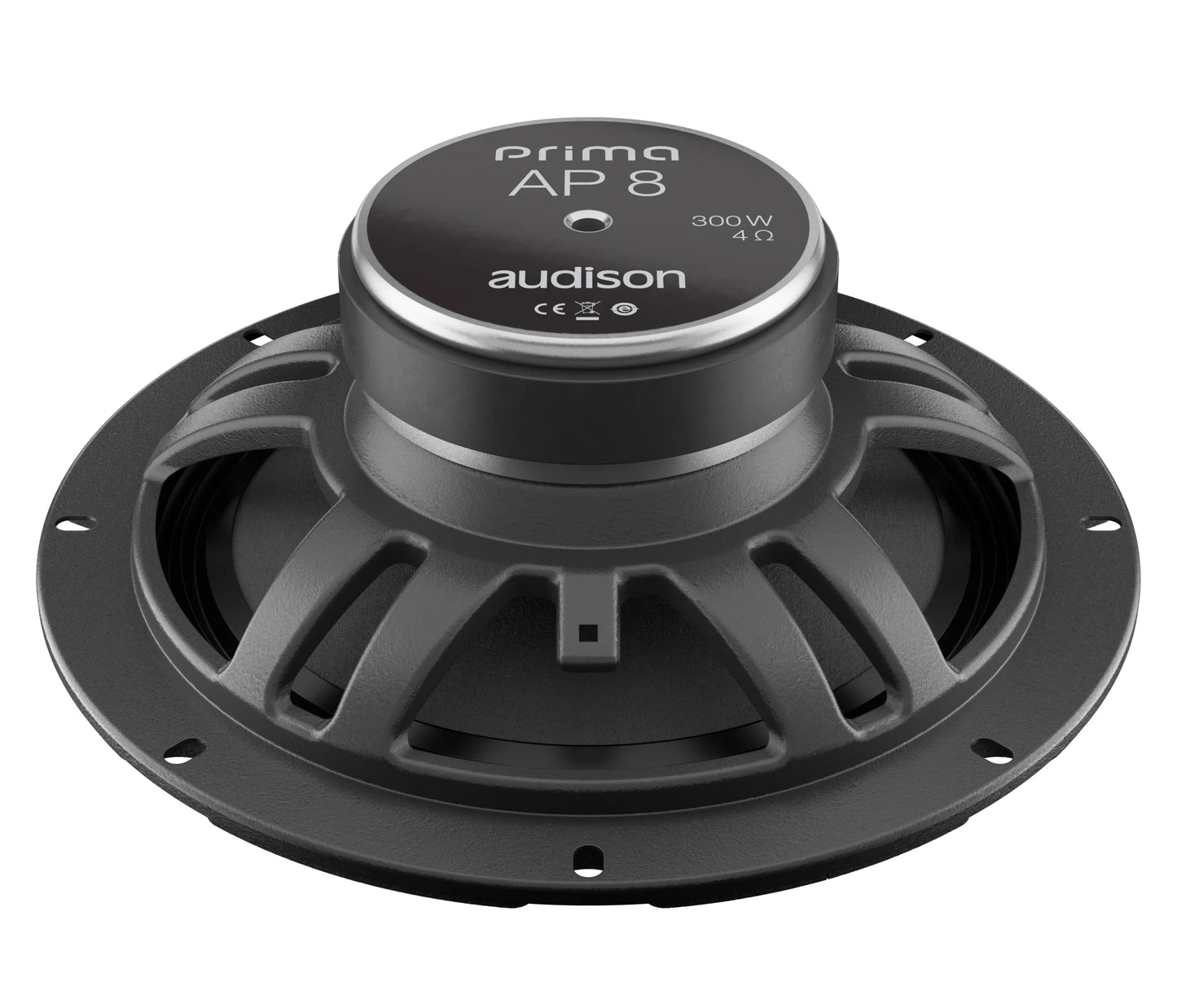

  • Compact basket, protected by abrasion-resistant and scratch-proof
    coating, the motor affixed with damping epoxy adhesive.

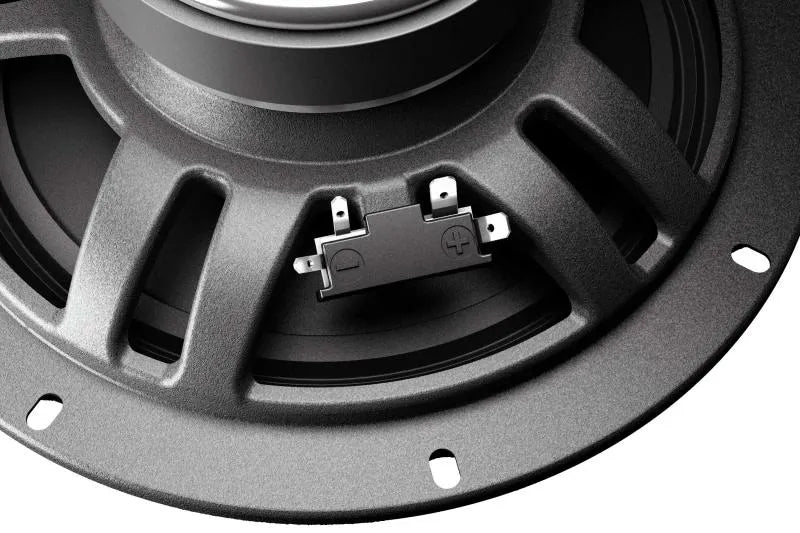

  • High current fast-on terminal with double contact on positive
    and negative poles for high flexibility and quick connection. The
    terminal features a temperature resistant plastic cover, protecting
    it against accidental short circuits.
  • Developed with the KLIPPEL suite.
    *Grille included

TECHNICAL SPECS
Size    200 mm
Power Handling - Peak    300 W
Power Handling - Continuous    100 W
Impedance    4 Ohm
Frequency Response    35 ÷ 3k Hz
Magnet Material    HIGH DENSITY FLUX FERRITE
Voice Coil Ø    25 mm
Woofer Qes    0,8
Xmax    3.3 mm

ELECTRIC-ACOUSTIC SPECS
D    159 mm
Re    3.1 Ohm
Fs    60 Hz
Vas    20 l
Mms    19 g
Cms    0.35 mm/N
BL    5.4 T•m
Qms    5
Qts    0.7
Le Standard    0.3 mH
Spl    93.5 dB
