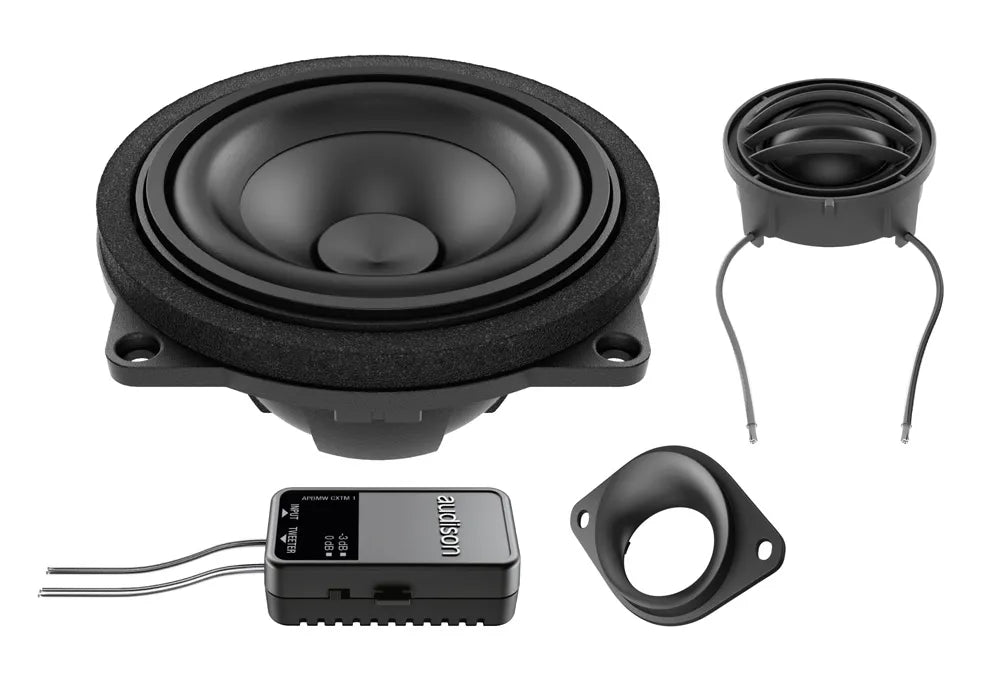

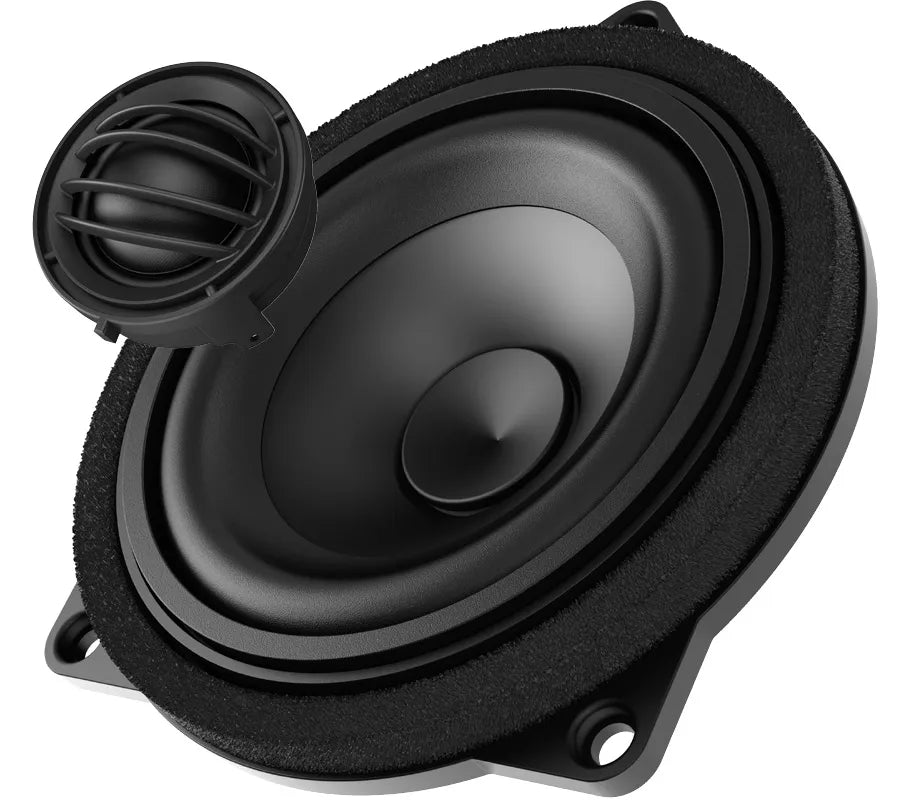

Audison APBMW K4E Kit | 100 W Peak Power | Kit 2 way 4 ohm | BMW Upgrade

• Specially developed for the upgrade of BMW-Mini featuring
  factory 2 way systems, to create an extended sound stage in
  the three dimensions, amplifying the perception of reality in the
  car cabin;
• Neodymium Magnetic group to maximize performance while
  minimizing bulk and weight;
• 25 mm (1″) fiberglass woofer voice coil for high power
  dissipation and stiffness;
• Waterproof pressed-paper cone for medium natural
  frequencies free from any plastic resonance;
• BMW-Mini compatible aluminum die-cast basket with Plug &
  Play connectors;
• 25 mm Tetolon coil tweeter with dispersion characteristics
  optimized with FEM simulations;
• Tweeter support supplied for Plug&Play OEM placements;
• 30 cm extension provided featuring Plug & Play connectors,
  for high flexibility of installation;
• Damping removable motor cover;
• Crossover equipped with high-quality components and
  Plug&Play connections.

TECHNICAL SPECS
Woofer Size    100 mm
Tweeter Size    29 mm
Woofer Voice Coil Diameter    25 mm
Tweeter Voice Coil Diameter    25 mm
Magnet Size Woofer    50 x 29 x 3
Power Handling - Peak    100 W
Power Handling - Continuous    50 W
Sensitivity    89 dB
Impedance    4 Ohm
Frequency Response    90 ÷ 23k
Crossover Woofer    Hi-Pass: 6 KHz @ 6dB/Oct.
Adjustment Tweeter Level    -3; 0
Woofer Cone Diameter    80 mm
Xmax Woofer    0.5 mm

ELECTRIC-ACOUSTIC SPECS
Re Woofer    3.3 Ohm
Fs Woofer    90 Hz
Le Woofer mH @ 1 kHz    0.32
Vas Woofer    1.8 l
Mms Woofer    6.3 g
Cms Woofer    0.5
Bxl Woofer    4.8
Qts Woofer    0.48
Qms Woofer    8.2
Spl Woofer    88 dB
