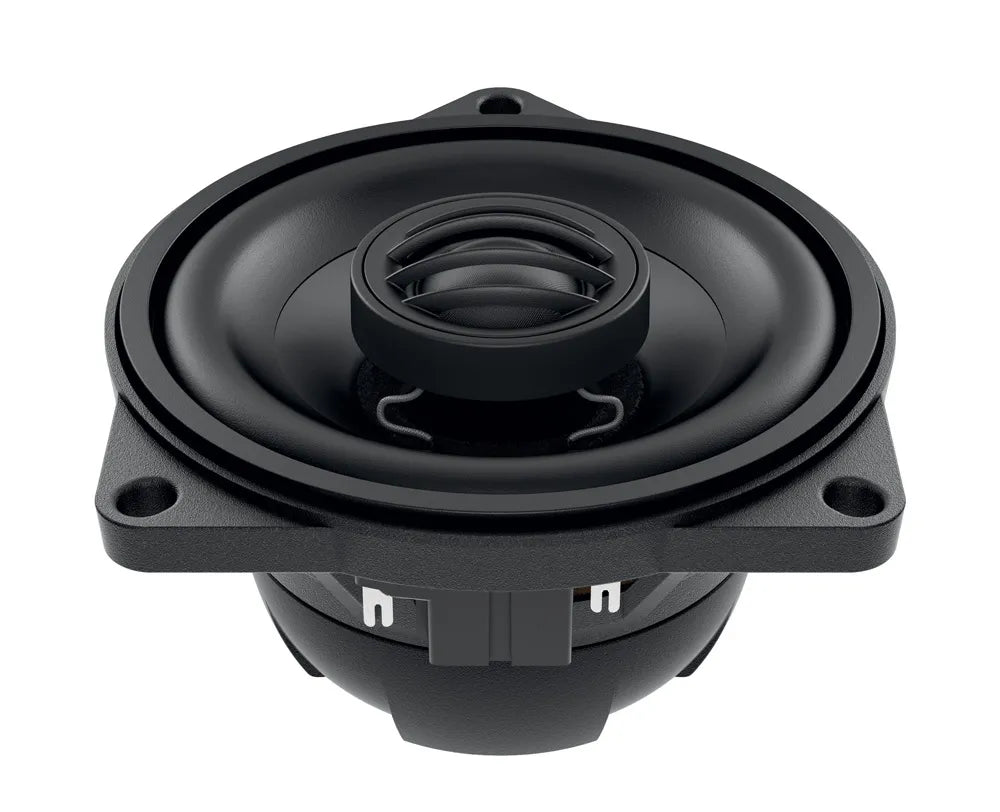

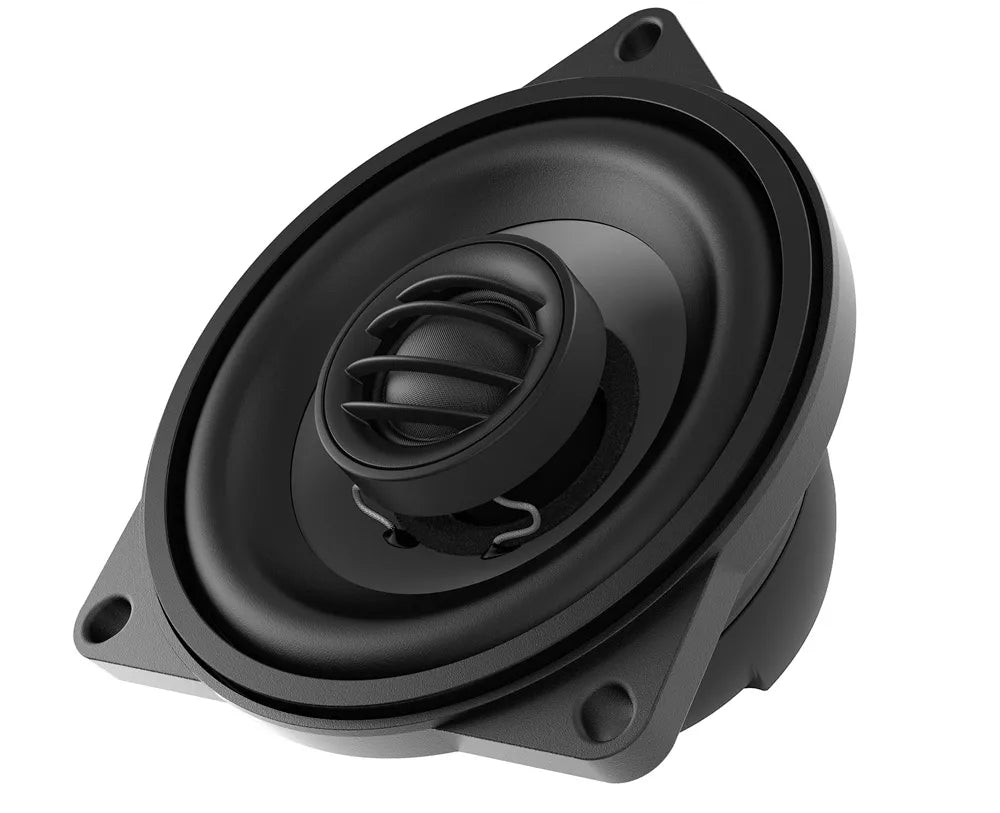

Audison APBMW X4M Coaxial | 80 W Peak Power | 100 mm | BMW Upgrade

• Specially developed for BMW-Mini models that do not allow
  the installation of a two-way system on the front or
  for rear seat upgrade;
• Neodymium Magnetic group to maximize performance while
  minimizing bulk and weight;
• 25 mm (1″) fiberglass woofer voice coil for high power
  dissipation and stiffness;
• Waterproof pressed-paper cone for medium natural
  frequencies free from any plastic resonance;
• 20 mm (0.8″) Tetolon coil tweeter with dispersion
  characteristics optimized with FEM simulations;
• BMW-Mini compatible aluminum die-cast basket with Plug &
  Play connectors;
• 30 cm extension provided featuring Plug & Play connectors,
  for high flexibility of installation;
• Damping removable motor cover.

TECHNICAL SPECS
Woofer Size    100 mm
Tweeter Size    24 mm
Woofer Power Handling - Peak    80 W
Woofer Power Handling - Continuous    40 W
Woofer Impedance    4 Ohm
Woofer Frequency Response    100 ÷ 22k
Woofer Magnet Size    50 x 29 x 3
Woofer Voice Coil Diameter    25 mm
Tweeter Voice Coil Diameter    20 mm
Xmax    0.5 mm

ELECTRIC-ACOUSTIC SPECS
D    80 mm
Re    3.4 Ohm
Fs    100 Hz
LE standard    0.32
Vas    1.9 l
Mms    5.1 g
Cms    0.53
Bl    5
Qts    0.4
Qes    0,42
Qms    7.1
Woofer Spl    88 dB
