Audison APBX 10 DS Subwoofer Box | 800 W Peak Power | 250 mm | 4 + 4 ohm sub box

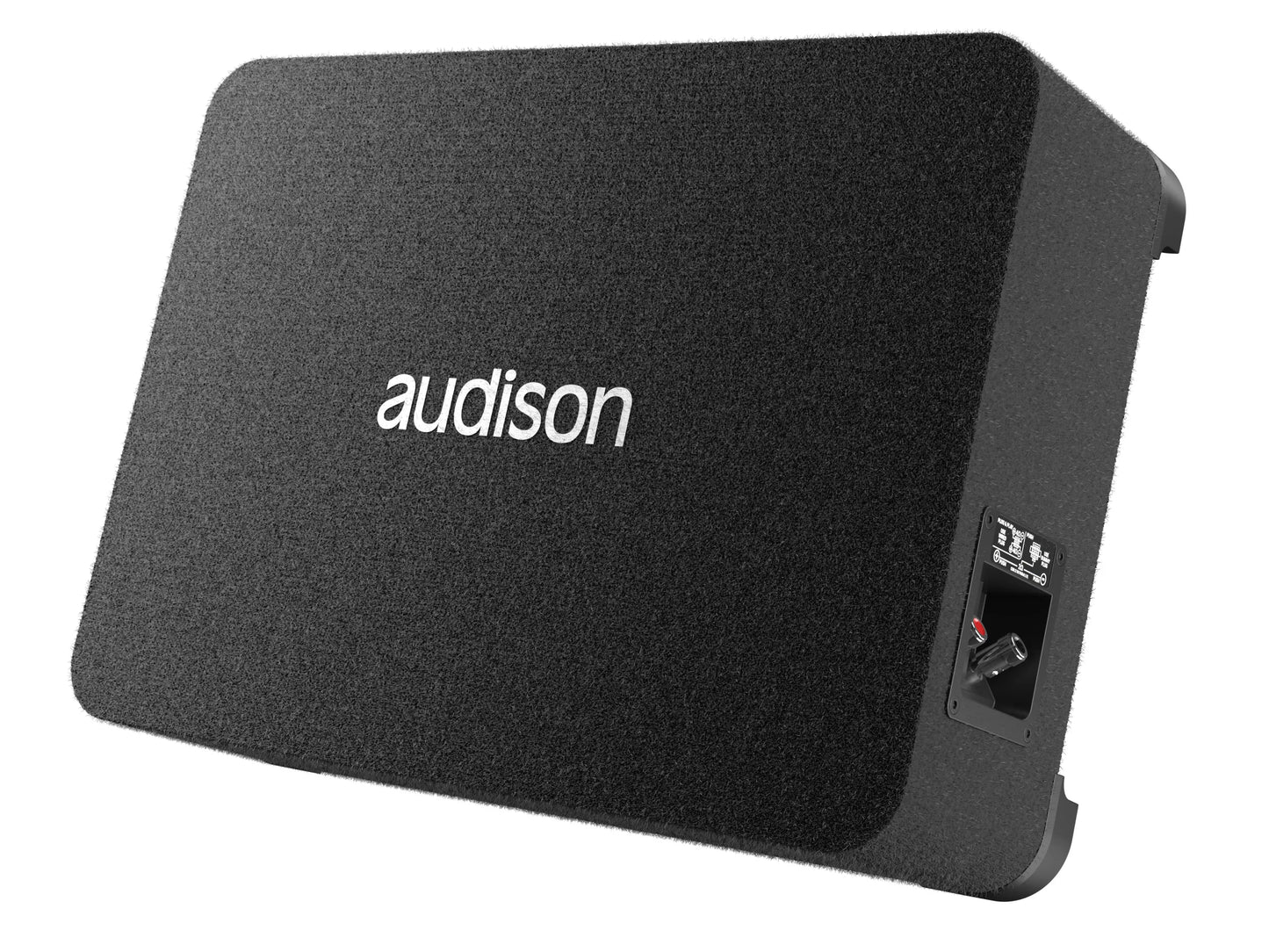

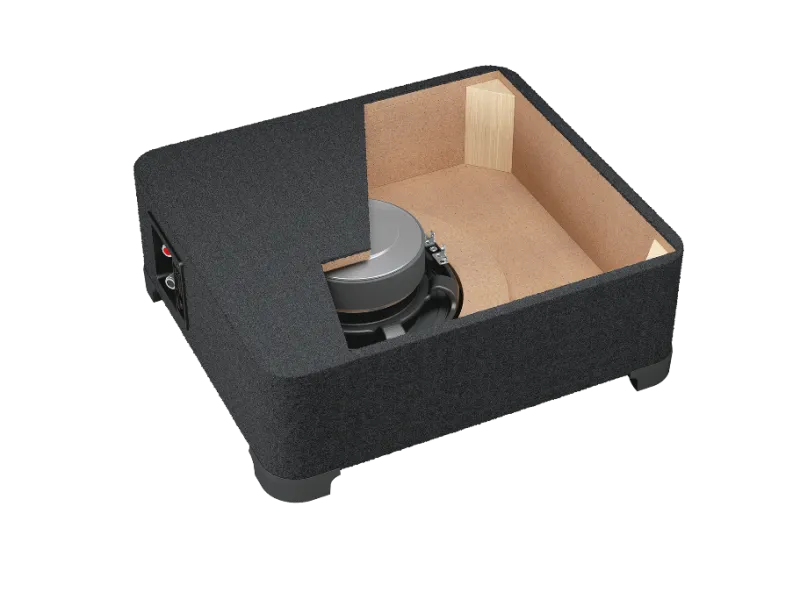

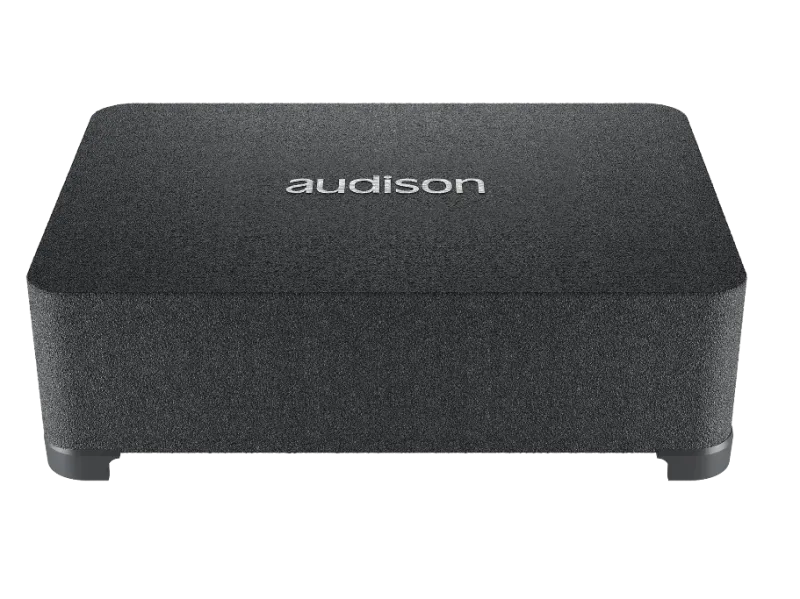

• Ultra-low profile (5.6 in. / 142 mm) box with a sealed design perfectly tuned to fully exploit the APS 10 D driver.
• 2 Sides/2 Sounds: design provides the ability to choose between
  Down-Firing mounting to increase the low-frequency extension and
  Up-Firing installation to obtain more punch and definition.
• Leveling feet with velcro inserts included for a secure grip on the carpet while maintaining easy removal.

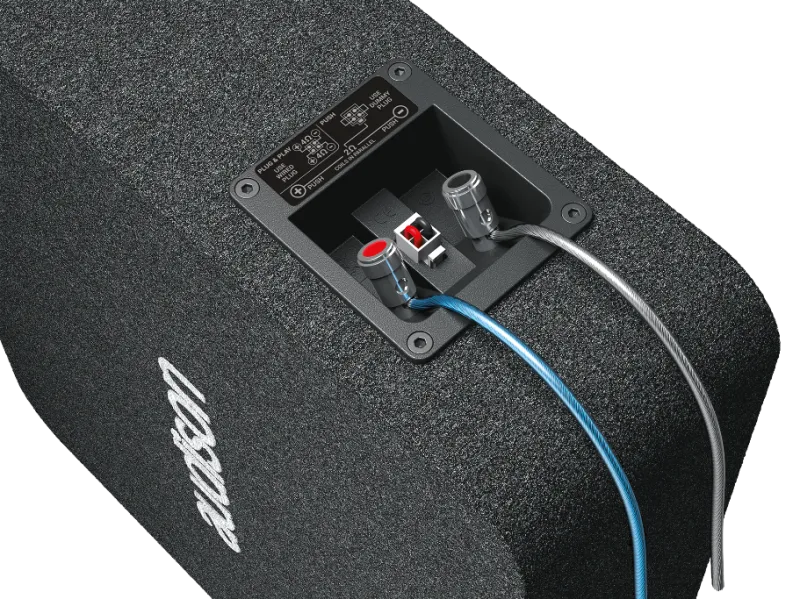

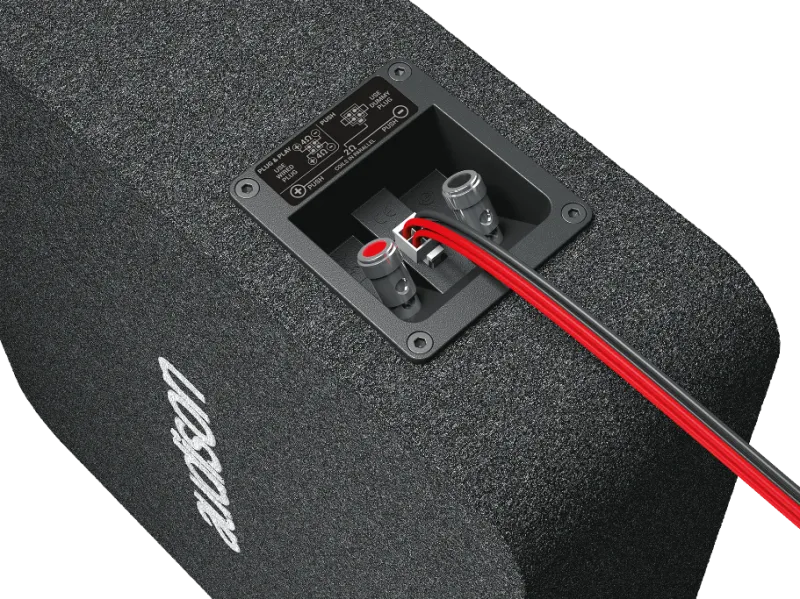

• SSP (Sub Smart Plug) features both traditional push contacts and a
  Plug-&-Play terminal block to easily configure the impedance as
  required and provides a quick release.
• Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
  6 Special designed cone-dustcap-basket geometry which guarantees a
  long linear excursion capability (11 mm, one-way).
• Massive driver motor assembly, optimized with FEM (Finite Element
  Modeling) for perfect control under high excursion conditions.
• Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
• Specifically developed to be combined with either the AP8.9 bit
  (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D
  (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
• A sturdy metal grid is included for the total protection of the subwoofer driver.

TECHNICAL SPECS
Size    250 mm
Power Handling - Peak    800 W
Power Handling - Continuous    400 W
Magnet Material    HIGH DENSITY FLUX FERRITE
Cone Material    WATER REPELLENT PRESSED PAPER

DIMENSIONS

• Dimension A   470 mm
• Dimension B   334 mm
• Dimension C   120 mm
• Dimension D   142 mm
