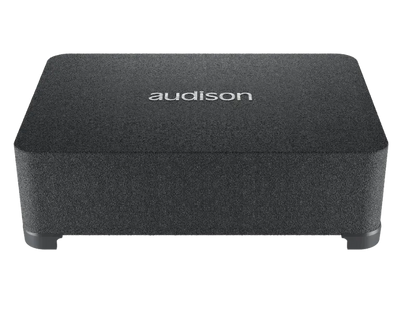

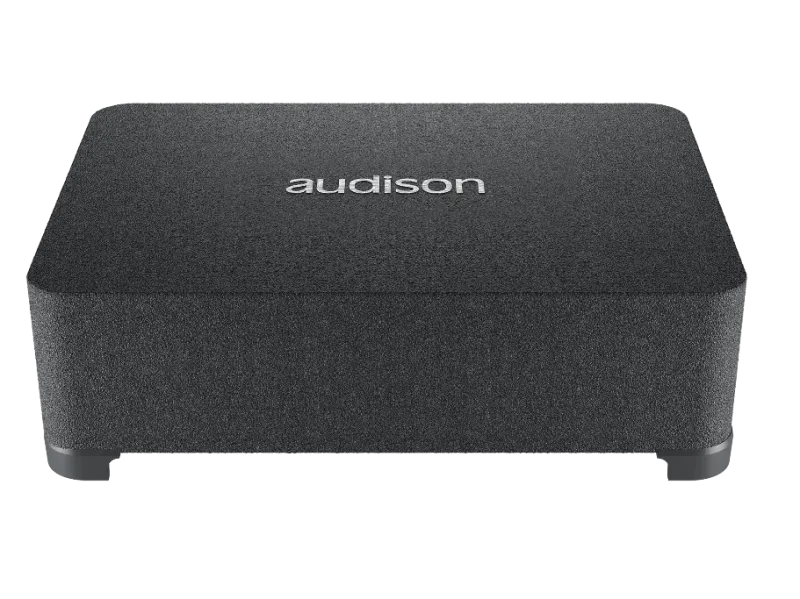

Audison APBX 10 S4S Subwoofer Box | 800 W Peak Power | 250 mm | 4 ohm sub box

• Ultra-low profile (5.6 in. / 142 mm) box with a sealed design perfectly tuned to fully exploit the APS 10 D driver.

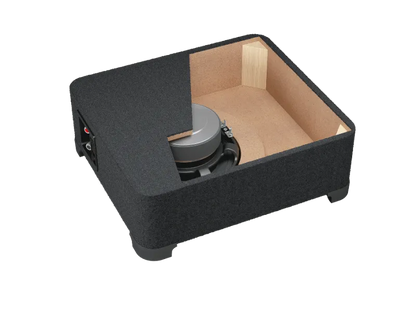

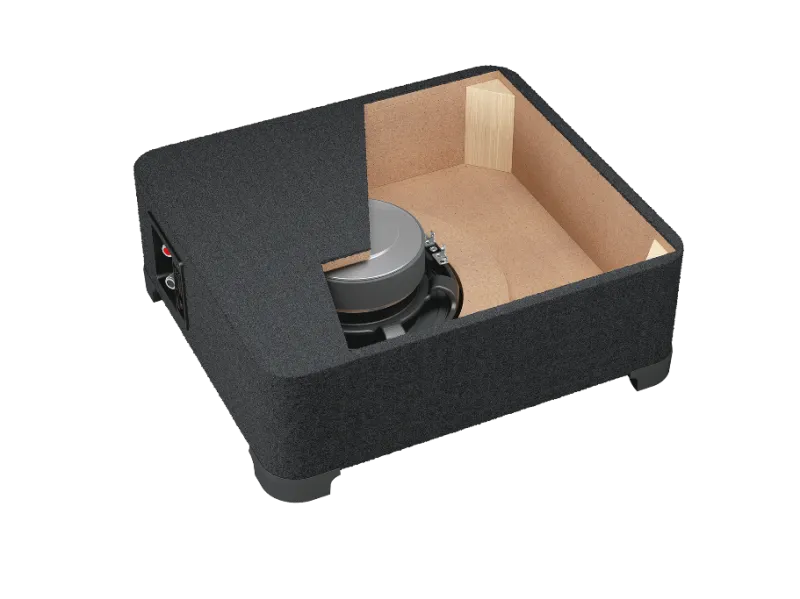

• 2 Sides/2 Sounds design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing installation to obtain more punch and definition.
• Leveling feet with Velcro inserts included for a secure grip on the carpet while maintaining easy removal.
• SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
• Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
• Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way).
• Massive driver motor assembly, optimized with FEM (Finite
  Element Modeling) for perfect control under high excursion conditions.
• Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel
  Scan Vibrometer.
• Specifically developed to be combined with AP F8.9 bit (2 CH
  bridged 260 W RMS) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
• A sturdy metal grid is included for the total protection of the subwoofer driver.

TECHNICAL SPECS
Size    250 mm
Power Handling - Peak    800 W
Power Handling - Continuous    400 W
Magnet Material    HIGH DENSITY FLUX FERRITE
Cone Material    COTTON-FIBRE PRESSES PAPER CONE

DIMENSIONS

• Dimension A   470 mm
• Dimension B   334 mm
• Dimension C   120 mm
• Dimension D   142 mm
