Audison APBX 8 AS2 Subwoofer Box | 500 W Peak Power | 200 mm | Active Subwoofer

• Integrated 250 W RMS 0.4 ohm2 D-Class amplifier featuring he-li technology
  (high efficiency / low impedance) without switching power supply, for a
  performance next to ideal.
• Input stage DBT (Dynamic Bass Tracking) technology allows 100% use of the He-Li (High-Efficiency Low Impedance) amplifier power and to enjoy a
  tense and dynamic bass even at very high listening volumes.
• Butterworth low-pass filter at 12dB/Oct. with variable cutting frequency (50-300 Hz), phase control (0-180°), and adjustable bass-boost
  0÷6 db 45Hz.
• Defeatable filter to use the sub-dedicated output of a bit or AP bit processor.
• High-level audio input on multi-pin connector for maximum OEM
  integration and low level on RCA for aftermarket sources.
• ART turn-on function (Automatic Remote Turn-On) is selectable among Remote-in, Hi-level, Audio signals.
• Box with ultra-low profile (6.22 in. / 158 mm) in air suspension, designed to take full advantage of the performance of the 8-inch APS 8 DL
  high-impedance driver.
• The SSP (Sub Smart Plug) terminal block is provided with a Plug & Play connector to be able to disconnect the box easily and safely.
• The 2S² (2 Sides / 2 Sounds) design provides the ability to select between
  Down-Firing positioning to increase the low-frequency extension and
  Up-Firing installation to obtain more punch and definition.
• Down-firing leveling feet with Velcro inserts included for a secure grip with the carpet, ensuring extreme ease of removal.
• Rounded corners allow easy placement in the trunk and act as a
  reinforcement to reduce enclosure resonances.
• Exclusive design of the cone, dust-cap, and basket geometry to achieve a wide linear excursion (9 mm in one direction), keeping the depth required for assembly to a minimum.
• HRC AP remote control included.
• Sturdy metal grille is included, for total protection of the subwoofer driver.

TECHNICAL SPECS
Size    200 mm
Power Handling - Peak    500 W
Power Handling - Continuous    250 W
Magnet Material    HIGH DENSITY FLUX FERRITE
Cone Material    WATER REPELLENT PRESSED PAPER

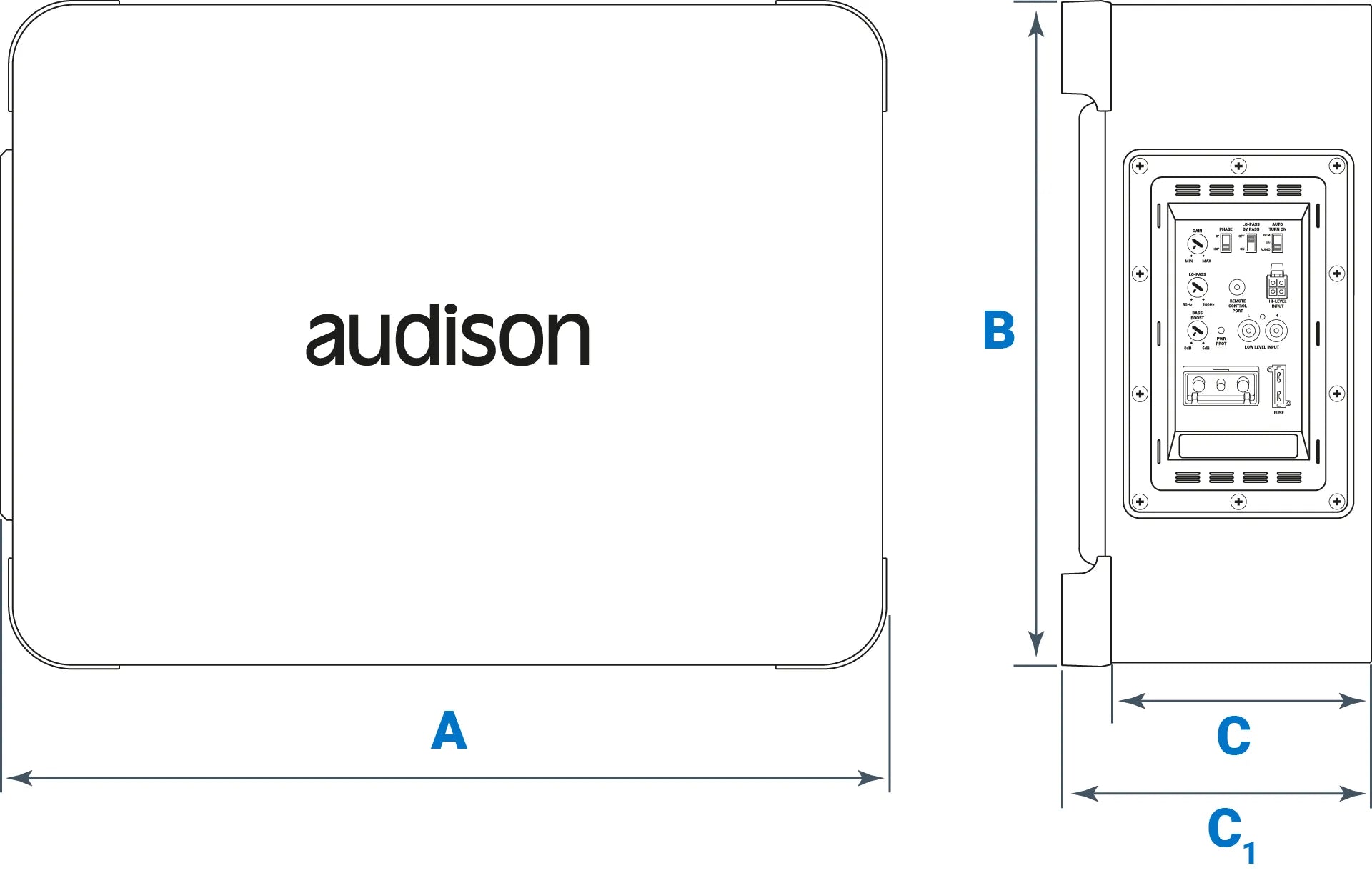

DIMENSIONS

• Dimension A   368 mm
• Dimension B   294 mm
• Dimension C   135 mm
• Dimension C   1158 mm
