Audison APBX 8 R Subwoofer Box | 500 W Peak Power | 200 mm | 4 ohm sub box

Audison APBX 8 R Subwoofer Box | 500 W Peak Power | 200 mm | 4 ohm sub box

Regular price $380.00
Regular price Sale price $380.00
Sale Sold out

FEATURES

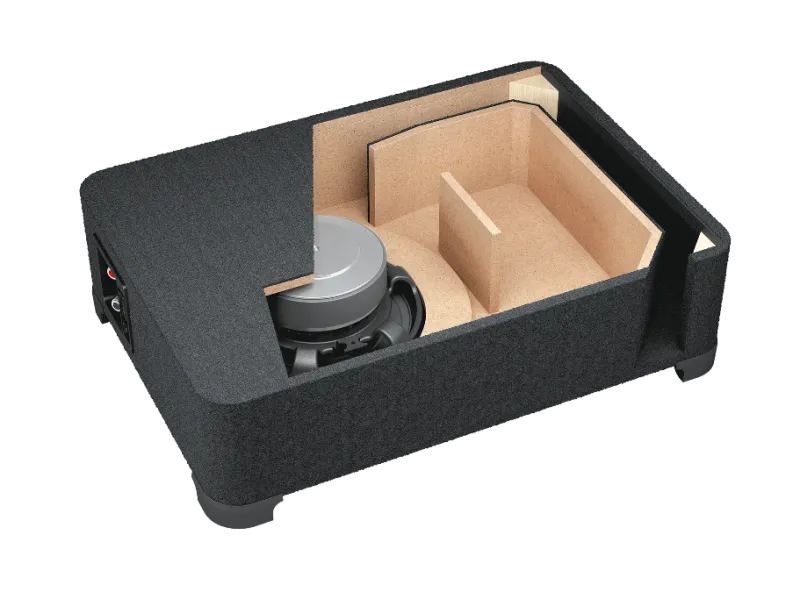

  • Ultra-low profile (5.16 in. / 131 mm) box with slot-ported design perfectly
    tuned to fully exploit the APS 8 R driver.
  • 2S² (2 Sides/2 Sounds) design provides the ability to choose between
    Down-Firing mounting to increase the low-frequency extension and
    Up-Firing install to obtain more punch and definition.
  • Levelling feet with velcro inserts included for a secure grip with the
    carpet while maintaining easy removal.
  • SSP (Sub Smart Plug) features both traditional push contacts and a
    Plug-&-Play terminal block to easily configure the impedance as required
    and provides a quick release.
  • Rounded corners allow easy positioning in the trunk and act as
    reinforcement to reduce enclosure resonance.
  • Special designed cone-dustcap-basket geometry which guarantees a
    long linear excursion capability (9 mm, one-way).
  • Massive driver motor assembly, optimized with FEM (Finite Element
    Modeling) for perfect control under high excursion conditions.
  • Water-repellent pressed paper 8 in. cone, featuring a profile developed
    with FEM and optimized with the Klippel Scan Vibrometer.
  • Specifically developed to be combined with either the AP8.9 bit (2 CH bridged)
    or AP4.9 bit /AP4 D (2 CH bridged) amplifiers taking advantage of the bass
    boost feature and integrated parametric equalizer of the built-in DSP.
  • Sturdy metal grid included for a total protection of the subwoofer driver.

TECHNICAL SPECS
Size    200 mm
Power Handling - Peak    500 W
Power Handling - Continuous    250 W
Magnet Material    HIGH DENSITY FLUX FERRITE
Cone Material    COTTON-FIBRE PRESSES PAPER CONE

DIMENSIONS

  • Dimension A   470 mm
  • Dimension B   334 mm
  • Dimension C   109 mm
  • Dimension D   131 mm
