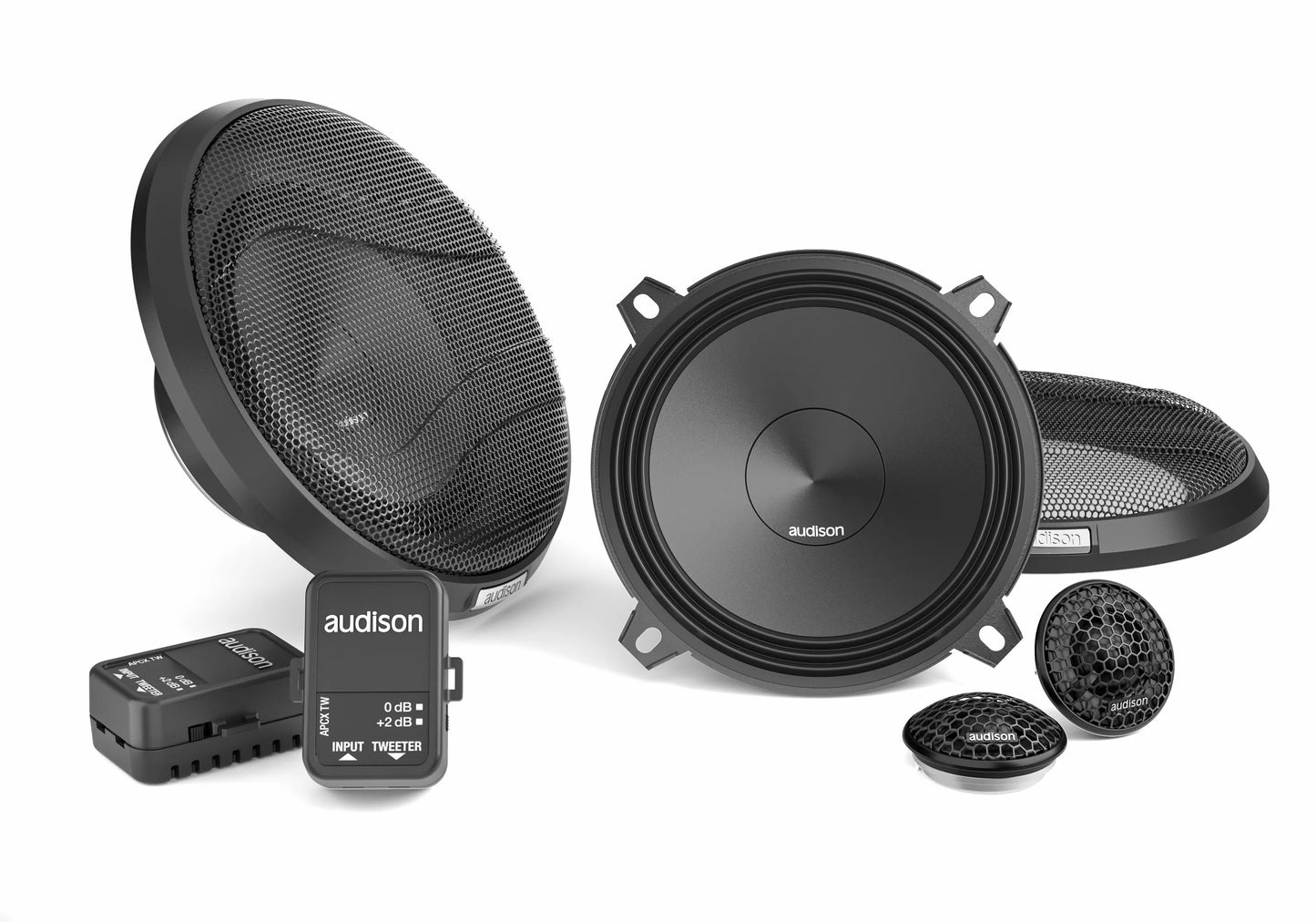

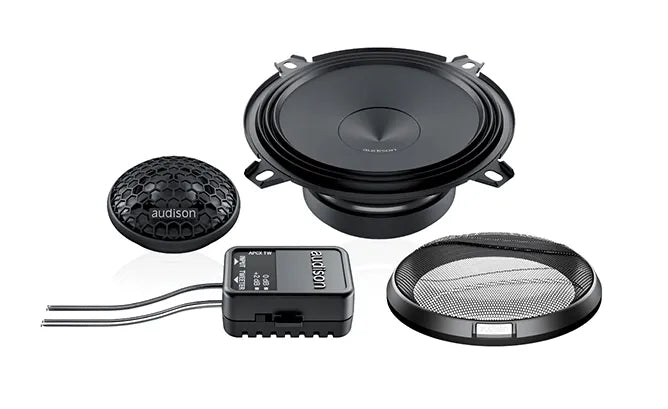

Audison APK 130 Kit | 225 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 5 + Crossover

Audison APK 130 Kit | 225 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 5 + Crossover

Regular price $420.00
Regular price Sale price $420.00
Sale Sold out


  • AP1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with OEM Integration compliant fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
  • AP 5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  • AP 5 woofer with water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • AP5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
  • AP5 woofer with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow Triple Wave profile, for maximum excursion linearity.
  • AP 5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  • AP 5 woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

Woofer Size    130 mm
Tweeter Size    26 mm
Woofer Voice Coil Diameter    32 mm
Tweeter Voice Coil Diameter    20 mm
Crossover Type    HP @ 3,5 kHz - 6 dB Oct
Magnet Size Woofer    85 x 40 x 13
Power Handling - Peak    225 W
Power Handling - Continuous    75 W
Impedance    4 Ohm
Frequency Response    70 ÷ 20k
Adjustment Tweeter Level    +2; 0
Woofer Cone Diameter    107 mm
Xmax Woofer    2 mm

Re Woofer    3.1 Ohm
Fs Woofer    90 Hz
Le Woofer mH @ 1 kHz    0.25
Vas Woofer    4 l
Mms Woofer    9 g
Cms Woofer    0.34
Bxl Woofer    4.6
Qts Woofer    0.68
Qms Woofer    8
Spl Woofer    93 dB
