Audison

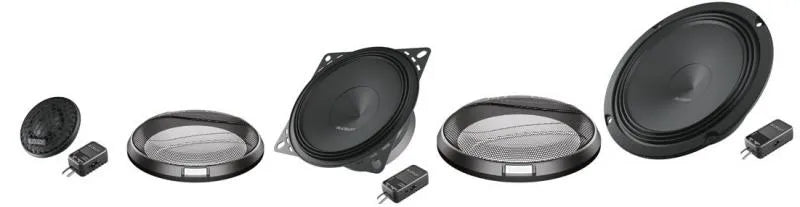

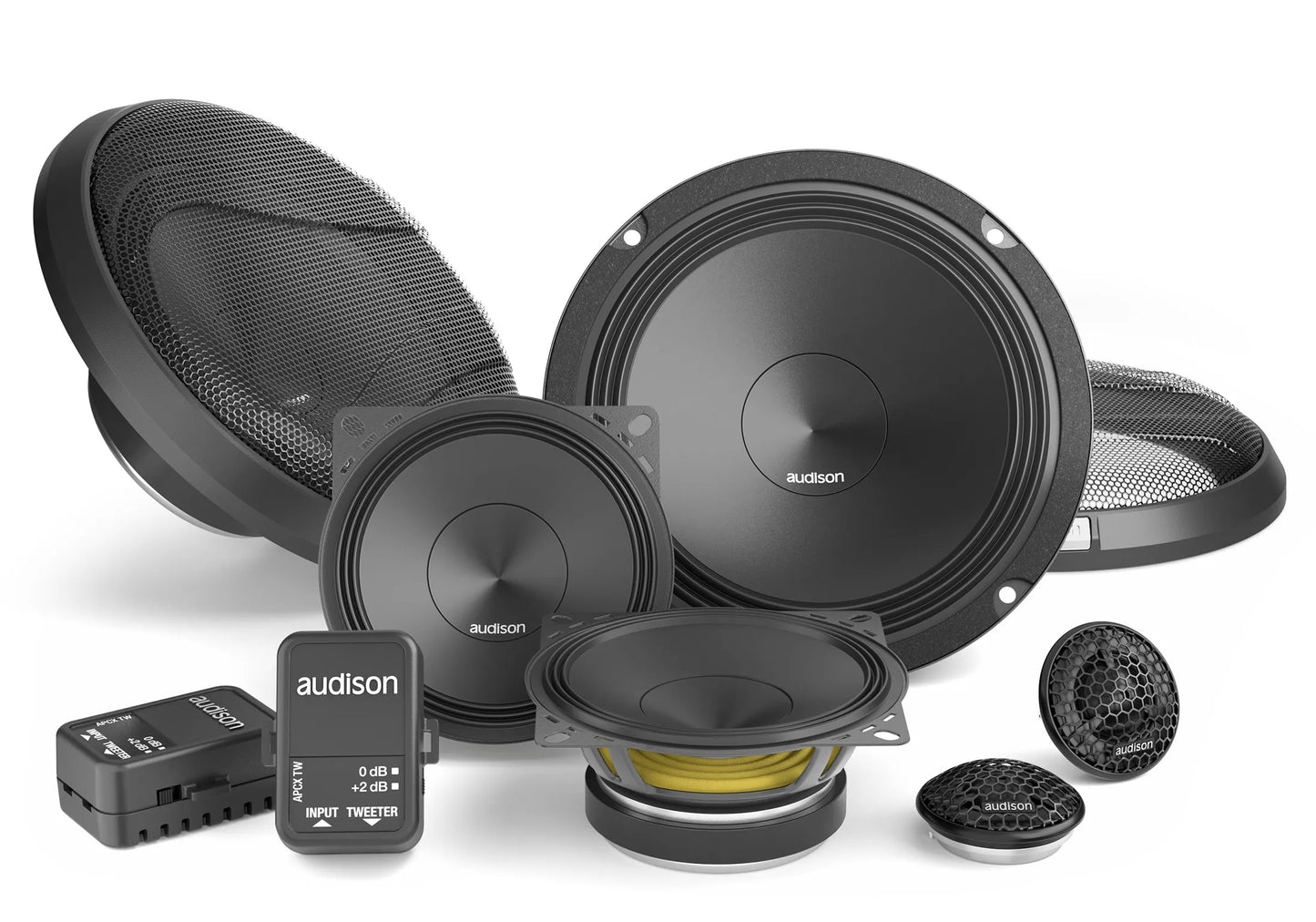

Audison APK 163 Kit | 375 W Peak Power | Kit 3 way 4 ohm | AP 1 + AP 4 + AP 6.5 + Grilles + Crossove

Audison APK 163 Kit | 375 W Peak Power | Kit 3 way 4 ohm | AP 1 + AP 4 + AP 6.5 + Grilles + Crossove

Regular price $650.00
Regular price Sale price $650.00
Sale Sold out

FEATURES

  • AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • Dedicated crossovers for each component: APCX TW compact tweeterpassive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions; APCX MD midbass crossover and APCX WF woofer crossover. The passive crossovers boast very reduced dimensions and are optimized for OEM Integration.
  • AP4 midbass with extended frequency response, combined with high efficiency.
  • AP 6.5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  • AP 6.5 woofer and AP 4 midbass with water-repellent treated paper cone, featuring a profile developed with FEM (Finite element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • AP 6.5 woofer and AP 4 midbass with reduced mounting depth, providing ease of installation in OEM placements.
  • Woofer AP 6.5 and midbass AP 4 with TPU (thermoplastic polyurethane) edge, featuring the unique shallow “TripleWave” profile for maximum linearity of excursion.
  • AP 6.5 woofer and AP 4 midbass with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  • AP 6.5 woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

TECHNICAL SPECS
Woofer Size    165 mm
Tweeter Size    26 mm
Woofer Voice Coil Diameter    32 mm
Magnet Material Woofer    HIGH DENSITY FLUX FERRITE
Cone Material Woofer    WATER REPELLENT PRESSED PAPER
Dome Material Tweeter    TELOTON FIBRE
Power Handling - Peak    375 W
Power Handling - Continuous    125 W
Sensitivity    93.5 dB
Impedance    4 Ohm
Frequency Response    50 ÷ 20k
Crossover Woofer    Low Pass @ 600 Hz - 6 dB Oct
Crossover Tweeter    High Pass @ 3,5 kHz - 6 dB Oct


ELECTRIC-ACOUSTIC SPECS
Spl Woofer    89.5 dB
