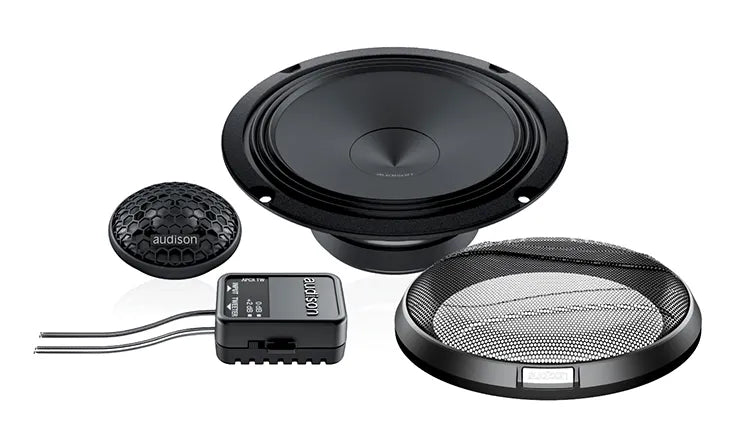

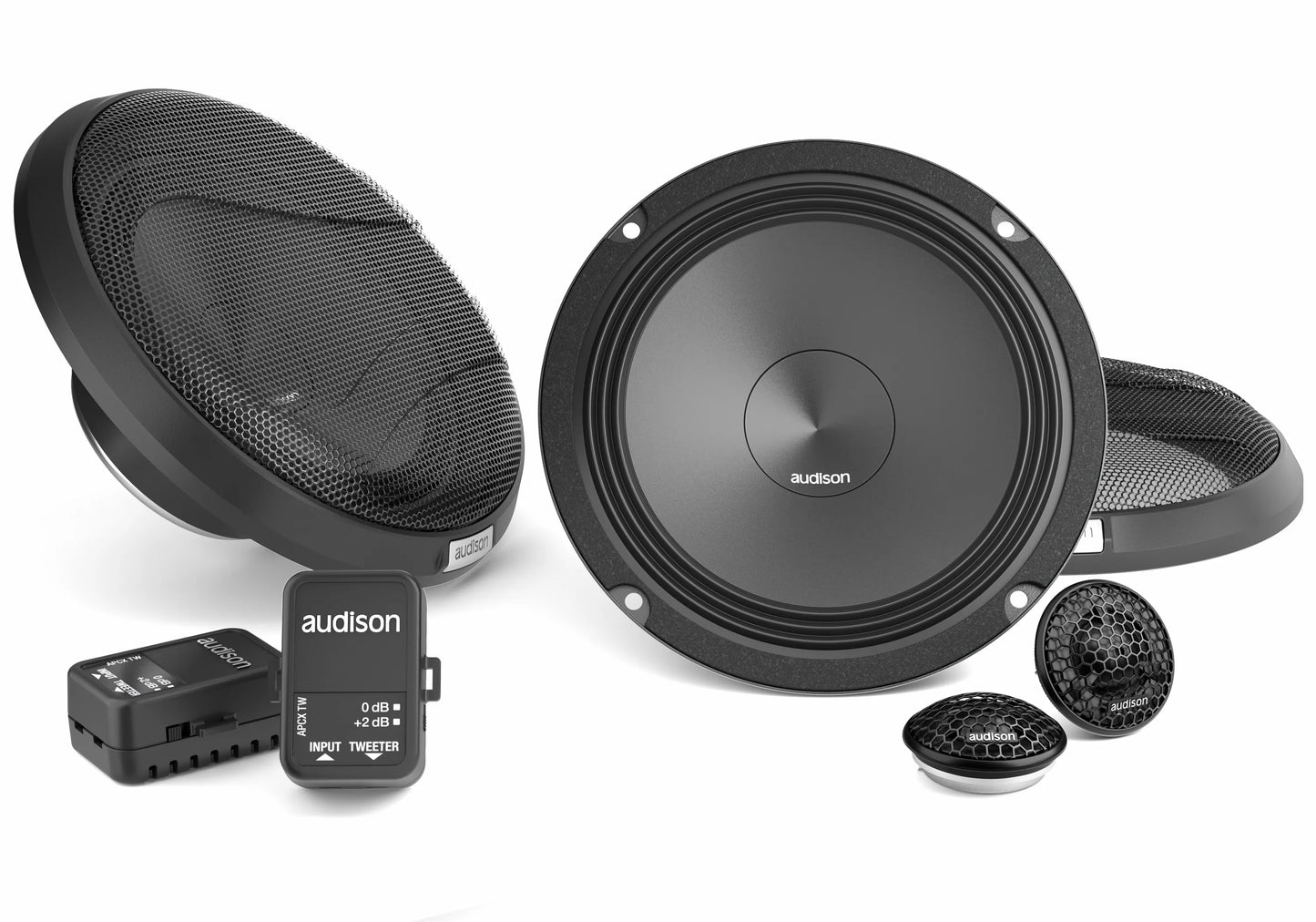

Audison APK 165 Kit | 300 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 6.5 + Crossover

Audison APK 165 Kit | 300 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 6.5 + Crossover

Regular price $420.00
Regular price Sale price $420.00
Sale Sold out


  • AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • AP 1 tweeter with an acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10kHz – 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with fast-on connectors that conform to OEM integration. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the
    required installation time.
  • AP 6.5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low-frequency control.
  • AP 6.5 woofer with a water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
  • AP 6.5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
  • AP 6.5 woofer with TPU (thermoplastic polyurethane) edge, featuring the unique “triple wave” profile for maximum linearity of excursion.
  • AP 6.5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  • AP 6.5 woofer with a high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

Woofer Size    165 mm
Tweeter Size    26 mm
Woofer Voice Coil Diameter    32 mm
Tweeter Voice Coil Diameter    10 mm
Magnet Size Woofer    85 x 40 x 15
Power Handling - Peak    300 W
Power Handling - Continuous    100 W
Impedance    4 Ohm
Frequency Response    60 ÷ 20k
Crossover Woofer    HP @ 3,5 kHz - 6 dB Oct
Adjustment Tweeter Level    +2; 0
Woofer Cone Diameter    129 mm
Xmax Woofer    2.5 mm

Re Woofer    3.1 Ohm
Fs Woofer    80 Hz
Le Woofer mH @ 1 kHz    0.23
Vas Woofer    7.6 l
Mms Woofer    12 g
Cms Woofer    0.31
Bxl Woofer    4.7
Qts Woofer    0.7
Qms Woofer    4.7
Spl Woofer    93.5 dB
