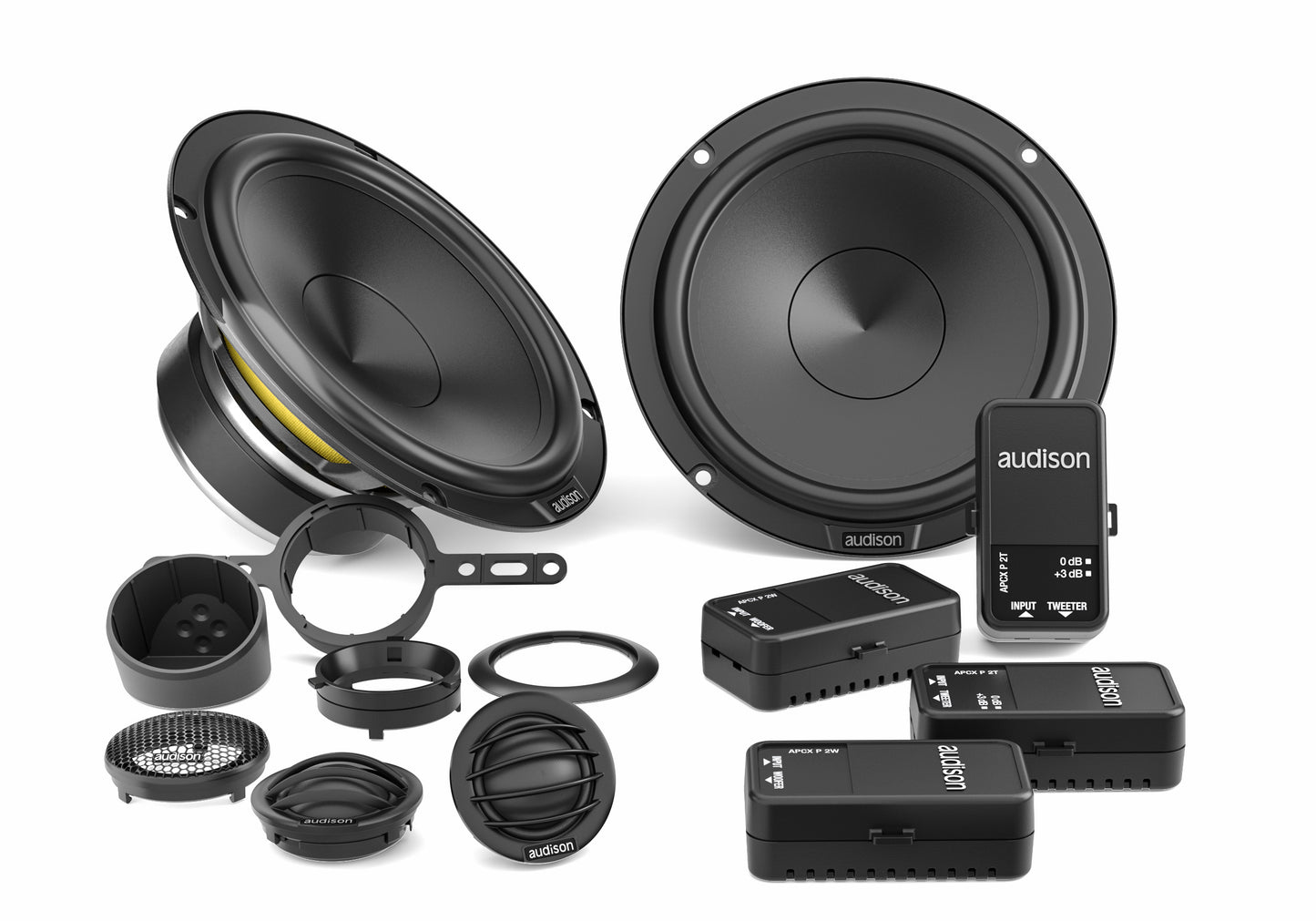

Audison APK 165P Kit | 345 W Peak Power | Kit 2 way 4 ohm | AP 1P + AP 6.5P + Crossover

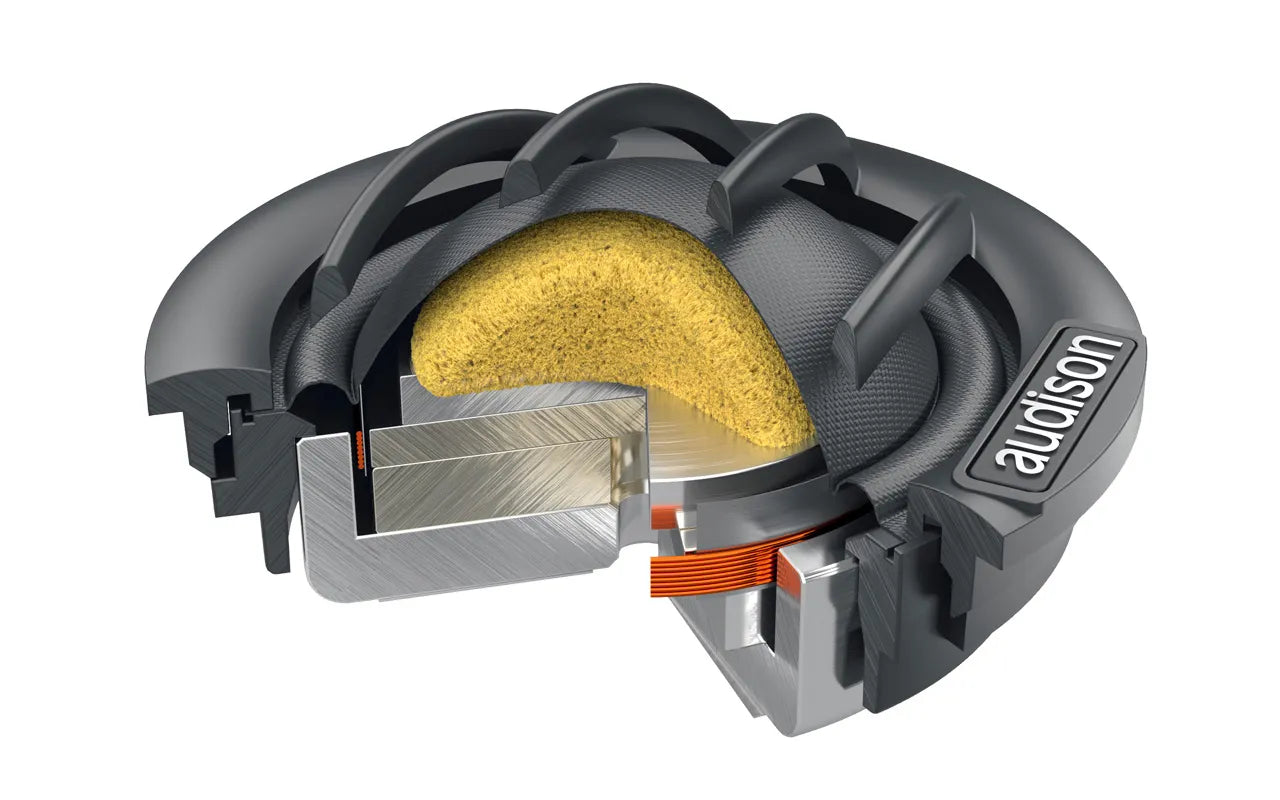

AP 1P

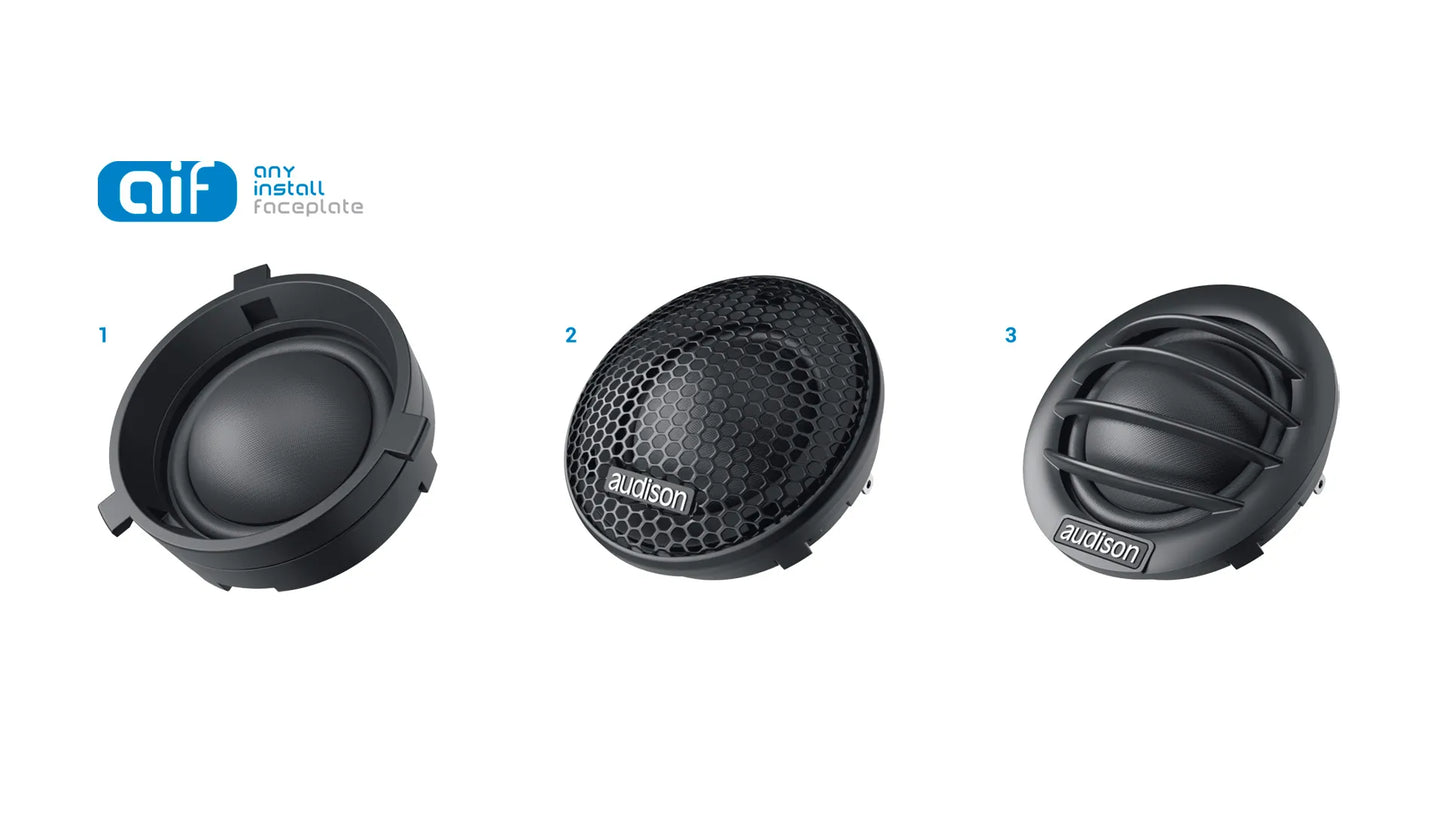

1. AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.

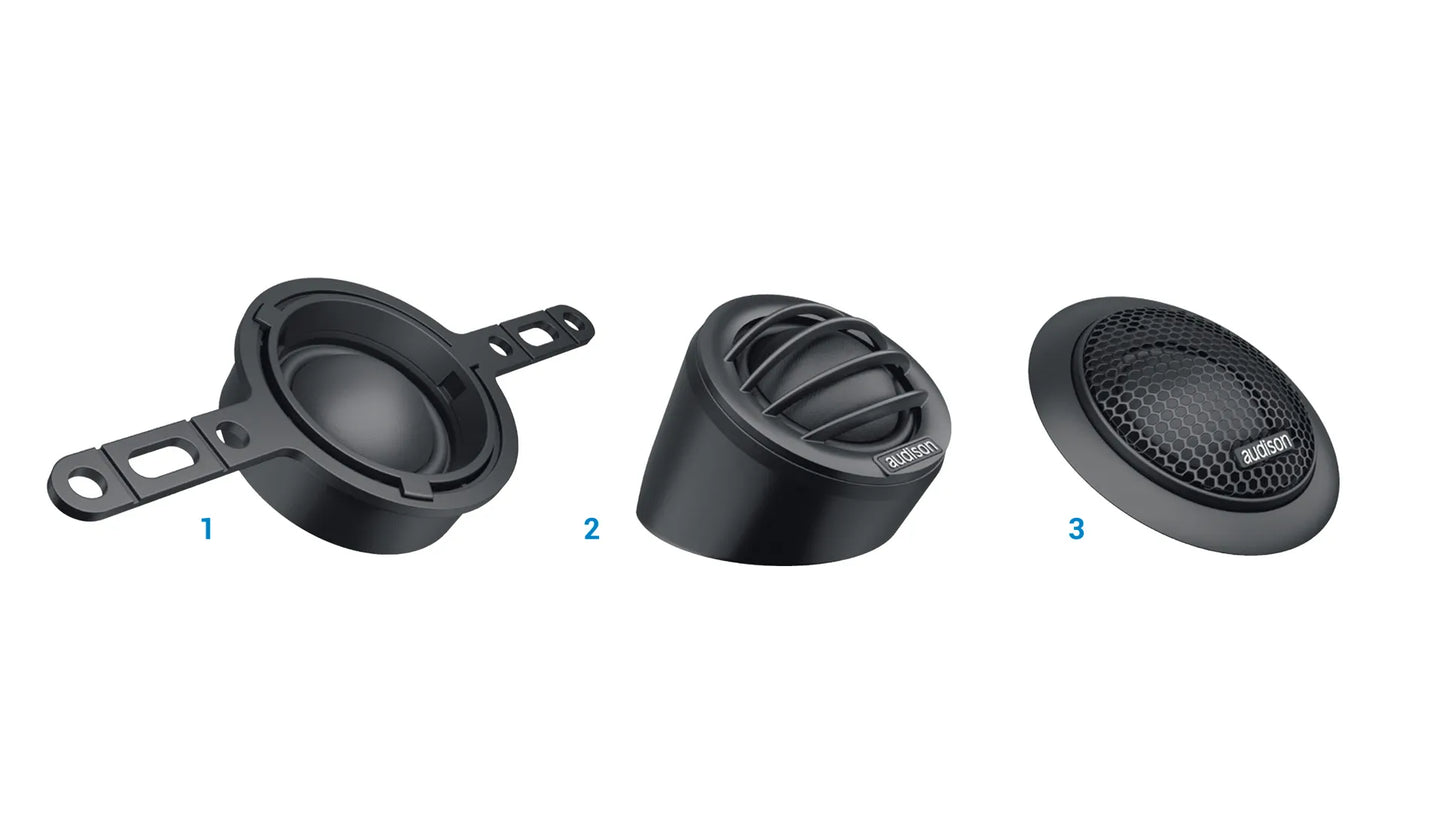

2. Three mounting accessories supplied to provide a solution for any type of installation.
3. Magnetic group with double Neodymium tablet for an excellent high frequency extension.
4. 1 CCAW voice coil for superior dynamic response.
5. Dome profile optimized with FEM simulations for a wide off-axis dispersion.

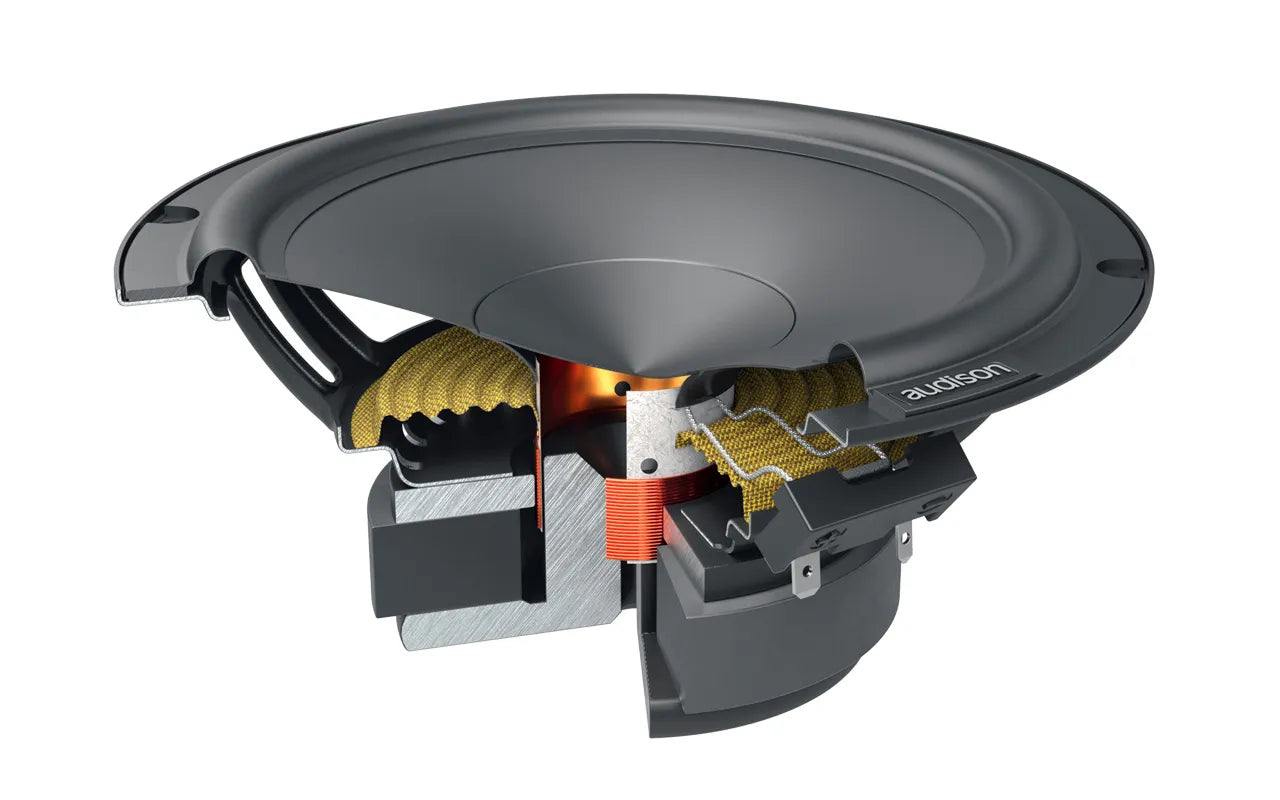

AP 6.5P

1. Increased excursion of the mobile group for a superior dynamic response.
2. Optimized electro-acoustic parameters to maximize performance for OEM placements.
3. Magnetic group sized for perfect control even at maximum cone excursion.
4. CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power.
5. Compact size basket for easy OEM installations.

APCX P 2T, APCX P 2W

1. Separate ultra-compact crossovers for tweeters and woofers to minimize space requirements and simplify cable routing, facilitating the specialist work.
2. Use of components selected and sized for the management of high power avoiding saturation.
3. Asymmetric slope filtering, 12 dB/oct on the tweeter and 6 dB/oct on the woofer for an optimal balance between the two components

TECHNICAL SPECS
Woofer Size    165 mm
Tweeter Size    29 mm
Woofer Voice Coil Diameter    32 mm
Tweeter Voice Coil Diameter    25 mm
Magnet Size Woofer    100 x 40 x 18
Power Handling - Peak    345 W
Power Handling - Continuous    115 W
Sensitivity    92.5 dB
Impedance    4 Ohm
Frequency Response    50 ÷ 24k
Crossover Woofer    Low-Pass: 4 kHz @ 6 dB/Oct
Crossover Tweeter    Hi-Pass: 4 KHz @ 12dB/Oct.
Adjustment Tweeter Level    Tweeter Level; 0 / +3
Woofer Cone Diameter    132 mm
Xmax Woofer    5.6 mm

ELECTRIC-ACOUSTIC SPECS
Re Woofer    3.1 Ohm
Fs Woofer    60 Hz
Le Woofer mH @ 1 kHz    0.29
Vas Woofer    11.4 l
Mms Woofer    14.6 g
Cms Woofer    0.47
Bxl Woofer    5.35
Qts Woofer    0.55
Qms Woofer    7.6
Qes Tweeter    1,74
Spl Woofer    89.5 dB
