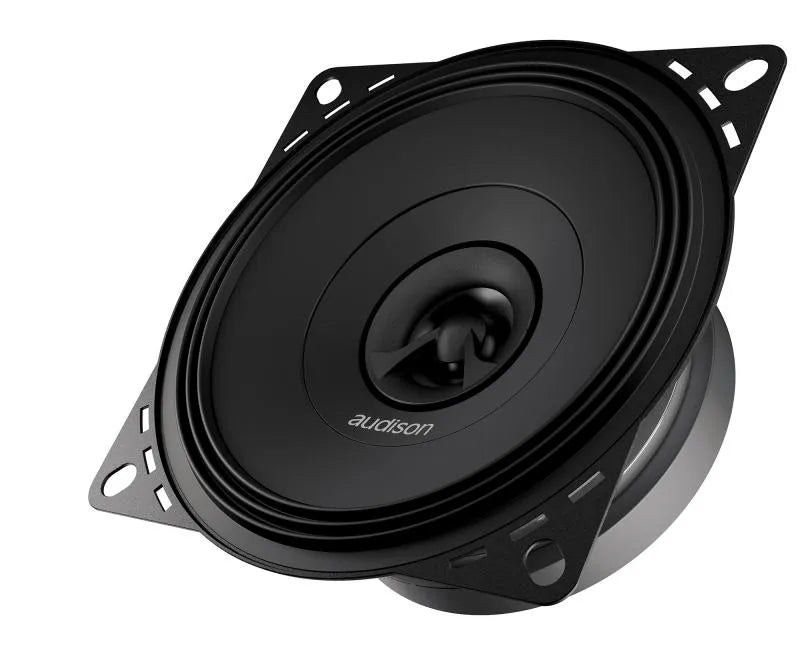

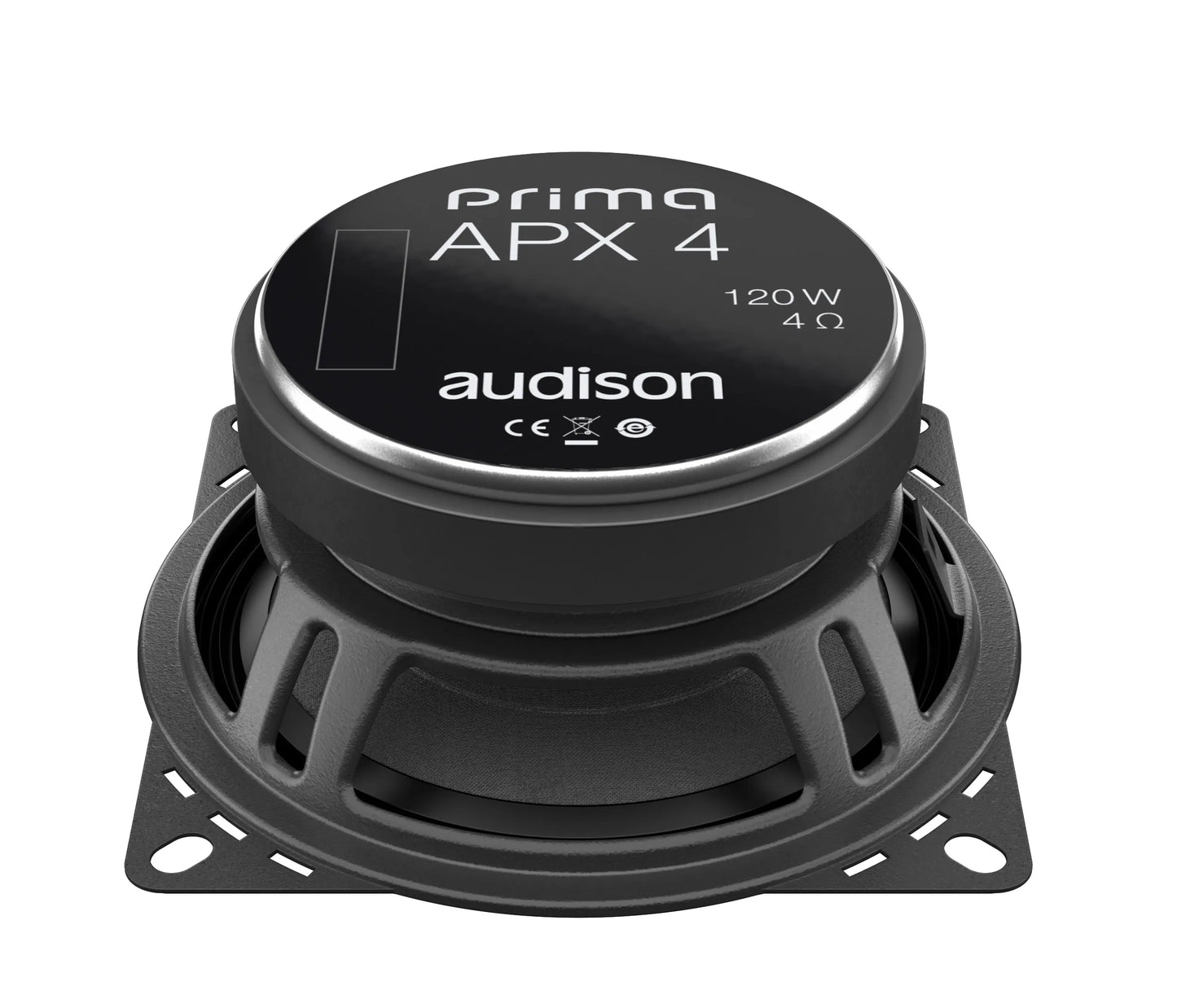

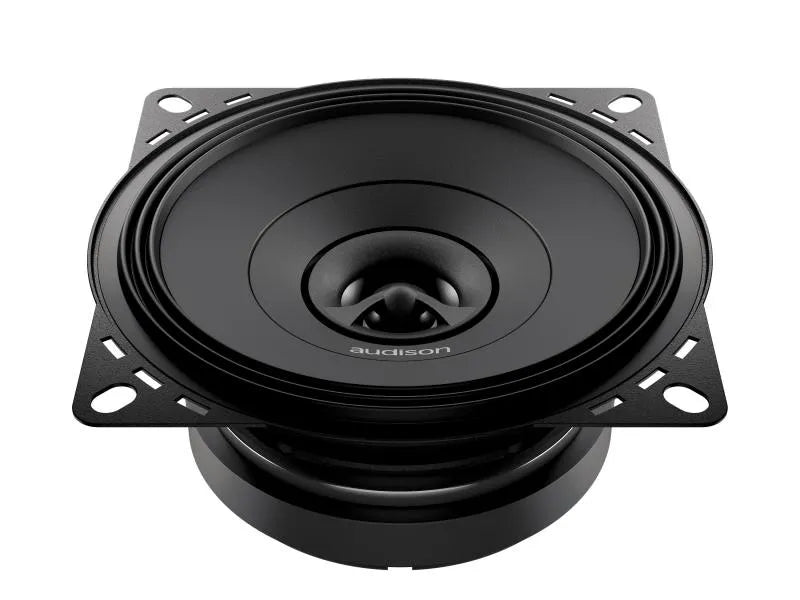

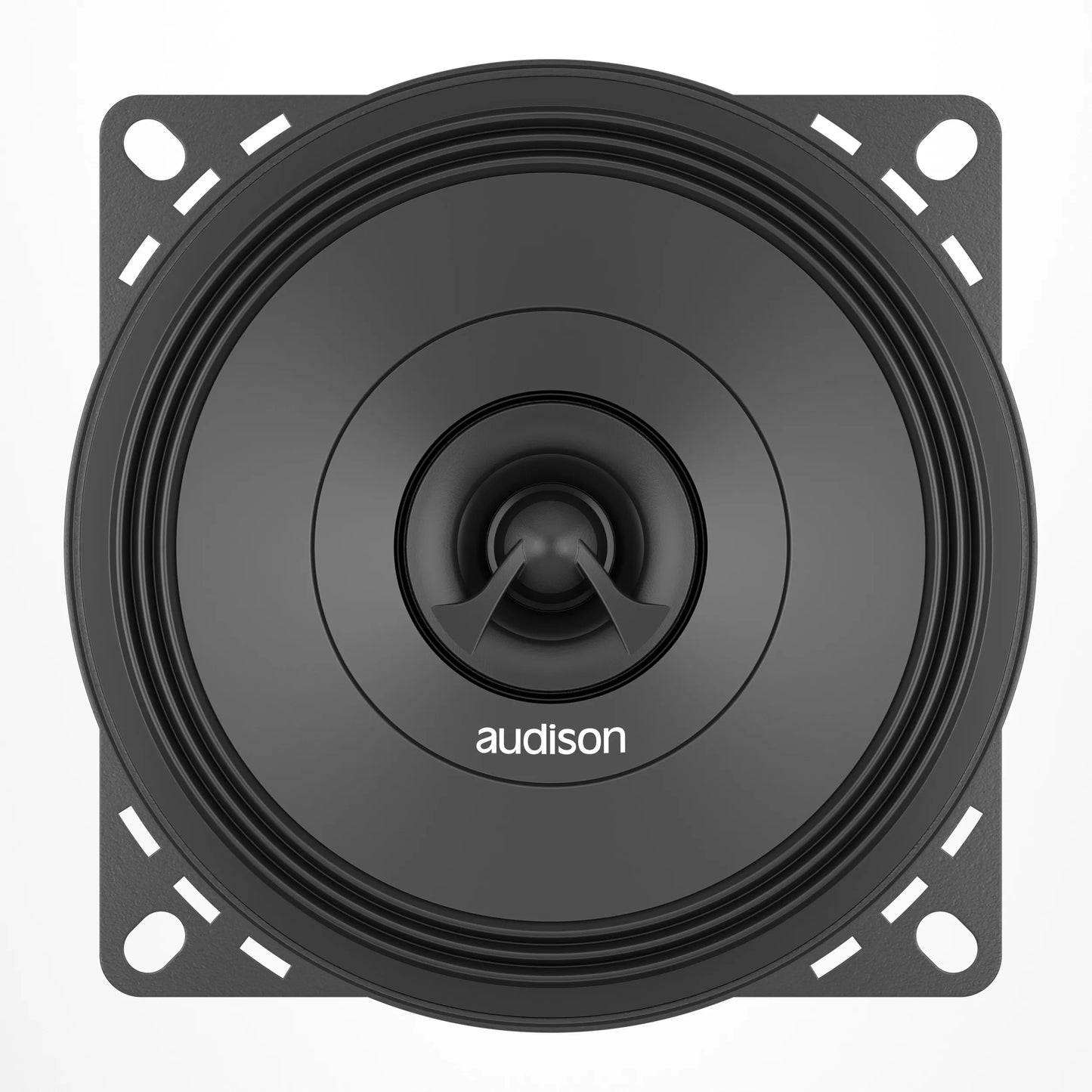

Audison APX 4 Coaxial | 120 W Peak Power | 100 mm | 4 oh

1. Concentric Coaxial Tweeter: tweeter is mounted within the
   woofer with one single point of emission providing consistent
   phase response, with an accurate recreation of the sound stage
   comparable to that of a component system.
2. Tweeter features an acoustic lens specifically designed to
   ensure an extremely linear frequency response, even in off-axis
   placement, typical of in-door installations.
3. 32 mm pure copper voice coil, for high power handling and
   outstanding low frequency control.
4. Overall mounting depth optimized for OEM Integration thanks
   to the concentric tweeter and the low profile basket.
5. Water-repellent treated paper cone, featuring a profile developed
   with FEM (Finite Element Method) simulation technology and
   optimized with the Klippel Scan Vibrometer.
6. TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
7. Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
8. High current fast-on terminal with double contact on positive
   and negative poles for high flexibility and quick connection. The
   terminal features a temperature resistant plastic cover,
   protecting it against accidental short circuits.
9. Developed with the KLIPPEL suite. –

TECHNICAL SPECS
Woofer Size    100 mm
Tweeter Size    24 mm
Woofer Power Handling - Peak    120 W
Woofer Power Handling - Continuous    40 W
Woofer Impedance    4 Ohm
Woofer Frequency Response    80 ÷ 23k
Woofer Magnet Size    75 x 40 x 10
Woofer Voice Coil Diameter    32 mm
Tweeter Voice Coil Diameter    15 mm
Xmax    1.3 mm

ELECTRIC-ACOUSTIC SPECS
D    85 mm
Re    3.1 Ohm
Fs    125 Hz
LE standard    0.04
Vas    1.5 l
Mms    5.3 g
Cms    0.3
Bl    3.2
Qts    1
Qes    1,2
Qms    8
Woofer Spl    91 dB
