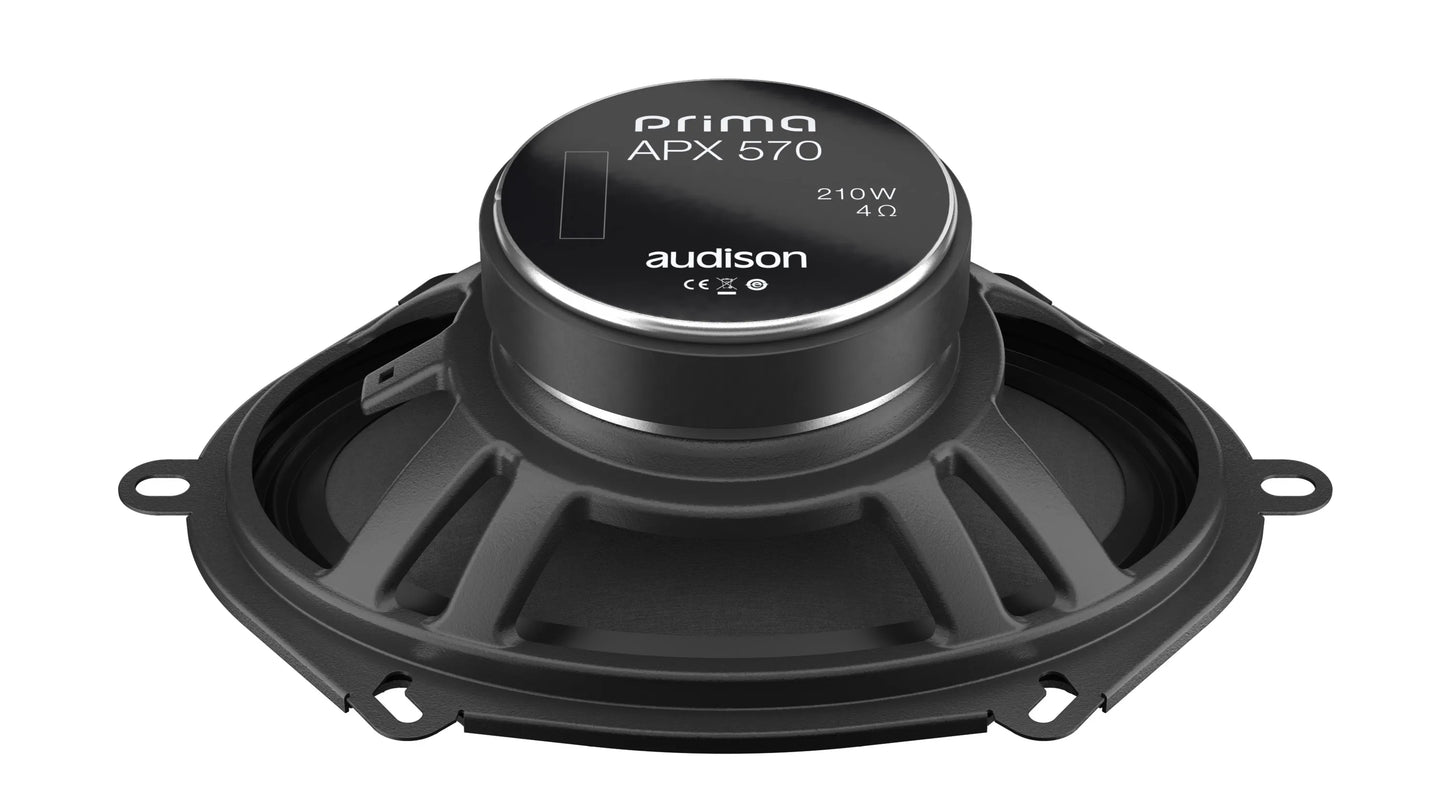

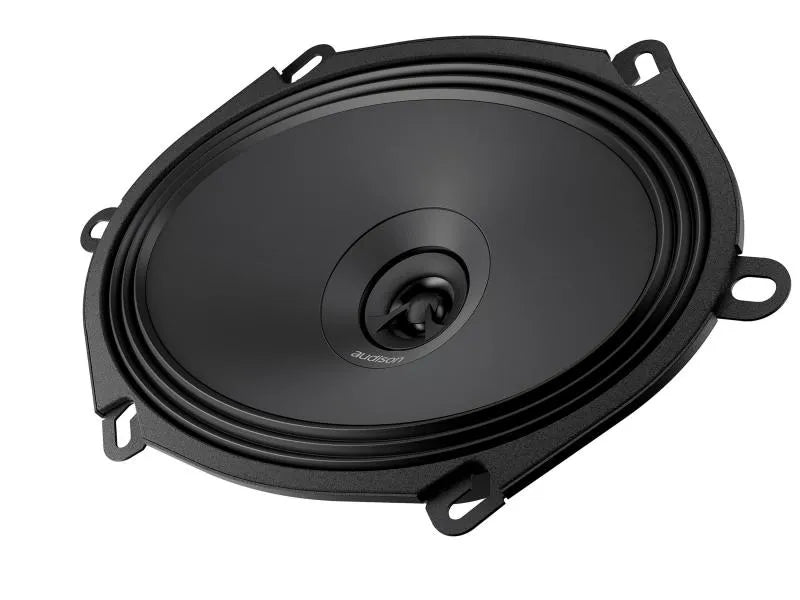

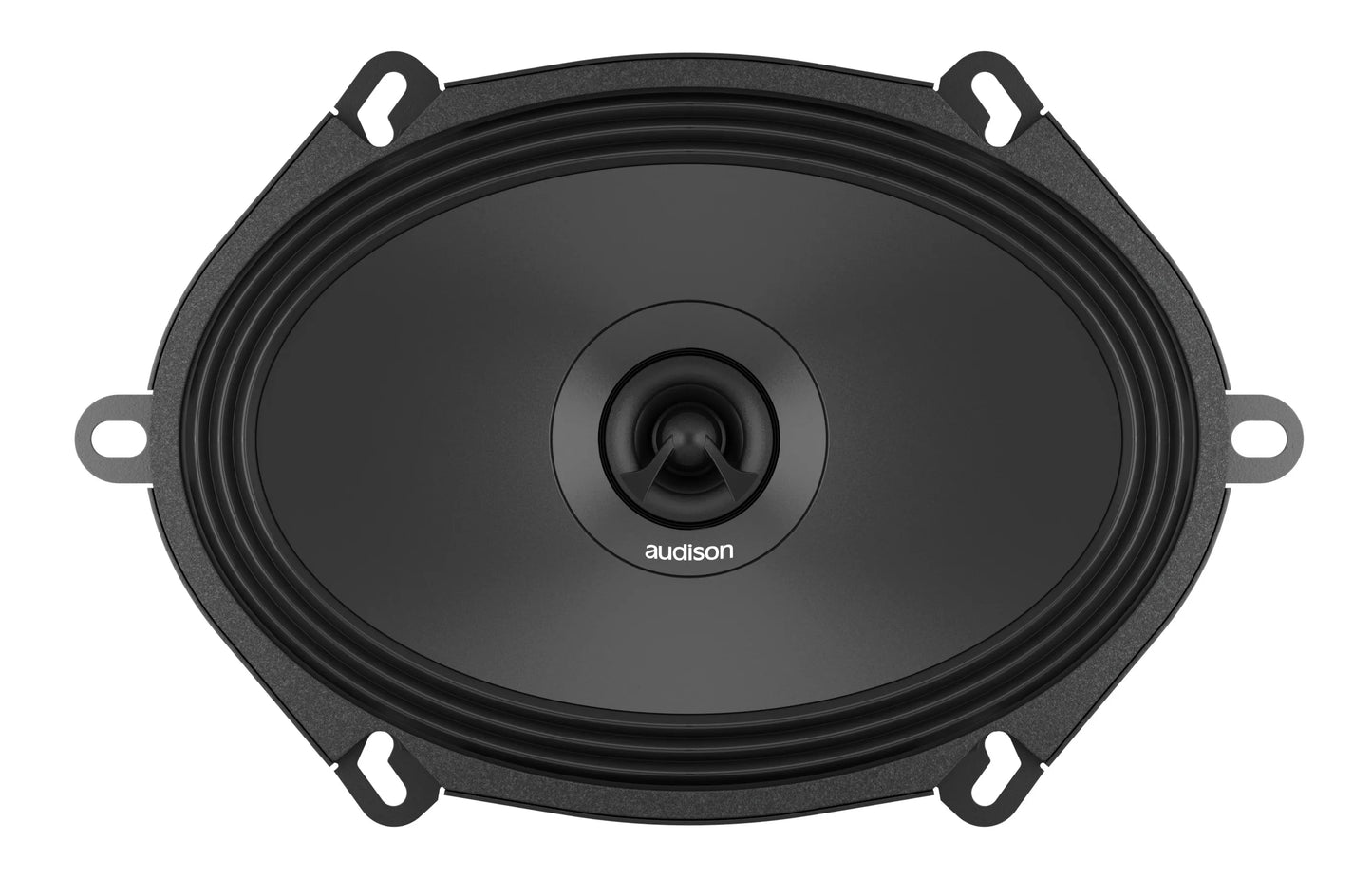

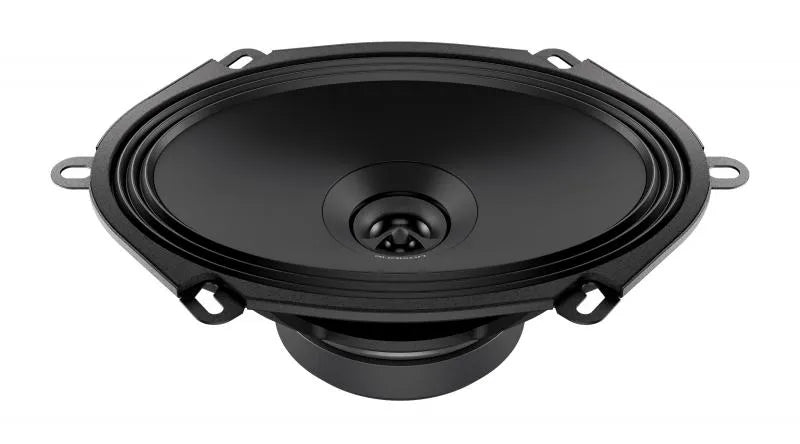

Audison APX 570 Coaxial | 210 W Peak Power | 5″ x 7″ | 4 ohm

Audison APX 570 Coaxial | 210 W Peak Power | 5″ x 7″ | 4 ohm

Regular price $250.00
Regular price Sale price $250.00
Sale Sold out


  1. Concentric Coaxial Tweeter: tweeter is mounted within the
    woofer with one single point of emission providing consistent
    phase response, with an accurate recreation of the sound stage
    comparable to that of a component system.
  2. Tweeter features an acoustic lens specifically designed to
    ensure an extremely linear frequency response, even in off-axis
    placement, typical of in-door installations.
  3. 32 mm pure copper voice coil, for high power handling and
    outstanding low frequency control.
  4. Overall mounting depth optimized for OEM Integration thanks
    to the concentric tweeter and the low profile basket.
  5. Water-repellent treated paper cone, featuring a profile developed
    with FEM (Finite Element Method) simulation technology and
    optimized with the Klippel Scan Vibrometer.
  6. TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.
  7. Compact basket, protected by abrasion-resistant and scratch-proof
    coating, the motor affixed with damping epoxy adhesive.
  8. High current fast-on terminal with double contact on positive
    and negative poles for high flexibility and quick connection. The
    terminal features a temperature resistant plastic cover,
    protecting it against accidental short circuits.
  9. Developed with the KLIPPEL suite.

Elliptical Size    5 x 7
Woofer Size    570 mm
Tweeter Size    24 mm
Woofer Power Handling - Peak    210 W
Woofer Power Handling - Continuous    70 W
Woofer Impedance    4 Ohm
Woofer Frequency Response    60 ÷ 23k
Woofer Magnet Size    85 x 40 x 15
Woofer Voice Coil Diameter    32 mm
Tweeter Voice Coil Diameter    15 mm
Xmax    2 mm

D    139 mm
Re    3.1 Ohm
Fs    70 Hz
LE standard    0.12
Vas    12.5 l
Mms    12 g
Cms    0.4
Bl    4.2
Qts    0.8
Qes    0,9
Qms    8.4
Woofer Spl    93 dB
