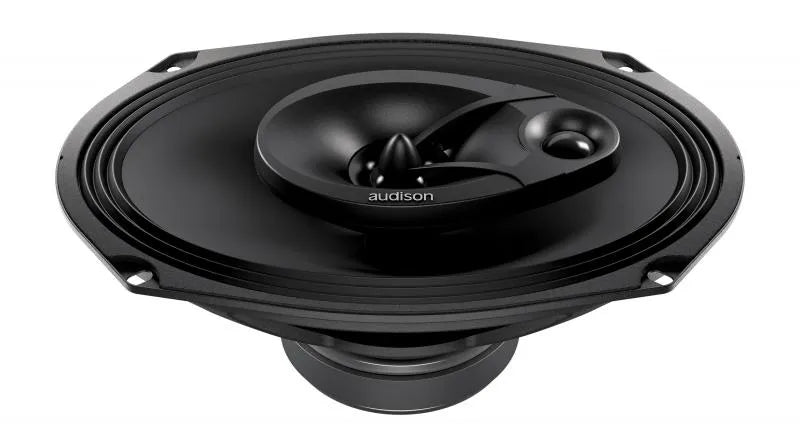

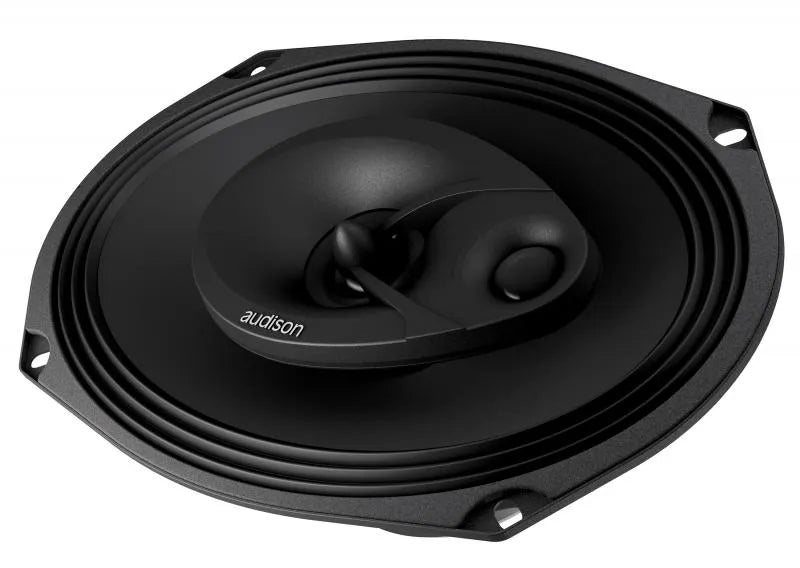

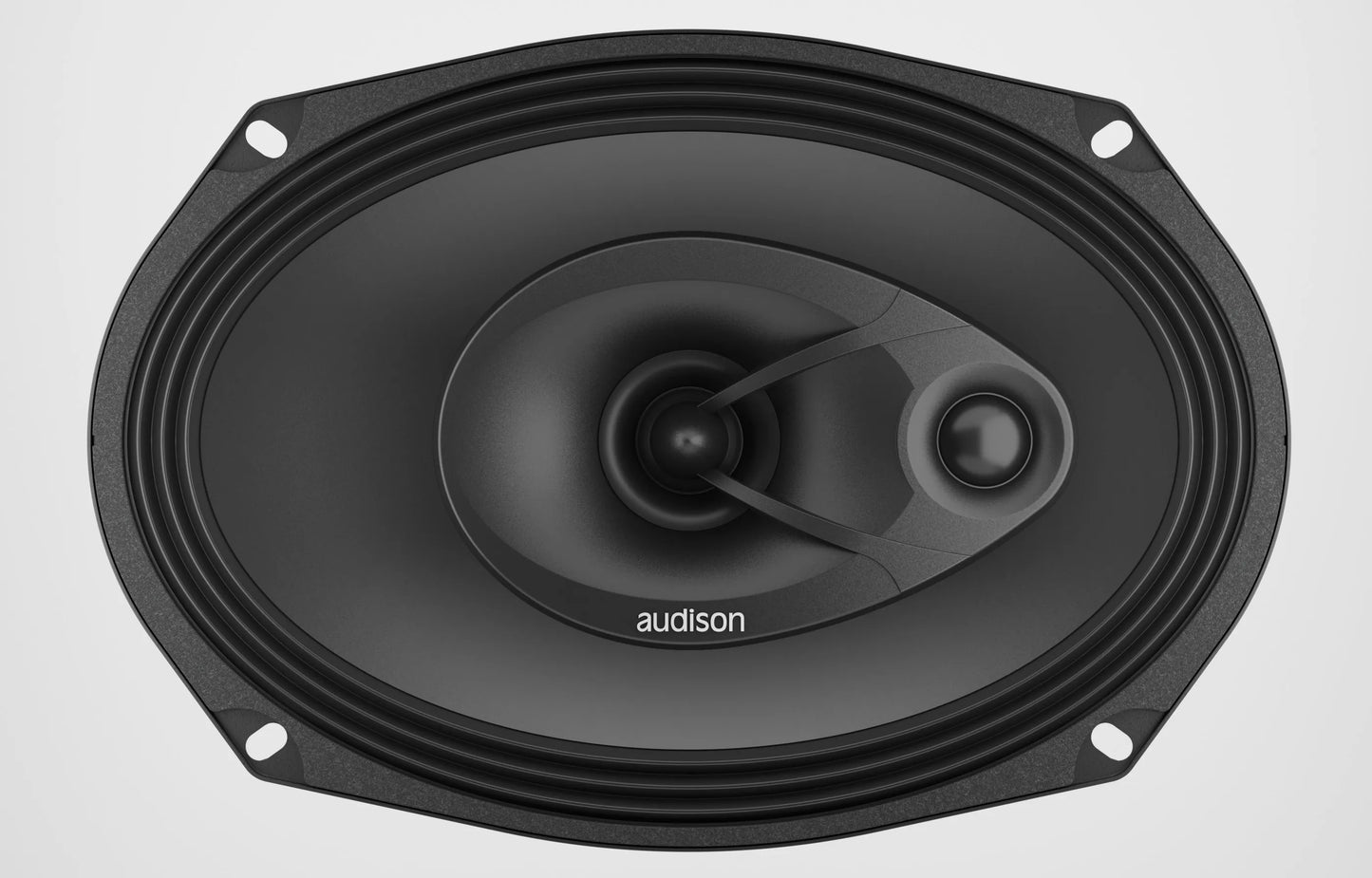

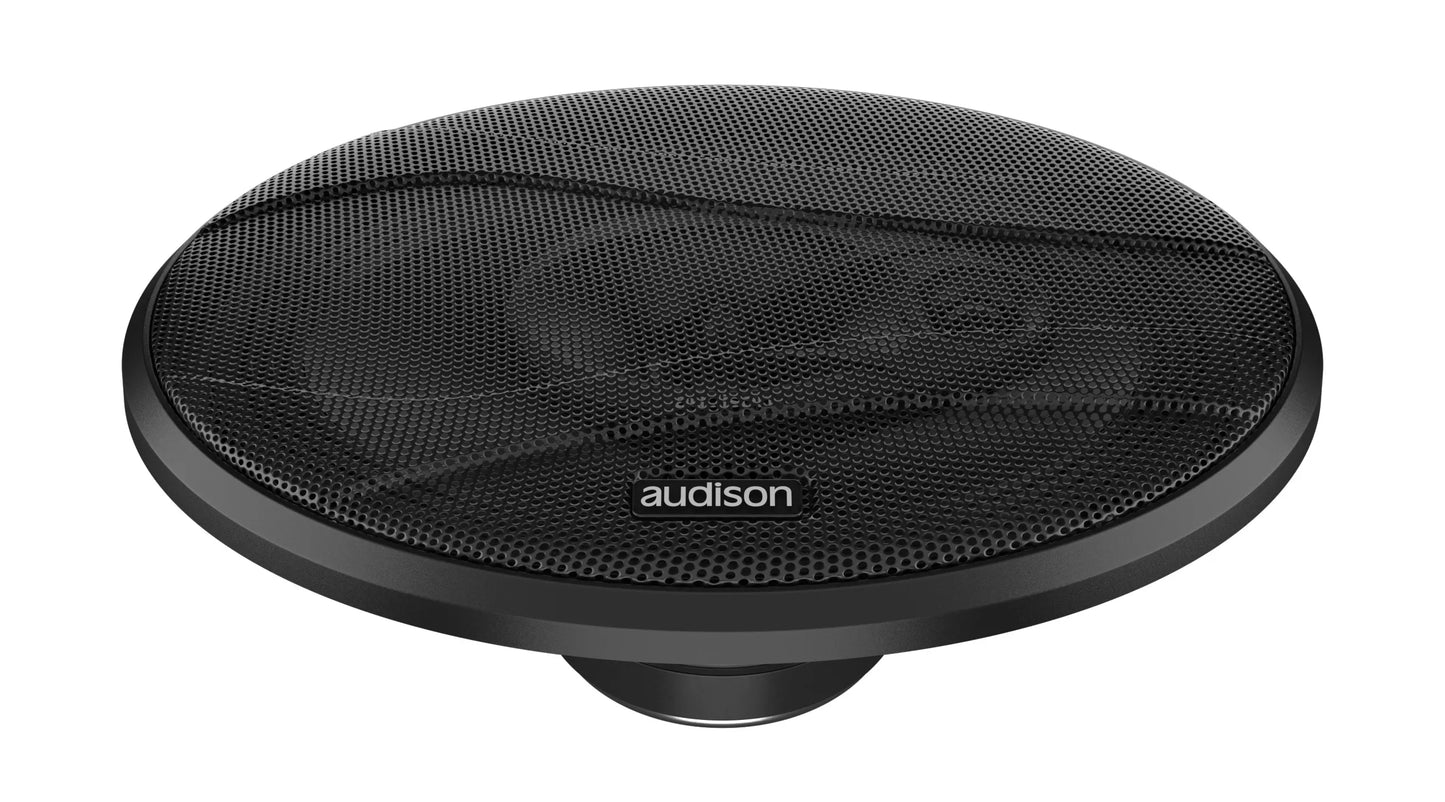

Audison APX 690 Coaxial | 300 W Peak Power | 6″ x 9″ | 4 ohm

Audison APX 690 Coaxial | 300 W Peak Power | 6″ x 9″ | 4 ohm

Regular price $350.00
Regular price Sale price $350.00
Sale Sold out


  1. Horn Loaded Tweeter: 40 mm horn loaded dome tweeter
    contributing to its incredible efficiency of up to 96 dB SPL.
  2. Acoustics lens applied to the tweeter, specifically designed to
    increase dispersion in the high frequency range.
  3. PEI (Polyethylene injected) super tweeter employed to strengthen
    emission of very high frequency ranges otherwise affected by
    off-axis positioning common to rear deck installations.
  4. Water-repellent treated paper cone, featuring a profile developed
    with FEM (Finite Element Method) simulation technology and
    optimized with the Klippel Scan Vibrometer.
  5. Pure copper mobile voice coil, wound on Kapton former, for
    better thermal and mechanical capacity.
  6. TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.
  7. Polycotton spider material ensuring reliable performance and
    linear response to musical transients.

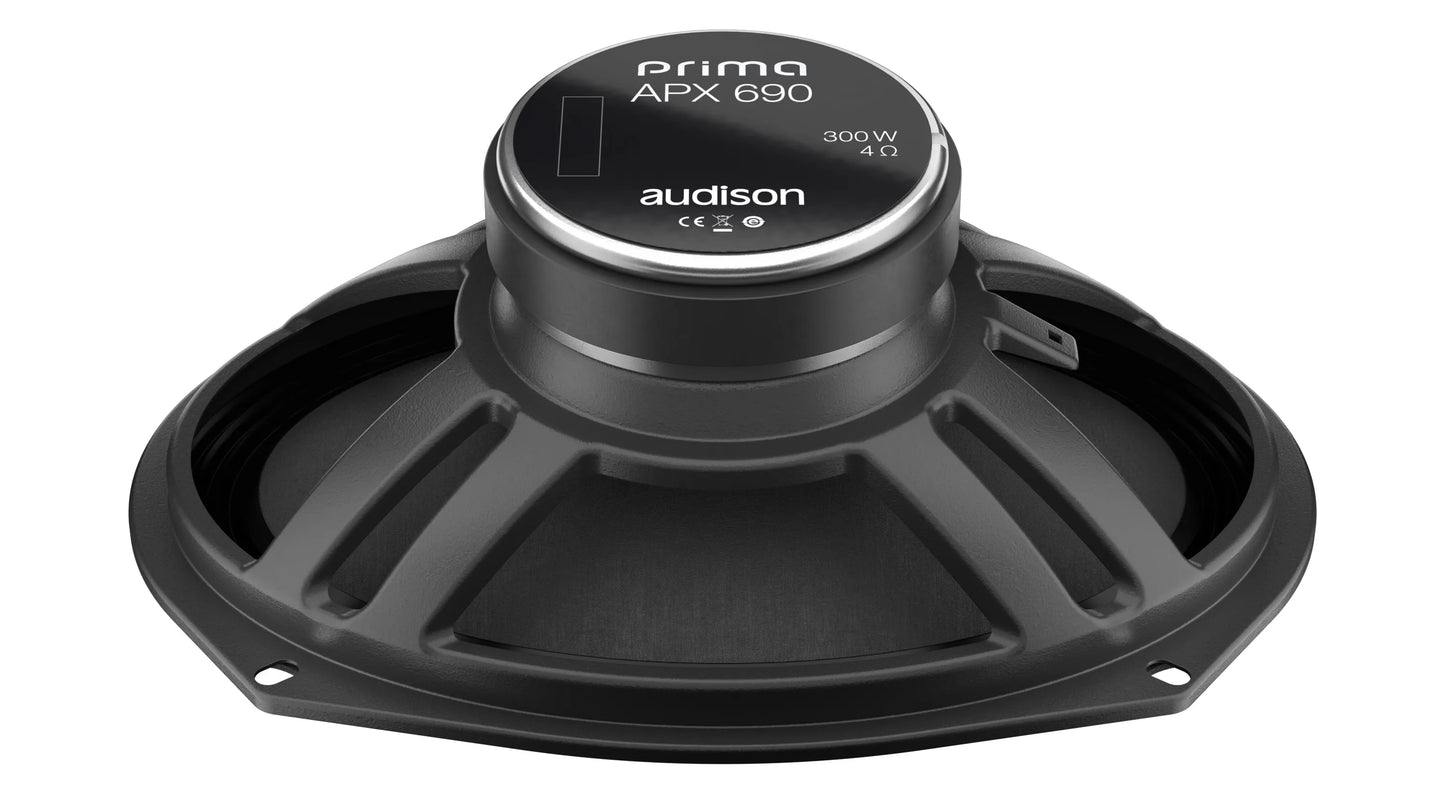

  8. Large motor assembly, optimised with FEM (Finite Element Method)
    technology, for stable control and linear excursion.
  9. Low carbon content plates for maximum magnetic permeability
    and high heat dissipation.
  10. Compact basket, protected by abrasion-resistant and scratch-proof
    coating, the motor affixed with damping epoxy adhesive.
  11. High current fast-on terminal with temperature resistant plastic
    cover, protecting it against accidental short circuits.
  12. Developed with the KLIPPEL suite.

Elliptical Size    6 x 9
Woofer Size    690 mm
Tweeter Size    40 mm
Super Tweeter Size    15
Woofer Power Handling - Peak    300 W
Woofer Power Handling - Continuous    100 W
Woofer Impedance    4 Ohm
Woofer Frequency Response    40 - 23k
Woofer Magnet Size    90 x 32 x 15
Woofer Voice Coil Diameter    25 mm
Tweeter Voice Coil Diameter    20 mm
Xmax    3.5 mm

D    171 mm
Re    3.2 Ohm
Fs    60 Hz
LE standard    0.2
Vas    36 l
Mms    16.6 g
Cms    0.5
Bl    5.3
Qts    0.6
Qes    0,7
Qms    6.7
Woofer Spl    96 dB
