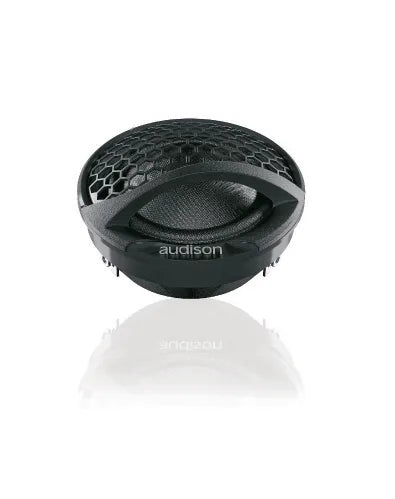

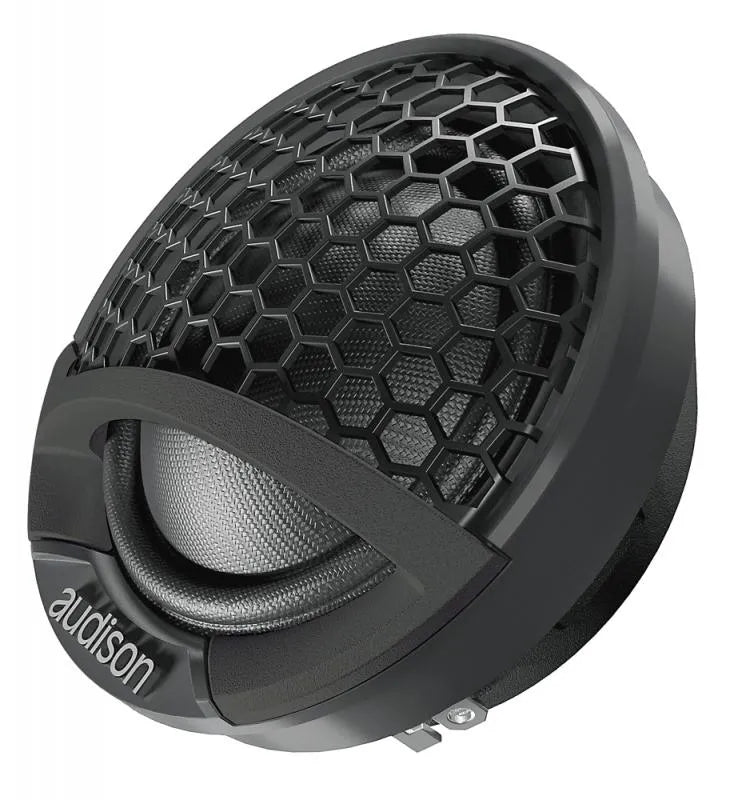

Audison AV 1.1 Tweeter | 180 W Peak Power | 28 mm | 4 ohm

• Tetolon dome, a combination of silk and cotton
  with proprietary damping treatment, provides
  low mass and resonance-free response up to
  ultrasonic frequencies.
• CCAW (Copper Clad Aluminium Wire) voice
  coil wound on double layer, extremely lightweight
  and compact, resulting in a very high efficiency
  and a crisp, dynamic sound.
• The annular geometry of the Rear Damping
  Chamber, together with the proprietary damping
  material, extends the frequency response to lower
  limits and reduces harmonic distortion.
• High flux density Neodymium magnet, for very
  high efficiency and detailed sound.

TECHNICAL SPECS
Size    28 mm
Power Handling - Peak    180 W
Power Handling Crossover    Hi-pass filtered 2.0 kHz @ 12 dB/Oct
Impedance    4 Ohm
Frequency Response    1.2k ÷ 22k Hz
Magnet Material    NEODYMIUM
Voice Coil Ø    28 mm
Voice Coil Material    CCAW
Woofer Qes    1,38
Dome Material    TELOTON FIBRE

ELECTRIC-ACOUSTIC SPECS
D    28 mm
Re    3.3 Ohm
Fs    1000 Hz
Mms    0.3 g
Cms    0.07 mm/N
BL    2.2 T•m
Qms    4.2
Qts    1.04
Le Standard    0.3 mH
Le mH @ 10 kHz 0,07    0.03
Spl    92 dB
