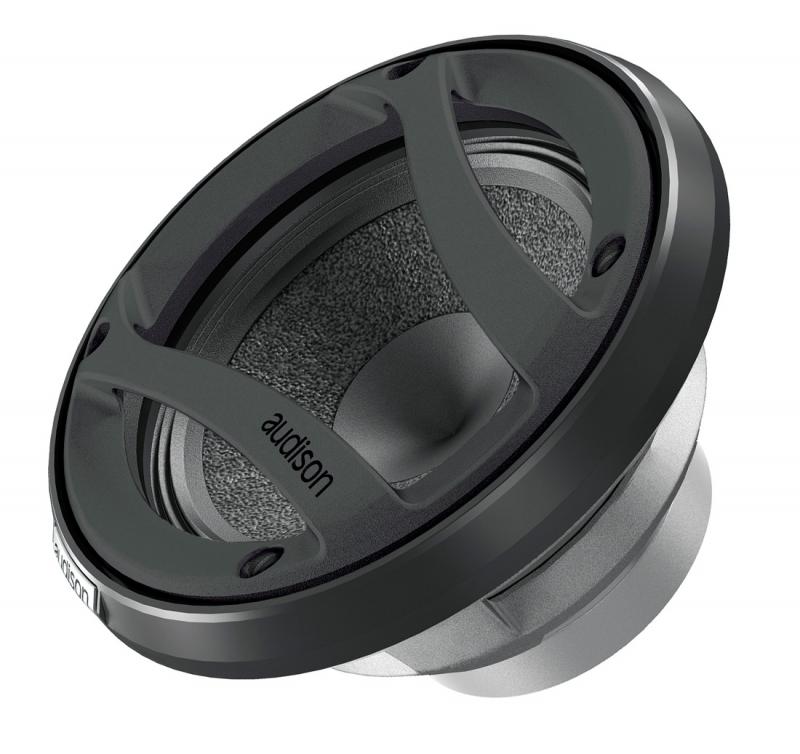

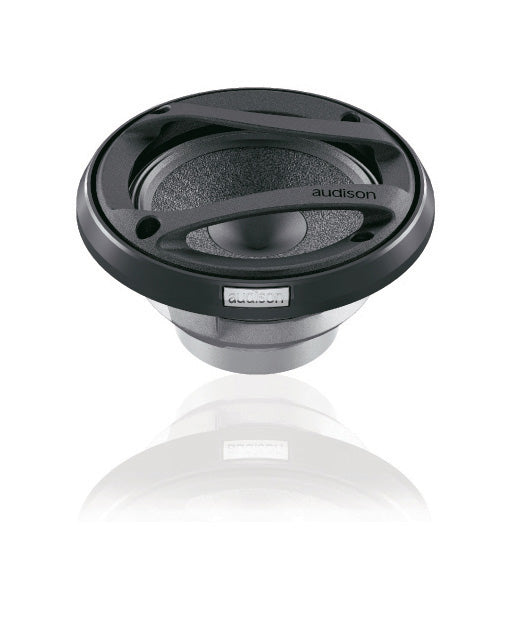

Audison AV 3.0 Mid Range | 100 W Peak Power | 70 mm | 4 ohm

• The profile of the aerodynamic basket’s spokes,
  along with the open-air design, ensures drastic
  reduction of back-wave reflections.
• The exclusive Triple Wave surround profile and
  selected materials provide full linearity as well as
  reliable performance under extreme conditions.
• Extremely lightweight and compact, the CCAW
  (Copper Clad Aluminium Wire) voice coils wound
  on dowble layer provide very high efficiency and
  neat, dynamic sound.
• Cotton-fibre pressed paper cone with Light
  Damping treatment.
• The Radial Venting System ensures high thermal
  capability, power handling and reliability.
• High flux density Neodymium magnet, for to
  flatter impedance and extend the frequency response.
• The central pole piece is covered with a pure
  copper sleeve to provide linear impedance and wide
  frequency response.

TECHNICAL SPECS
Size    70 mm
Power Handling - Peak    100 W
Power Handling - Continuous    50 W
Impedance    4 Ohm
Frequency Response    200 ÷ 14k Hz
Magnet Material    NEODYMIUM
Voice Coil Ø    20 mm
Voice Coil Material    CCAP - COPPER CLAD ALLUMINIUM RIBBON
Woofer Qes    0,74
Xmax    2 mm

ELECTRIC-ACOUSTIC SPECS
D    66 mm
Re    3 Ohm
Fs    160 Hz
Vas    0.4 l
Mms    4.4 g
Cms    0.24 mm/N
BL    4.1 T•m
Qms    4.7
Qts    0.64
Le Standard    0.12 mH
Le mH @ 10 kHz 0,07    0.07
Spl    93 dB
