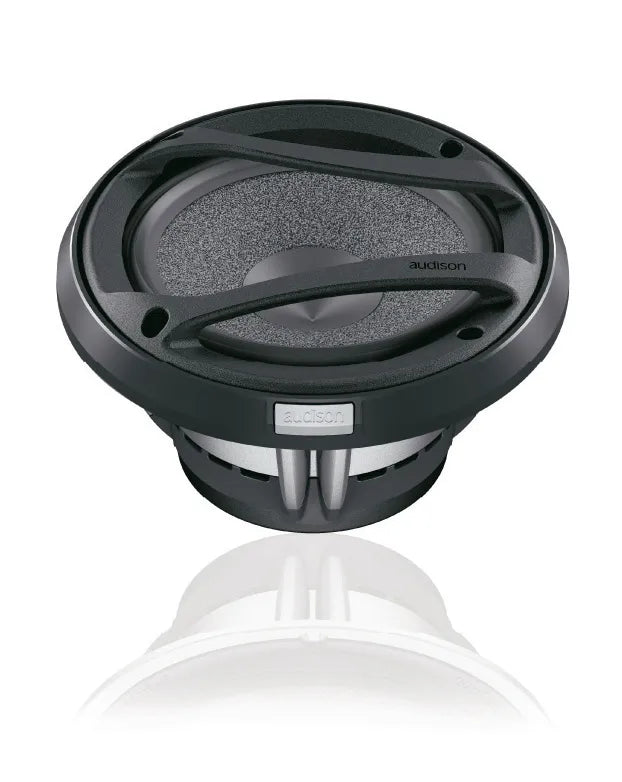

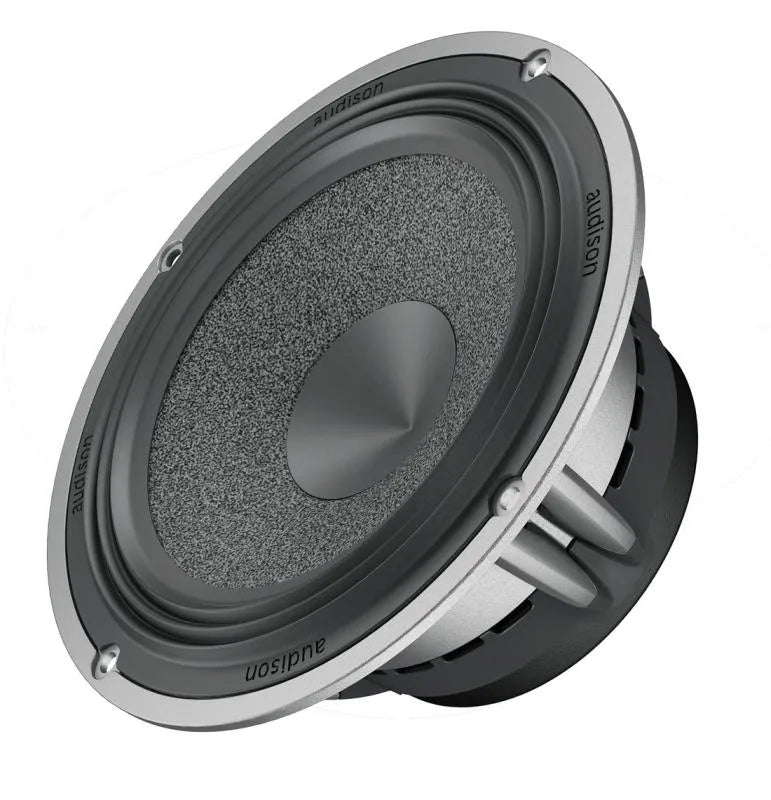

Audison AV 6.5 Woofer | 200 W Peak Power | 165 mm | 4 ohm

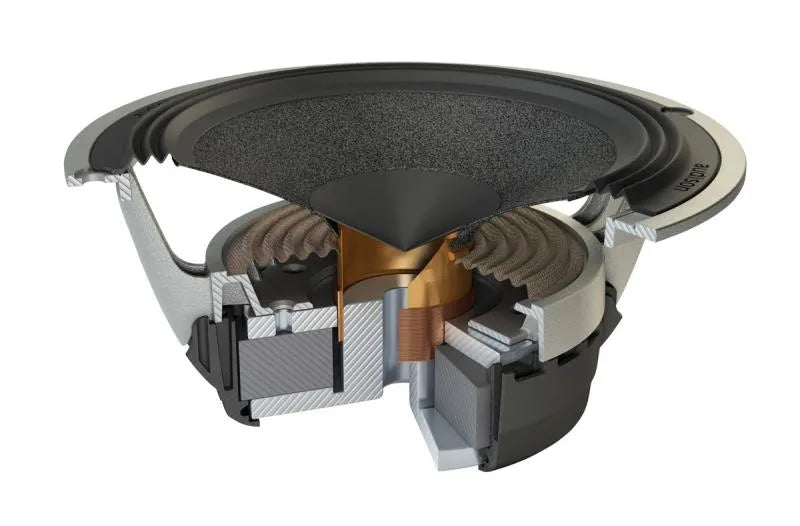

• The profile of the aerodynamic basket’s spokes
  along with the open-air design ensure drastic
  reduction of back-wave reflections.
• The exclusive Butyl rubber Triple Wave surround
  profile provides full linearity as well as reliable
  performance under extreme conditions.
• Extremely lightweight and compact, the CCAW
  (Copper Clad Aluminium Wire) voice coils wound
  on double layer provide very high efficiency and
  neat, dynamic sound.
• Cotton-fibre pressed paper cone with Light
  Damping treatment.
• The Radial Venting System ensures high thermal
  capability, power handling and reliability.

TECHNICAL SPECS
Size    165 mm
Power Handling - Peak    200 W
Power Handling - Continuous    100 W
Impedance    4 Ohm
Frequency Response    50 ÷ 7k Hz
Voice Coil Ø    30 mm
Voice Coil Material    CCAW
Woofer Qes    0,82
Xmax    3 mm

ELECTRIC-ACOUSTIC SPECS
D    130 mm
Re    3.5 Ohm
Fs    68 Hz
Vas    8.2 l
Mms    16.1 g
Cms    0.34 mm/N
BL    5.5 T•m
Qms    7.84
Qts    0.74
Le Standard    0.31 mH
Le mH @ 10 kHz 0,07    0.17
Spl    91 dB
