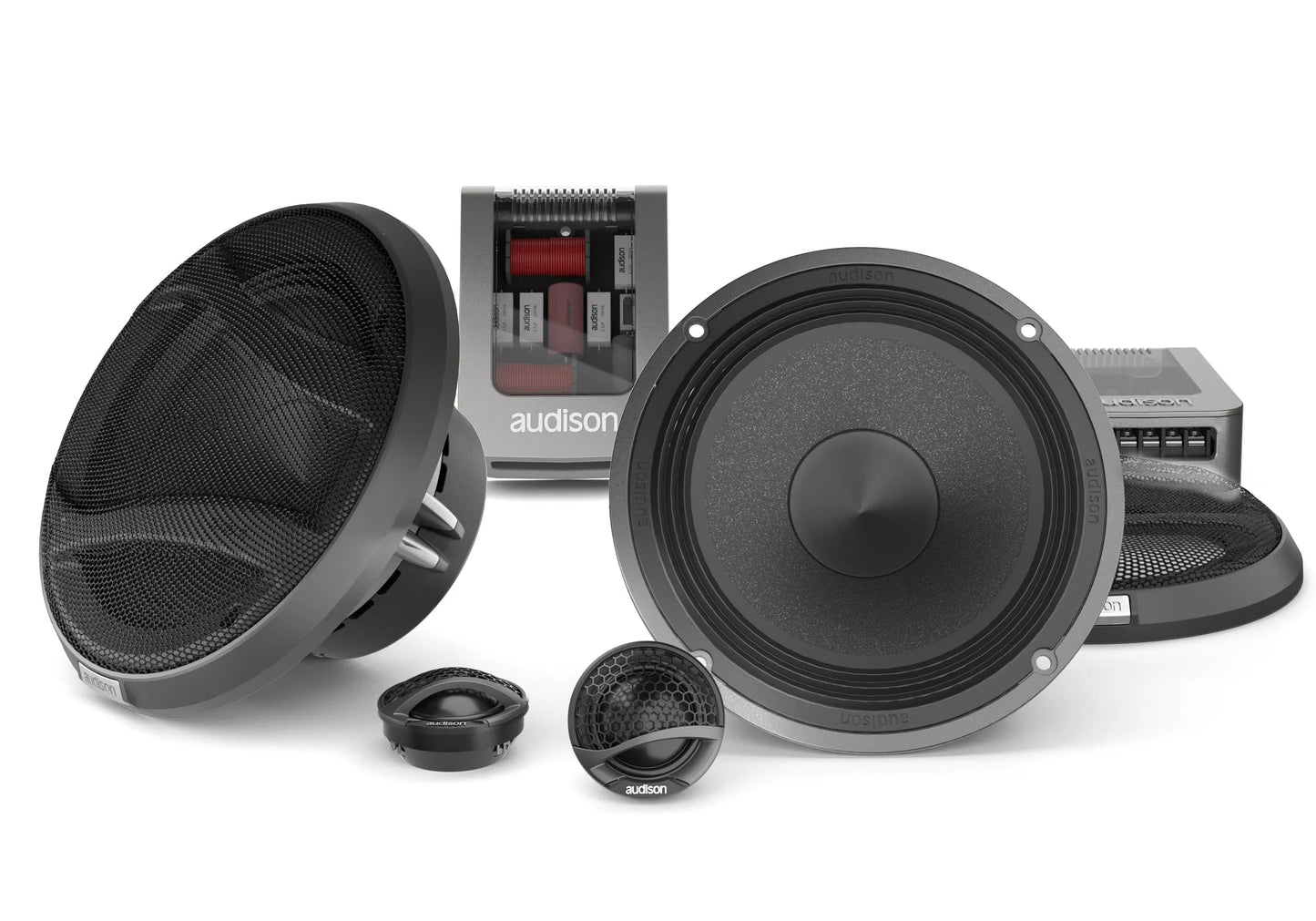

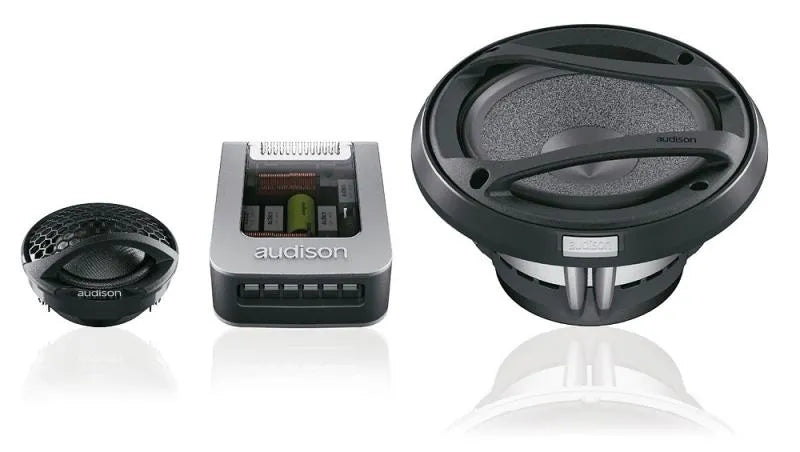

Audison AV K6 Kit | 250 W Peak Power | Kit 2 way 4 ohm | AV 1.1 + AV 6.5 + Crossover

• TWEETER1 Tetolon dome, a combination of silk and cotton with
  proprietary damping treatment, provides low mass and
  resonance-free response up to ultrasonic frequencies.
• CCAW (Copper Clad Aluminium Wire) voice coil wound on
  double layer, extremely lightweight and compact, resulting
  in a very high efficiency and a crisp, dynamic sound.
• The annular geometry of the Rear Damping Chamber,
  together with the proprietary damping material, extends
  the frequency response to lower limits and reduces
  harmonic distortion.
• High flux density Neodymium magnet, for very high
  efficiency and detailed sound.

WOOFER

• The profile of the aerodynamic basket’s spokes along
  with the open-air design ensure drastic reduction of
  back-wave reflections.
• The exclusive Butyl rubber Triple Wave surround
  profile provides full linearity as well as reliable
  performance under extreme conditions.
• Extremely lightweight and compact, the CCAW (Copper
  Clad Aluminium Wire) voice coils wound on double layer
  provide very high efficiency and neat, dynamic sound.
• Cotton-fibre pressed paper cone with treatment.
• The Radial Venting System ensures high thermal
  capability, power handling and reliability

TECHNICAL SPECS
Woofer Size    165 mm
Tweeter Size    28 mm
Woofer Voice Coil Diameter    30 mm
Tweeter Voice Coil Diameter    28 mm
Magnet Size Woofer    90 x 40 x 15
Power Handling - Peak    250 W
Power Handling - Continuous    125 W
Sensitivity    91 dB
Impedance    4 Ohm
Frequency Response    50 ÷ 22k
Crossover Woofer    Lo/Hi-Pass 2.5 kHz @ 12/12 dB/Oct.
Adjustment Tweeter Level    +2; 0; -2 dB
Woofer Cone Diameter    130 mm
Xmax Woofer    3 mm

ELECTRIC-ACOUSTIC SPECS
Re Woofer    3.5 Ohm
Fs Woofer    68 Hz
Le Woofer mH @ 1 kHz    0.31
Vas Woofer    8.2 l
Mms Woofer    16.1 g
Cms Woofer    0.34
Bxl Woofer    5.5
Qts Woofer    0.74
Qms Woofer    7.84
Spl Woofer    91 dB
