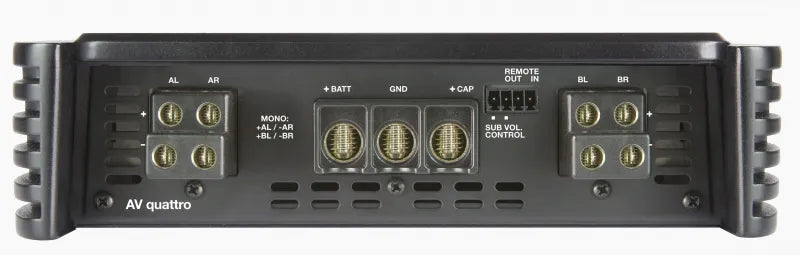

Audison AV quattro Amplifier | 800 W total power | 4 x 200 W @ 2ohm | AB-class

General Specifications:

• Channels: 4
• Class: AB-Class
• Hi Level Input: Yes
• Low Level Input: Yes
• Digital Input: No
• Power supply voltage / fuse: 11 ÷ 15 VDC
• Idling current: 1.8 A
• Idling current when off: 0.02 mA
• Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 55 A
• Remote OUT: 12 VDC - 50mA
• Remote IN: 7 ÷ 15 VDC - 1mA
• ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): Selectable

Amplifier Stage Specifications:

• Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power: 0.04 %
• Bandwidth A (−3 dB, 2 VRMS, 4 Ω): 4 ÷ 60k Hz
• S/N ratio A (A weighted @ 1 V): 100 dBA
• Damping factor A (1kHz, 4 Ohms): 100
• Input sensitivity Pre-In: 0.3 ÷ 5 V RMS
• Pre In Impedance: 15k Ω
• Input sensitivity Speaker-In: 1.4 ÷ 24 V RMS
• Input impedance Speaker-In: 5k Ω

Power Output Specifications:

• Total Power RMS: 800 W
• Minimum load impedance: 2Ω
• Output Power (RMS) @14.4 VDC, 1% THD:
  • 4 Ch: 120 W x 4 (4Ω)
  • 4 Ch: 200 W x 4 (2Ω)
  • 4 Ch: 120 W x 2 (4Ω) + 200 W x 2 (2Ω)
  • 3 Ch: 120 W x 2 (4Ω) + 400 W x 1 (4Ω)
  • 3 Ch: 200 W x 2 (2Ω) + 400 W x 1 (4Ω)
  • 2 Ch: 400 W x 1 (4Ω) + 400 W x 1 (4Ω)

Additional Features:

• Adjustable Crossover: Yes
