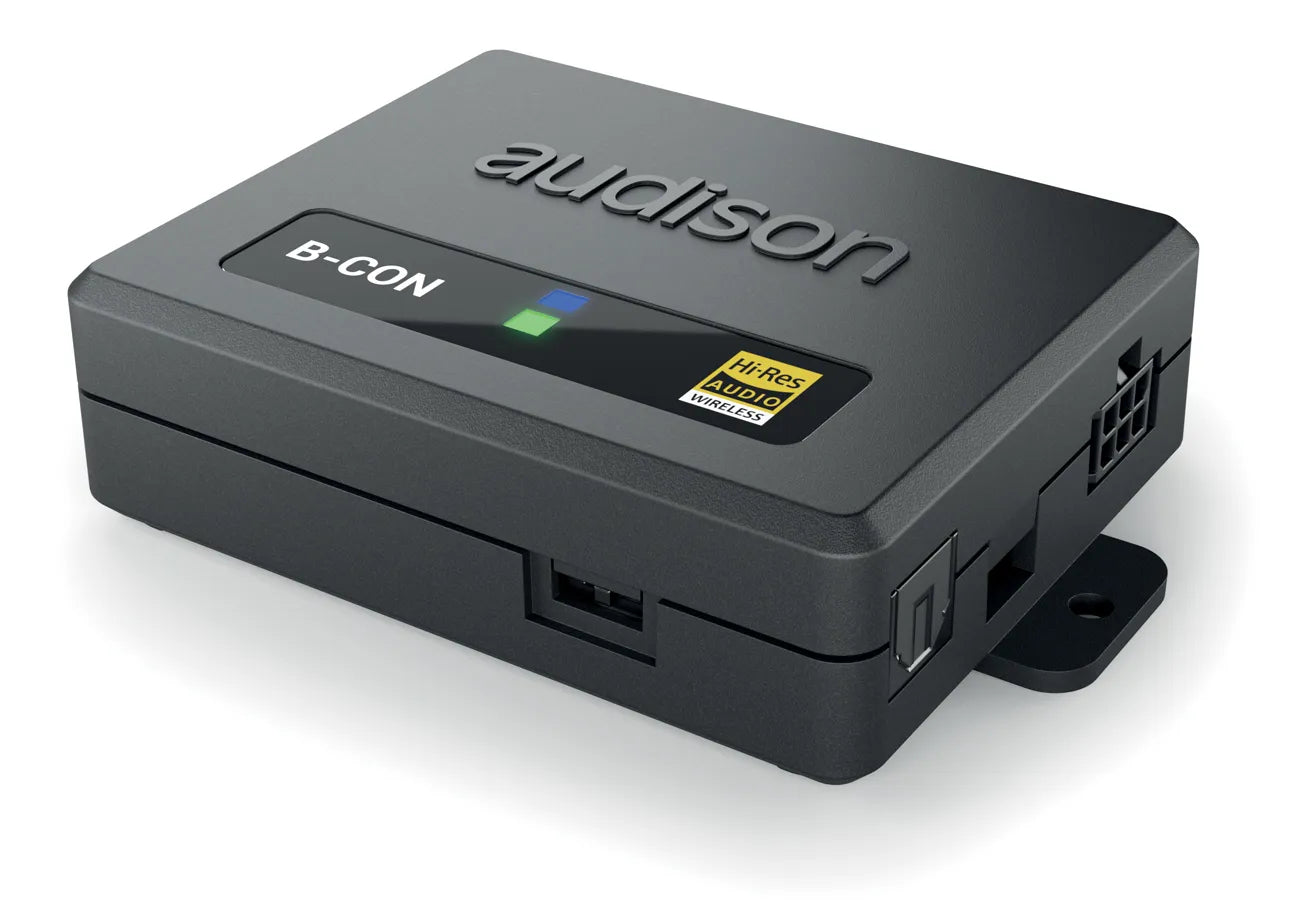

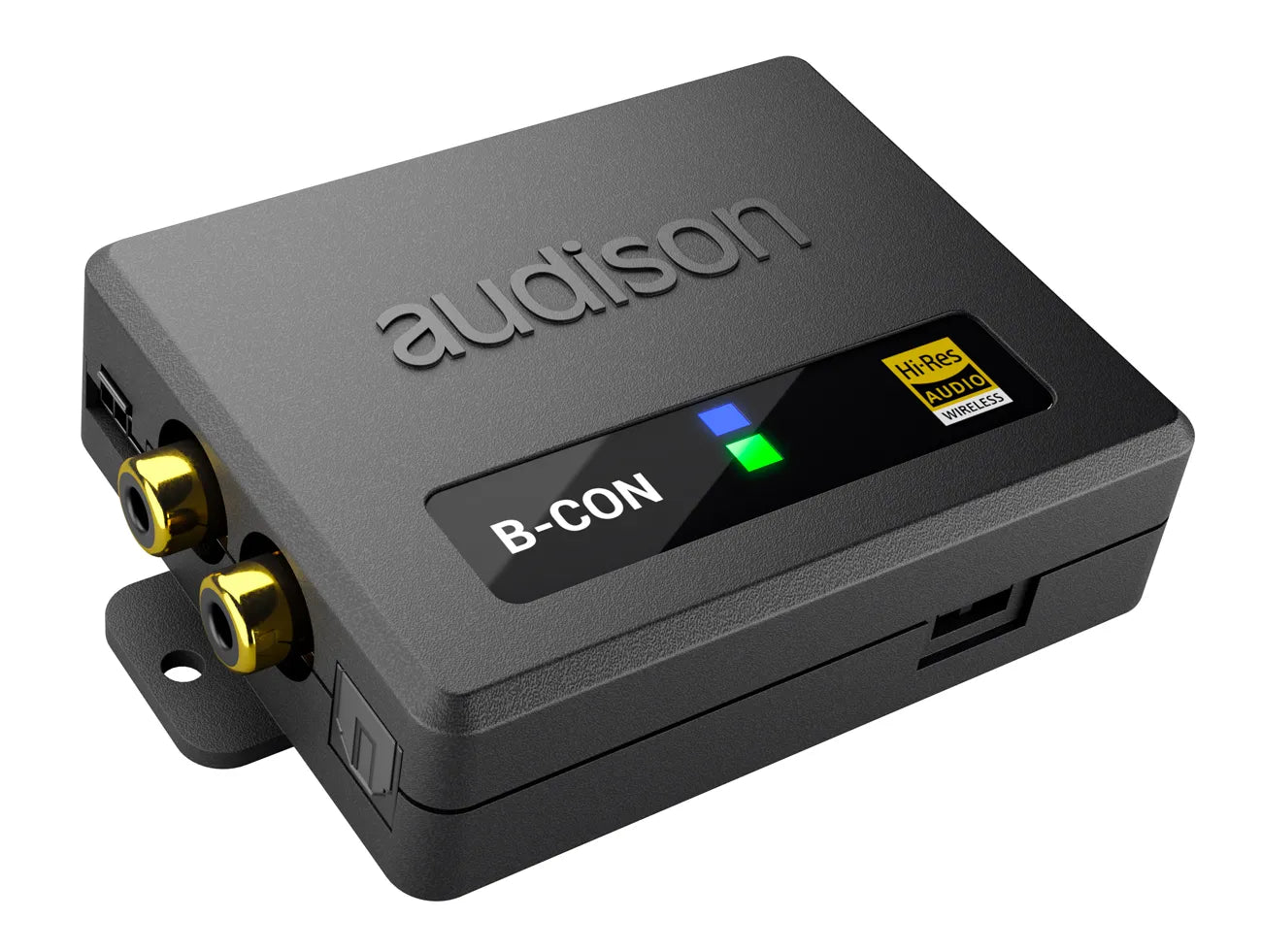

Audison B-CON Accessories | Hi-Res Bluetooth Receiver | Hi-Res Audio 24bit / 96kHz with Android L-DAC

• Up to 96 kHz / 24-bit BT streaming
• LDAC codec compatibility for Android devices
• ACC codec compatibility for iOS devices
• Automatic handsfree call manage
• Absolute volume function, to ensure a full dynamic range audio signal
• Digital output
• Analog RCA outputs
• Digital optical input with pass-through capability to the Digital output (no DA/AD signal conversion)
• Additional micro-USB power plug for non-automotive use

RECEIVER TECH DATA
Power Supply Voltage    6 ÷ 24 VDC
Idling Current    70 mA
Remote IN    3 ÷ 12 VDC (0.5 mA)
Bluetooth Data
Type: Bluetooth 5.0 + EDR

Codec: LDAC, AAC, SBC

Profile: Bluetooth A2DP 1.3, AVRCP 1.6

Digital Input    Optical: S/PDIF Optical (Max 24 bit/192 kHz)
Digital Output    Optical: S/PDIF Optical (Max 24 bit/192 kHz)
Analog Output Performance
Bandwith (MAX) 20 ÷ 48k Hz

Output Level 2 VRMS

Distortion – THD @1 kHz, 1 VRMS 0.003%

S/N RATIO (A weighted) 100 dBA
