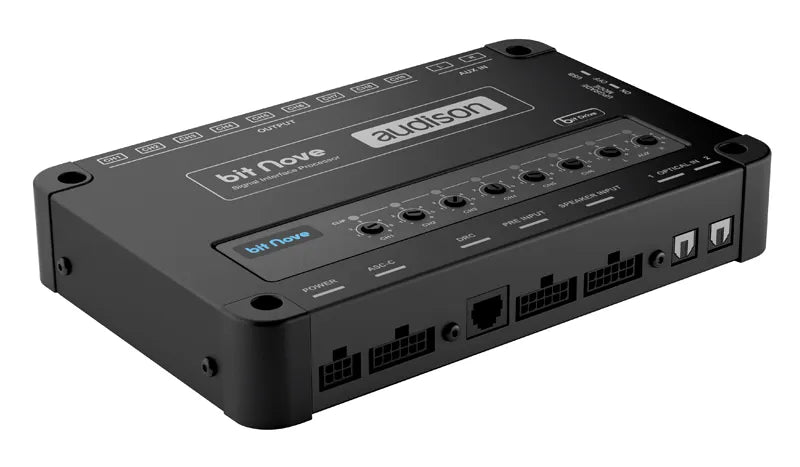

Audison bit Nove DRC DSP | 6 input channels | 9 output channels | 24 bit / 48 kHz fixed point processing

• iDatalink Maestro AR compatibility
• 6 high (3 ÷ 20V) and low (1.2 ÷ 8V) level inputs

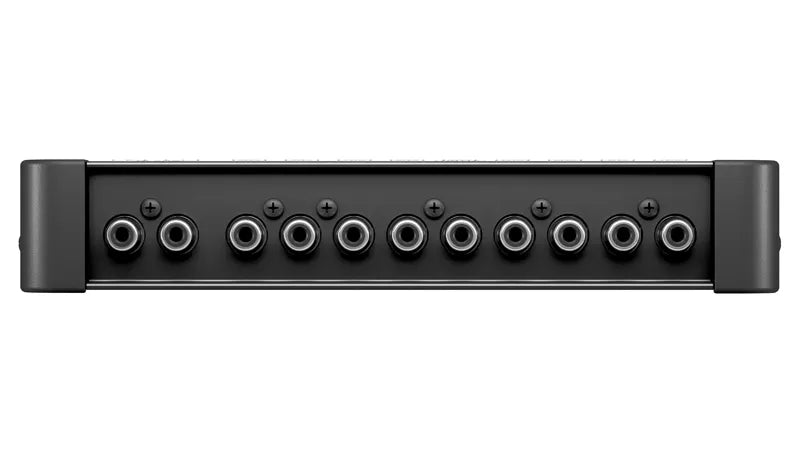

• 9 output channels on RCA connectors
• Built-in USS “ Universal Speakers Simulator
• Auxiliary RCA input (0.3 ÷ 5V)
• Two optical digital inputs with a maximum accepted resolution of 192 kHz/24 bit

AMPLIFIER TECH DATA
Channels    9
Sample Rate    24 bit / 48 kHz
Hi Level Inputs    6
Low Level Inputs    6
Digital Inputs    2
Processing Method    Fixed point
Idling current    0.53 A
Switched off without DRC MP    1 mA
Switched off with DRC MP    4.5 mA
Remote IN    4 ÷ 15 VDC (1mA)
Remote OUT    10 ÷ 15 VDC (130 mA)
