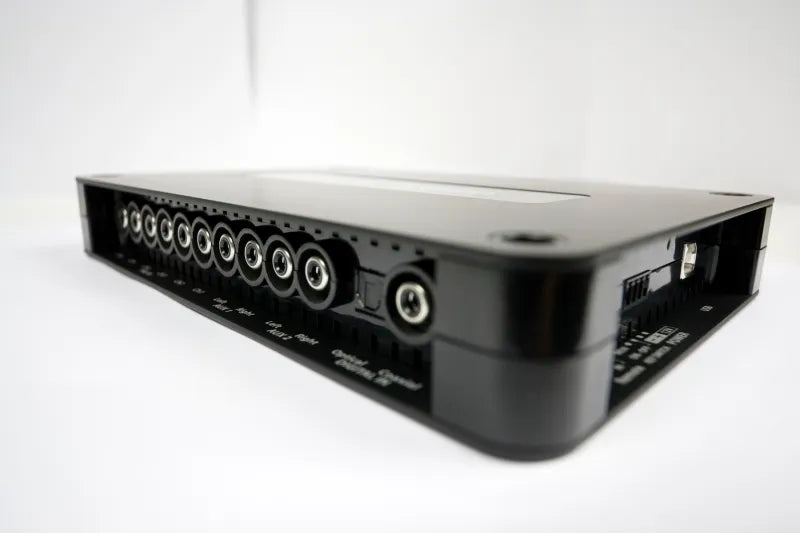

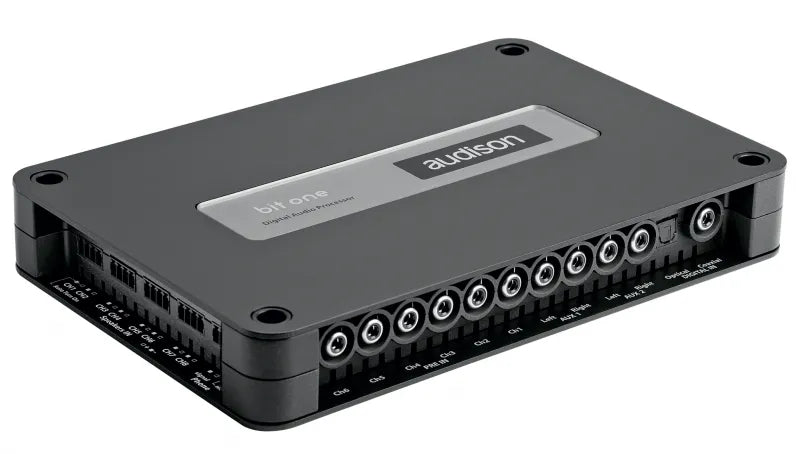

Audison bit One.1 DSP | 8 input channels | 8 output channels | 24 bit / 48 kHz floating point processing

Audison bit One.1 DSP | 8 input channels | 8 output channels | 24 bit / 48 kHz floating point processing

Regular price $820.00
Regular price Sale price $820.00
Sale Sold out

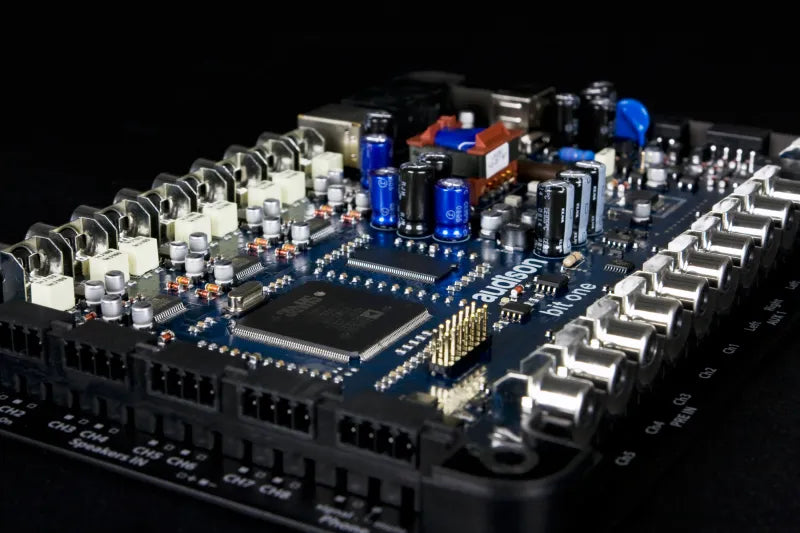

  • Audio DSP and converters
    32-BIT floating point Analog Devices Sharc (Clock speed: 266MHz) Digital Signal Processing
    chip and Wolfson A/D D/A converters working in PCM at 48kHz with 24 Bit resolution.
  • Tuning functions can be heard in real time due to processing speed.
  • Audio Inputs
    8 independent high-level channels (with automatic summing capability) or 6 independent
    analog low-level channels;
    2 analog low-level stereo auxiliary inputs;
    1 optical digital input;
    1 electric coaxial digital input;
    1 high-level momentary audio interrupt input (with Mute IN) for use with mobile phone or
    navigation systems.
  • Audio Outputs
    8 independent low-level analog channels featuring adjustable level and 1 AD Link output
    (8 independent digital audio channels through a single CAT 5.S LAN cable for use with AD Link
    provided amplifiers).
    Digital Control System
    1 USB /B (2.0) connector for PC connection;
    2 AC Link control bus connectors for DRC and AC Link amplifiers.
  • Configuration
    Guided procedure that, thanks to a wide range of set names, provides the ability to assign
    each component to the bit One connections and automatically coordinate their functioning.
  • Turn-on Controls
    ART automatic remote turn on/off circuit;
    Through the car ignition key with memory function;
    Through the DRC;
    Automatically through the hands-free phone kit.
  • In/Out Volume
    Input sensitivity automatically adjusted for the main inputs (with supplied Test CD and DVD);
    Manual input sensitivity adjustment for auxiliary inputs;
    Independent level control for each output channel for system fine tuning (-40 ÷ 0 dB).
  • Dynamic Equalizer
    System automatically self-adjusts through an equalization between low and high listening
    levels that can be set by the user and controlled by the DRC.
  • De-equalization and calibration
    Automatic de-equalization of signal fed into the high-level inputs (with supplied Test CD or
    DVD) and levels calibration.
  • Equalizers
    One 31-band graphic equalizer (1/3Oct.; ±12dB) for each one of the 4 auxiliary input;
    One 31-band graphic equalizer (1/3 Oct.; ±12dB) for each one of the 8 output channels.
  • Crossover Filter
    Filter typology: Selectable; Hi-pass, Lo-pass, Bandpass, Full Range;
    Cut-off frequency: 70 steps available from 10 Hz to 20 kHz;
    Cut-off slope: Selectable; 6 to 48 dB/Oct.;
    Alignments: Selectable; Linkwitz or Butterworth;
    Mute: Selectable for each output (On/Off);
    Phase: Selectable for each output (0°/180°).
  • Signal channels reconstruction
    It can reconstruct a stereo signal from a multi-channel signal. In addition it can reconstruct a
    centre channel and subwoofer channels from a stereo input alone.
  • Time Alignment
    Guided procedure for the speaker distance data entry with an automated calculation of proper
    delay times for each channel for accurate time alignment set-up.
  • System also provides for
    manual fine tuning of delay (0 ÷ 22 ms max).
    Auto Restart
    Automatic turn Off/On, if the DSP locks up.
  • DRC Master Volume control, Subwoofer Volume control, Balance control, Fader control, Input
    selection, Memory selection, Dynamic Equalizer On/Off, Adjustable display brightness, Access
    to digital features of Audison TH amps if connected.
  • Memory
    4 presets separately managed and recalled by the DRC Remote Control.
    Bit One software
    Windows (Win 2000, XP, Vista, 7) based software with “Standard” and “Expert” operating modes;
    Screen resolution: 1024 x 768 px min.

Nominal power supply voltage / Fuse    11 ÷ 15 VDC
Channels    8
Sample Rate    24 bit / 48 kHz
Hi Level Inputs    8
Low Level Inputs    8
Digital Inputs    2
Processing Method    Floating point
Idling current    0.45 A
Switched off without DRC MP    < 0.5 mA
Switched off with DRC MP    < 1.8 mA
Remote IN    7 ÷ 15 VDC (1.3 mA)
Remote OUT    12 VDC (130 mA)
