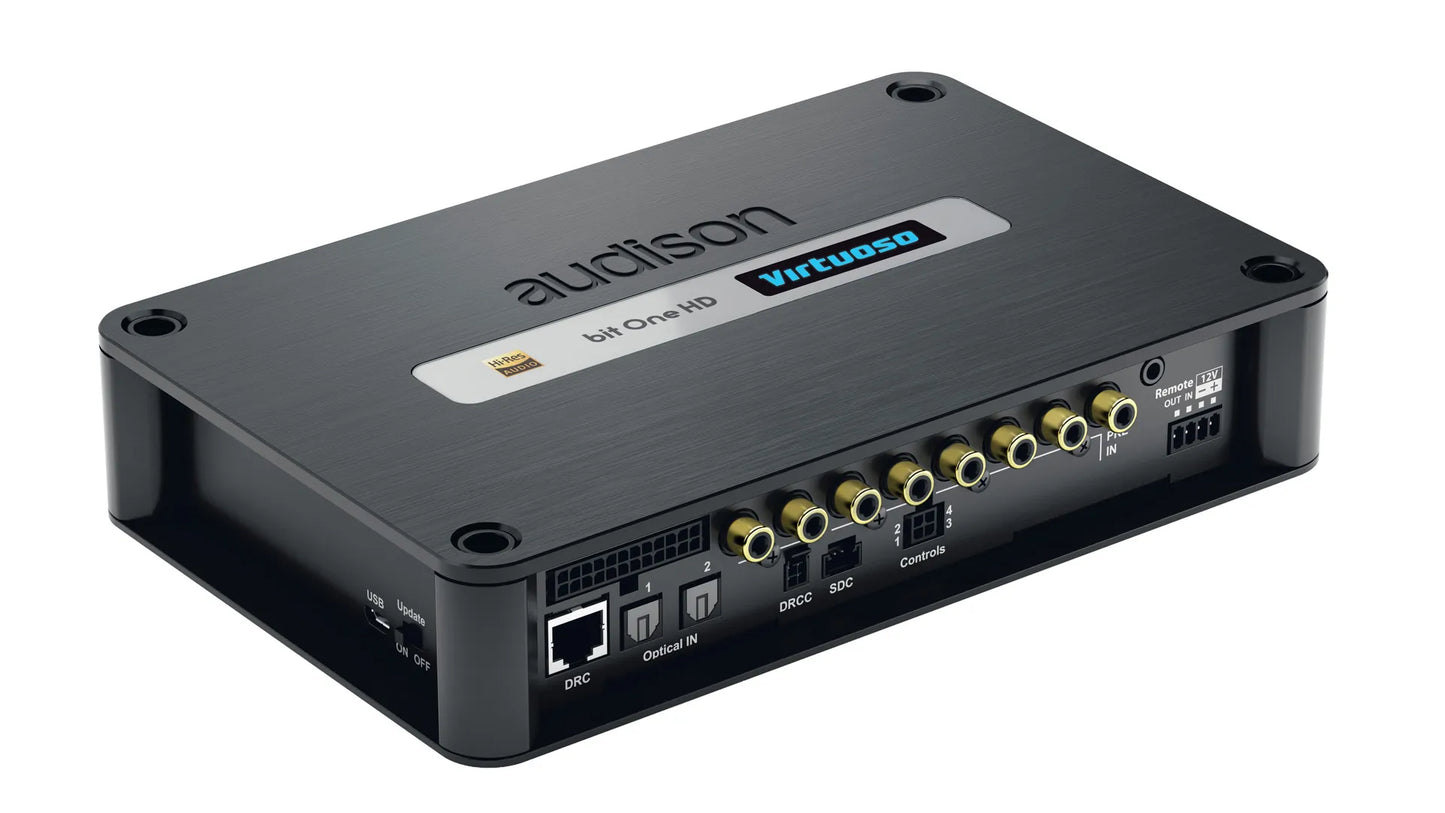

Audison bit One HD Virtuoso DSP | 12 input channels | 13 output channels | 24 bit / 96 kHz floating point processing

Product highlights:

AMPLIFIER TECH DATA
Nominal power supply voltage / Fuse    11 ÷ 15 VDC
Channels    13
Sample Rate    24 bit / 96 kHz
Hi Level Inputs    12
Low Level Inputs    12
Digital Inputs    2
Processing Method    Floating point
Idling current    0.75 A
Switched off without DRC MP    2 mA
Switched off with DRC MP    5 mA
Remote IN    4 ÷ 15 VDC (1 mA)
Remote OUT    4 ÷ 15 VDC (130 mA)
FUSE    2A

SIGNAL STAGE
Distortion - THD @ 1 kHz, 1 VRMS Output    0.004 %
Bandwidth @ -3 dB    10 Hz ÷ 44 kHz
S/N ratio @ A weighted, 4 V Output, 2 V MASTER input    105 dBA
S/N ratio @ A weighted, 4 V Output, 2 V AUX input    110 dBA
S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input    104 dBA
Channel Separation @ 1 kHz    80 dBA
Input sensitivity PRE IN / Master    1.3 ÷ 9 VRMS
Input sensitivity Speaker IN / Master    5 ÷ 32 VRMS
Input sensitivity AUX    0.7 ÷ 5 VRMS
Input impedance Pre In    15 kΩ
Input impedance Speaker In / AUX    5 Ω
Max Output Level 0.1% THD    4 V

INPUT STAGE
Low level (Pre)    Ch1 ÷ Ch6; AUX L/R
High Level (Speaker In)    Ch1 ÷ Ch12
Digital    2 x Optical S/PDIF; Max 192 kHz/24 bit

OUTPUT STAGE
Low level (Pre)    Ch1 ÷ Ch13 (IIR mode); Ch1 ÷ Ch 9 (FIR mode)
Digital AD Link 1    Ch1 ÷ Ch8 (IIR / FIR mode)
Digital AD Link 2    Ch9 ÷ Ch13 (IIR mode); Ch9 only (FIR mode)

CONNECTION
From / To Personal Computer    1 x micro USB
To Audison Amplifiers    2 x (AC Link / AD LINK) control bus
To Audison DRC MP    1 x AC Link

CROSSOVER
Filter type    Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope    Linkwitz @ 12 / 24 / 36 / 48 dB Butterworth @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB Bessel @ 6 / 12 / 18 / 24 / 30 / 36 dB FIR @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
Crossover Frequency    Lo-Pass: 0 ÷ 44k Hz (1 Hz step) Hi-Pass: 0 ÷ 20k Hz (1 Hz step)
Phase control    0° / 180°

TIME ALIGNMENT
Distance    1.4 ÷ 756 cm / 0.6 ÷ 297.7 inches
Delay    0 ÷ 22 ms
Step    0.04 ms, 1.4 cm, 0.6 inch

GENERAL REQUIREMENTS
PC connections    USB 1.1 / 2.0 / 3.0 Compatible
PC OS    Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8, Windows 10
Video Resolution with screen resize    min. 800 x 600
Ambient operating temperature range    0 °C to 55 °C (32°F to 131°F)
