Audison HV venti Amplifier | 1600 W total power | 2 x 800 W @ 2ohm | A-class

• Exclusive circuitry IGBT (Insulated Gate Bipolar Transistor).
• A Class preamplifier, intermediate stages and drivers.
• Dual Mono construction featuring four power supplies in Synchro-PWM
  configuration.
• Made exclusively with discrete components.
• Signal switching made exclusively with relays.
• Fully balanced input circuit.
• Power supply on separate board to eliminate interference.
• Dual Power’ function to switch between Hi-Current and Hi-Power.
• Bias Selector’ function to change the percentage in A Class.
• High quality crossover module supplied.

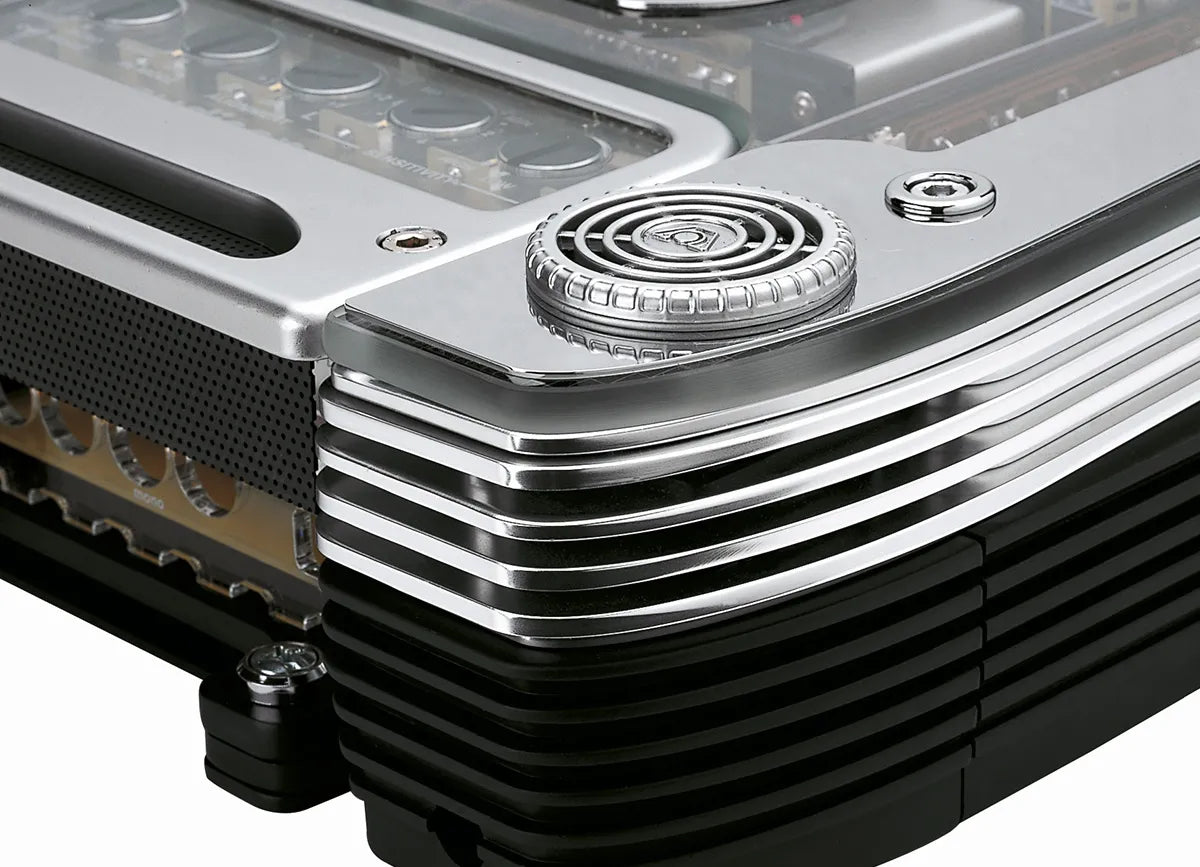

• 5 mm aluminium chassis connecting two side cooling ducts.

AMPLIFIER TECH DATA
Channels:    2
Class:   A-Class
Hi Level Input:    Yes
Low Level Input:    Yes
Digital Input:    No
Power supply voltage / fuse:    11 ÷ 16 VDC
Idling current:    4.2 A
Idling current when off:    0.006 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power:    90 A
Remote IN:    7 ÷ 16 VDC - 1 mA
