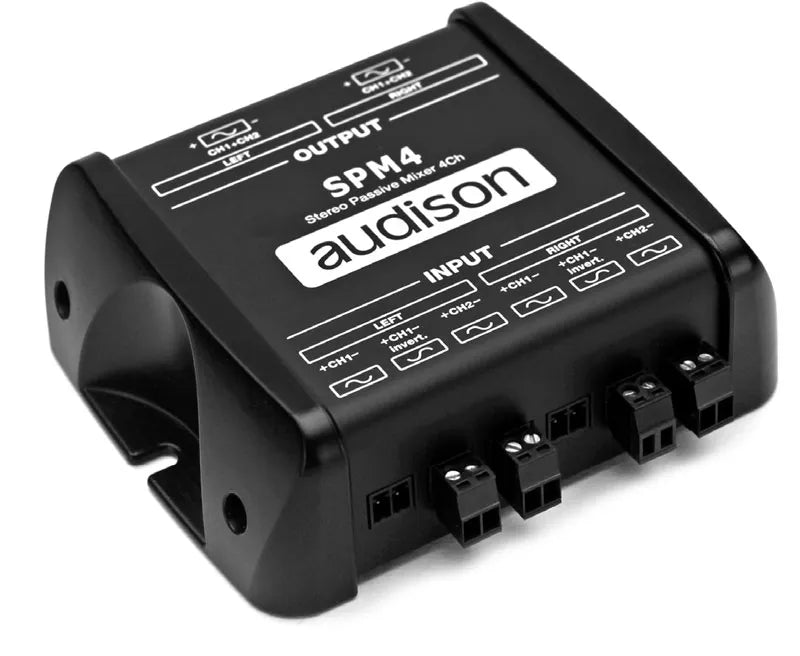

Audison SPM4 Accessories | Stereo passive mixer

Features:

• 4 input channels and 2 output channels
• Designed for active OEM multi-way systems
• Each speaker is powered by a specific amplified channel
• Mixes midrange/woofer and tweeter channels from the amplifier into a single mid-high channel
• Utilizes 4 audio transformers for low distortion and linear acoustic response
• Ch1(L/R) channels have two inputs, one of which is inverted compared to Ch2 (L/R) channels
• Mixing process benefits from 180° phase inversion for improved results
• Compatible with Audison digital processors or amplifiers with built-in DSP
• Features a De-equalizer (De-Eq) to compensate for any non-linear acoustic emissions caused by mixing pre-existing filtered channels
