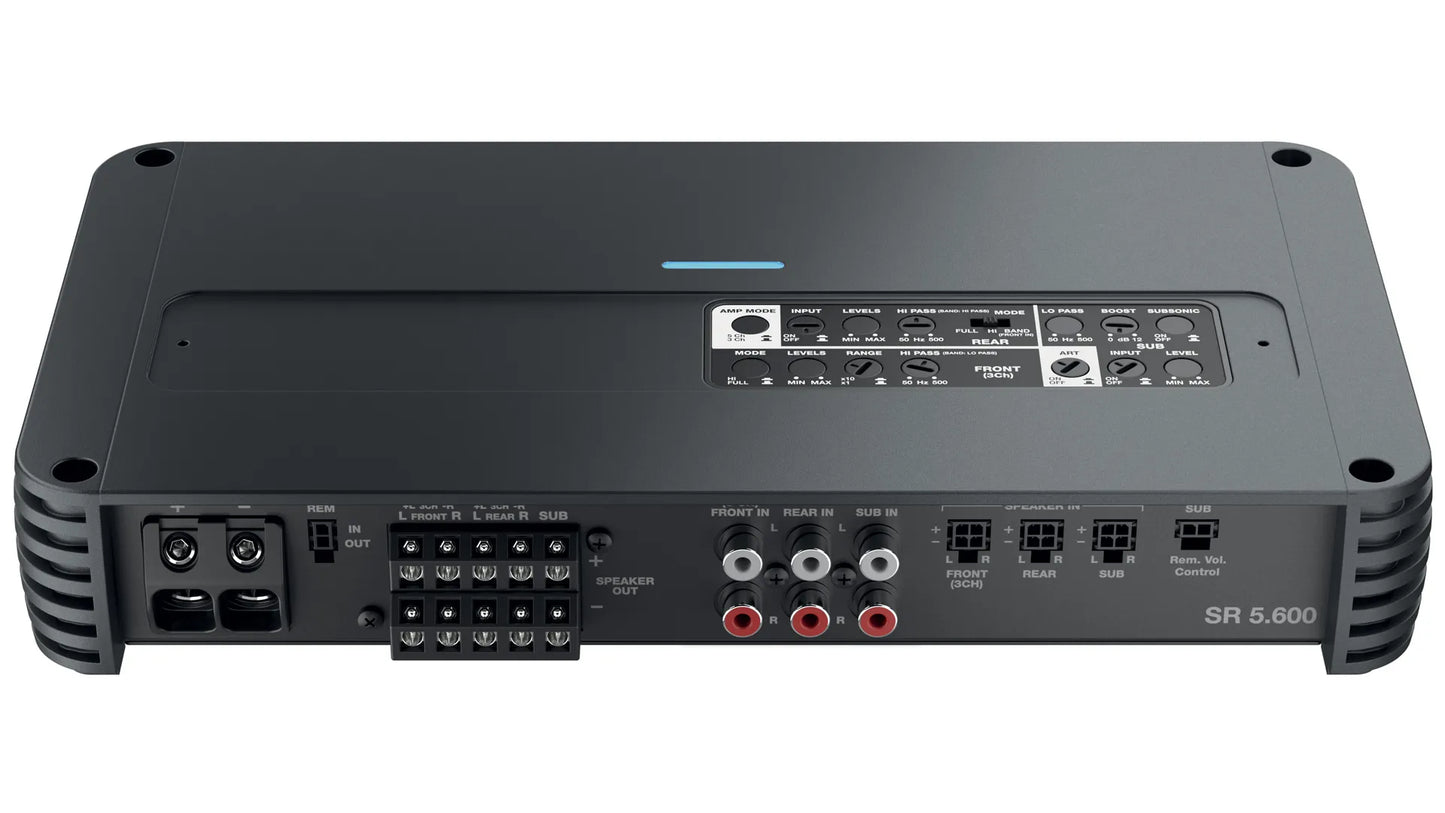

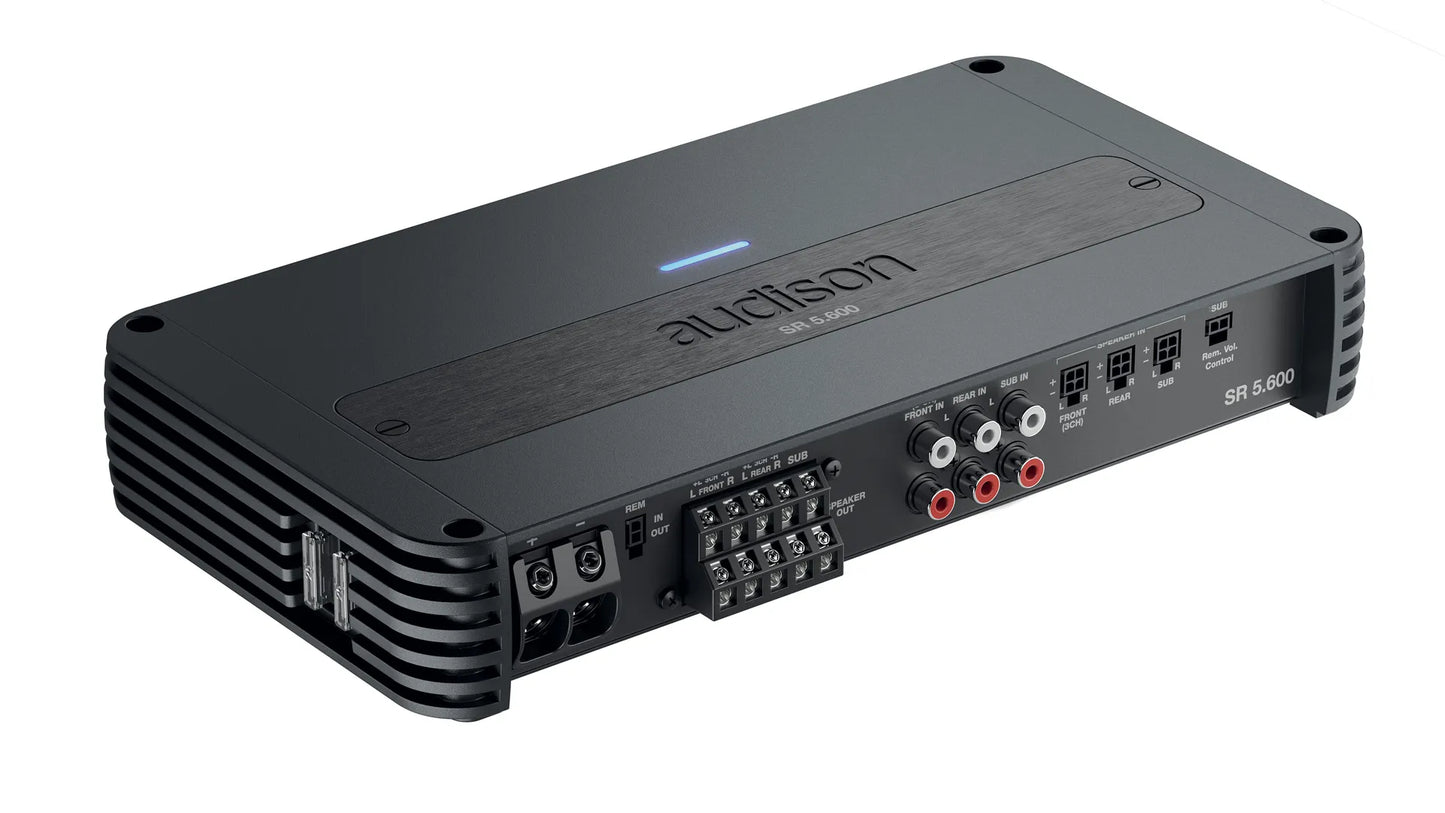

Audison SR 5.600 Amplifier | 1010 W total power | 4 x 115 W + 1 x 550 W @ 2ohm | D-class

• Elegant and functional design with rounded corners to minimize space, facilitating installation.
• Built-in USS (Universal Speakers Simulator).
• Full built-in crossover section.
• Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
• Balanced high-level inputs for connecting to the OEM head unit speaker output
• Low-level RCA for after-market speakers.
• ART (Automatic Remote On/Off) function.
• Remote IN / OUT socket to allow control of multiple amplifiers.
• PRE-OUT allows for system expansion.

AMPLIFIER TECH DATA
Channels    5
Class    D-Class
Hi Level Input    Yes
Low Level Input    Yes
Digital Input    No
Power supply voltage / fuse    11 ÷ 15 VDC
Operating power supply voltage    6.5 ÷17 VDC / 2 x 25A
Idling current    2.2 A
Idling current when off    0.04 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    44 A
Remote OUT    6.5 ÷ 15 VDC (150 mA)
Remote IN    6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)    1.5 ÷ 7 VDC

AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power    0.02 %
Bandwidth A    10 Hz ÷ 35 kHz; 10Hz ÷ 500Hz
S/N ratio A    105 dBA
Damping factor A    100
Input sensitivity Pre-In    0.2 ÷ 5 VRMS
Input sensitivity Speaker-In    0.8 ÷ 20 VRMS
Total Power RMS    1010 W
Minimum load impedance    5Ch: 2Ω
3Ch: 4Ω + 4Ω + 2Ω
Output Power (RMS) @14.4 VDC, 1% THD    5Ch 75 W x 4 + 330 W x 1 (4Ω)

5Ch 115 W x 4 + 550 W x 1 (2Ω)

3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω)

3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
Adjustable Crossover    Yes
