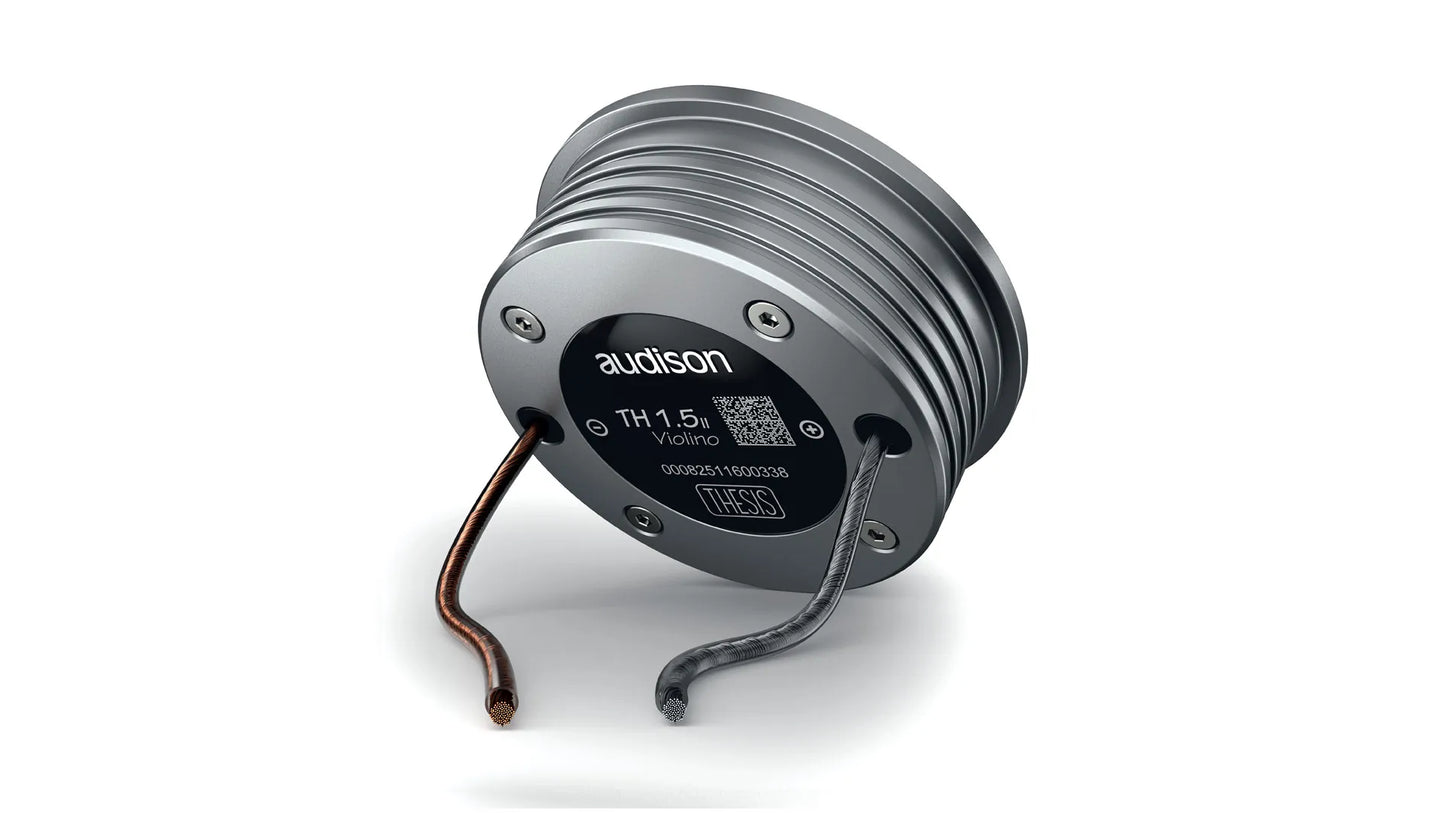

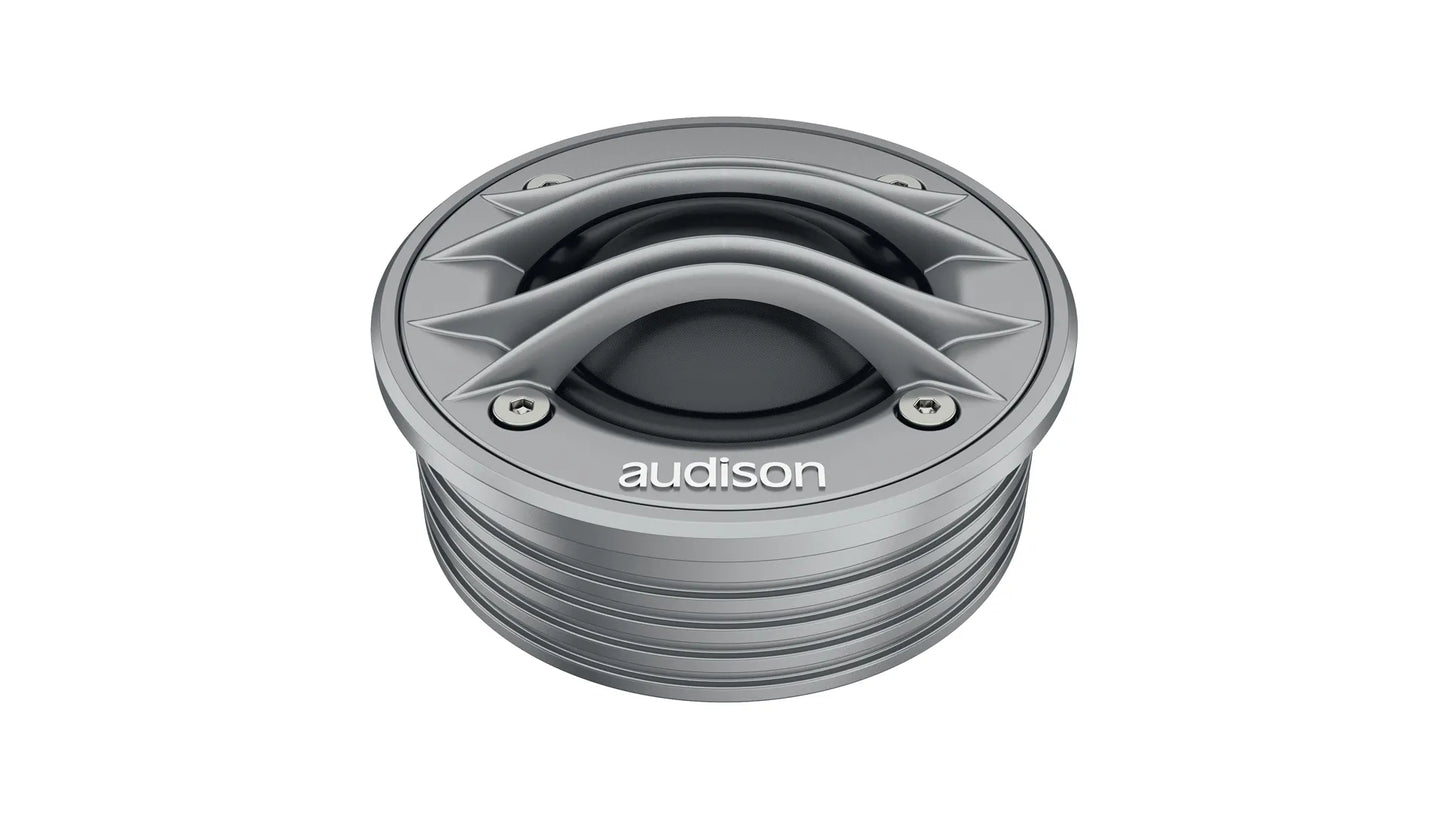

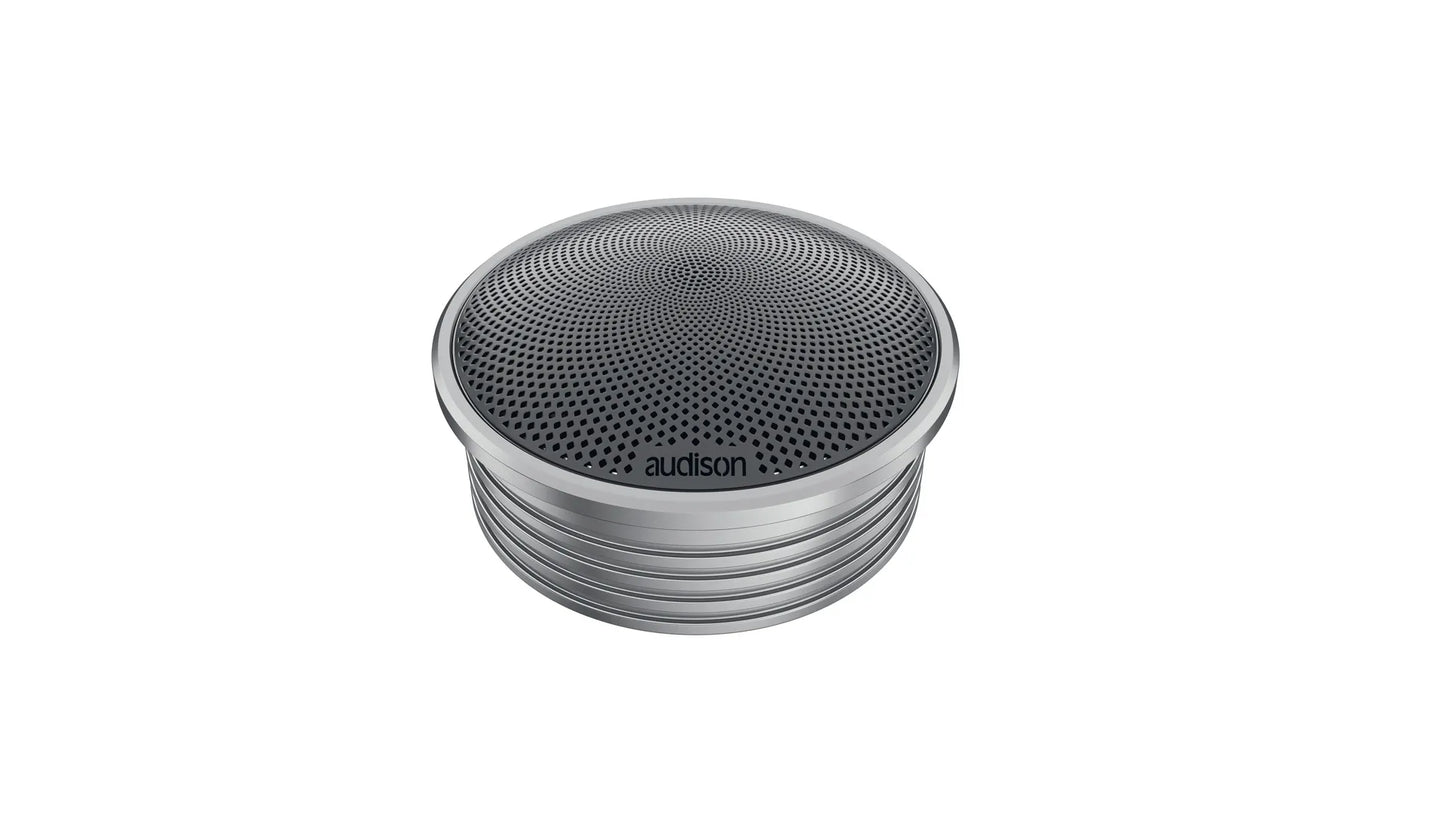

Audison TH 1.5 II violinoTweeter | 200 W Peak Power | 38 mm | 6 ohm

• 34 mm CCAW single layer voice coil combining light weight, stability
  at lower frequencies and total absence of musical transients
  compression.
• Extremely powerful custom N38″H-grade” Neodymium magnet
  providing 1.67 T*m in the magnetic gap for superb dynamic response
  and very low distortion in the whole frequency range.
• Exclusive air-loading system resulting in a resonance frequency below
  800 Hz, for filter set-up starting as low as 1.5 kHz 12dB/Oct.
• 38 mm natural silk dome optimized with extensive material
  characterization, laser vibrometer scanning and Finite Element Analysis
  methods for a smooth and extended response.
• Frequency response up to 26 kHz optimized for off-axis installation.
• TH 1.5 II Violino Tuning System featuring two types of electroacoustic load: bottom case or bottom disk according to targets
  of highest performance as well as flexibility of in-car integration.
• Full solid metal construction structure with each part exclusively
  designed and produced for the Audison TH 1.5 II.
• FEM (Finite Element Method) optimized faceplate and front spokes for
  an improved dispersion pattern.
• eID technology providing TH 1.5 II traceability starting from the
  manufacturing stage up to the owner.

TECHNICAL SPECS
Size    38 mm
Power Handling - Peak    200 W
Power Handling Crossover    (Hi-Pass filtered @ 1,8kHz - 12 dB Oct.)
Impedance    6 Ohm
Frequency Response    800 ÷ 26k Hz
Magnet Material    NEODYMIUM
Voice Coil Ø    34 mm
Cone Material    TETOLON FIBER
Dome Material    TELOTON FIBRE
