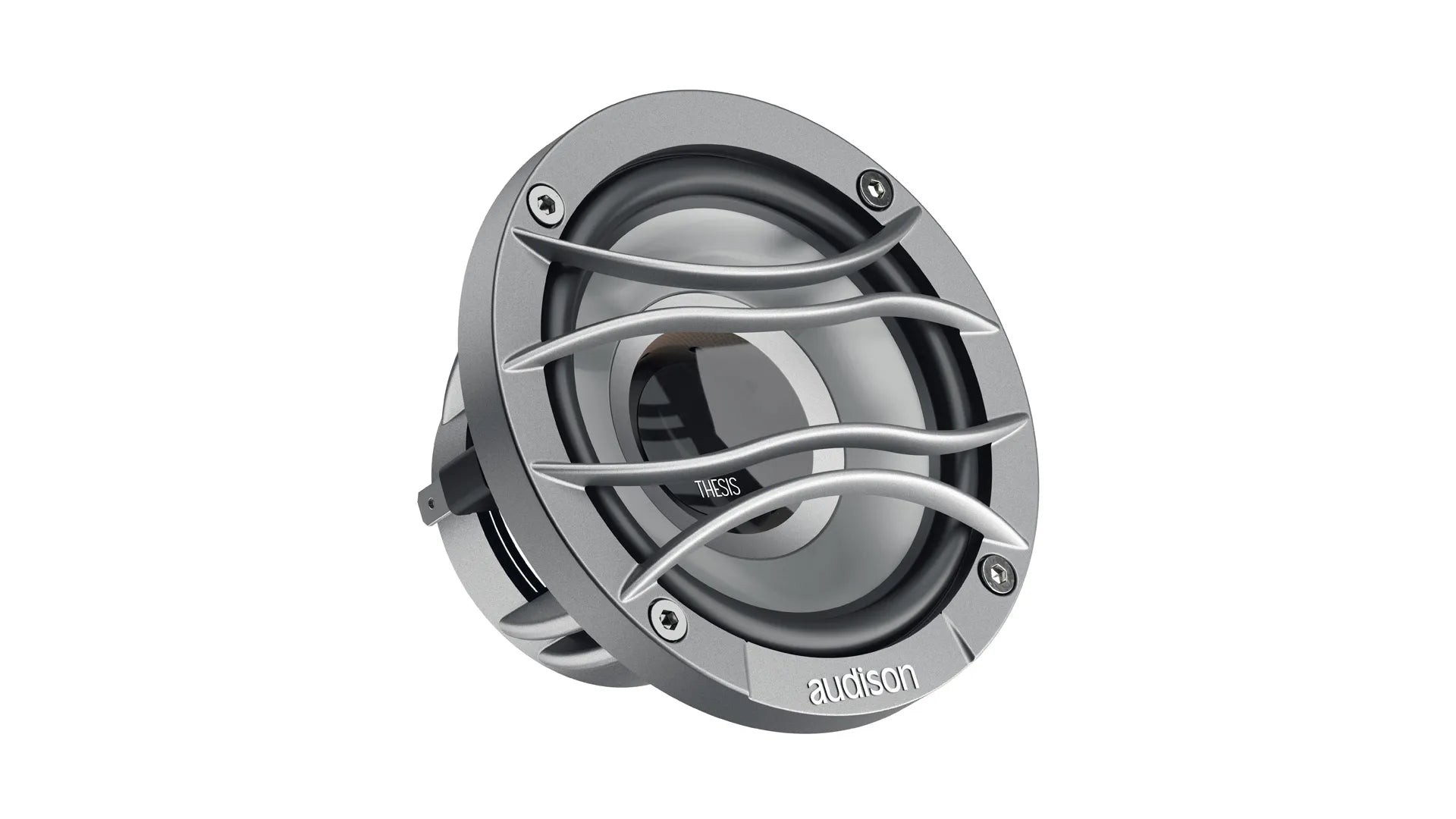

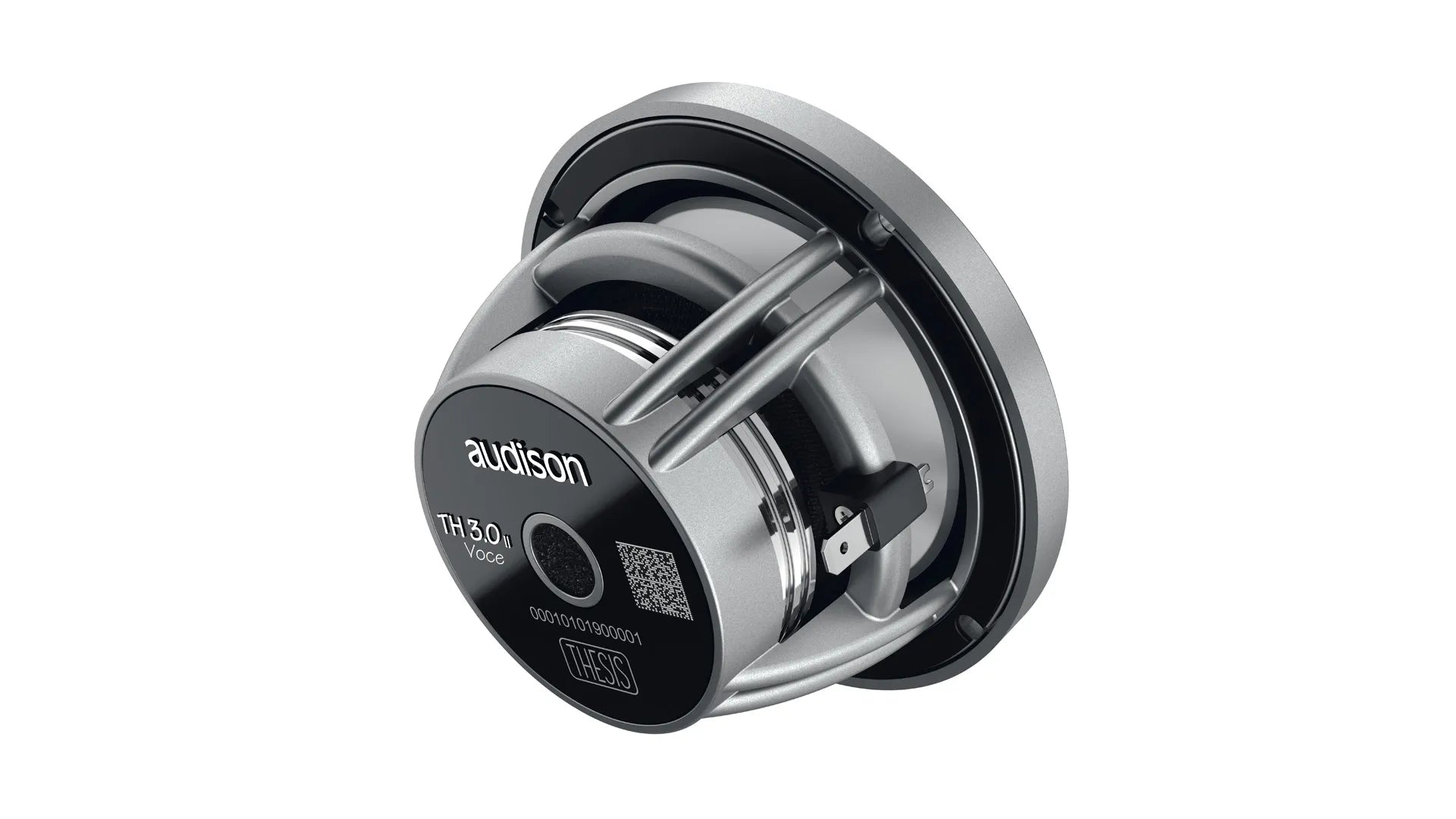

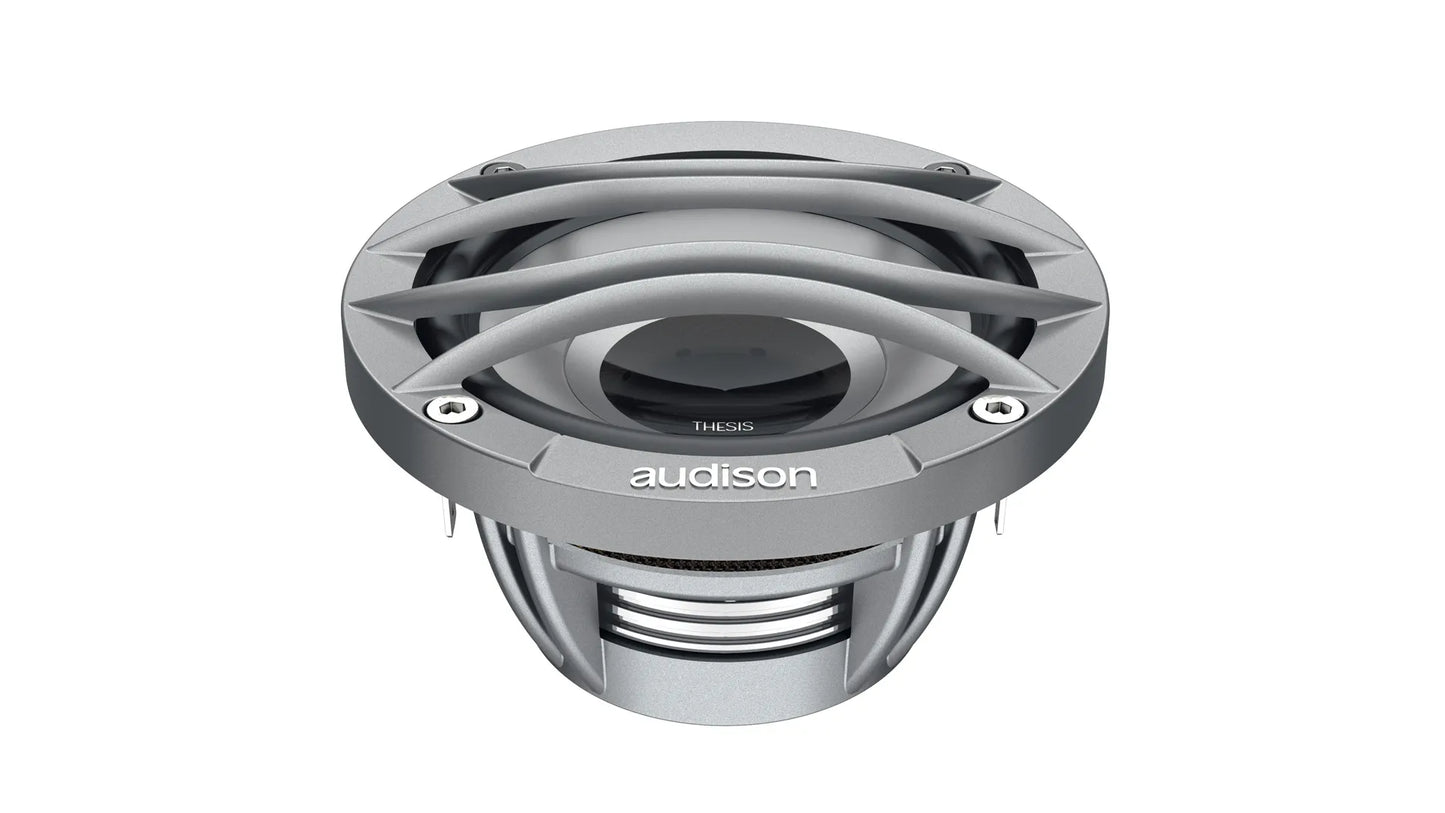

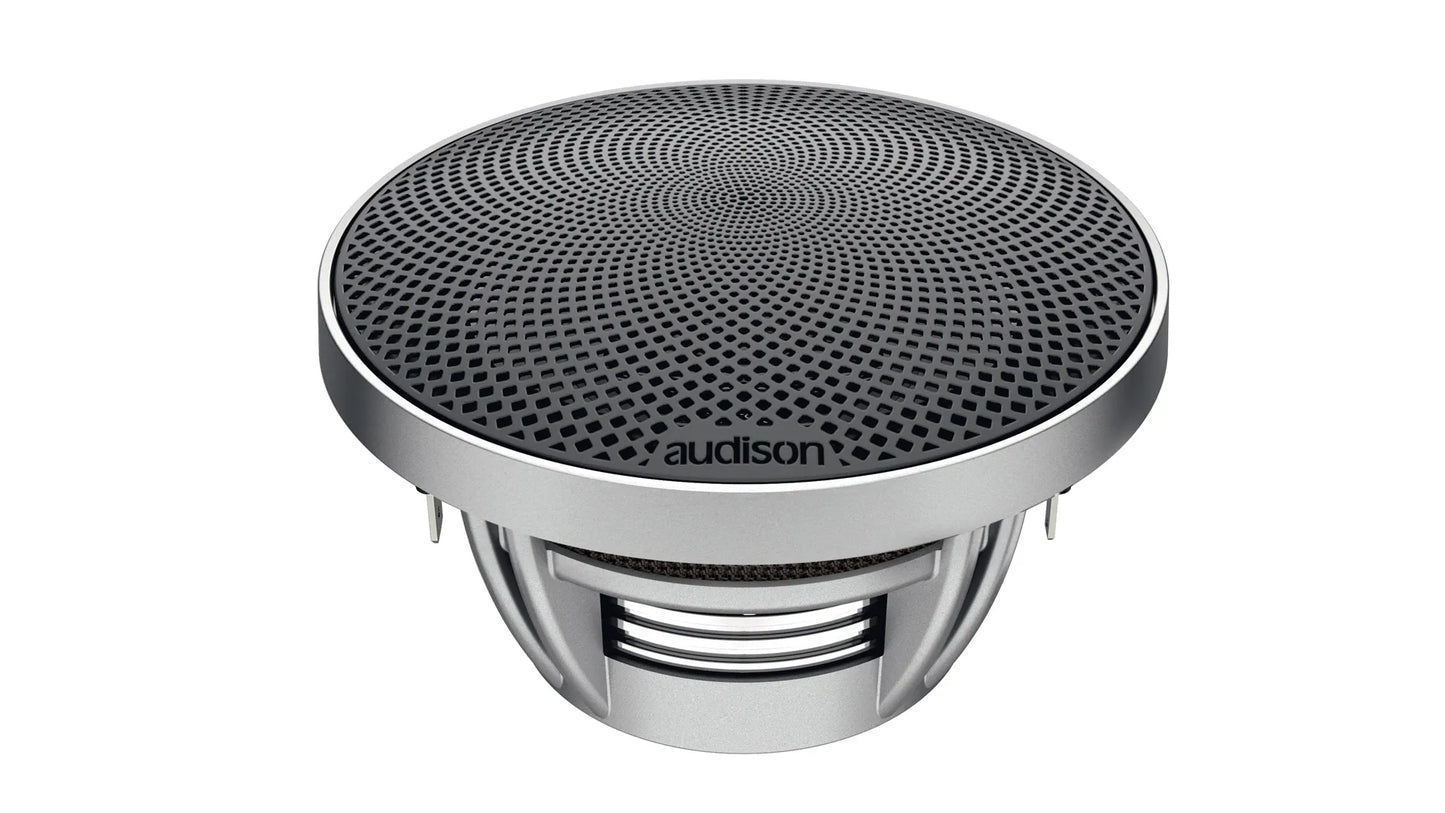

Audison TH 3.0 II voce Mid Range | 110 W Peak Power | 70 mm | 4 ohm

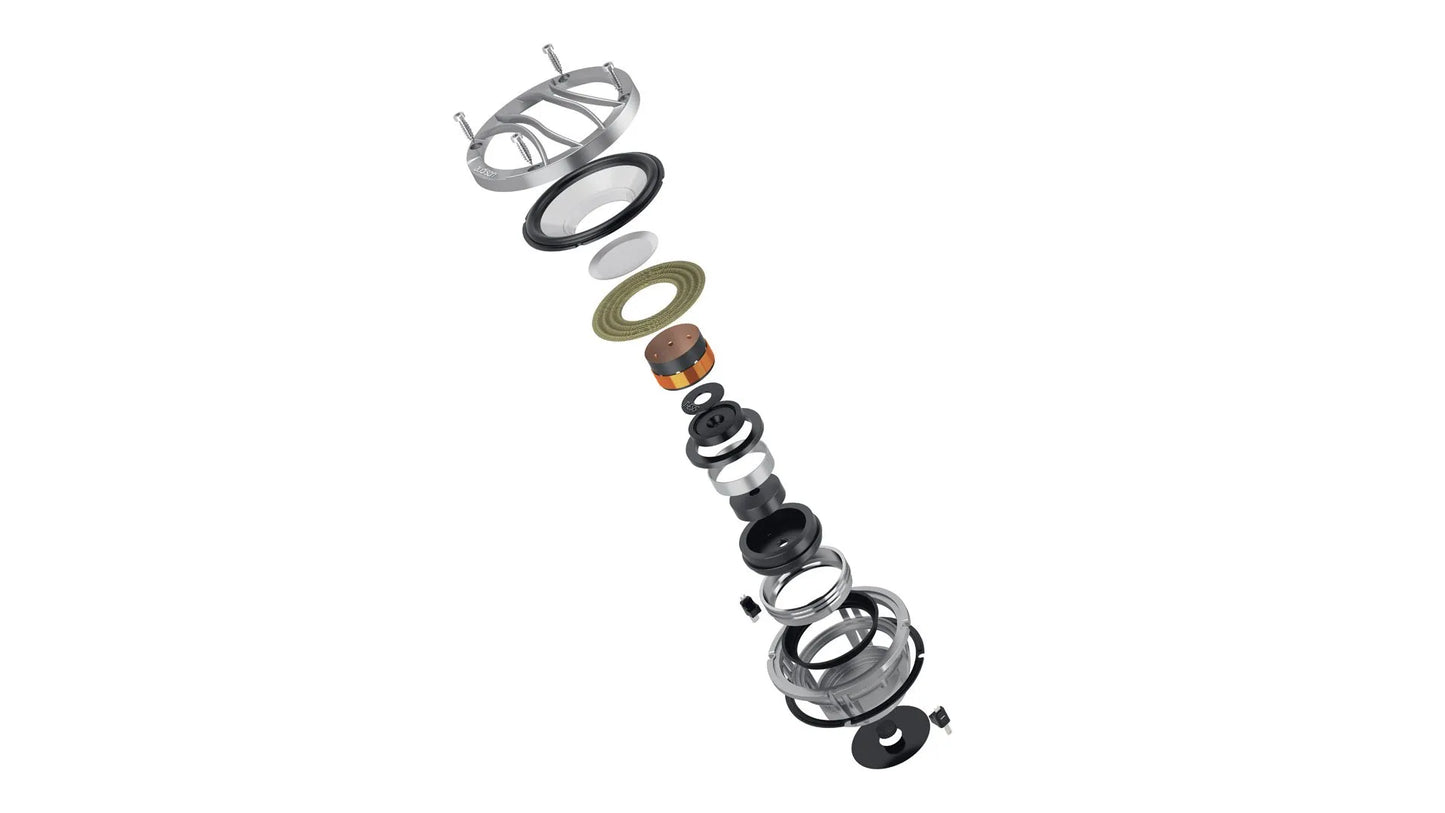

• 30,5 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon)
  wound with flat wire to maximize the force factor and heat dissipation.
• Aluminium demodulation ring which linearizes the high excursion
  intermodulation distortion, canceling any sound colorations.
• N38 “H-grade neodymium magnet included in the voice coil to obtain
  superior control of the mobile crew and superior thermal stability.
• Motor geometry designed using finite element simulation software to
  optimize efficiency by concentrating the magnetic field in the gap.
• Membrane made of TPX®, a transparent material that reduces
  frequency response irregularities and provides a view of the inside of
  the speaker.
• Membrane geometry designed by simulation software to obtain
  homogeneous directivity.
• Optimized cone/surround break-up with extensive simulations to
  linearize the response at medium frequencies.
• Basket made of a single piece of die-cast aluminium with four pairs of
  spokes for maximum rigidity without slowing down the air flow.
• Suspension and spider with very high excursion, optimized with
  simulations of the multi-physical behavior of the speaker.
• eID technology for the traceability of TH 3.0 II Item from production to
  purchase.

TECHNICAL SPECS
Size    70 mm
Power Handling - Peak    110 W
Power Handling - Continuous    55 W
Impedance    4 Ohm
Frequency Response    110 ÷ 5700 Hz
Magnet Material    SPECIAL NEODYMIUM N38H
Voice Coil Ø    30.5 mm
Voice Coil Material    CCAP - COPPER CLAD ALLUMINIUM RIBBON
Woofer Qes    0,52
Xmax    3.3 mm
