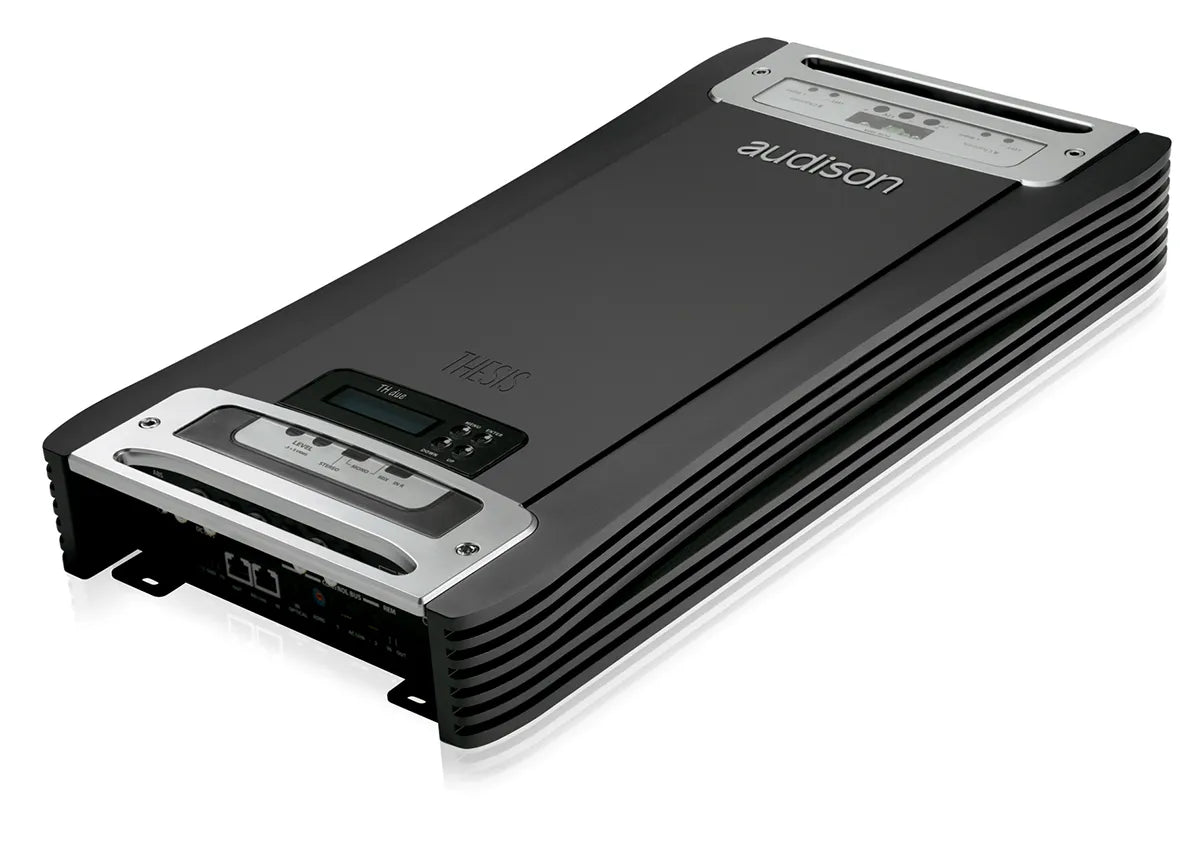

Audison TH due Amplifier | 1000 W total power | 2 x 500 W @ 2ohm | A-class

• Complementary differential circuitry with current mirror.

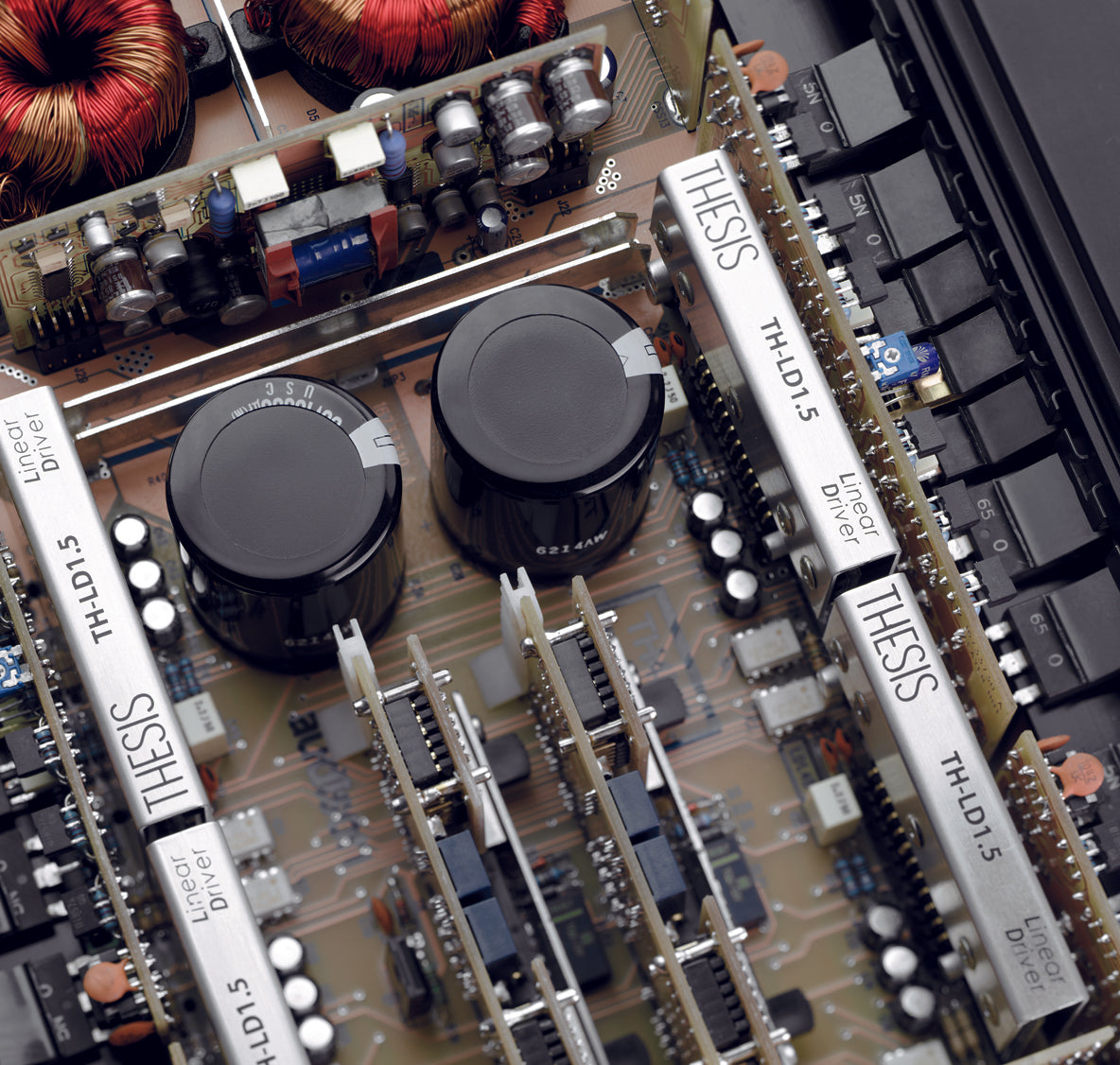

• Cascode A Class driver with inverted complementary triplet power
  stages.
• Integrated 24-bit / 192 kHz Hi-End DA converters.
• Compatibility with Audison Full DA HD technology and Hi-Res audio
  files listening certification.

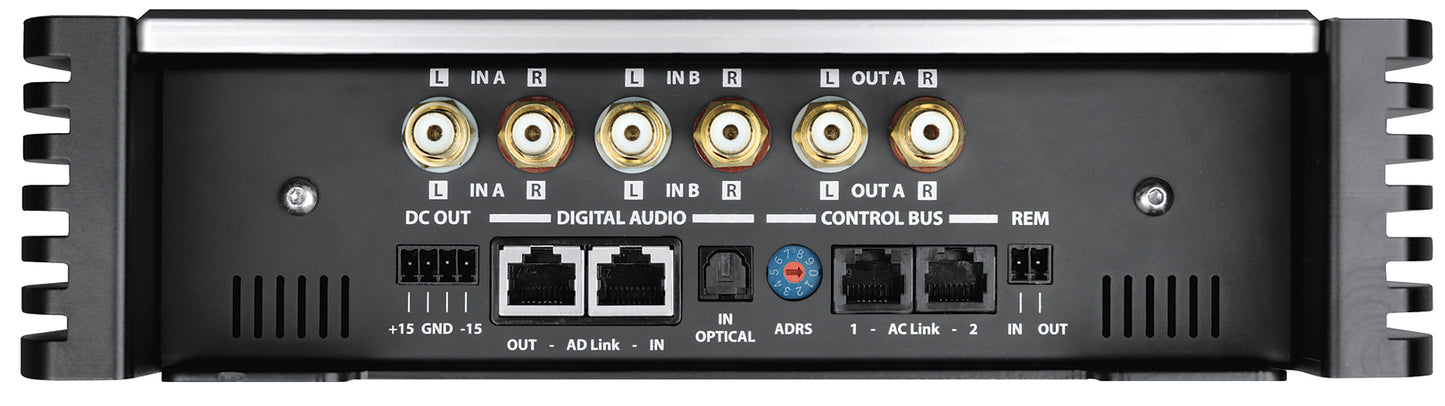

• SPDIF and AD Link optical digital inputs that manage up to 8 digital
  channels on RJ-45 connector.

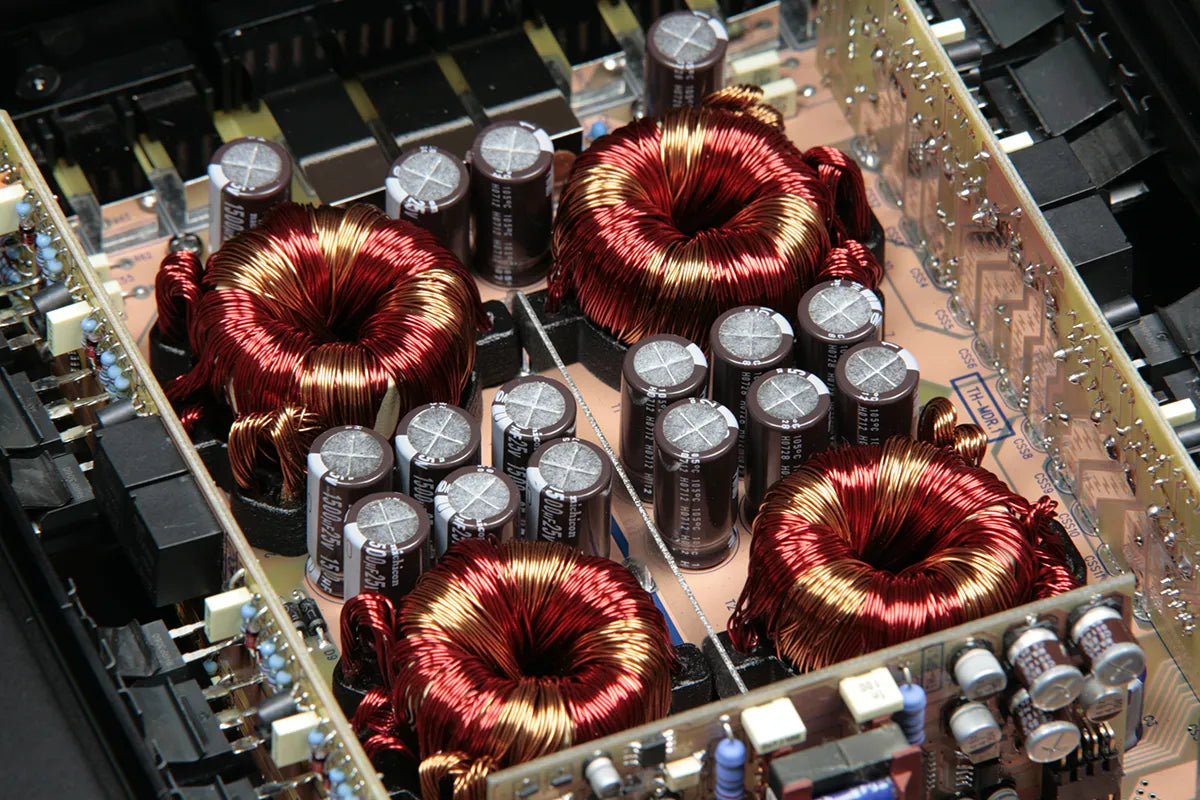

• Dual Mono Construction featuring four power supplies in Synchro-PWM
  configuration.
• Sensitivity control featuring 256 steps resistive switching for a
  resolution of 120 dB.
• Energy Saving, Hi-Current, Hi-AB Class, A Class presets selectable in
  real time.
• Digital control via integrated settings panel, DRC and PC Software.
• High quality crossover module supplied.
• Chassis extruded from solid aluminium and built using CNC machines.

AMPLIFIER TECH DATA
Channels    2
Class    A-Class
Hi Level Input    No
Low Level Input    Yes
Digital Input    Yes
Power supply voltage / fuse    11 ÷ 15 VDC
Idling current    2 A
Idling current when off    0.04 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    105 A
Remote OUT    12 VDC (20 mA)
Remote IN    7 ÷ 15 VDC (1 mA)
