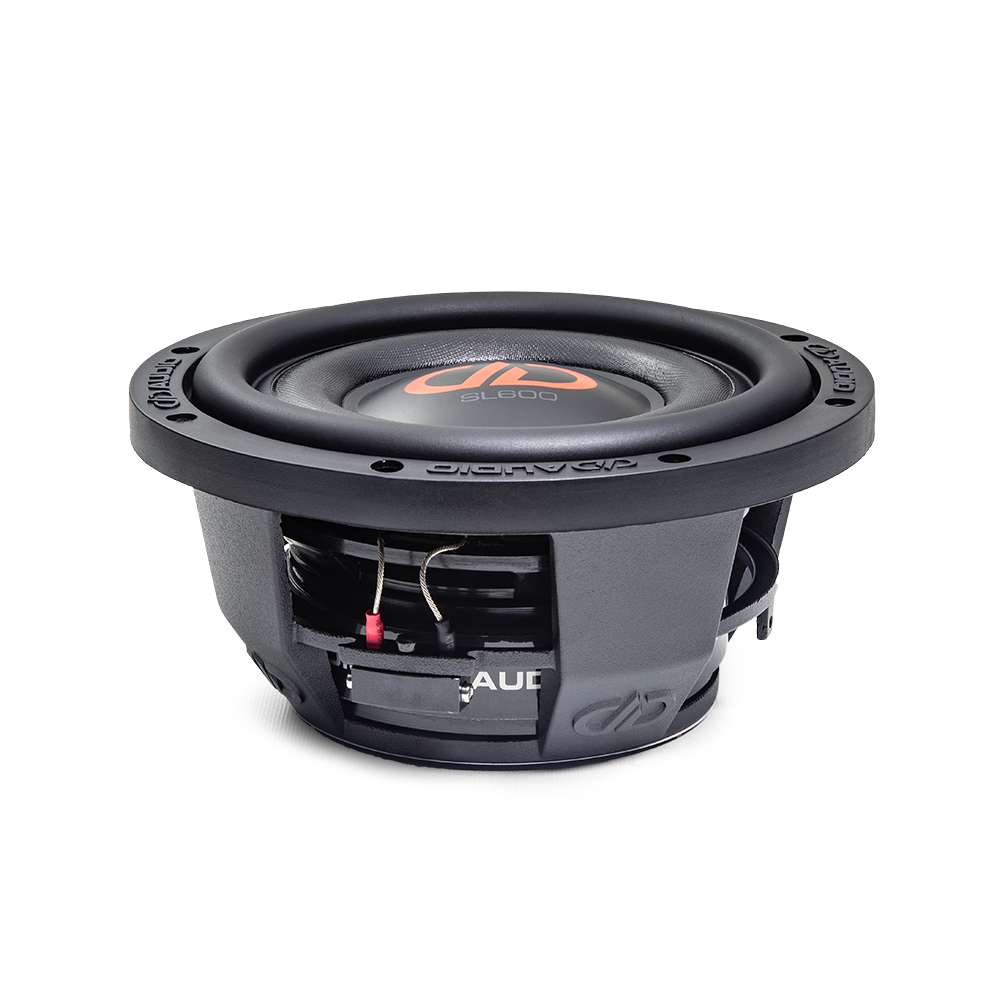

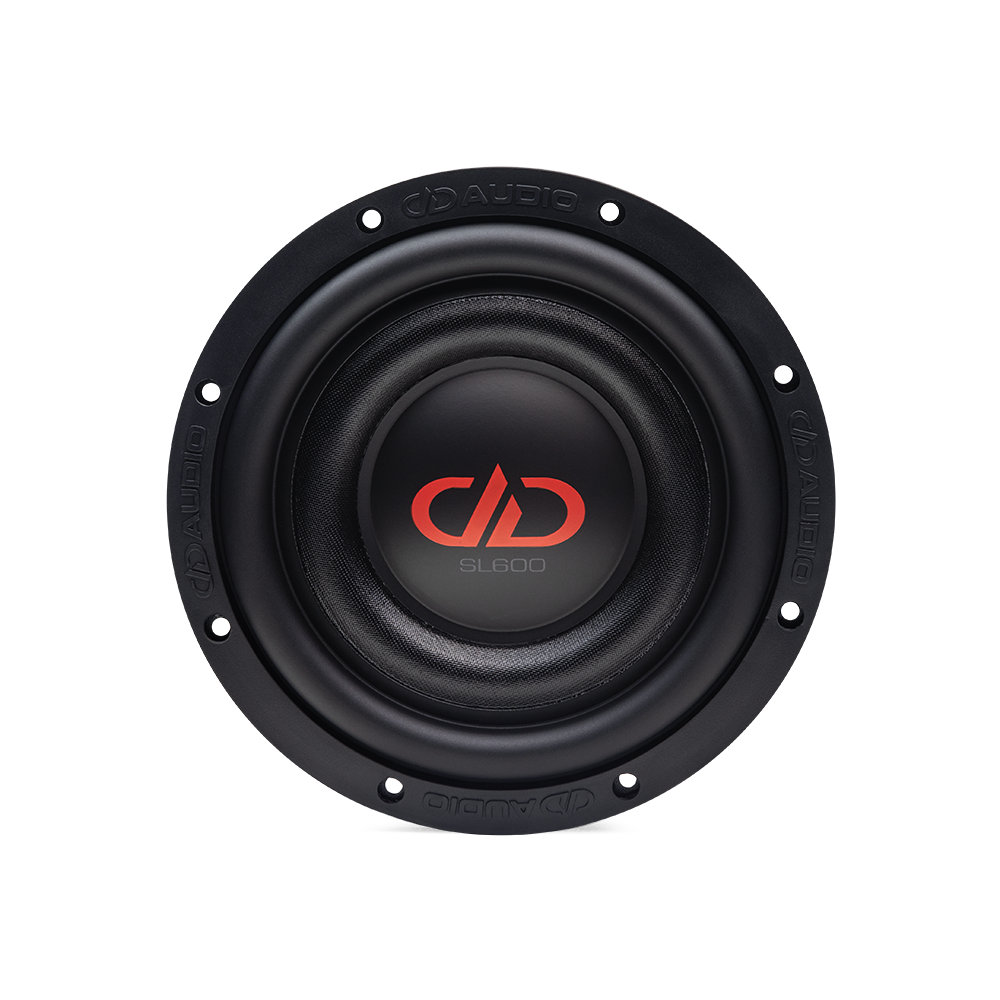

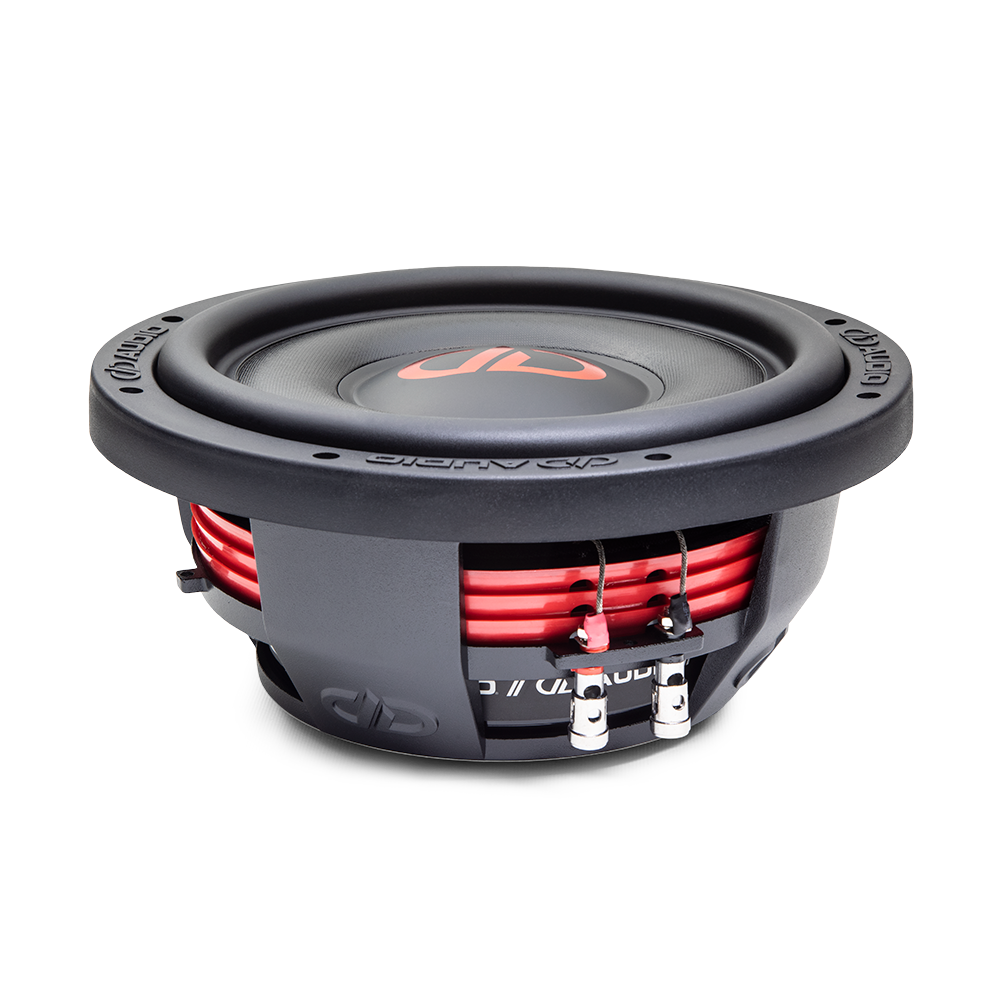

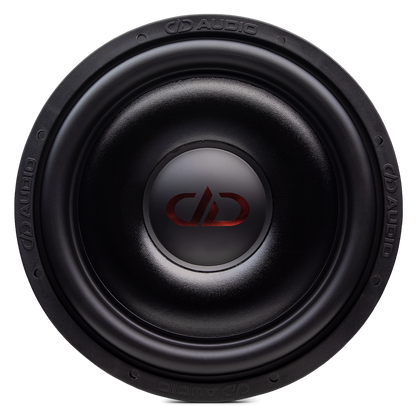

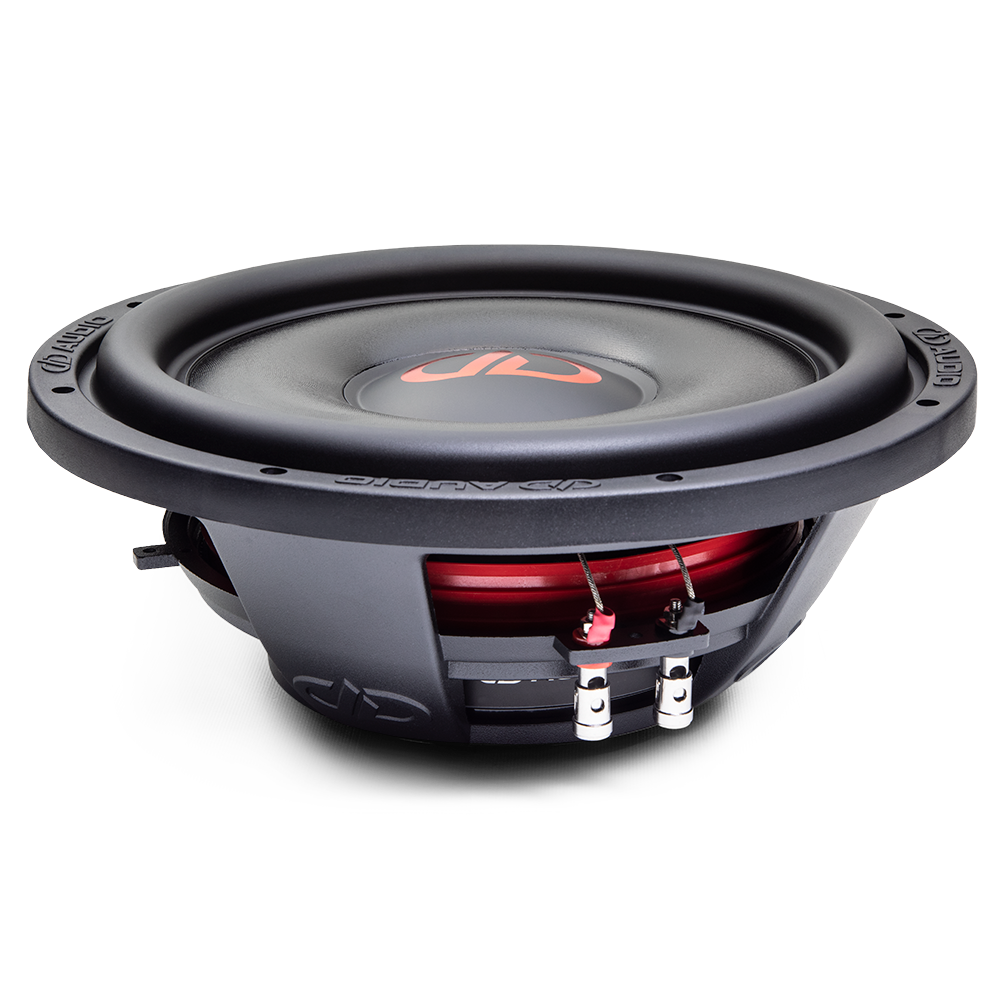

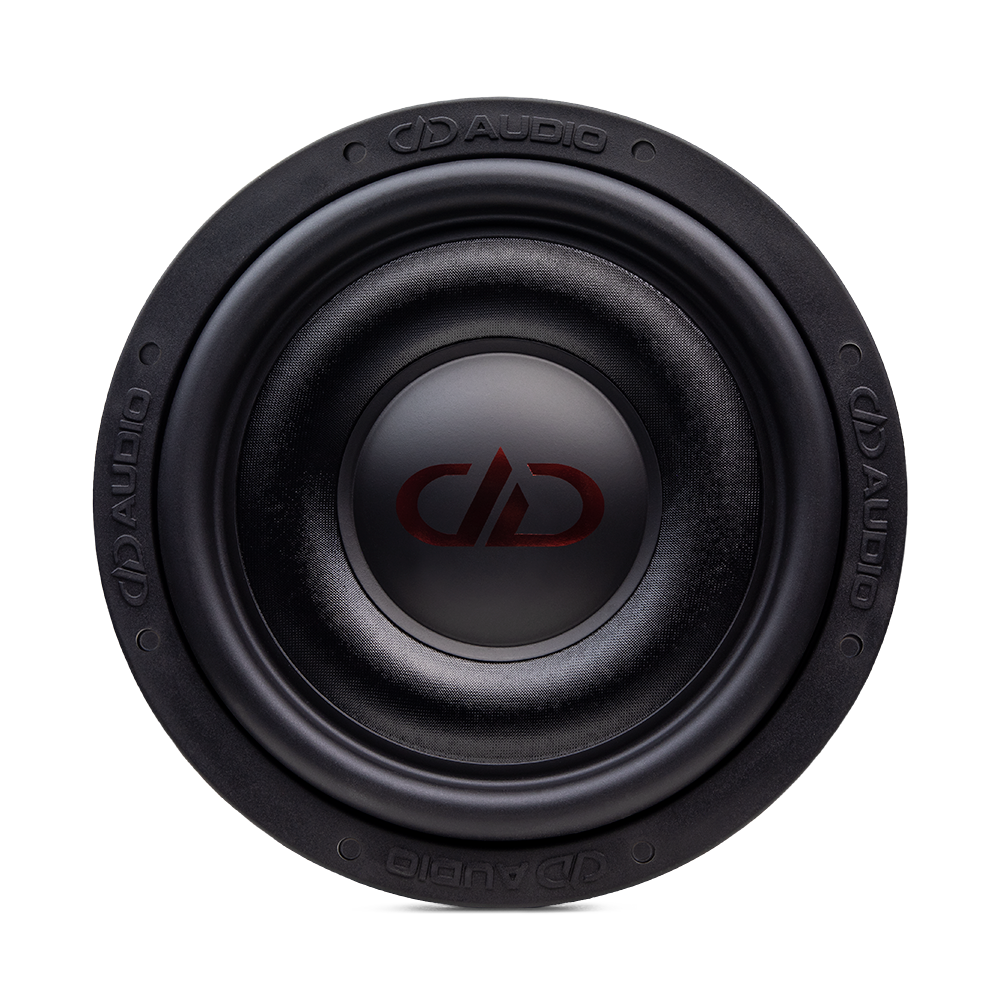

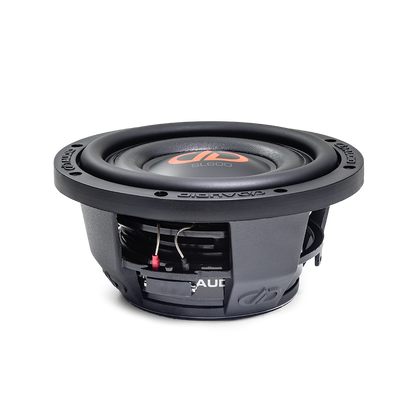

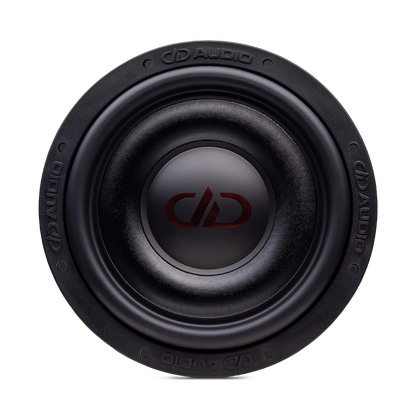

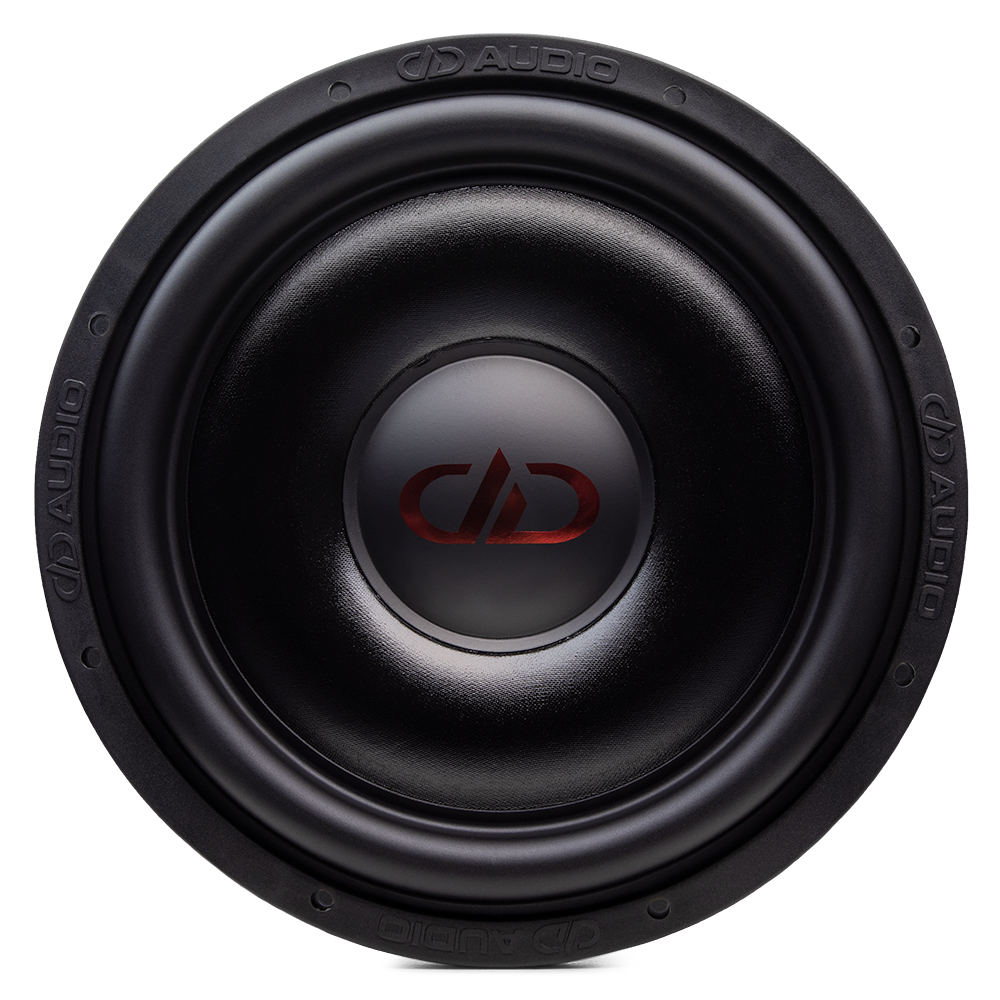

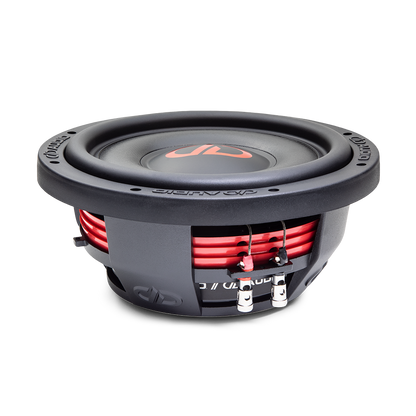

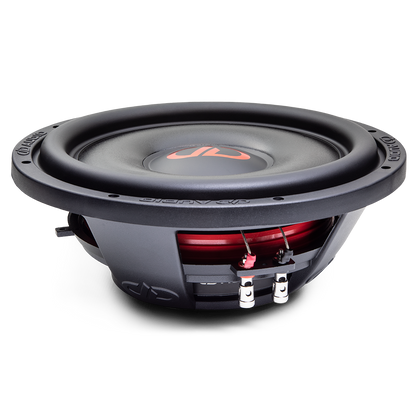

DD Audio SL700 Slim Line Series Shallow Subwoofer

DD Audio SL700 Slim Line Series Shallow Subwoofer

Regular price $239.00
Regular price Sale price $239.00
Sale Sold out
Size
Impedance

Product Features:

The SL700 Series is a throwback to subwoofers from the 2000s, designed to play any kind of music a system is geared toward. With a rich pedigree reaching back to the DD9000/DD4500 Series from that era, the SL700s combine rigid low mass cones, strong dual layered spiders, highly compressed EROM surrounds and a high-energy 3 inch voice coil that hits hard, low and fast.

While current subwoofer trends have moved toward air movement and hair dancing, we have been asked for subs focused on music that are highly efficient in smaller, daily driver enclosures. Focusing the bandwidth from 30-300Hz allows us to optimize the excursion and output for these applications. Our recently developed shallow cast frames coupled to high energy motors allow the SL700s to fit into compact enclosures fitting for trucks, under or behind seats, motorcycle bags, off-road side by sides/marine spaces and highly detailed SQ builds in sealed boxes.

  • Compact Cast Aluminum Frame
  • 3 Inch High Temp Copper Voice Coil
  • Dual Layer Spiders With Integrated Tinsel Leads
  • 170mm Double Magnet Motor With Bumped Back Plate
  • Free Flow Cooling Motor Vent System
  • Water Resistant Treated Non-Pressed Cone
  • EROM Surround

Speaker Size (In)

10

12

15


Watts RMS

1000

1000

1000


VCD (In)

3

3

3


Voice Coil Impedance

D2 / D4

D2 / D4

D2 / D4


Piston Diameter (In)

10

12

15


Fs (Hz)

41

29

27.7


Qms

6.1

5.4

6


Qes

0.63

0.62

0.73


Qts

0.57

0.54

0.66


Vas (Ltr)

11.5

39.2

54.9


Xmech (MM)

40

40

40


Xmax (MM)

19

19

19


Frame OD (In)

10.25

12.375

15.375


Frame OD (MM)

261

314

391


Frame OD w/ Gasket (In)

10.375

12.5

15.5


Frame OD w/ Gasket (MM)

264

318

394


Mounting Diameter (In)

9.375

11.375

13.875


Mounting Diameter (MM)

238

289

352


Mounting Depth (In)

5.125

5.5

6.75


Mounting Depth (MM)

130

140

172


Motor Diameter (In)

6.7

6.7

6.7


Motor Diameter (MM)

170

170

170


Motor Depth (In)

2.5

2.5

2.5


Motor Depth (MM)

63.5

63.5

63.5


Displacement (CuFt)

0.06

0.07

0.09


Displacement (Ltr)

1.7

2

2.55


Sealed Enclosure (CuFt)

0.5 - 1

0.7 - 1.5

1.25 - 2.5


Sealed Enclosure (Ltr)

14.2 - 28.3

19.8 - 42.5

25.4 - 70.8


Ported Enclosure (CuFt)

0.5 - 1.25

1 - 1.75

1.75 - 2.75


Ported Enclosure (Ltr)

14.2 - 35.4

28.3 - 50

50 - 77.9
