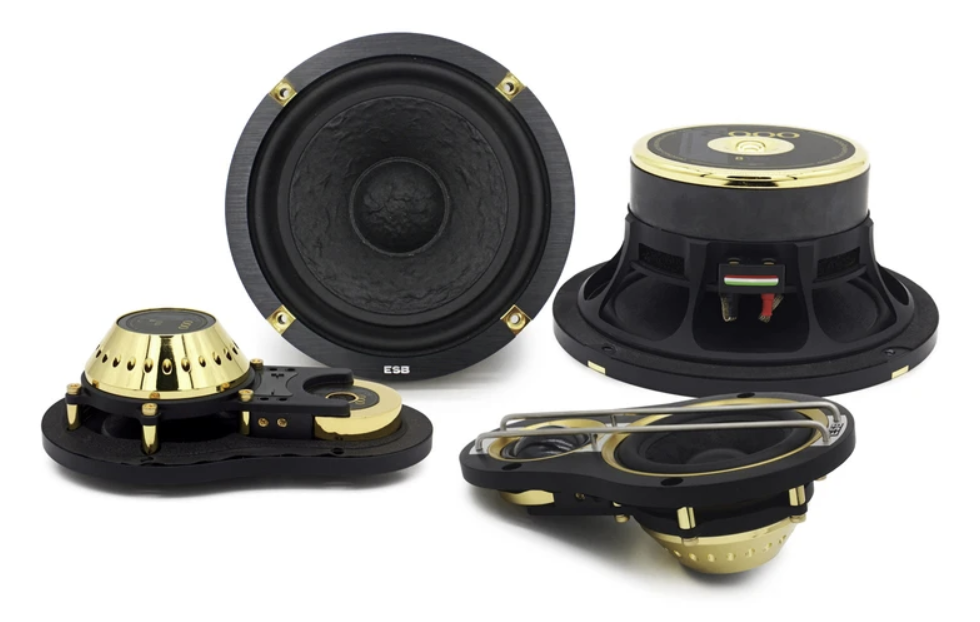

ESB Audio 8.6K3U 3-Way Speaker System with UMA Unit

ESB Audio 8.6K3U 3-Way Speaker System with UMA Unit

Regular price $2,499.99
Regular price Sale price $2,499.99
Sale Sold out

Product highlights:

  • Tweeter – 8028
  • 1.1″/28 mm Dome Tweeter, 28 mm aluminum voice coil
  • 32.8 mm nominal diameter, High-grade neodymium magnet
  • Nominal Impedance: 4 Ohm
  • Nominal Power Handling: 110 Watt
  • Transient Power: 220 Watt
  • Frequency Response: 940 Hz ~ 25 KHz
  • Sensitivity: 91 dB 1W/1m
  • Mid-range – 8075
  • 3″/75 mm Cone Midrange, 25.5 mm voice coil diameter
  • Copper and aluminum voice coil
  • Nominal Impedance: 4 Ohm
  • Nominal Power Handling: 120 Watt
  • Transient Power: 240 Watt
  • Frequency Response: 95 Hz ~ 16 KHz
  • Sensitivity: 91 dB 1W/1m
  • Mid-woofer – 8165
  • 6.5″/165 mm Mid-Woofer, Non-pressed paper cone
  • 32.4 mm voice coil diameter
  • Nominal Impedance: 4 Ohm
  • Nominal Power Handling: 160 Watt
  • Transient Power: 320 Watt
  • Frequency Response: 45 Hz ~ 4 KHz
  • Sensitivity: 89 dB 1W/1m
