GROUND ZERO GZCT (25SQ;, 5000SPL-B, 500IV-B,20N-PRO, GZCT 25M)

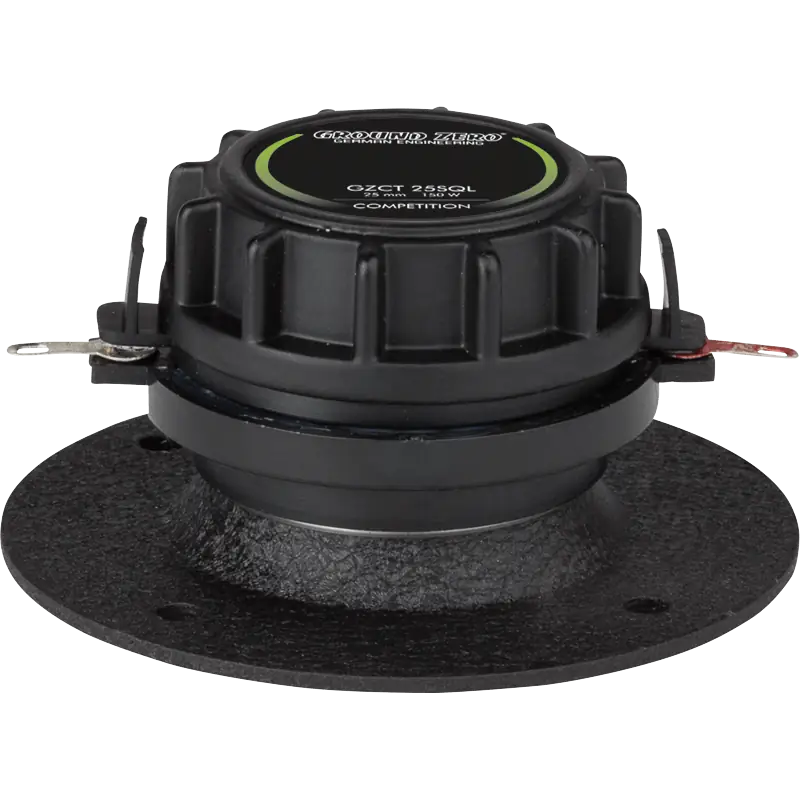

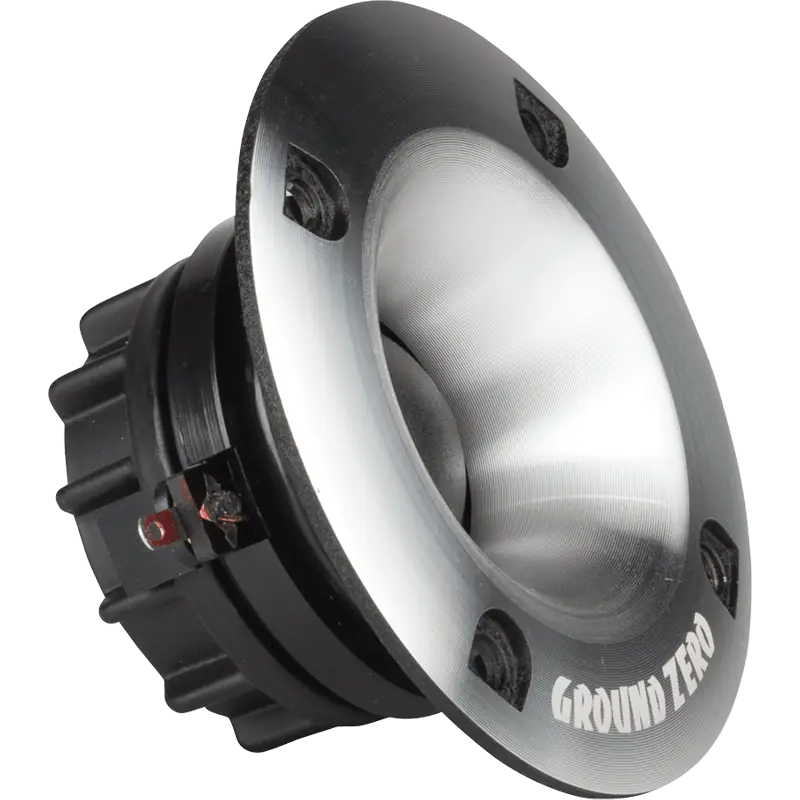

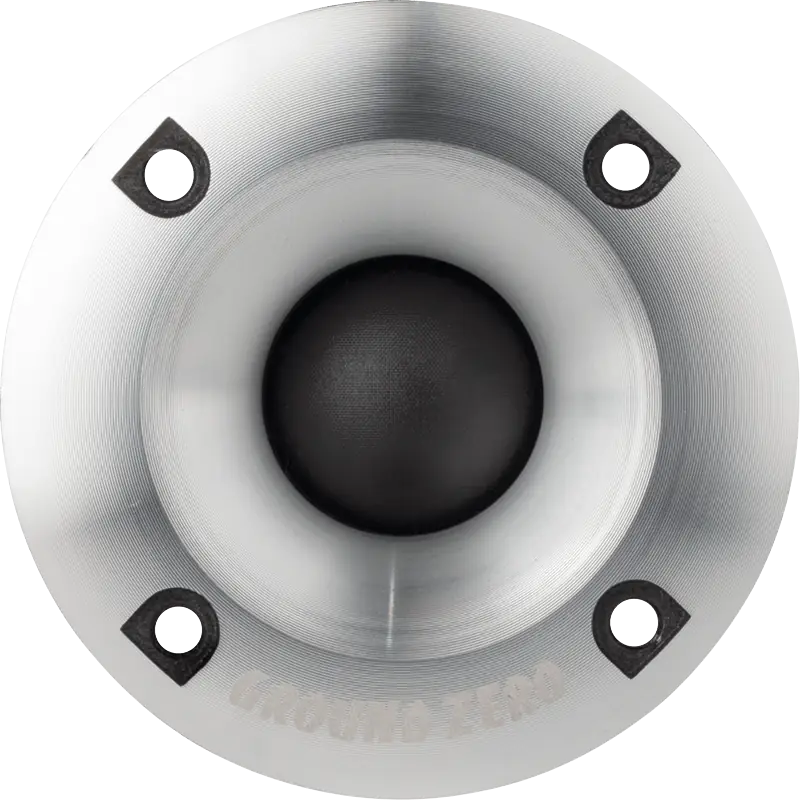

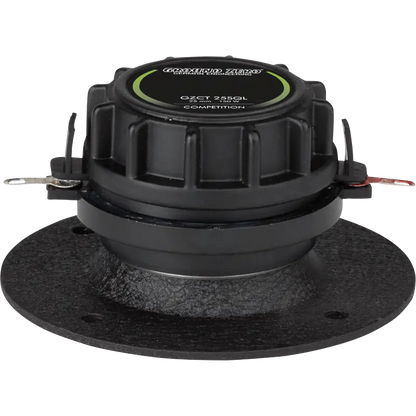

GZCT 25SQL

150 Watts max

1″ high power tweeter with silk dome and 60° dispersion

• 25 mm / 1″ high power silk dome tweeter
• 25 mm / 1″ voice coil
• Coated silk dome
• Neodymium motor
• Aluminum cast housing
• Ferrofluid cooled
• 60° wave guide
• Soldering terminal
• 1 piece / package

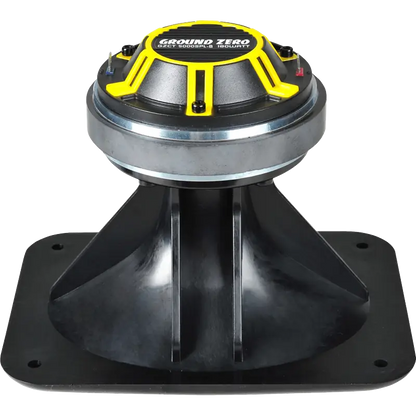

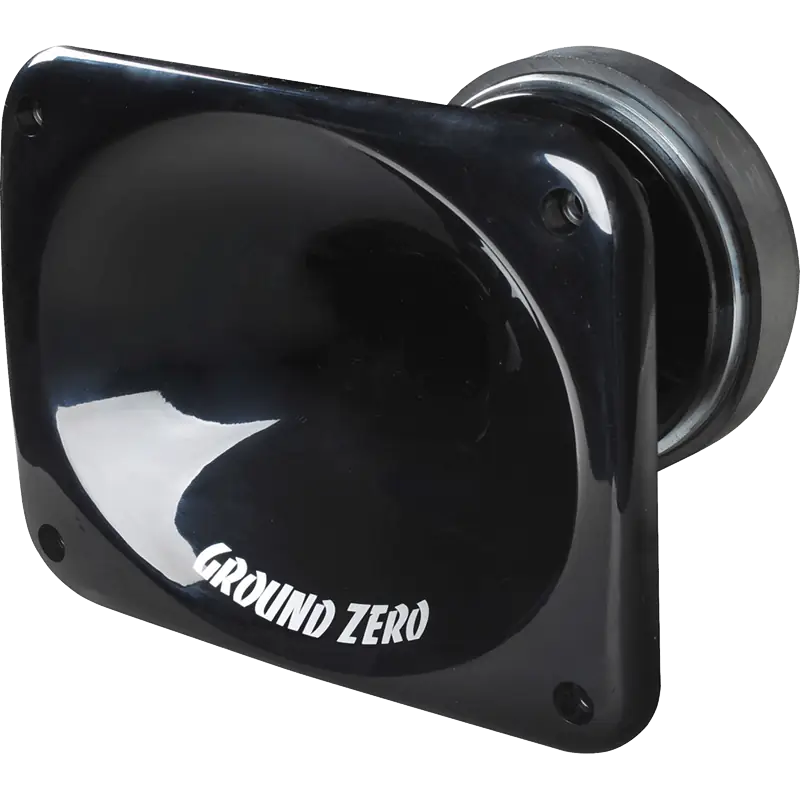

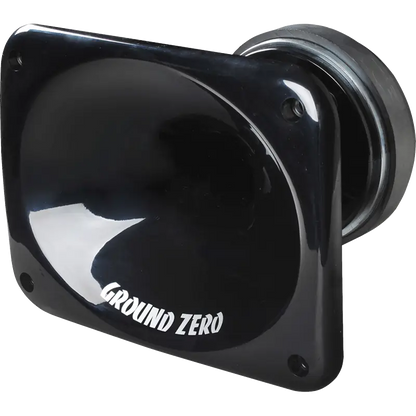

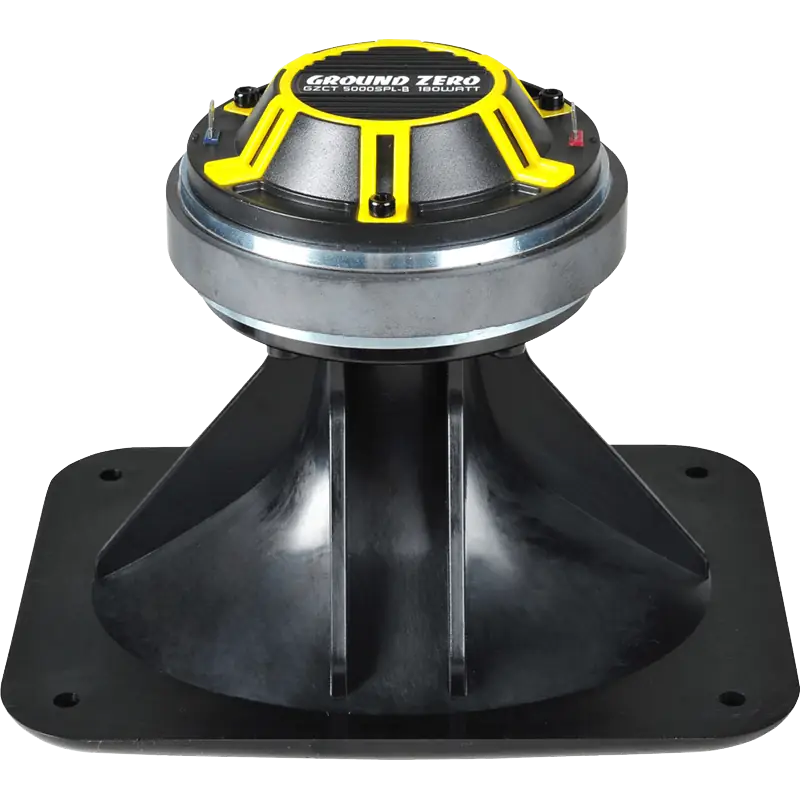

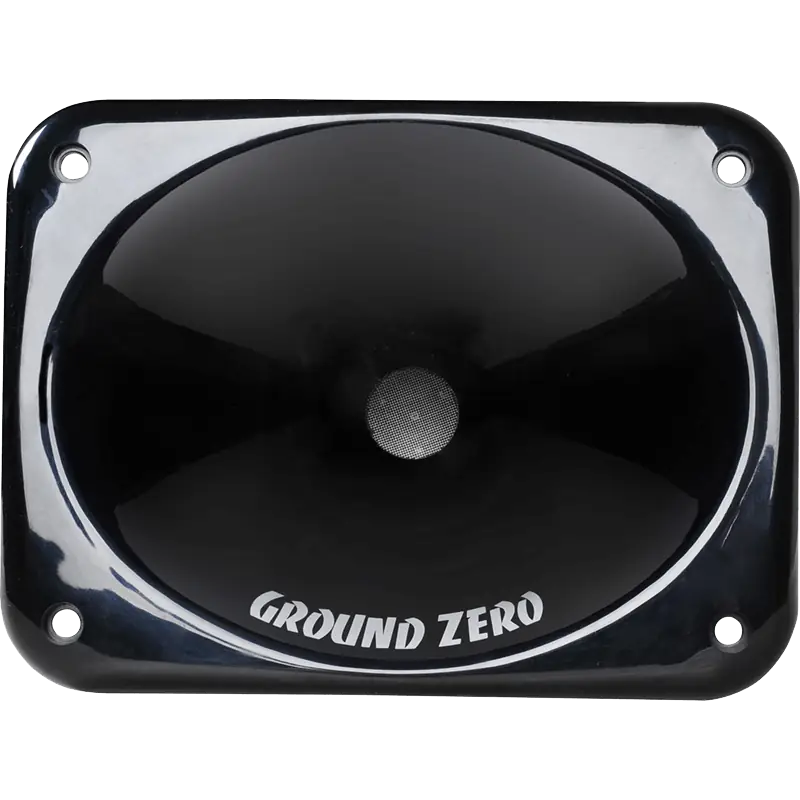

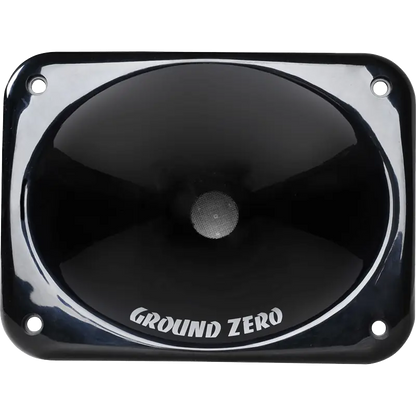

GZTC 5000SPL-B

180 Watts maX

1.75″ high power compression tweeter with aluminum dome and 60×90° dispersion

• 19 mm / 0.75″ titanium dome compression tweeter
• 44.5 mm / 1.75″ CCA voice coil
• Titanium dome
• Ferrite motor
• ABS plastic housing
• Soldering terminal
• 1 piece / package

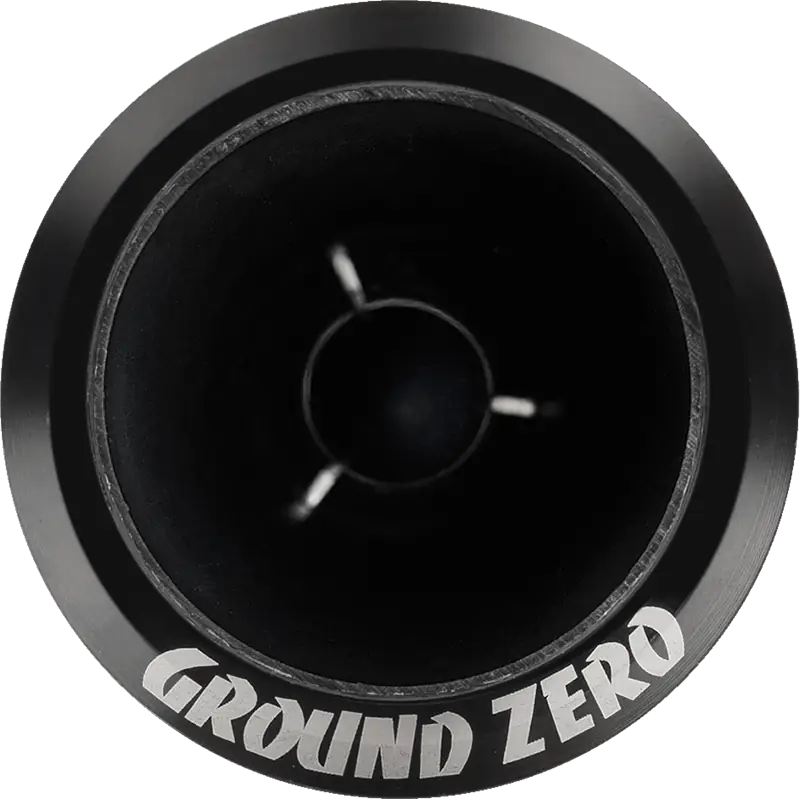

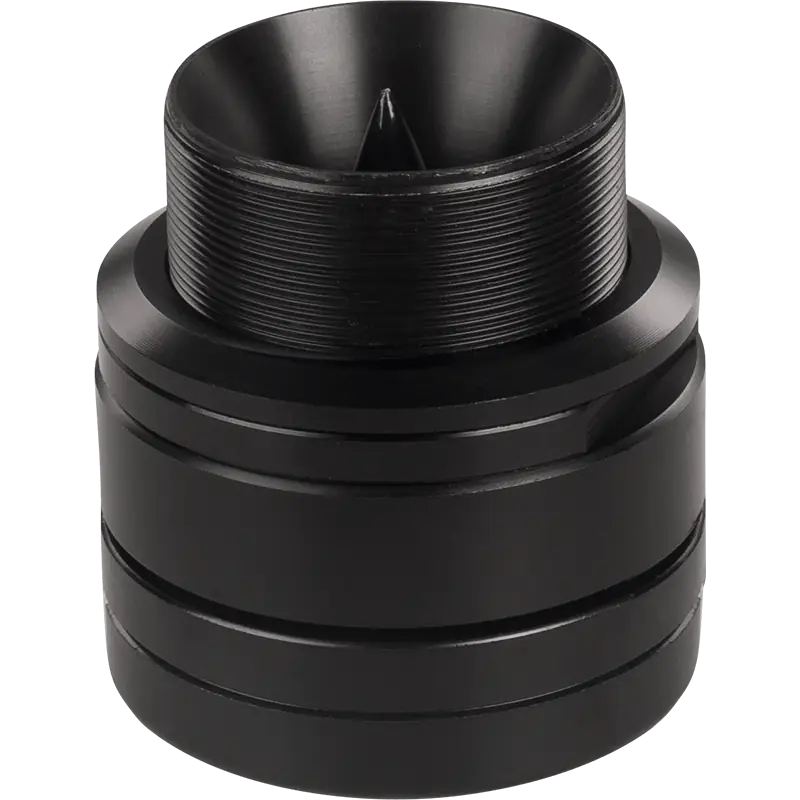

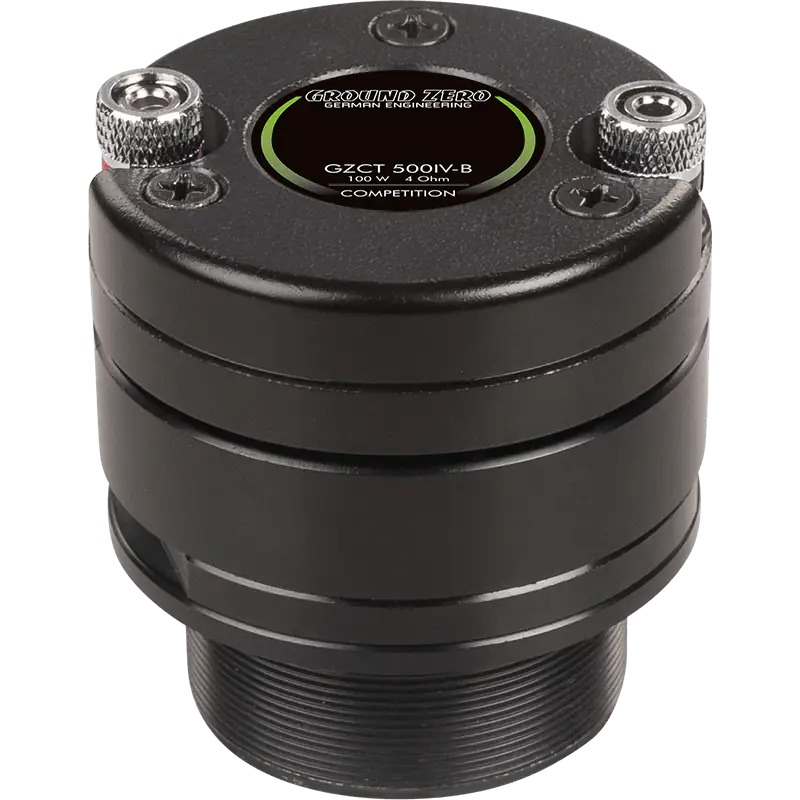

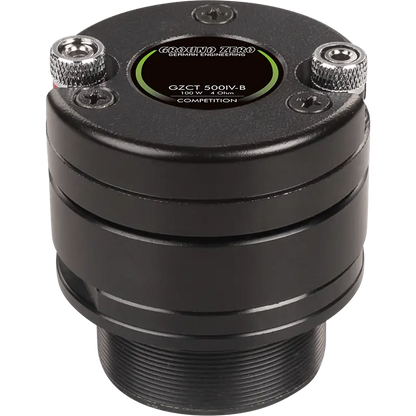

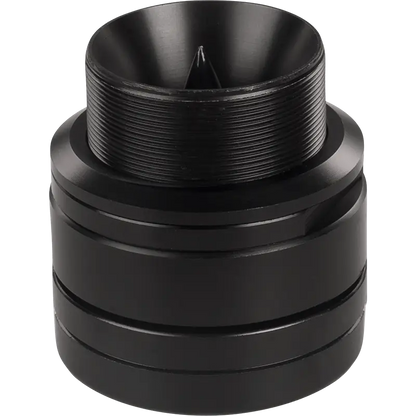

GZCT500IV-B

100 Watts max

1″ high power compression tweeter with aluminum dome and 30° dispersion

• 25 mm / 1″ aluminum dome compression tweeter
• 25 mm / 1″ CCA voice coil
• Aluminum cone
• Neodymium motor
• Black anodyzed aluminum housing
• Variable installation depth
• Suitable for motorcycle use
• Connection wires

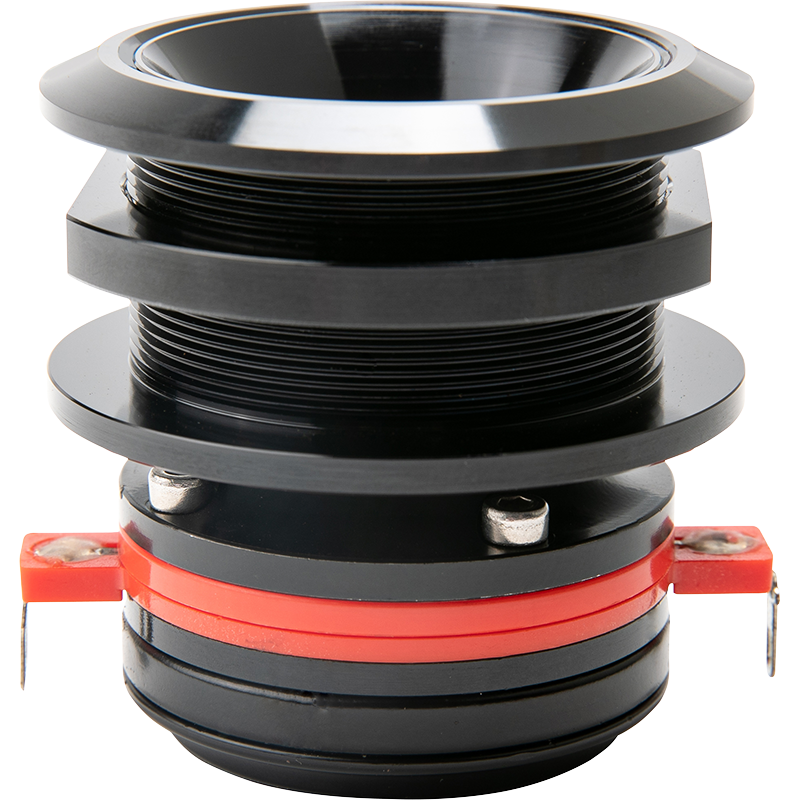

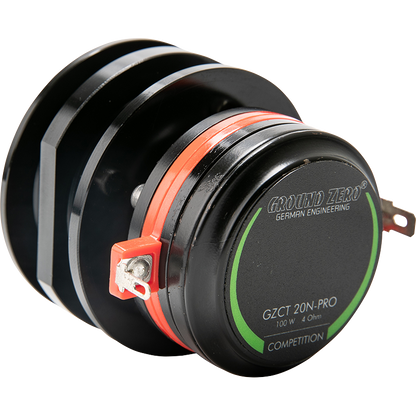

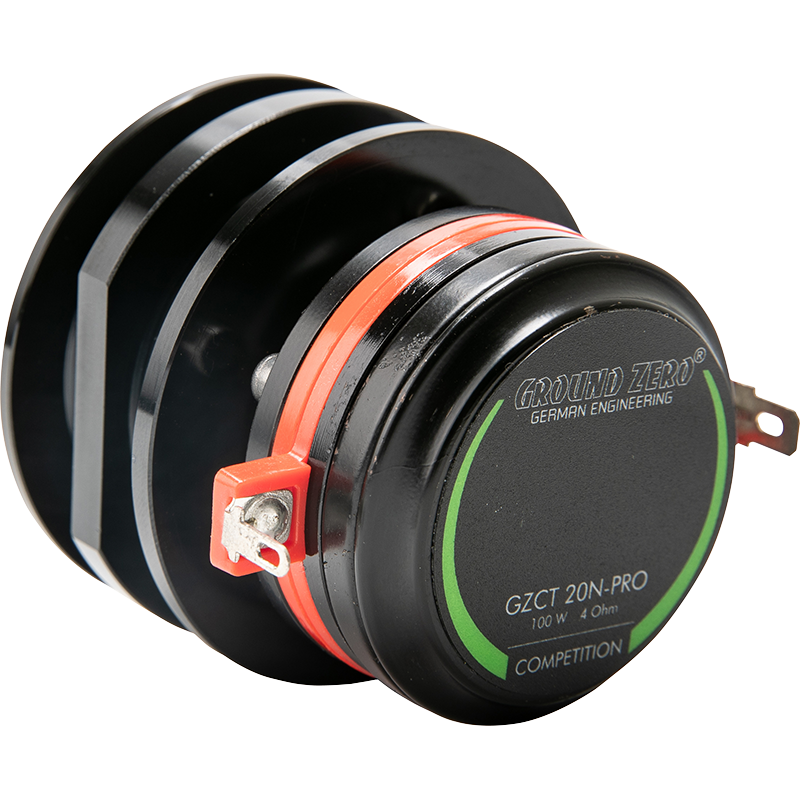

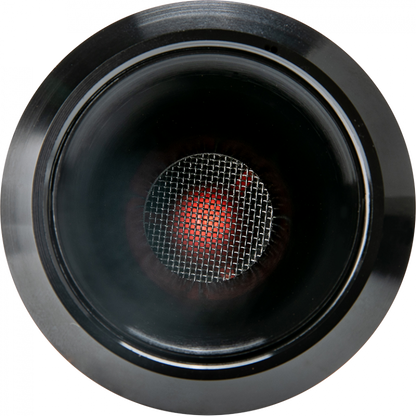

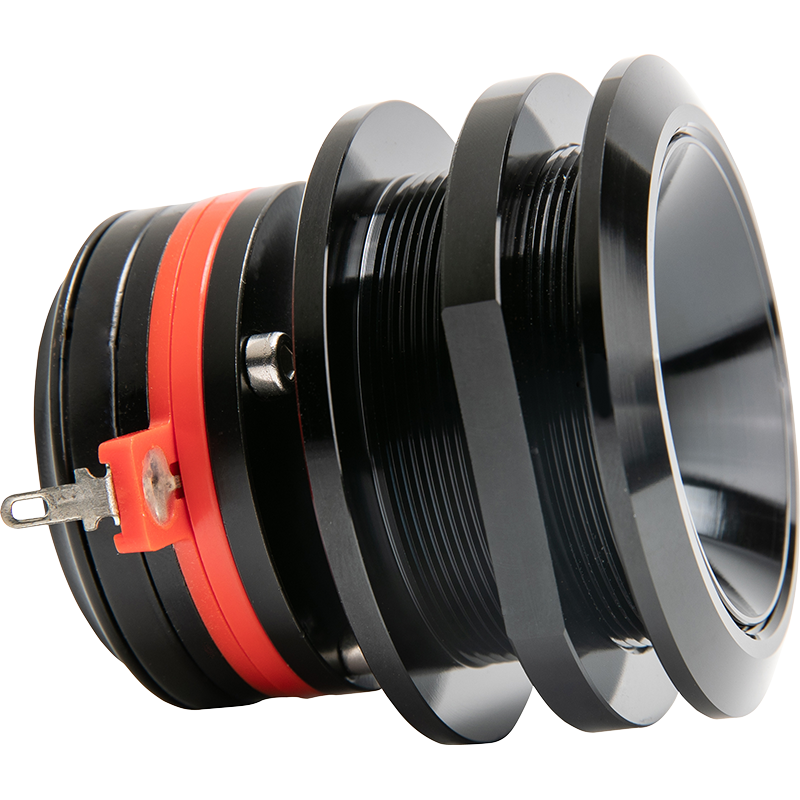

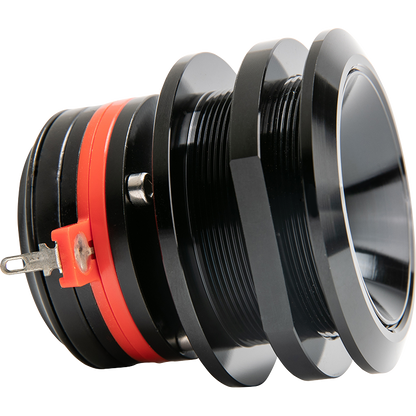

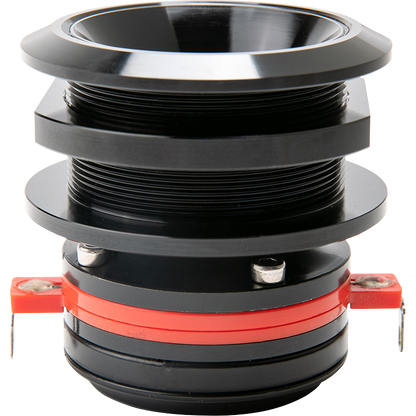

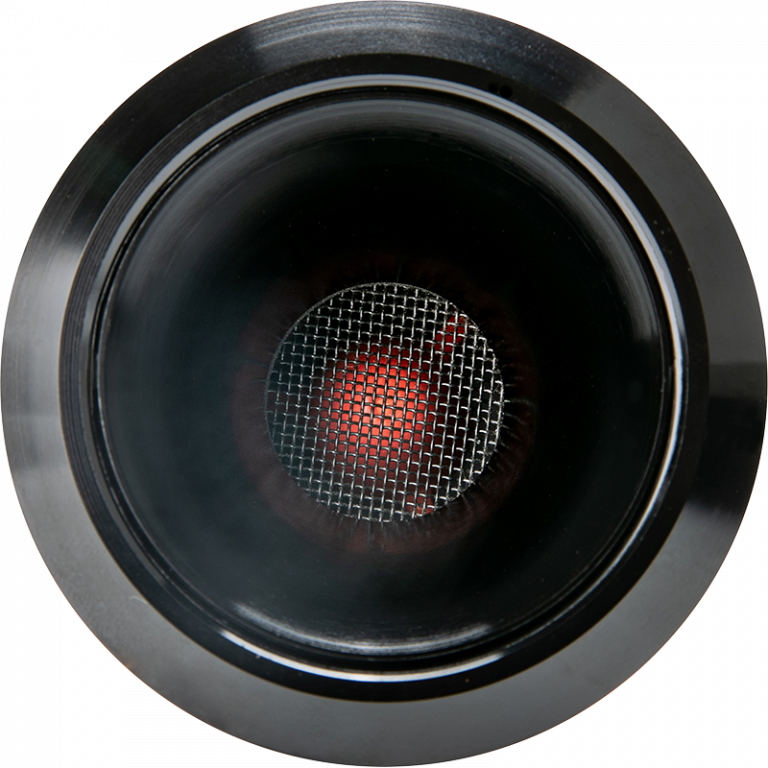

GZCT 20N-PRO

100 Watts max

1″ high end compression tweeter with neodymium magnet

• 25 mm / 1″ high end compression tweeter
• 25 mm / 1″ CCA voice coil
• Polyester dome
• Neodymium motor
• Aluminum cast horn
• Circular wave guide
• Soldering terminal
• 1 piece / package

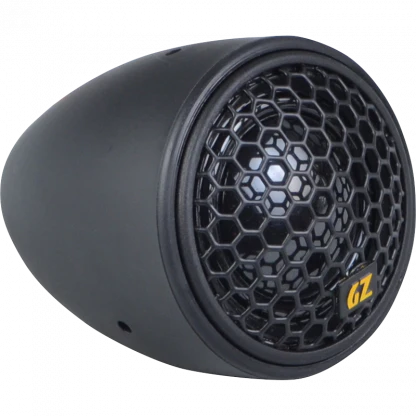

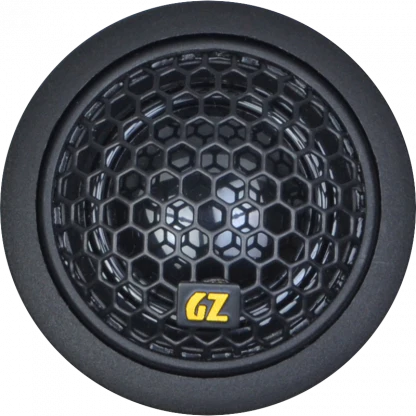

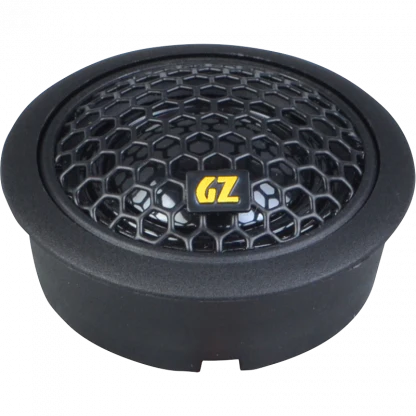

GZCT 25M

100 Watts max

1″ dome tweeter with surface housing and in-line high pass filter

• High-performance Mylar dome tweeter
• 25 mm / 1″ voice coil
• Mylar dome
• Neodymium motor
• Incl. 12 dB/oct high pass filter
• Ferrofluid cooled
• 1 pair / package
• Model High-performance tweeter with Mylar dome
• Diameter

  25 mm / 0.98"

  Power Handling (RMS/max.)

  70 / 100 Watts

  Impedance

  4 Ohms

  Efficiency

  84 dB

  Frequency Response

  3000 Hz – 20 kHz

  Crossover Frequency

  5500 Hz (Crossover high pass frequency)

  Voice Coil

  25 mm / 1"
