GZHA MINI ONE 1-channel class D compact amplifier/ GZHA MINI ONE-K

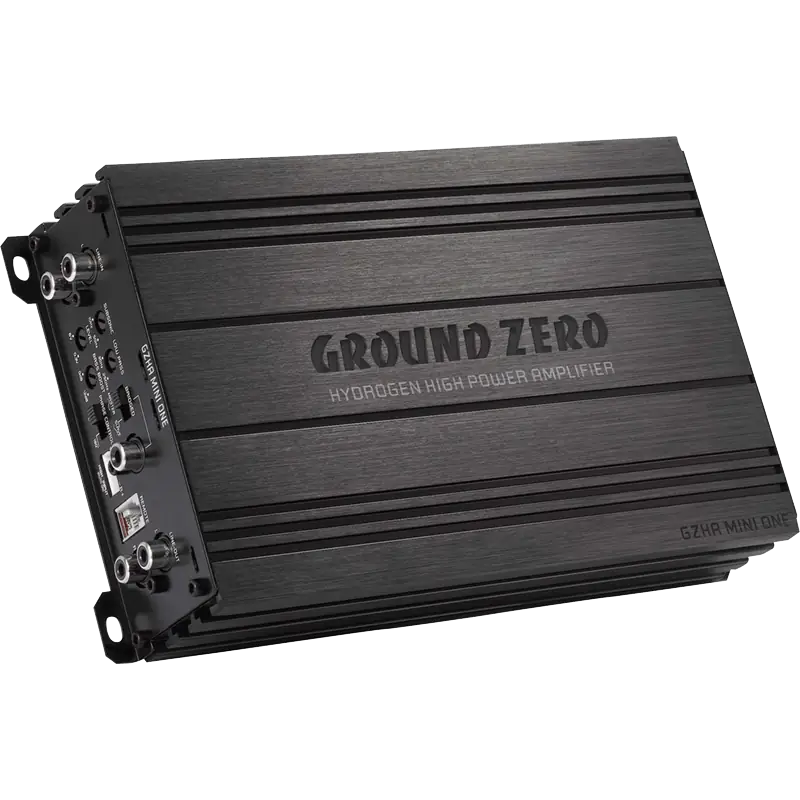

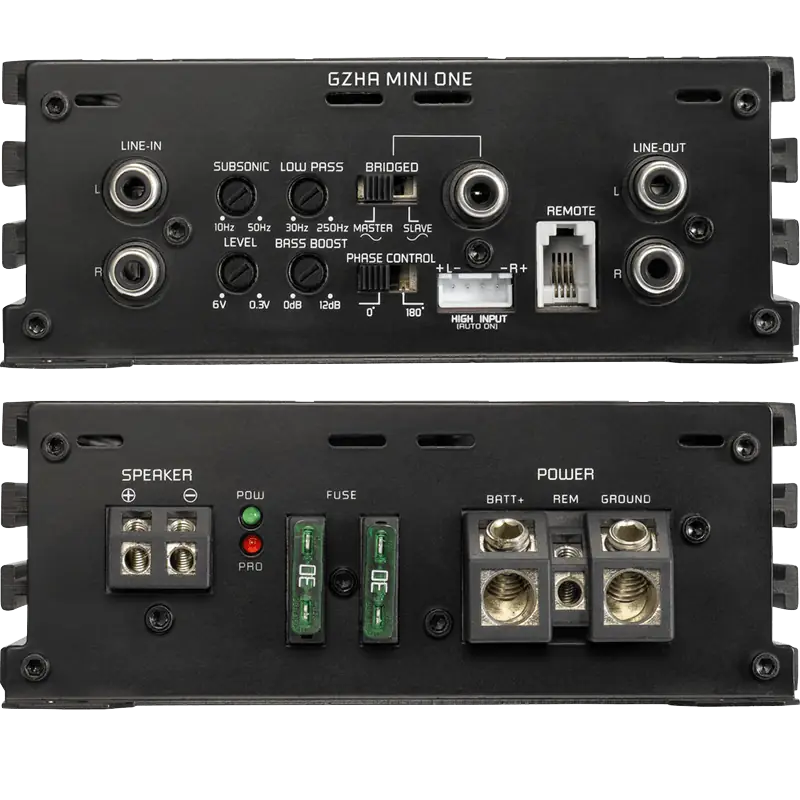

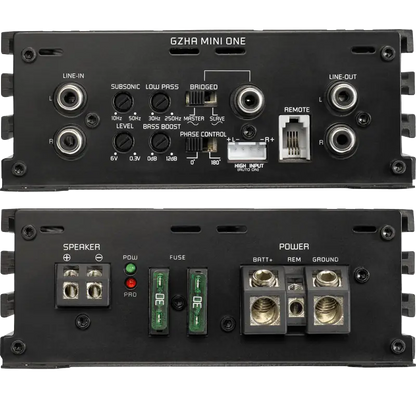

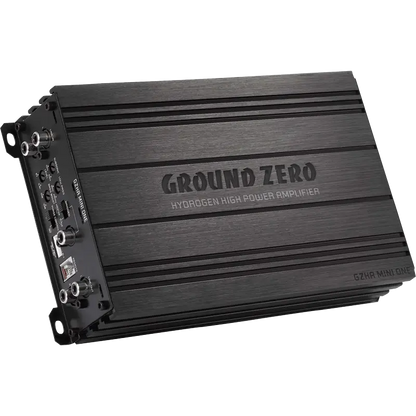

GZHA MINI ONE

750 Watts

1-channel subwoofer amplifier with high efficient class D circuit, integrated activ crossover and compact dimensions

• Compact sized mono amplifier

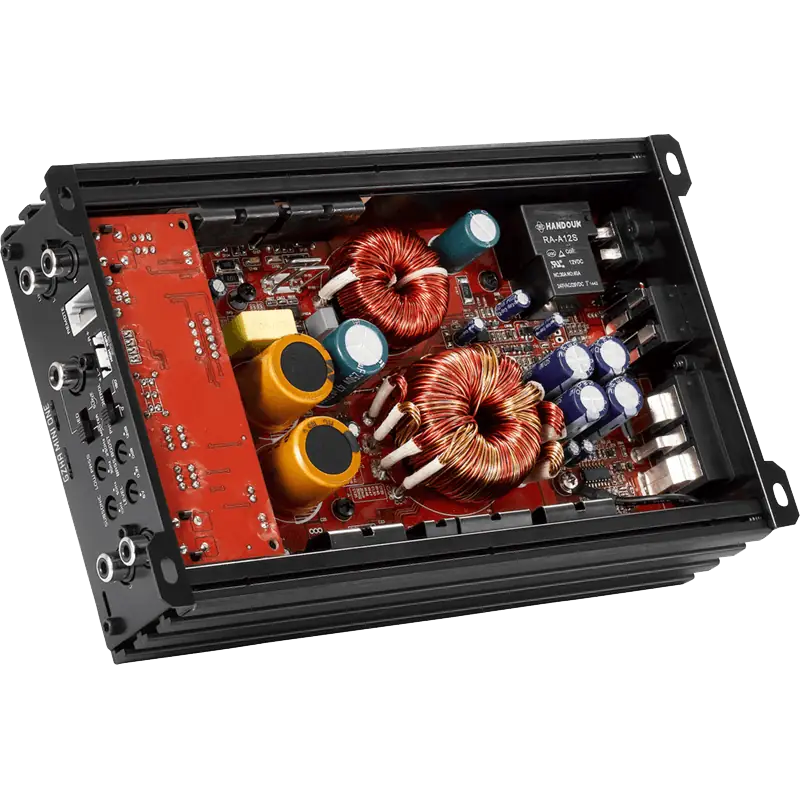

• SMD components
• Class D technology
• Variable active crossover and bass boost, phase shift
• Link mode (for two amplifiers)
• Stabilized power supply
• Large terminals
• Solid heatsink with engraved Ground Zero lettering
• Bass remote control included
• High-level input with auto-on function

.

Specifications

• Class D compact amplifier
• Channels 1
• Output Power (@ 4Ω) 220 Watts RMS
• Output Power (@ 2Ω) 390 Watts RMS
• Output Power (@ 1Ω) 630 Watts RMS
• max. Output Power (CEA-2006A / 10%THD+N) 750 Watts
• Frequency Response 10 – 250 Hz, 10 – 250 Hz
• HPF / LPF / BPF ● / ● / ●
• Bass Boost / Phasenregelung ● / ●
• High-Level Input / Auto-on● / ●
• Remote Control ●
• BIAS Setting ○
• Linkmode ●
• Dimensions (b x l x h) 135 x 210 x 52 mm

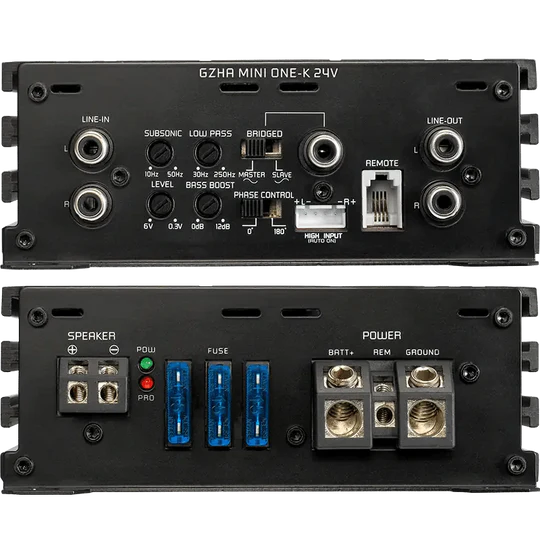

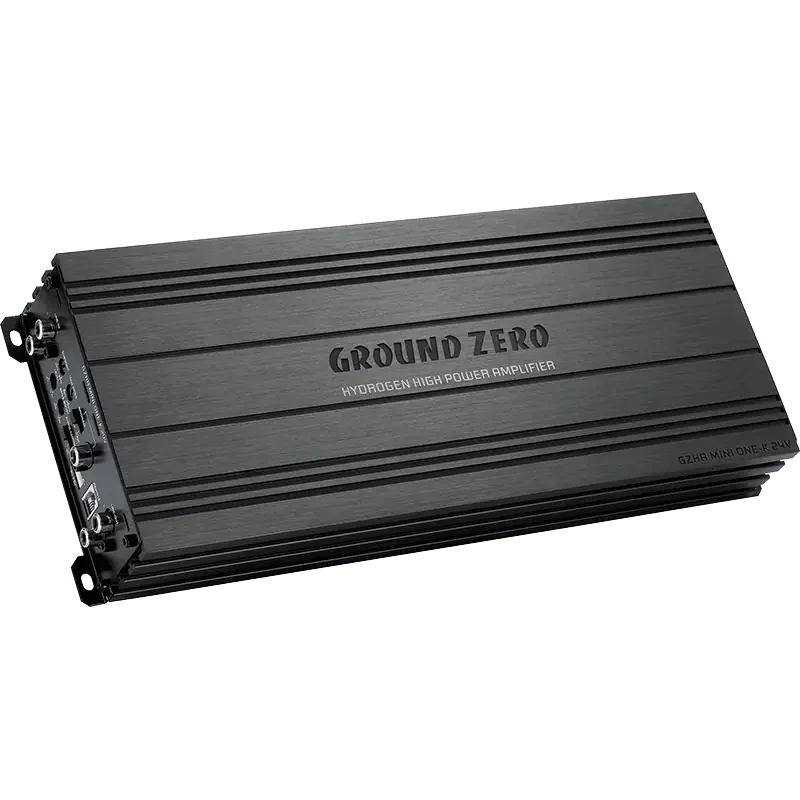

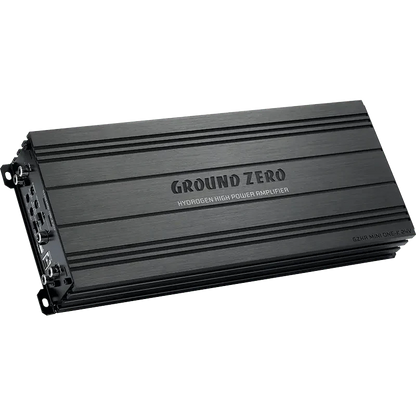

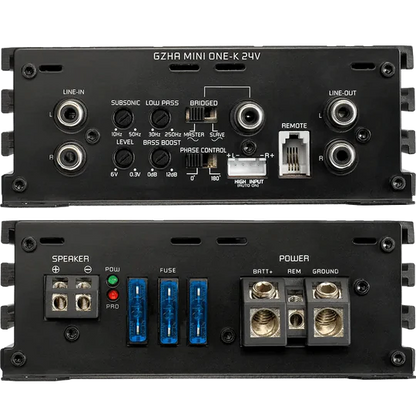

GZHA MINI ONE-K

Ground Zero GZHA MINI ONE-K

Compact 1000 WRMS 1 channel amplifier

Ground Zero GZHA MINI ONE-K:

1-channel subwoofer amplifier with highly efficient Class D circuitry, integrated active crossover and compact dimensions.

• 1 Channel Class D Monoamp
• Output power 4/2/1 Ohm 340 / 600 / 1000 WRMS
• Compact mono amplifier

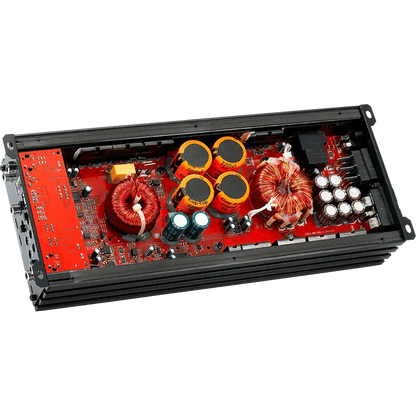

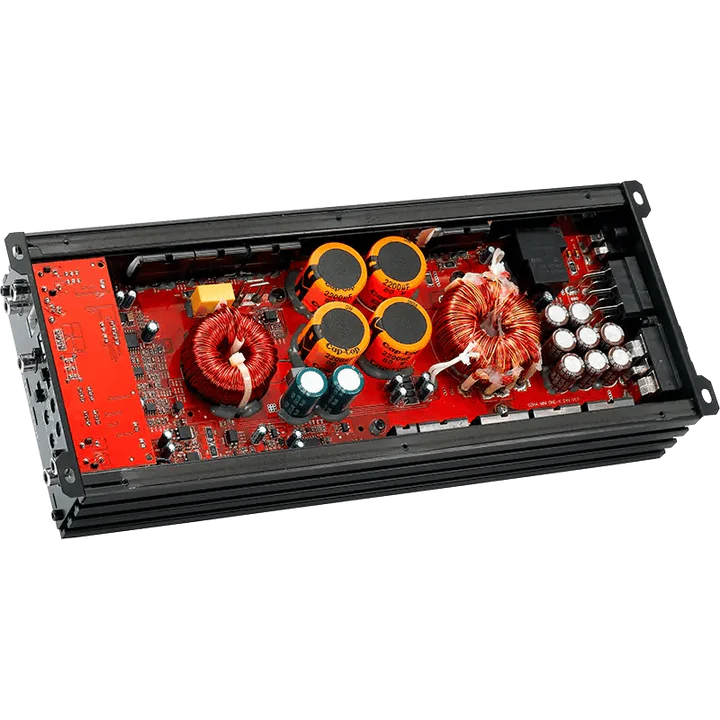

• Components in SMD technology
• Class D technology
• Variable active crossover and bass boost, phase adjustment
• Link mode (connection of two amplifiers)
• Stabilised power supply unit
• Generously dimensioned connections
• Compact heat sink with engraved Ground Zero lettering
• Level remote control included
• High-level input with auto-on function

Technical data
