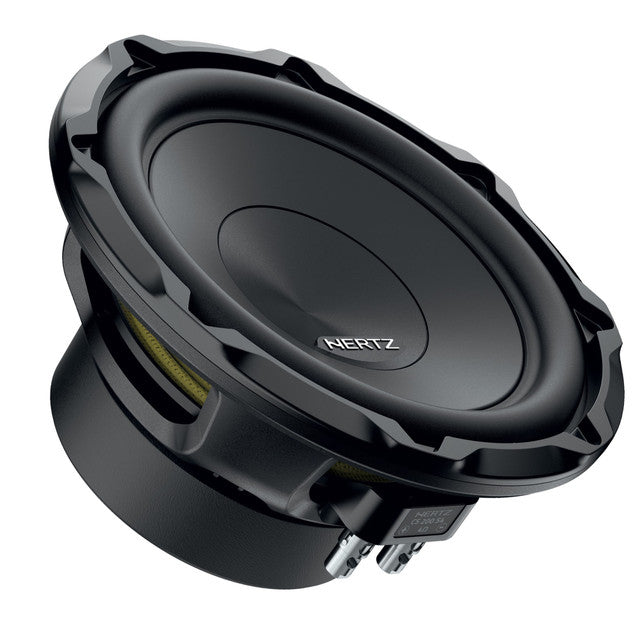

Hertz CS 200 S4, CS 250 S2, CS 250 S4, CS 300 S2, CS300 S4 SUBWOOFERS
Hertz CS 200 S4, CS 250 S2, CS 250 S4, CS 300 S2, CS300 S4 SUBWOOFERS
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Couldn't load pickup availability
CS 200 S4
Description
Hertz CS 200 S4 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R&D team, always at the forefront in the search for innovative solutions, with unfailing effort succeeded in obtaining powerful bass frequencies from compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 9,6 l (0.33 CF). The reduced depth, the compact magnetic group, and the lack of rear decompression hole allow the box to be shaped around the subwoofer, obtaining a depth almost the same as the driver itself, for maximum freedom of installation on any type of car. The special cooling system for the six-layer voice coil keeps the operating temperature within the optimal range, even in case of extended listening sessions at high sound pressure.
Specifications -
• Size mm (in.): 200 (8)
• Power Handling - Continuous W: 150
• Power Handling - Peak W: 300
• Impedance Ohm: 4
• Voice Coil Type: single
• No Filter Component: SUBWOOFER
• Voice Coil Ø: 35 (1.38)
• Magnet size: D x d x h mm (in.): 120 x 50 x 28 (4.72 x 1.97 x 1.1)
• Weight of one component kg (lb.): 2,87 (1.30)
• Magnet: High density flux ferrite
• Cone: Polyproyilene
• Xmech mm (in.): 11,5 (0.45)
Specifications -
• Size mm (in.): 200 (8)
• Power Handling - Continuous W: 150
• Power Handling - Peak W: 300
• Impedance Ohm: 4
• Voice Coil Type: single
• No Filter Component: SUBWOOFER
• Voice Coil Ø: 35 (1.38)
• Magnet size: D x d x h mm (in.): 120 x 50 x 28 (4.72 x 1.97 x 1.1)
• Weight of one component kg (lb.): 2,87 (1.30)
• Magnet: High density flux ferrite
• Cone: Polyproyilene
• Xmech mm (in.): 11,5 (0.45)
CS 250 S2
Description
The new CS 250 s2 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R & D team, always at the forefront in the search for innovative solutions, with unfailing effort, succeeded in obtaining very powerful bass frequencies from ultra-compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 16 l. for the 25 cm (10 in.) CS 250 model. The 2Ω single voice coil configuration offers maximum compatibility with any type of amplification and an enclosure that houses more than one subwoofer.
Features -
• Electroacoustic design optimized for enclosures starting from 16 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 2 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Peak W: 600
• Power Handling - Continuous W: 300
• Impedance Ω: 2
• Sensitivity dB SPL: 84
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
Features -
• Electroacoustic design optimized for enclosures starting from 16 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 2 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Peak W: 600
• Power Handling - Continuous W: 300
• Impedance Ω: 2
• Sensitivity dB SPL: 84
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
CS 250 S4
Description
The new CS 250 s4 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R & D team, always at the forefront in the search for innovative solutions, with unfailing effort, succeeded in obtaining very powerful bass frequencies from ultra-compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 16 l. for the 25 cm (10 in.) CS 250 model. The 4Ω single voice coil configuration offers maximum compatibility with any type of amplification and an enclosure that houses more than one subwoofer.
Features -
• Electroacoustic design optimized for enclosures starting from 16 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Peak W: 600
• Power Handling - Continuous W: 300
• Impedance Ω: 4
• Sensitivity dB SPL: 84
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
Features -
• Electroacoustic design optimized for enclosures starting from 16 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Peak W: 600
• Power Handling - Continuous W: 300
• Impedance Ω: 4
• Sensitivity dB SPL: 84
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
CS 300 S2
Description
The new CS 300 s2 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R & D team, always at the forefront in the search for innovative solutions, with unfailing effort, succeeded in obtaining very powerful bass frequencies from ultra-compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 32 l. for the 30 cm (12 in.) CS 300 model. The 2Ω single voice coil configuration offers maximum compatibility with any type of amplification and an enclosure that houses more than one subwoofer.
Features -
• Electroacoustic design optimized for enclosures starting from 32 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 300 (12)
• Power Handling - Peak W: 700
• Power Handling - Continuous W: 350
• Impedance Ω: 2
• Sensitivity dB SPL: 86,5
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
Features -
• Electroacoustic design optimized for enclosures starting from 32 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 300 (12)
• Power Handling - Peak W: 700
• Power Handling - Continuous W: 350
• Impedance Ω: 2
• Sensitivity dB SPL: 86,5
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
CS 300 S4
Description
The new CS 300 s4 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R & D team, always at the forefront in the search for innovative solutions, with unfailing effort, succeeded in obtaining very powerful bass frequencies from ultra-compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 32 l. for the 30 cm (12 in.) CS 300 model. The 4Ω single voice coil configuration offers maximum compatibility with any type of amplification and an enclosure that houses more than one subwoofer.
Features -
• Electroacoustic design optimized for enclosures starting from 32 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 300 (12)
• Power Handling - Peak W: 700
• Power Handling - Continuous W: 350
• Impedance Ω: 4
• Sensitivity dB SPL: 86,5
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
Features -
• Electroacoustic design optimized for enclosures starting from 32 liters.
• Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
• Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
• 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
• Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
Specifications -
• Size mm (in.): 300 (12)
• Power Handling - Peak W: 700
• Power Handling - Continuous W: 350
• Impedance Ω: 4
• Sensitivity dB SPL: 86,5
• Voice coil Ø mm (in.): 35 (1.38)
• Xmax mm: 12,5
• X-mech mm (in.): 16,5 (0.65)
