Hertz H8 DSP | 8 Channel Digital Processor

Features:

Digital Signal Processor

INPUT STAGE
Master (Speaker In/Pre in)    FL - FR - RL - RR
Aux (Pre in)    Left - Right
Digital Optical IN (S/PDIF max 96 kHz/24bit)    OPTICAL IN

OUTPUT STAGE
Low Level Pre (default)    FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTER

CONNECTIONS

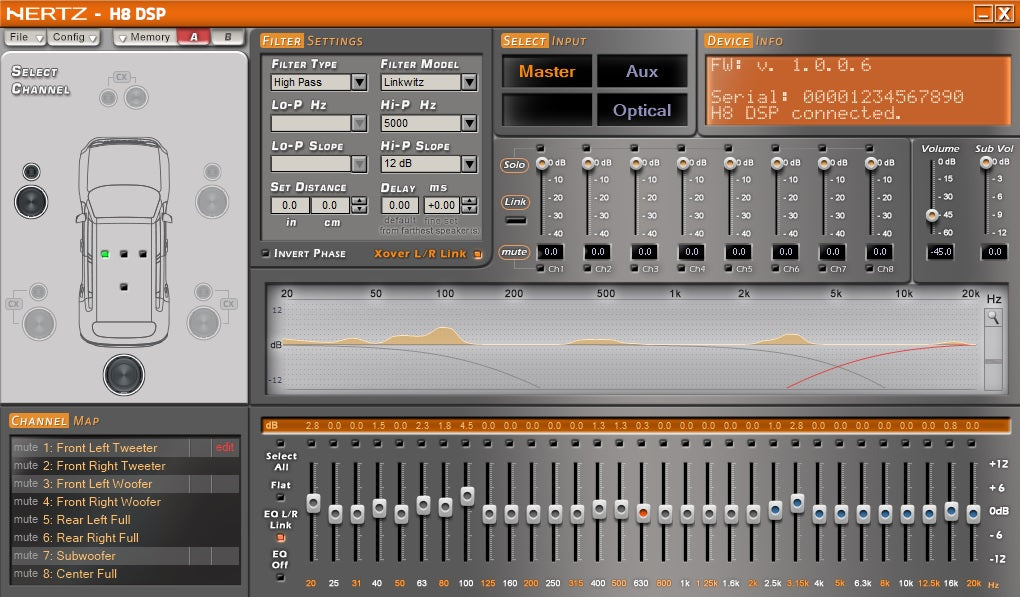

From / To Personal Computer    1 x USB / B
DRC HE    Audio controls and Memory / Inputs selection
Optical / AUX select    Optical In / Aux wire control + 12V / GND enable
Memory A / Memory B    Memory A / B wire control + 12V / GND enable

CROSSOVER N.8 (one for each output channel)
Filter Type    Full / High Pass / Low Pass / Band Pass
Filter mode and slope    Linkwitz @ 12 / 24 dB
Butterworth @ 6 / 12 / 18 / 24 dB
Crossover frequency    68 steps @ 20 ÷ 20k Hz
Phase control    0° ÷ 180°

EQUALIZER
On Hi-Levels input (Speaker In)    Automatic De-Equalization On
Outputs    N.8 Graphic: ±12 dB @ 31 Band ISO 1/3 Oct. 20 ÷ 20k Hz

TIME ALIGNMENT
Distance    0 ÷ 510 cm / 0 ÷ 200.8 inch
Delay    0 ÷ 15 ms
Step    0.08 ms; 2,8 cm / 1.1 inch
Fine set    0.02 ms; 0,7 cm / 0.27 inch
