Hertz HSP2-24 A2B 4-Speaker Front and Rear Audio Upgrade Kit for select 2024 vehicles from Harley Davidson
Hertz HSP2-24 A2B 4-Speaker Front and Rear Audio Upgrade Kit for select 2024 vehicles from Harley Davidson
Regular price
$2,739.95
Regular price
Sale price
$2,739.95
Unit price
per
Couldn't load pickup availability
Hertz HSP2-24 A2B

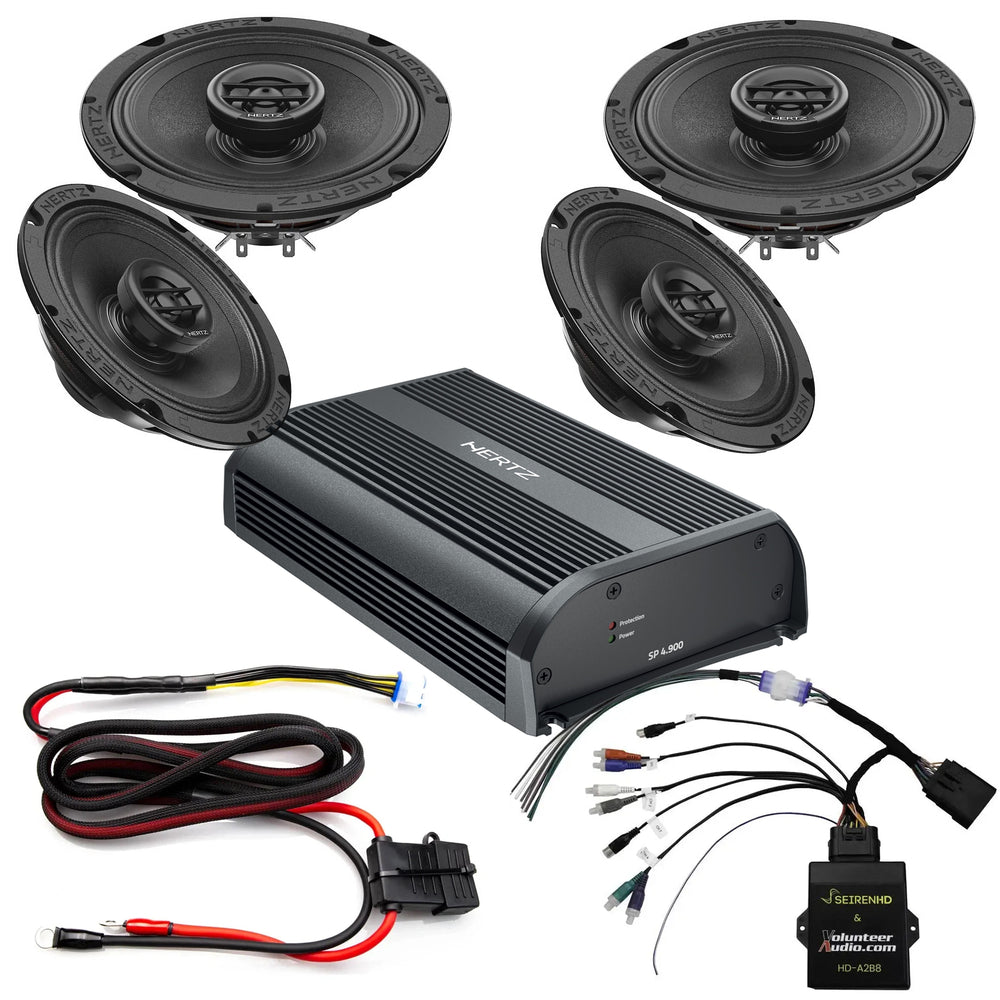

The Hertz HSP2-24 A2B kit packs serious output with 6.5" coaxial and midrange speakers driven by a powerful 4-channel amplifier, all precisely engineered to fit front and rear fairing locations. The included plug-and-play harness and advanced HD A2B interface module ensure seamless integration with your factory infotainment system—retaining key controls and features—while delivering loud, clean, and reliable performance built to thrive on every ride.
Product Details:
- System includes 6.5" coaxial speakers, 6.5" midrange speakers, and 4-channel amplifier
- Also includes amplifier wiring harness and A2B interface module for direct installation
- Designed for Harley-Davidson's front and rear speaker locations
- Engineered to match and compliment the factory fit and finish of your vehicle
- Plug and Play design for easy installation
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- Compatible with select 2024 vehicles from Harley Davidson
Hertz SX 165 NEO 6.5" Coaxial Speakers
- 6.5" SPL Show Series Coaxial Speakers
- Power Handling:
- Peak: 400 watts per pair / 200 watts each
- RMS: 200 watts per pair / 100 watts each
- Designed for front or fairing speaker locations
- Water-repellent Pressed Paper cone material
- Rubber speaker surround material
- 1.4" PEI (Polyetherimide) Dome tweeters with N38H neodymium magnets
- Resettable solid-state tweeter protection circuit
- 1.5" double-layer copper voice coil, wound on polyamide former
- Special Neodymium N38 H magnet motor structure
- Double fast on terminals for daisy-chaining of multiple units
- Impedance: 4 ohm
- Frequency Response: 100 - 20000 Hz
- Sensitivity: 96.5 dB
- MFR #: SX 165 NEO
Hertz SV 165 NEO 6.5" Midrange Speakers
- 6.5" SPL Show Series Midrange Speakers
- Power Handling:
- Peak: 800 watts per pair / 400 watts each
- RMS: 300 watts per pair / 150 watts each
- Designed for front or fairing speaker and rear Tour Pack (if available)
- Water-repellent Pressed Paper cone material
- Rubber speaker surround material
- 1.5" high-temperature voice coil
- Special Neodymium N38 H magnet motor structure
- Treated with cataphoresis and insulated lead-wires to avoid oxidation
- Impedance: 4 ohm
- Frequency Response: 100 - 20000 Hz
- Sensitivity: 97 dB
- MFR #: SV 165 NEO
Hertz SP 4.900 4-Channel Amplifier
- Class D 2 ohm Stable 4-Channel Amplifier
- Power Specifications
- 4 ohm: 160 watts x 4 channel
- 2 ohm: 250 watts x 4 channel
- Bridged @ 4 ohm: 500 watts x 2 channel
- Total RMS power output: 1000 watts
- LED Power/Protect Light
- CEA-2006 compliant amplifier
- Ultra-compact size for easy installation
- IP55 dust- and water-protection rating
- Pulse Width Modulated MOSFET power supply
- Speaker-level (high-level) inputs
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Frequency Response: 10 - 35000 Hz
- Total Harmonic Distortion (THD): 1%
- Signal to Noise Ratio: 105 dB
- Variable low-pass filter: 50 - 5000 Hz
- Variable high-pass filter: 50 - 5000 Hz
- Variable Bass Boost: 0 - 8 dB
- MFR #: SP 4.900
Hertz HD A2B Interface Module
- Replaces factory amplifier
- Includes easy plug and play connection cable
- Uses the same A2B chip for seamless integration into the original system
- Supports factory infotainment updates
- Retains fader, EQ selection with DSP profiles, speed-controlled volumes
- Also retains navigation announcement features
- Built-in 31-band equalizer with 7-band parametric global equalizer
- MFR #: HD A2B
Hertz HHP 14 Power and Ground Wiring
- Power and ground wiring cable
- Made with high-quality copper wire construction
- Color coded wires for easy installation
- Plug and play wires, no cutting or modification required
- MFR #: HHP 14
