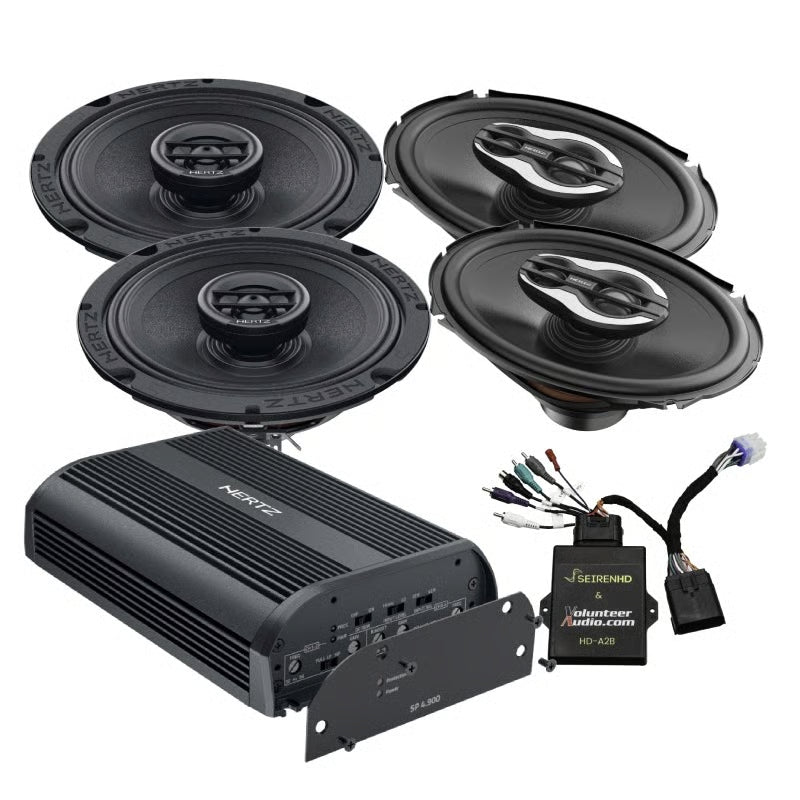

Hertz HSP3-24 A2B S3 4-Speaker Front and Rear Audio Upgrade Kit for select 2024-2025 vehicles from Harley Davidson

Product Details:

• System includes 6x9" coaxial speakers, 6.5" coaxial speakers, and 4-channel amplifier
• Also includes amplifier wiring harness and A2B interface module for direct installation
• Designed for bikes equipped with Factory Stage 3 audio package
• Designed for Harley-Davidson's front and rear speaker locations
• Engineered to match and compliment the factory fit and finish of your vehicle
• Includes Hertz Hog Badge replacement logos for sleek look
• Plug and Play design for easy installation
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Compatible with select 2024-2025 vehicles from Harley Davidson

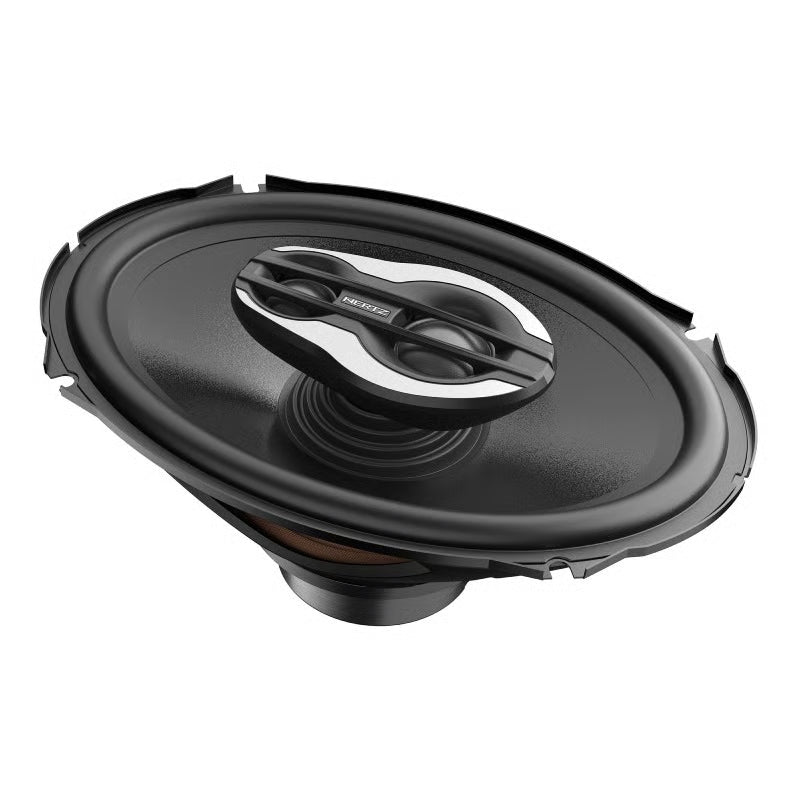

Hertz SX 690 H 6x9" Coaxial Speakers

• 6x9" SPL Show Series 3-Way Coaxial Speakers
• Power Handling:
• Peak: 520 watts per pair / 260 watts each
• RMS: 260 watts per pair / 130 watts each
• Designed for rear speaker locations
• High-stiffness Pressed Paper cone material
• Rubber speaker surround
• 1.4" Tetolon Dome tweeters
• 1" Tetolon dome super tweeters
• 1.5" double layer copper voice coil on polyimide former
• Neodymium magnet motor structure
• Double fast on terminals allow daisy-chaining of multiple units
• Built to withstand the rigors of the road with its weather-resistant design
• Speaker built with innovative water/humidity resistant and anti-UV treatments
• Impedance: 4 ohm
• Frequency Response: 65 - 24000 Hz
• Sensitivity: 94 dB
• MFR #: SX 690 H

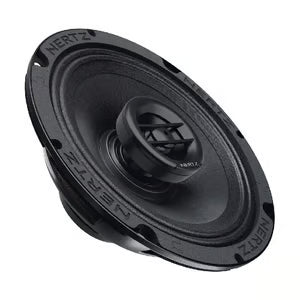

Hertz SX 165 NEO 6.5" Coaxial Speakers

• 6.5" SPL Show Series Coaxial Speakers
• Power Handling:
• Peak: 400 watts per pair / 200 watts each
• RMS: 200 watts per pair / 100 watts each
• Designed for front or fairing speaker locations
• Water-repellent Pressed Paper cone material
• Rubber speaker surround material
• 1.4" PEI (Polyetherimide) Dome tweeters with N38H neodymium magnets
• Resettable solid-state tweeter protection circuit
• 1.5" double-layer copper voice coil, wound on polyamide former
• Special Neodymium N38 H magnet motor structure
• Double fast on terminals for daisy-chaining of multiple units
• Impedance: 4 ohm
• Frequency Response: 100 - 20000 Hz
• Sensitivity: 96.5 dB
• MFR #: SX 165 NEO

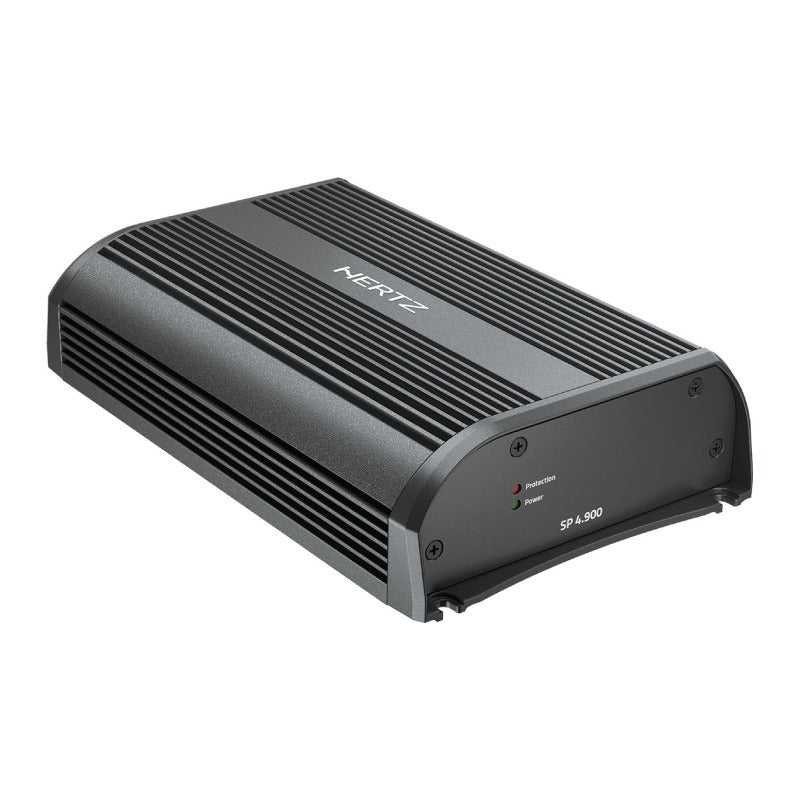

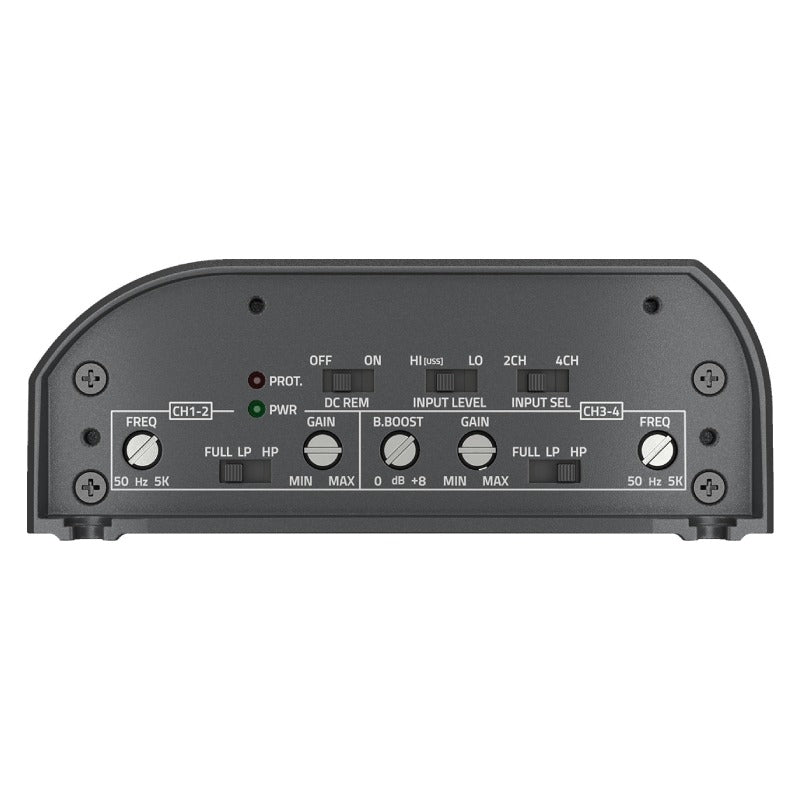

Hertz SP 4.900 4-Channel Amplifier

• Class D 2 ohm Stable 4-Channel Amplifier
• Power Specifications
• 4 ohm: 160 watts x 4 channel
• 2 ohm: 250 watts x 4 channel
• Bridged @ 4 ohm: 500 watts x 2 channel
• Total RMS power output: 1000 watts
• LED Power/Protect Light
• CEA-2006 compliant amplifier
• Ultra-compact size for easy installation
• IP55 dust- and water-protection rating
• Pulse Width Modulated MOSFET power supply
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Frequency Response: 10 - 35000 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 105 dB
• Variable low-pass filter: 50 - 5000 Hz
• Variable high-pass filter: 50 - 5000 Hz
• Variable Bass Boost: 0 - 8 dB
• MFR #: SP 4.900

Hertz HD A2B Interface Module

• Replaces factory amplifier
• Includes easy plug and play connection cable
• Uses the same A2B chip for seamless integration into the original system
• Supports factory infotainment updates
• Retains fader, EQ selection with DSP profiles, speed-controlled volumes
• Also retains navigation announcement features
• Built-in 31-band equalizer with 7-band parametric global equalizer
• MFR #: HD A2B

Hertz HHP 14 Power and Ground Wiring

• Power and ground wiring cable
• Made with high-quality copper wire construction
• Color coded wires for easy installation
• Plug and play wires, no cutting or modification required
• MFR #: HHP 14
