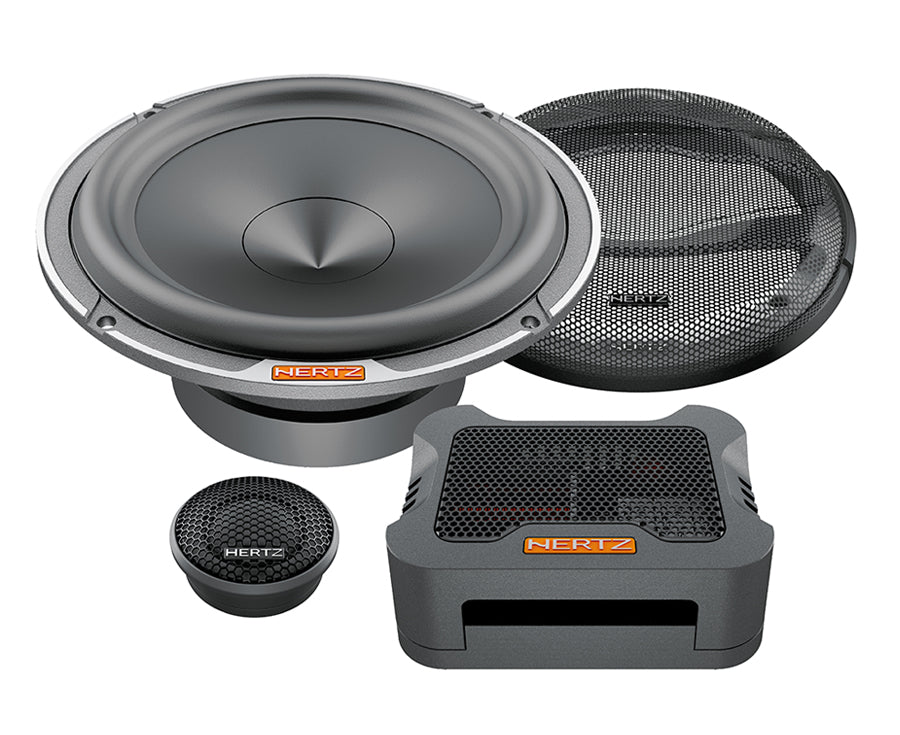

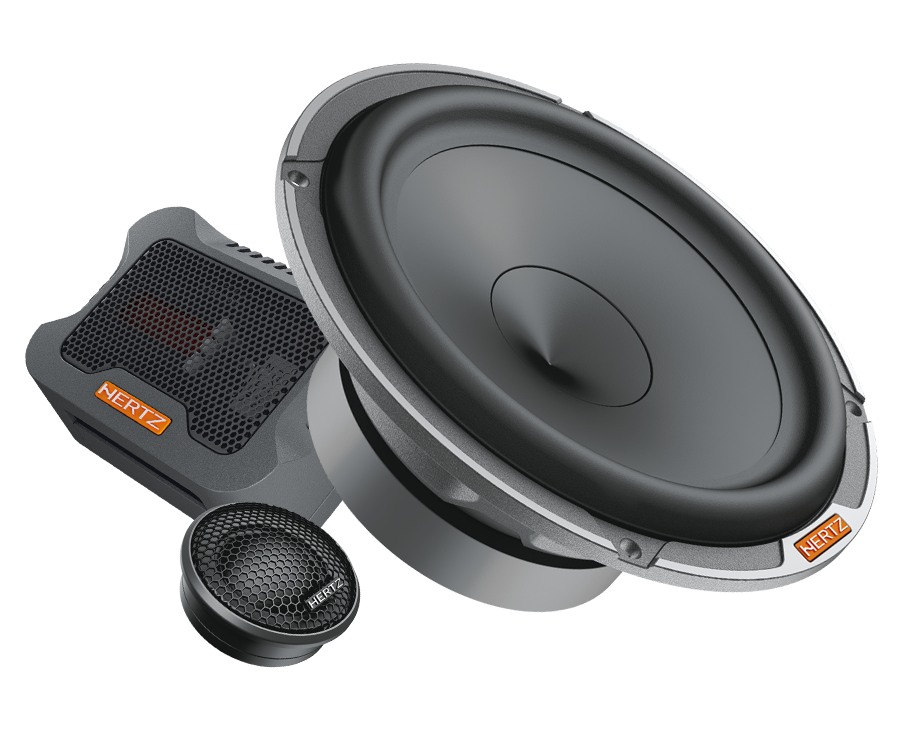

Hertz MPK 165P.3 PRO165 (6.5) mm (in.) | System | 230 W | 3 Ohm
Hertz MPK 165P.3 PRO165 (6.5) mm (in.) | System | 230 W | 3 Ohm
Features:
Technical Specs
Component System
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 115
Power Handling - Peak W 230
Impedance Ohm 3
Tweeter diaphragm mm (in.) 29 (1.14)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 25 (1)
Sensitivity dB SPL 93
Frequency Response Hz 45 ÷ 22,5k
Crossover Cut off 4 kHz
Crossover Type 2 Way Passive Crossover
Weight of one component - Woofer 1.20 (2.65)
Weight of one component - Tweeter kg (lb) 0.07 (0.15)
Weight of one component - Crossover kg (lb) 0.17 (0.37)
Electro-acoustic Specs
D mm 132
Re Ohm 2,6
Fs Hz 75
Le mH 0,28
Vas I 8
Mms g 15,1
Cms mm/N 0,3
BL T*m 5,45
Qts 0,56
Qes 0,63
Qms 5,2
Spl dB 94
