JL Audio

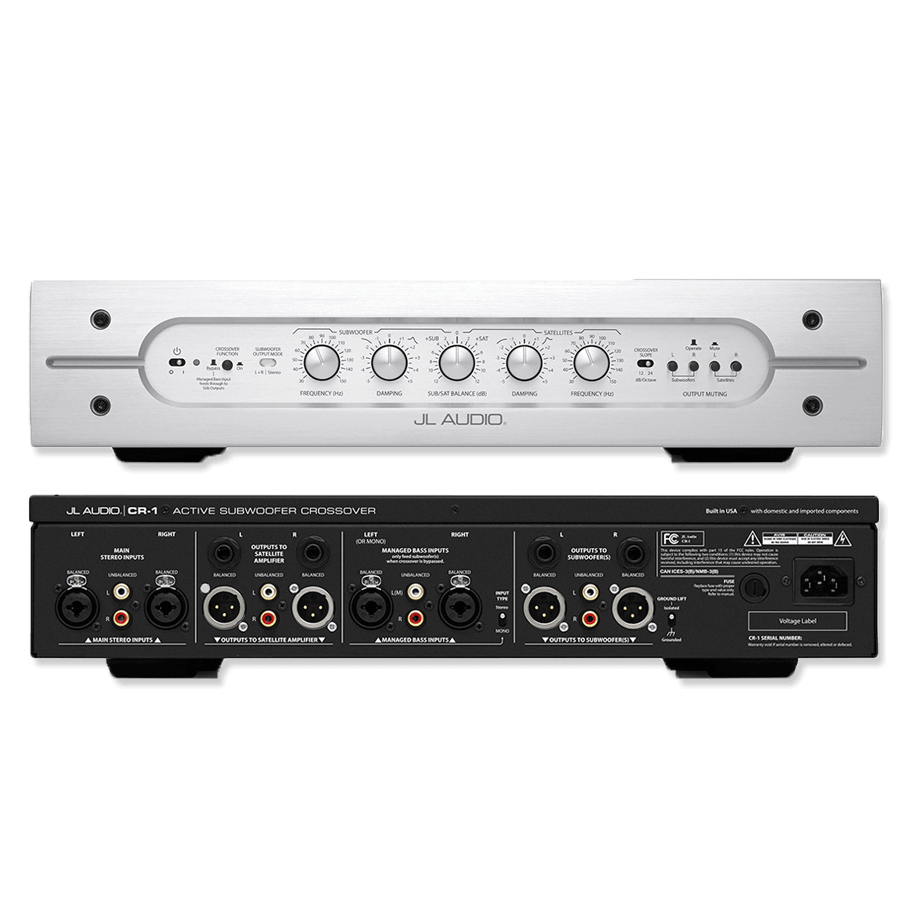

JL Audio Active Subwoofer Crossover

JL Audio Active Subwoofer Crossover

(0)
Regular price $3,500.00
Regular price Sale price $3,500.00
Sale Sold out

Product highlights:

  • Max. Input Voltage 8 Vrms (+18 dBv)
  • Input Impedance Unbalanced: 50 kΩ Balanced: 20 kΩ (10 kΩ per leg)
  • Max. Output Voltage 8 Vrms (+18 dBv)
  • Output Impedance Unbalanced: 150 Ω Balanced: 300 Ω (150 Ω per leg)
  • THD+N < 0.002% at 8 Vrms/10 kΩ20 Hz - 20 kHz, 90 kHz bandwidth
  • Channel Separation >80 dB at 1 kHz
  • Low Pass Frequency Response +0, -1 dB from 5 Hz to 1/4 of filter frequency
  • High Pass Frequency Response +0, -1 dB from 4x filter frequency to 80 kHz
  • Power Consumption 30 Watts (typical, with or without signal)
  • Mains Voltage (Frequency) 120V (60 Hz) or 230/240V (50 Hz or 60 Hz), factory-set for destination country
  • Crossover Function Bypass or On, selectable via front panel switch
  • Subwoofer Output Modes Mono L+R or Stereo, selectable via front panel switch
  • Crossover Frequency Range 30 Hz – 150 Hz, variable with independent high-pass and low-pass filter frequency controls on front panel
  • Subwoofer/Satellite Balance Control +/– 12 dB, fully variable via front panel knob
  • Filter Damping Controls
  • Q: 0.3 - 1.4 @ 12 dB/octave, via front panel knob
  • Q: 0.16 - 4.0 @ 24 dB/octave, via front panel knob
  • For either slope, Q = 0.5 at top dead center “0” mark
  • Filter Slope(s) 12 dB/octave or 24 dB/octave, Linkwitz-Riley selectable via front panel switch
  • Output Muting independent for each output, via front panel push-button switches
  • Ground Lift Isolated/Grounded, via rear panel switch
  • Main Stereo Inputs Unbalanced L/R: (2 RCA jacks)Balanced L/R (2 XLR/TRS combo jacks)
  • Managed Bass Inputs Unbalanced L/R: (2 RCA jacks)Balanced L/R (2 XLR/TRS combo jacks)
  • Satellite Line Outputs Unbalanced (2 RCA jacks)Balanced (2 TRS jacks, 2 XLR jacks)
  • Satellite Line Outputs Unbalanced (2 RCA jacks)Balanced (2 TRS jacks, 2 XLR jacks)
  • Subwoofer Line Outputs Unbalanced L/R: (2 RCA jacks)Balanced L/R: (2 TRS jacks, 2 XLR jacks)
  • MFR #: 96020
